We thank Samuel Ward, Diane C. Shakes and Gregory Nelson for pioneering this technique. We thank Pavan Kadandale and Brian Geldziler for videos showing activated spermatozoa; members of the Singson lab for helpful discussions; CGC for strains and NIH for supporting us through grant (R01HD054681).

1) Enrichment of male population
<ol>
	<li>Depending on the experimental need, large numbers of males can be obtained by employing one of the following strategies:
		<ol>

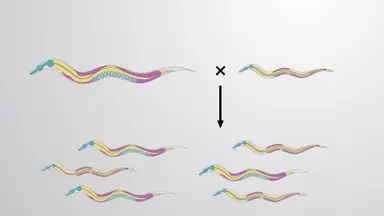

			<li>large population of wild type males can be obtained by crossing 5 wild type males and 1 hermaphrodite on a small lawn of OP50 seeded at the center of NGM plate. Roughly 50% of the succeeding generation will be wild type males.</li>
			<li>him-5(e1490) or him-8(e1489) hermaphrodites throw large number of males. him-5 and him-8 males are fertile and there is no obvious defect in sperm morphology and function. So, him-5 or him-8 males can be used in lieu of wild type males for many experiments.</li>
 </ol>
 </li>
</ol>
2) Identification and isolation of males
<ol>
	<li>Examine the tail morphology of worms; the male worm's tail is rounded.</li>
	<li>Pick L4 stage males and transfer them to a NGM plate seeded with E. coli OP50 and let them grow for a day or two. Growing celibate males in the absence of hermaphrodites prevent the loss of sperm and thus large number of spermatids would be available during experimental procedure.</li>
	<li>On the day of dissection, transfer the celibate males on to a NGM plate without bacteria and let them crawl for few minutes. This step helps to remove small layer of E. coli adhered on the surface of worms. Alternatively, pipette small volume of M9 buffer (6g Na2HPO4, 3g KH2PO4, 5g NaCl, 0.25g MgSO4.7H2O per liter) in a watch glass and transfer males into the buffer.</li>
</ol>
3) Dissection of males and in vitro activation
<ol>
	<li>Take a glass slide and mark a small circle using a pap pen. Pipette 30-50 &mu;l of 1X Sperm Medium (50mM HEPES, 25mM KCl, 45mM NaCl, 1mM MgSO4, 5mM CaCl2, 10mM Dextrose; pH 7.8) within the circle. The hydrophobic circle helps to retain the sperm medium within its boundary.</li>
	<li>Transfer the 5-10 males on to the sperm medium.</li>
	<li>Viewing the slide under microscope, hold two syringes attached with 27 gauge needles on both of your hands.</li>
	<li>Use one needle to 'hold' the worm and use the other needle to cut the posterior end of males to release spermatids.</li>
	<li>Cutting the worm usually expels vast number of spermatids instantaneously. The spermatids are visible as minute 'granules' under the stereo microscope. However, sometimes part or most of the spermatids may be retained within the carcass. In that case, gently 'dragging' the carcass over the glass slide may facilitate the release of spermatids from the carcass.</li>
	<li>To activate the spermatids, dissect the worms in 1X Sperm Medium containing Pronase E(20&mu;g/ml) and let them sit for 5 minutes.</li>
	<li>Do not allow the slides to become dry at any time point of the experiment. Add more 1X Sperm Medium if needed.</li>
</ol>
4) Visualization of spermtids and spermatozoa
<ol>
	<li>Gently place a coverslip on the surface of dissected sample.</li>
	<li>Find the field of spermatids under low magnification (10X)</li>
	<li>Fine details of spermatids or spermatozoa can be observed by moving to higher magnification - usually at 100X oil immersion.</li>
</ol>
5) Representative Results
An example of DIC image of spermatids isolated from male C. elegans is shown in Figure 1. Spermatids are spherical in shape and the nuclei are prominent. In vitro activated sperm are shown in Figure 2.
<img src="/files/ftp_upload/2336/2336fig1.jpg" alt="Figure 1" /> Figure 1. DIC image of C. elegans spermatids.
<img src="/files/ftp_upload/2336/2336fig2.jpg" alt="Figure 2" /> Figure 2. DIC image of in vitro activated C. elegans spermatozoa.

<ol>
	<li>Kimble, J., Crittenden, S. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Controls+of+germline+stem+cells,+entry+into+meiosis,+and+the+Sperm/Oocyte+decision+in+Caenorhabditis+elegans.">Controls of germline stem cells, entry into meiosis, and the Sperm/Oocyte decision in Caenorhabditis elegans.</a> Annual Review of Cell and Developmental Biology. 23, 405-433 (2007).</li><li>Lhernault, S. W., Roberts, T. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Methods in Cell Biology. , 273-301 (1995).</li><li>Hodgkin, J., Horvitz, H., Brenner, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nondisjunction+Mutants+of+the+Nematode+Caenorhabditis+elegans.">Nondisjunction Mutants of the Nematode Caenorhabditis elegans.</a> Genetics. 91, 67-94 (1979).</li><li>Altun, Z. F., Hall, D. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Introduction+to+male+C.+elegans+anatomy.">Introduction to male C. elegans anatomy.</a> WormAtlas. , (2008).</li><li>Shakes, D., Ward, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Initiation+of+spermiogenesis+in+C.+elegans:+a+pharmacological+and+genetic+analysis.">Initiation of spermiogenesis in C. elegans: a pharmacological and genetic analysis.</a> Dev Biol. 134, 189-200 (1989).</li><li>Nelson, G. A., Ward, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Vesicle+fusion,+pseudopod+extension+and+amoeboid+motility+are+induced+in+nematode+spermatids+by+the+ionophore+monensin.">Vesicle fusion, pseudopod extension and amoeboid motility are induced in nematode spermatids by the ionophore monensin.</a> Cell. 19, 457-464 (1980).</li><li>L'Hernault, S. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+genetics+and+cell+biology+of+spermatogenesis+in+the+nematode+C.+elegans.">The genetics and cell biology of spermatogenesis in the nematode C. elegans.</a> Molecular and Cellular Endocrinology. 306, 59-65 (2009).</li><li>Chatterjee, I., Richmond, A., Putiri, E., Shakes, D., Singson, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Caenorhabditis+elegans+spe-38+gene+encodes+a+novel+four-pass+integral+membrane+protein+required+for+sperm+function+at+fertilization.">The Caenorhabditis elegans spe-38 gene encodes a novel four-pass integral membrane protein required for sperm function at fertilization.</a> Development. 132, 2795-2808 (2005).</li><li>Xu, X., Sternberg, P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+C.+elegans+sperm+TRP+protein+required+for+sperm-egg+interactions+during+fertilization.">A C. elegans sperm TRP protein required for sperm-egg interactions during fertilization.</a> Cell. 114, 285-297 (2003).</li><li>Nelson, G., Roberts, T., Ward, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Caenorhabditis+elegans+spermatozoan+locomotion:+amoeboid+movement+with+almost+no+actin.">Caenorhabditis elegans spermatozoan locomotion: amoeboid movement with almost no actin.</a> J Cell Biol. 92, 121-131 (1982).</li><li>Machaca, K., DeFelice, L. J., L'Hernault, S. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+novel+chloride+channel+localizes+to+Caenorhabditis+elegans+spermatids+and+chloride+channel+blockers+induce+spermatid+differentiation.">A novel chloride channel localizes to Caenorhabditis elegans spermatids and chloride channel blockers induce spermatid differentiation.</a> Dev Biol. 176, 1-16 (1996).</li><li>LaMunyon, C., Ward, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Assessing+the+viability+of+mutant+and+manipulated+sperm+by+artificial+insemination+of+Caenorhabditis+elegans.">Assessing the viability of mutant and manipulated sperm by artificial insemination of Caenorhabditis elegans.</a> Genetics. 138, 689-692 (1994).</li></ol>

No conflicts of interest declared.

In addition to analyzing Spe mutants, this protocol has other important applications, such as analyzing sperm morphology with aging. Spermatids and spermatozoa isolated using this protocol can be used in other downstream experiments such as, immunostaining of wild type and mutant sperm8, 9, motility of sperm on slides10, physiological measurements9, 11, or even artificial insemination12.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">

		<div>
		<table border="1">
		<thead>
		<tr>
		<th>Material Name</th>
		<th>Type</th>
		<th>Company</th>
		<th>Catalogue Number</th>
		<th>Comment</th>
		</tr>
		</thead>
		<tbody>

<tr>
<td>Tuberculin syringe</td>
<td>&nbsp;</td>
<td>Becton Dickinson</td>
<td>309623</td>
<td>Syringe: 1 ml, needle: 27G X &frac12; in</td>
</tr>
<tr>
<td>Pap pen</td>
<td>&nbsp;</td>
<td>Zymed</td>
<td>00-8888</td>
<td>&nbsp;</td>
<tr>
<td>VWR VistaVision HistoBond Microscope Slides</td>
<td>&nbsp;</td>
<td>VWR International</td>
<td>16004-406</td>
<td>Dimension: 75X25X1mm</td>
</tr>
<tr>
<td>Cover glass</td>
<td>&nbsp;</td>
<td>VWR International</td>
<td>48366045</td>
<td>&nbsp;</td>
<tr>
<td>Protease</td>
<td>&nbsp;</td>
<td>Sigma</td>
<td>P-6911</td>
<td>&nbsp;</td>		</tbody>
		</table>
		</div>

isolation and in vitro activation of caenorhabditis elegans sperm

Males and hermaphrodites are the two naturally found sexual forms in the nematode C. elegans. The amoeboid sperm are produced by both males and hermaphrodites. In the earlier phase of gametogenesis, the germ cells of hermaphrodites differentiate into limited number of sperm - around 300 - and are stored in a small 'bag' called the spermatheca. Later on, hermaphrodites continually produce oocytes1. In contrast, males produce exclusively sperm throughout their adulthood. The males produce so much sperm that it accounts for &gt;50% of the total cells in a typical adult worm2. Therefore, isolating sperm from males is easier than from that of hermaphrodites.
Only a small proportion of males are naturally generated due to spontaneous non-disjunction of X chromosome3. Crossing hermaphrodites with males or more conveniently, the introduction of mutations to give rise to Him (High Incidence of Males) phenotype are some of strategies through which one can enrich the male population3.
Males can be easily distinguished from hermaphrodites by observing the tail morphology4. Hermaphrodite's tail is pointed, whereas male tail is rounded with mating structures.
Cutting the tail releases vast number of spermatids stored inside the male reproductive tract. Dissection is performed under a stereo microscope using 27 gauge needles. Since spermatids are not physically connected with any other cells, hydraulic pressure expels internal contents of male body, including spermatids2.
Males are directly dissected on a small drop of 'Sperm Medium'. Spermatids are sensitive to alteration in the pH. Hence, HEPES, a compound with good buffering capacity is used in sperm media. Glucose and other salts present in sperm media help maintain osmotic pressure to maintain the integrity of sperm.
Post-meiotic differentiation of spermatids into spermatozoa is termed spermiogenesis or sperm activation. Shakes5, and Nelson6 previously showed that round spermatids can be induced to differentiate into spermatozoa by adding various activating compounds including Pronase E. Here we demonstrate in vitro spermiogenesis of C. elegans spermatids using Pronase E.
Successful spermiogenesis is pre-requisite for fertility and hence the mutants defective in spermiogenesis are sterile. Hitherto several mutants have been shown to be defective specifically in spermiogenesis process7. Abnormality found during in vitro activation of novel Spe (Spermatogenesis defective) mutants would help us discover additional players participating in this event.

Watch this Scientific Journal Video about Isolation and In vitro Activation of Caenorhabditis elegans Sperm at JoVE.com

Isolation and In vitro Activation of Caenorhabditis elegans Sperm

A protocol for isolating and activating spermatids from male C. elegans is described here. Cutting the posterior end of male releases spermatids. The spermatids can be activated by addition of protease.
