This work was supported by the National Institutes of Health (NIH) Grant no. R01 GM-130934 and National Science Foundation (NSF) Grant MCB- 2016022. B.N.C, E.J.D.V., and K.S.C. were supported in part by a grant from the National Institute of General Medical Sciences under award T32 GM119999.

NOTE: Forming supported lipid bilayers requires the preparation of monodispersed small unilamellar vesicles (SUVs). Please refer to a previously published protocol24 on SUV formation. Briefly, all SUVs are formed by probe sonication for 12 min in total at 70% amplitude via 4 min sonication periods followed by 2 min rest periods in ice-water. SUV solutions must be well clarified and monodispersed in size. Size distributions of SUVs can be measured, for example, by dynamic light scattering<sup class...

<ol>
	<li>Zimmerberg, J., Kozlov, M. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=How+proteins+produce+cellular+membrane+curvature.">How proteins produce cellular membrane curvature.</a> Nature Reviews Molecular Cell Biology. 7 (1), 9-19 (2006).</li><li>Parthasarathy, R., Groves, J. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Curvature+and+spatial+organization+in+biological+membranes.">Curvature and spatial organization in biological membranes.</a> Soft Matter. 3 (1), 24-33 (2007).</li><li>Mao, Y., Baum, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tug+of+war-The+influence+of+opposing+physical+forces+on+epithelial+cell+morphology.">Tug of war-The influence of opposing physical forces on epithelial cell morphology.</a> Developmental Biology. 401 (1), 92-102 (2015).</li><li>Ranganathan, R., Alshammri, I., Peric, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Lipid+organization+in+mixed+lipid+membranes+driven+by+intrinsic+curvature+difference.">Lipid organization in mixed lipid membranes driven by intrinsic curvature difference.</a> Biophysical Journal. 118 (8), 1830-1837 (2020).</li><li>Bigay, J., Casella, J. -. F., Drin, G., Mesmin, B., Antonny, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=ArfGAP1+responds+to+membrane+curvature+through+the+folding+of+a+lipid+packing+sensor+motif.">ArfGAP1 responds to membrane curvature through the folding of a lipid packing sensor motif.</a> The EMBO Journal. 24 (13), 2244-2253 (2005).</li><li>Bridges, A. A., Jentzsch, M. S., Oakes, P. W., Occhipinti, P., Gladfelter, A. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Micron-scale+plasma+membrane+curvature+is+recognized+by+the+septin+cytoskeleton.">Micron-scale plasma membrane curvature is recognized by the septin cytoskeleton.</a> Journal of Cell Biology. 213 (1), 5-6 (2016).</li><li>Picard, F., Paquet, M. -. J., Dufourc, &. #. 2. 0. 1. ;. J., Auger, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Measurement+of+the+lateral+diffusion+of+dipalmitoylphosphatidylcholine+adsorbed+on+silica+beads+in+the+absence+and+presence+of+melittin:+A+31P+two-dimensional+exchange+solid-state+NMR+study.">Measurement of the lateral diffusion of dipalmitoylphosphatidylcholine adsorbed on silica beads in the absence and presence of melittin: A 31P two-dimensional exchange solid-state NMR study.</a> Biophysical Journal. 74 (2), 857-868 (1998).</li><li>Fu, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Spherical+nanoparticle+supported+lipid+bilayers+for+the+structural+study+of+membrane+geometry-sensitive+molecules.">Spherical nanoparticle supported lipid bilayers for the structural study of membrane geometry-sensitive molecules.</a> Journal of the American Chemical Society. 137 (44), 14031-14034 (2015).</li><li>Vanni, S., Hirose, H., Barelli, H., Antonny, B., Gautier, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+sub-nanometre+view+of+how+membrane+curvature+and+composition+modulate+lipid+packing+and+protein+recruitment.">A sub-nanometre view of how membrane curvature and composition modulate lipid packing and protein recruitment.</a> Nature Communications. 5 (1), 4916 (2014).</li><li>Gill, R. L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Structural+basis+for+the+geometry-driven+localization+of+a+small+protein.">Structural basis for the geometry-driven localization of a small protein.</a> Proceedings of the National Academy of Sciences. 112 (15), 1908-1915 (2015).</li><li>Pan, J., Dalzini, A., Song, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cholesterol+and+phosphatidylethanolamine+lipids+exert+opposite+effects+on+membrane+modulations+caused+by+the+M2+amphipathic+helix.">Cholesterol and phosphatidylethanolamine lipids exert opposite effects on membrane modulations caused by the M2 amphipathic helix.</a> Biochimica et Biophysica Acta (BBA) - Biomembranes. 1861 (1), 201-209 (2019).</li><li>Beckers, D., Urbancic, D., Sezgin, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Impact+of+nanoscale+hindrances+on+the+relationship+between+lipid+packing+and+diffusion+in+model+membranes.">Impact of nanoscale hindrances on the relationship between lipid packing and diffusion in model membranes.</a> The Journal of Physical Chemistry B. 124 (8), 1487-1494 (2020).</li><li>Lee, A. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Stochasticity+and+positive+feedback+enable+enzyme+kinetics+at+the+membrane+to+sense+reaction+size.">Stochasticity and positive feedback enable enzyme kinetics at the membrane to sense reaction size.</a> Proceedings of the National Academy of Sciences. 118 (47), 2103626118 (2021).</li><li>Ferhan, A. R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nanoplasmonic+sensing+architectures+for+decoding+membrane+curvature-dependent+biomacromolecular+interactions.">Nanoplasmonic sensing architectures for decoding membrane curvature-dependent biomacromolecular interactions.</a> Analytical Chemistry. 90 (12), 7458-7466 (2018).</li><li>Beber, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Membrane+reshaping+by+micrometric+curvature+sensitive+septin+filaments.">Membrane reshaping by micrometric curvature sensitive septin filaments.</a> Nature Communications. 10 (1), 420 (2019).</li><li>Lou, H. -. Y., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Membrane+curvature+underlies+actin+reorganization+in+response+to+nanoscale+surface+topography.">Membrane curvature underlies actin reorganization in response to nanoscale surface topography.</a> Proceedings of the National Academy of Sciences. 116 (46), 23143-23151 (2019).</li><li>Bridges, A. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Septin+assemblies+form+by+diffusion-driven+annealing+on+membranes.">Septin assemblies form by diffusion-driven annealing on membranes.</a> Proceedings of the National Academy of Sciences. 111 (6), 2146-2151 (2014).</li><li>Cannon, K. S., Woods, B. L., Crutchley, J. M., Gladfelter, A. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+amphipathic+helix+enables+septins+to+sense+micrometer-scale+membrane+curvature.">An amphipathic helix enables septins to sense micrometer-scale membrane curvature.</a> Journal of Cell Biology. 218 (4), 1128-1137 (2019).</li><li>Johnson, J. M., Ha, T., Chu, S., Boxer, S. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Early+steps+of+supported+bilayer+formation+probed+by+single+vesicle+fluorescence+assays.">Early steps of supported bilayer formation probed by single vesicle fluorescence assays.</a> Biophysical Journal. 83 (6), 3371-3379 (2002).</li><li>Lobato-M&#225;rquez, D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mechanistic+insight+into+bacterial+entrapment+by+septin+cage+reconstitution.">Mechanistic insight into bacterial entrapment by septin cage reconstitution.</a> Nature Communications. 12 (1), 4511 (2021).</li><li>Gladfelter, A. S., Pringle, J. R., Lew, D. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+septin+cortex+at+the+yeast+mother-bud+neck.">The septin cortex at the yeast mother-bud neck.</a> Current Opinion in Microbiology. 4 (6), 681-689 (2001).</li><li>Ong, K., Wloka, C., Okada, S., Svitkina, T., Bi, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Architecture+and+dynamic+remodelling+of+the+septin+cytoskeleton+during+the+cell+cycle.">Architecture and dynamic remodelling of the septin cytoskeleton during the cell cycle.</a> Nature Communications. 5, 1-10 (2014).</li><li>Bertin, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Phosphatidylinositol-4,5-bisphosphate+promotes+budding+yeast+septin+filament+assembly+and+organization.">Phosphatidylinositol-4,5-bisphosphate promotes budding yeast septin filament assembly and organization.</a> Journal of Molecular Biology. 404 (4), 711-731 (2010).</li><li>Bridges, A. A., Gladfelter, A. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=In+vitro+reconstitution+of+septin+assemblies+on+supported+lipid+bilayers.">In vitro reconstitution of septin assemblies on supported lipid bilayers.</a> Methods in Cell Biology. 136, 57-71 (2016).</li><li>Hupfeld, S., Hols&#230;ter, A. M., Skar, M., Frantzen, C. B., Brandl, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Liposome+size+analysis+by+dynamic/static+light+scattering+upon+size+exclusion-/field+flow-fractionation.">Liposome size analysis by dynamic/static light scattering upon size exclusion-/field flow-fractionation.</a> Journal of Nanoscience and Nanotechnology. 6 (9), 3025-3031 (2006).</li><li>Johnson, D. S., Jaiswal, J. K., Simon, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Total+internal+reflection+fluorescence+(TIRF)+microscopy+illuminator+for+improved+imaging+of+cell+surface+events.">Total internal reflection fluorescence (TIRF) microscopy illuminator for improved imaging of cell surface events.</a> Current Protocols in Cytometry. (1), Chapter 12, Unit 12.29 (2012).</li><li>Gidi, Y., Bayram, S., Ablenas, C. J., Blum, A. S., Cosa, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Efficient+one-step+PEG-silane+passivation+of+glass+surfaces+for+single-molecule+fluorescence+studies.">Efficient one-step PEG-silane passivation of glass surfaces for single-molecule fluorescence studies.</a> ACS Applied Materials &amp; Interfaces. 10 (46), 39505-39511 (2018).</li><li>Woods, B. L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Biophysical+properties+governing+septin+assembly.">Biophysical properties governing septin assembly.</a> bioRxiv. , (2021).</li><li>Cannon, K. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+gene+duplication+of+a+septin+provides+a+developmentally-regulated+filament+length+control+mechanism.">A gene duplication of a septin provides a developmentally-regulated filament length control mechanism.</a> bioRxiv. , (2021).</li><li>Pincet, F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=FRAP+to+characterize+molecular+diffusion+and+interaction+in+various+membrane+environments.">FRAP to characterize molecular diffusion and interaction in various membrane environments.</a> PLOS One. 11 (7), 0158457 (2016).</li><li>Reimhult, E., H&#246;&#246;k, F., Kasemo, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Intact+vesicle+adsorption+and+supported+biomembrane+formation+from+vesicles+in+solution:+Influence+of+surface+chemistry,+vesicle+size,+temperature,+and+osmotic+pressure.">Intact vesicle adsorption and supported biomembrane formation from vesicles in solution: Influence of surface chemistry, vesicle size, temperature, and osmotic pressure.</a> Langmuir. 19 (5), 1681-1691 (2003).</li><li>Cha, T., Guo, A., Zhu, X. -. Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Formation+of+supported+phospholipid+bilayers+on+molecular+surfaces:+Role+of+surface+charge+density+and+electrostatic+interaction.">Formation of supported phospholipid bilayers on molecular surfaces: Role of surface charge density and electrostatic interaction.</a> Biophysical Journal. 90 (4), 1270-1274 (2006).</li><li>Andrews, J. T., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Formation+of+supported+lipid+bilayers+(SLBs)+from+buffers+containing+low+concentrations+of+group+I+chloride+salts.">Formation of supported lipid bilayers (SLBs) from buffers containing low concentrations of group I chloride salts.</a> Langmuir. 37 (44), 12819-12833 (2021).</li><li>Gurtovenko, A. A., Vattulainen, I. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effect+of+NaCl+and+KCl+on+phosphatidylcholine+and+phosphatidylethanolamine+lipid+membranes:+Insight+from+atomic-scale+simulations+for+understanding+salt-induced+effects+in+the+plasma+membrane.">Effect of NaCl and KCl on phosphatidylcholine and phosphatidylethanolamine lipid membranes: Insight from atomic-scale simulations for understanding salt-induced effects in the plasma membrane.</a> The Journal of Physical Chemistry B. 112 (7), 1953-1962 (2008).</li><li>Danuser, G., Waterman-Storer, C. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Quantitative+fluorescent+speckle+microscopy+of+cytoskeleton+dynamics.">Quantitative fluorescent speckle microscopy of cytoskeleton dynamics.</a> Annual Review of Biophysics and Biomolecular Structure. 35 (1), 361-387 (2006).</li><li>Chan, Y. -. H. M., Boxer, S. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Model+membrane+systems+and+their+applications.">Model membrane systems and their applications.</a> Current Opinion in Chemical Biology. 11 (6), 581-587 (2007).</li></ol>

The authors have no conflicts of interest.

Cell membranes take on many different shapes, curvatures, and physicochemical properties. In order to study the nanometer-scale machinery through which cells build micrometer-scale assemblies, it is necessary to design minimal reconstitution systems of membrane mimetics. This protocol presents techniques that precisely control both membrane curvature and composition while allowing the user to easily take quantitative fluorescence measurements using widely available microscopy techniques.
The m...

The shapes of cells and many of their internal compartments are dependent on the lipid membranes that surround them. Membranes are viscoelastic structures that can be deformed through interactions with proteins, lipid sorting, and acting internal and external forces to generate a variety of shapes1,2,3,4. These shapes are often described in terms of membrane curvature. Cells use a diverse suite of proteins capable of preferentially assembling onto, or &#34;sensing&#34;, particular membrane curvatures to ensure defined spatio-temporal control over processes including cell trafficking, cytokinesis, and migration5,6. The dynamics of cell machinery at the membrane are notably difficult to observe due to the difficulty of balancing time and spatial resolution with cell health. While super-resolution techniques can offer a detailed view of such structures, they require lengthy acquisitions that are not amenable to the timescales of assembly/disassembly for most machinery. Additionally, the molecular complexity of these assemblies in their native environment and the multitude of roles a single component can play make minimal reconstitution systems a valuable tool for studying the functional capacity of molecules.
Minimal membrane mimetics have been developed to study membrane properties and protein-membrane interactions outside of the cell. Membrane mimetics vary from free-standing lipid bilayers, such as liposomes or giant unilamellar vesicles, to supported lipid bilayers (SLBs)7,8,9,10. SLBs are biomimetic membranes anchored to underlying support, typically composed of glass, mica, or silica11,12.&#160;A variety of geometries can be used, including planar surfaces, spheres, rods, and even undulating or micropatterned substrates to probe protein-membrane interactions on both concave and convex curvatures simultaneously13,14,15,16,17,18. Bilayer formation begins with vesicle adsorption onto a hydrophilic surface, followed by fusion and rupture to form a continuous bilayer (Figure 1)19. Supported bilayers are particularly amenable to light and electron microscopy, providing both better time and spatial resolution than is often achievable in cells. Curved SLBs especially provide an attractive means to probe protein curvature sensitivity in the absence of significant membrane deformation, allowing one to distinguish between curvature sensing and curvature induction, which are often impossible to separate in free-standing systems.
Septins are a class of filament-forming cytoskeletal proteins well known for their ability to assemble on positively curved membranes6,18,20. Over the course of the cell cycle in yeast, septins assemble into a ring and must rearrange to form the hourglass and double ring structures associated with bud emergence and cytokinesis, respectively21. While beautiful work has been done using platinum replica electron microscopy to observe septin architecture at varying cell cycle stages22, watching septin assembly over time using light microscopy in yeast has met with limited spatial resolution. Previous work on septins using lipid monolayers visualized by transmission electron microscopy (TEM) was able to reconstitute several interesting septin structures such as rings, bundles, and gauzes23. However, EM techniques are likewise limited in their temporal resolution, unlike fluorescence microscopy. In order to better resolve the kinetic parameters of the multi-scale process of septin assembly, we turned to supported membrane mimetics, where one can carefully control membrane geometry, sample conditions, and imaging modality.
The protocols described here use planar or curved SLBs, purified protein, and a combination of microscopy techniques. Quantitative fluorescence confocal microscopy and total internal reflection fluorescence microscopy (TIRFM) were used to measure both bulk protein binding onto various membrane curvatures, as well as to measure the binding kinetics of single molecules. Furthermore, this protocol has been adapted to be used with scanning electron microscopy (SEM) to examine protein ultrastructure on different membrane curvatures. While the focus of these protocols is on the septin cytoskeleton, the protocols can be easily modified to investigate the curvature sensitivity of any protein the reader finds interesting. Additionally, those working in fields such as endocytosis or vesicular trafficking may find these techniques useful for probing the curvature-dependent assemblies of multi-protein complexes.

<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>0.2 mL PCR Tubes with flat cap, Natural</td>
			<td>Watson</td>
			<td>137-211C(EX)</td>
			<td></td>
		</tr>
		<tr>
			<td>0.5 mL low adhesion tubes</td>
			<td>USA Scientific</td>
			<td>1405-2600</td>
			<td></td>
		</tr>
		<tr>
			<td>Beta mercaptoethanol (BME)</td>
			<td>Sigma-Aldrich</td>
			<td>M6250-100ML</td>
			<td></td>
		</tr>
		<tr>
			<td>Bovine Serum Albumin (BSA)</td>
			<td>Sigma-Aldrich</td>
			<td>A4612-25G</td>
			<td></td>
		</tr>
		<tr>
			<td>Coverglass for making PEGylated coverslips</td>
			<td>Thermo Scientific</td>
			<td>152450</td>
			<td>Richard-Allan Scientific SLIP-RITE Cover Glass 24x50 #1.5</td>
		</tr>
		<tr>
			<td>DOPC</td>
			<td>Avanti Polar Lipids</td>
			<td>850375</td>
			<td></td>
		</tr>
		<tr>
			<td>Egg Liss Rhodamine PE</td>
			<td>Avanti Polar Lipids</td>
			<td>810146</td>
			<td></td>
		</tr>
		<tr>
			<td>EMS Glutaraldehyde Aqueous 25%, EM Grade</td>
			<td>VWR</td>
			<td>16220</td>
			<td></td>
		</tr>
		<tr>
			<td>EMS Sodium Cacodylate Buffer</td>
			<td>VWR</td>
			<td>11652</td>
			<td></td>
		</tr>
		<tr>
			<td>Ethanol, 200 proof</td>
			<td>Fisher Scientific</td>
			<td>04-355-223EA</td>
			<td></td>
		</tr>
		<tr>
			<td>HEPES</td>
			<td>Sigma Aldrich</td>
			<td>H3375-1KG</td>
			<td></td>
		</tr>
		<tr>
			<td>Hexamethyldisilazane</td>
			<td>Sigma-Aldrich</td>
			<td>440191</td>
			<td></td>
		</tr>
		<tr>
			<td>Magnesium chloride</td>
			<td>VWR</td>
			<td>7791-18-6</td>
			<td></td>
		</tr>
		<tr>
			<td>Methyl cellulose 4000cp</td>
			<td>Sigma-Aldrich</td>
			<td>M052-100G</td>
			<td></td>
		</tr>
		<tr>
			<td>Microglass coverslips for planar bilayers</td>
			<td>Matsunami</td>
			<td>Discontinued</td>
			<td>22x22</td>
		</tr>
		<tr>
			<td>Mini centrifuge</td>
			<td></td>
			<td></td>
			<td></td>
		</tr>
		<tr>
			<td>Non-Functionalized Silica Microspheres</td>
			<td>Bangs Laboratories, Inc.</td>
			<td>Depends on size: SS0200*-SS0500*</td>
			<td>Silica in aqueous suspension</td>
		</tr>
		<tr>
			<td>Optical Adhesive</td>
			<td>Norland Thorlabs</td>
			<td>NOA 68</td>
			<td>Flexible adhesive for glass or plastics</td>
		</tr>
		<tr>
			<td>Osmium tetroxide</td>
			<td>Millipore Sigma</td>
			<td>20816-12-0</td>
			<td></td>
		</tr>
		<tr>
			<td>Parafilm</td>
			<td>VWR</td>
			<td>52858-000</td>
			<td></td>
		</tr>
		<tr>
			<td>Plasma Cleaner</td>
			<td>Plasma Etch</td>
			<td>PE-25</td>
			<td>Voltage: 120V, 60Hz. Current: 15 AMPS</td>
		</tr>
		<tr>
			<td>Potassium chloride</td>
			<td>VWR</td>
			<td>0395-1kg</td>
			<td></td>
		</tr>
		<tr>
			<td>Round coverglass, #1.5 12mm&#160;&#160;</td>
			<td>VWR</td>
			<td>64-0712</td>
			<td></td>
		</tr>
		<tr>
			<td>Sonicator bath</td>
			<td>Branson</td>
			<td>1510R-MT</td>
			<td>Bransonic Ultrasonic cleaner. 50-60 Hz. Output: 70W</td>
		</tr>
		<tr>
			<td>Soy PI</td>
			<td>Avanti Polar Lipids</td>
			<td>840044</td>
			<td></td>
		</tr>
		<tr>
			<td>Tabletop centrifuge</td>
			<td>Eppendorf</td>
			<td>22331</td>
			<td></td>
		</tr>
		<tr>
			<td>UV Lamp</td>
			<td>Spectroline</td>
			<td>ENF-260C</td>
			<td>115 Volts, 60 Hz, 0.20 AMPS</td>
		</tr>
		<tr>
			<td>WhatmanGlass Microfiber Filter Paper</td>
			<td>VWR</td>
			<td>28455-030</td>
			<td>42.5 mm diameter, Grade GF/C</td>
		</tr>
	</tbody>
</table>

reconstitution of septin assembly at membranes to study biophysical properties and functions

Most cells can sense and change their shape to carry out fundamental cell processes. In many eukaryotes, the septin cytoskeleton is an integral component in coordinating shape changes like cytokinesis, polarized growth, and migration. Septins are filament-forming proteins that assemble to form diverse higher-order structures and, in many cases, are found in different areas of the plasma membrane, most notably in regions of micron-scale positive curvature. Monitoring the process of septin assembly in vivo is hindered by the limitations of light microscopy in cells, as well as the complexity of interactions with both membranes and cytoskeletal elements, making it difficult to quantify septin dynamics in living systems. Fortunately, there has been substantial progress in the past decade in reconstituting the septin cytoskeleton in a cell-free system to dissect the mechanisms controlling septin assembly at high spatial and temporal resolutions. The core steps of septin assembly include septin heterooligomer association and dissociation with the membrane, polymerization into filaments, and the formation of higher-order structures through interactions between filaments. Here, we present three methods to observe septin assembly in different contexts: planar bilayers, spherical supports, and rod supports. These methods can be used to determine the biophysical parameters of septins at different stages of assembly: as single octamers binding the membrane, as filaments, and as assemblies of filaments. We use these parameters paired with measurements of curvature sampling and preferential adsorption to understand how curvature sensing operates at a variety of length and time scales.

Following the preparation of each SLB, septins or the protein of interest may be incubated with the desired support and imaged via TIRFM, confocal microscopy, or SEM. The results shown here use septins recombinantly expressed and purified from E. coli17. Using TIRFM on planar SLBs, it is possible to determine the length of filaments and their flexibility, measure the diffusion coefficients and observe assembly over time28,29. In o...

Watch this Scientific Journal Video about Reconstitution of Septin Assembly at Membranes to Study Biophysical Properties and Functions at JoVE.com

Reconstitution of Septin Assembly at Membranes to Study Biophysical Properties and Functions

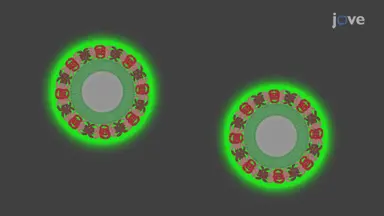

Cell-free reconstitution has been a key tool to understand the cytoskeleton assembly, and work in the last decade has established approaches to study septin dynamics in minimal systems. Presented here are three complementary methods to observe septin assembly in different membrane contexts: planar bilayers, spherical supports, and rod supports.

Most cells can sense and change their shape to carry out fundamental cell processes. In many eukaryotes, the septin cytoskeleton is an integral component ...

This protocol will guide those working on membrane binding proteins to determine how membrane shape plays a role in the organization of protein assemblies. The primary advantage of this technique is its versatility for protein type, membrane composition, and membrane geometry. It also allows interrogation of how a lipid bilayer can alter properties of associated proteins.To identify a good membrane for the experiment, we suggest establishing a checklist that might include lipid diffusion rates, mobility of the protein of interest, and whether there are unburst liposomes or fused liposomes stuck to the surface. To begin plasma cleaning of the slides, purge the plasma cleaner for five minutes with oxygen to remove air from the lines and chamber. Arrange dry cover glass slides into a ceramic cradle.While purging, stream an inert gas over the micro cover glass slides to remove dust and particulates. Place the cradle at the back of the plasma chamber so that the coverslips are parallel with the long edge of the chamber. Run the plasma cleaner for 15 minutes with oxygen at maximum power.For chamber preparation, cut off the cap just below the frosted part of a 0.2 milliliter PCR tube. Paint the rim of the PCR tube with UV-activated adhesive avoiding the inside of the tube. Gently place the PCR tube glue down in the center of a plasma cleaned coverslip, then place the chamber under long wavelength UV light for five to seven minutes to cure the adhesive.To form a bilayer, add the reagents to the well. Gently shake the chambers from side to side to disrupt the SUVs and then incubate at 37 degrees Celsius for 20 minutes. After incubation, rinse the bilayer six times with 150 microliters of SLBB by pipetting to wash away excess lipids, then wash the bilayer six times with 150 microliters of reaction buffer before incubating with the septins.On the last wash step, remove the reaction buffer, leaving 75 microliters in the well. Add 25 microliters of septins diluted in SSB and image by TIRF microscopy. First, vortex the bottle containing silica microspheres for 15 seconds, then bath sonicate for one minute and vortex again for 15 seconds to break any clusters.Mix the beads with SLBB and 10 microliters of five millimolar SUVs in a low adhesion microcentrifuge tube. Incubate the bead lipid mixture for one hour at room temperature on a shaker to prevent sedimentation. In the meantime, thaw a pegylated coverslip and glue a cut 0.2 milliliter PCR tube to it.After incubation, centrifuge the beads for 30 seconds at the designated RCF. After the first spin, remove 50 microliters of supernatant, then add 200 microliters of PRB and mix by vigorous pipetting. For the next rounds, remove 200 microliters of PRB and add another 200 microliters after the second and third spin and add 220 microliters of PRB after the fourth spin.If doing a competition assay with multiple bead sizes, prepare the reaction by mixing equal volumes of each bead size and diluting 29 microliters of this bead mixture with 721 microliters of reaction buffer, then add 75 microliters of diluted beads and 25 microliters of the protein diluted in SSB to the wells and mix. If measuring septins at a steady state, incubate the mixture at room temperature for one hour and then image by either near TIRF or confocal microscopy. TIRF micrographs of planar SLBs incubated with septins shown in green showed homogeneous protein distribution.SLBs made with poorly cleaned glass coverslips showed holes or gaps in the bilayer in regions of low septin. Unburst and tubulated liposomes may accumulate on the surface if old liposomes are used or if washes are not stringent. In micrographs of lipid-coated microspheres visualized using rhodamine PE showed smooth bilayer deposition.The spherical supports were evenly coated by the membrane and there were few bead clusters. Insufficient washing of excess lipids caused uneven membrane coating as observed by lipid clumps and improper handling caused gaps in the bilayer. Insufficient mixing of beads caused clumping which is not ideal for measuring the total protein absorption.Using the supported lipid bilayers presented here, other methods such as fluorescence lifetime imaging microscopy, mass cytometry of membranes, and high-speed atomic force microscopy can be performed to examine different protein-protein or protein-membrane dynamics.
