Name: a facile and eco-friendly route to fabricate poly(lactic acid) scaffolds with graded pore size
Uploaded: 2016-10-17T13:00:00
Description: Watch this Scientific Journal Video about A Facile and Eco-friendly Route to Fabricate PolyLactic Acid Scaffolds with Graded Pore Size at JoVE.com

This work was financially supported by INSTM.

1. Scaffold Fabrication
<ol>
	<li>Grind NaCl in a laboratory blender for 20 min and dry it on a heater at 100 &#176;C.</li>
	<li>Put the dried NaCl (45 g at time) in a sieving machine for 30 minutes at the highest available frequency without occurring in resonance. Collect six salt fractions, ranging from 500 &#181;m to 1000 &#181;m (M 500); from 300 &#181;m to 500 &#181;m (M 300); from 100 &#181;m to 200 &#181;m (M 100); from 90 &#181;m to 100 (M 90); from 45 &#181;m to 65 &#181;m (M 45) and finally M 10 with salt par...

<ol>
	<li>Scaffaro, R., Morreale, M., Lo Re, G., Mantia, F. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=La+Degradation+of+Mater-Bi&#174;/wood+flour+biocomposites+in+active+sewage+sludge.">La Degradation of Mater-Bi&#174;/wood flour biocomposites in active sewage sludge.</a> Polymer Degradation and Stability. 94 (8), 1220-1229 (2009).</li><li>Scaffaro, R., Botta, L., Passaglia, E., Oberhauser, W., Frediani, M., Di Landro, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Comparison+of+different+processing+methods+to+prepare+poly(lactid+acid)-hydrotalcite+composites.">Comparison of different processing methods to prepare poly(lactid acid)-hydrotalcite composites.</a> Polymer Engineering &amp; Science. 54 (8), 1804-1810 (2014).</li><li>Thakur, V. K., Thakur, M. K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Recent+advances+in+graft+copolymerization+and+applications+of+chitosan:+A+review.">Recent advances in graft copolymerization and applications of chitosan: A review.</a> ACS Sustainable Chemistry and Engineering. 2 (12), 2637-2652 (2014).</li><li>Thakur, V. K., Thakur, M. K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Recent+advances+in+green+hydrogels+from+lignin:+A+review.">Recent advances in green hydrogels from lignin: A review.</a> International Journal of Biological Macromolecules. 72, 834-847 (2015).</li><li>Thakur, V. K., Kessler, M. R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Self-healing+polymer+nanocomposite+materials:+A+review.">Self-healing polymer nanocomposite materials: A review.</a> Polymer. 69, 369-383 (2015).</li><li>Thakur, V. K., Thakur, M. K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Recent+trends+in+hydrogels+based+on+psyllium+polysaccharide:+a+review.">Recent trends in hydrogels based on psyllium polysaccharide: a review.</a> Journal of Cleaner Production. 82, 1-15 (2014).</li><li>Voicu, S. I., Condruz, R. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sericin+Covalent+Immobilization+onto+Cellulose+Acetate+Membrane+for+Biomedical+Applications.">Sericin Covalent Immobilization onto Cellulose Acetate Membrane for Biomedical Applications.</a> ACS Sustainable Chemistry &amp; Engineering. 4 (3), 1765-1774 (2016).</li><li>Scaffaro, R., Botta, L., Sanfilippo, M., Gallo, G., Palazzolo, G., Puglia, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Combining+in+the+melt+physical+and+biological+properties+of+poly(caprolactone)+and+chlorhexidine+to+obtain+antimicrobial+surgical+monofilaments.">Combining in the melt physical and biological properties of poly(caprolactone) and chlorhexidine to obtain antimicrobial surgical monofilaments.</a> Applied Microbiology and Biotechnology. 97 (1), 99-109 (2013).</li><li>Scaffaro, R., Maio, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Synthesis+and+self-assembly+of+a+PEGylated-graphene+aerogel.">Synthesis and self-assembly of a PEGylated-graphene aerogel.</a> Composites Science and Technology. 128, 193-200 (2016).</li><li>Scaffaro, R., Botta, L., Gallo, G., Puglia, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Influence+of+Drawing+on+the+Antimicrobial+and+Physical+Properties+of+Chlorhexidine-Compounded+Poly(caprolactone)+Monofilaments.">Influence of Drawing on the Antimicrobial and Physical Properties of Chlorhexidine-Compounded Poly(caprolactone) Monofilaments.</a> Macromolecular Materials and Engineering. 12 (300), 1268-1277 (2015).</li><li>Scaffaro, R., Lopresti, F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effect+of+PCL/PEG-Based+Membranes+on+Actinorhodin+Production+in+Streptomyces+coelicolor+Cultivations.">Effect of PCL/PEG-Based Membranes on Actinorhodin Production in Streptomyces coelicolor Cultivations.</a> Macromolecular bioscience. 16 (5), 686-693 (2016).</li><li>Scaffaro, R., Lopresti, F., Botta, L., Rigogliuso, S., Ghersi, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Melt+Processed+PCL/PEG+Scaffold+With+Discrete+Pore+Size+Gradient+for+Selective+Cellular+Infiltration.">Melt Processed PCL/PEG Scaffold With Discrete Pore Size Gradient for Selective Cellular Infiltration.</a> Macromolecular Materials and Engineering. 301 (2), 182-190 (2016).</li><li>Yousefi, A. -. M., Hoque, M. E., Prasad, R. G. S. V., Uth, N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Current+strategies+in+multiphasic+scaffold+design+for+osteochondral+tissue+engineering:+A+review.">Current strategies in multiphasic scaffold design for osteochondral tissue engineering: A review.</a> Journal of Biomedical Materials Research Part A. 103 (7), 2460-2481 (2015).</li><li>Gillette, B. M., Rossen, N. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Engineering+extracellular+matrix+structure+in+3D+multiphase+tissues.">Engineering extracellular matrix structure in 3D multiphase tissues.</a> Biomaterials. 32 (32), 8067-8076 (2011).</li><li>Seidi, A., Ramalingam, M., Elloumi-Hannachi, I., Ostrovidov, S., Khademhosseini, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Gradient+biomaterials+for+soft-to-hard+interface+tissue+engineering.">Gradient biomaterials for soft-to-hard interface tissue engineering.</a> Acta Biomaterialia. 7 (4), 1441-1451 (2011).</li><li>Son, J. S., Kim, S. G., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Hydroxyapatite/polylactide+biphasic+combination+scaffold+loaded+with+dexamethasone+for+bone+regeneration.">Hydroxyapatite/polylactide biphasic combination scaffold loaded with dexamethasone for bone regeneration.</a> Journal of Biomedical Materials Research - Part A. 99 (4), 638-647 (2011).</li><li>Sundararaghavan, H. G., Burdick, J. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Gradients+with+depth+in+electrospun+fibrous+scaffolds+for+directed+cell+behavior.">Gradients with depth in electrospun fibrous scaffolds for directed cell behavior.</a> Biomacromolecules. 12 (6), 2344-2350 (2011).</li><li>Zou, B., Liu, Y., Luo, X., Chen, F., Guo, X., Li, X. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Electrospun+fibrous+scaffolds+with+continuous+gradations+in+mineral+contents+and+biological+cues+for+manipulating+cellular+behaviors.">Electrospun fibrous scaffolds with continuous gradations in mineral contents and biological cues for manipulating cellular behaviors.</a> Acta biomaterialia. 8 (4), 1576-1585 (2012).</li><li>Nedjari, S., Schlatter, G., H&#233;braud, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Thick+electrospun+honeycomb+scaffolds+with+controlled+pore+size.">Thick electrospun honeycomb scaffolds with controlled pore size.</a> Materials Letters. 142, 180-183 (2015).</li><li>Yusong, P., Qianqian, S., Chengling, P., Jing, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Prediction+of+mechanical+properties+of+multilayer+gradient+hydroxyapatite+reinforced+poly(vinyl+alcohol)+gel+biomaterial.">Prediction of mechanical properties of multilayer gradient hydroxyapatite reinforced poly(vinyl alcohol) gel biomaterial.</a> Journal of Biomedical Materials Research - Part B Applied Biomaterials. 101 (5), 729-735 (2013).</li><li>Kim, Y. B., Kim, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Functionally+graded+PCL/&#946;-TCP+biocomposites+in+a+multilayered+structure+for+bone+tissue+regeneration.">Functionally graded PCL/&#946;-TCP biocomposites in a multilayered structure for bone tissue regeneration.</a> Applied Physics A: Materials Science and Processing. 108 (4), 949-959 (2012).</li><li>Sudarmadji, N., Tan, J. Y., Leong, K. F., Chua, C. K., Loh, Y. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Investigation+of+the+mechanical+properties+and+porosity+relationships+in+selective+laser-sintered+polyhedral+for+functionally+graded+scaffolds.">Investigation of the mechanical properties and porosity relationships in selective laser-sintered polyhedral for functionally graded scaffolds.</a> Acta biomaterialia. 7 (2), 530-537 (2011).</li><li>Molladavoodi, S., Gorbet, M., Medley, J., Kwon, H. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Investigation+of+microstructure,+mechanical+properties+and+cellular+viability+of+poly(L-lactic+acid)+tissue+engineering+scaffolds+prepared+by+different+thermally+induced+phase+separation+protocols.">Investigation of microstructure, mechanical properties and cellular viability of poly(L-lactic acid) tissue engineering scaffolds prepared by different thermally induced phase separation protocols.</a> Journal of the mechanical behavior of biomedical materials. 17, 186-197 (2013).</li><li>Oh, S. H., Kim, T. H., Il Im, G., Lee, J. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Investigation+of+pore+size+effect+on+chondrogenic+differentiation+of+adipose+stem+cells+using+a+pore+size+gradient+scaffold.">Investigation of pore size effect on chondrogenic differentiation of adipose stem cells using a pore size gradient scaffold.</a> Biomacromolecules. 11 (8), 1948-1955 (2010).</li><li>Lin, L., Gao, H., Dong, Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Bone+regeneration+using+a+freeze-dried+3D+gradient-structured+scaffold+incorporating+OIC-A006-loaded+PLGA+microspheres+based+on+&#946;-TCP/PLGA.">Bone regeneration using a freeze-dried 3D gradient-structured scaffold incorporating OIC-A006-loaded PLGA microspheres based on &#946;-TCP/PLGA.</a> Journal of Materials Science: Materials in Medicine. 26 (1), 3 (2015).</li><li>Yoo, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Heterogeneous+minimal+surface+porous+scaffold+design+using+the+distance+field+and+radial+basis+functions.">Heterogeneous minimal surface porous scaffold design using the distance field and radial basis functions.</a> Medical engineering &amp; physics. 34 (5), 625-639 (2012).</li><li>Soon, Y. -. M., Shin, K. -. H., Koh, Y. -. H., Lee, J. -. H., Choi, W. -. Y., Kim, H. -. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fabrication+and+compressive+strength+of+porous+hydroxyapatite+scaffolds+with+a+functionally+graded+core/shell+structure.">Fabrication and compressive strength of porous hydroxyapatite scaffolds with a functionally graded core/shell structure.</a> Journal of the European Ceramic Society. 31 (1-2), 13-18 (2011).</li><li>Scaffaro, R., Lopresti, F., Botta, L., Maio, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mechanical+behavior+of+Polylactic+acid/Polycaprolactone+porous+layered+functional+composites.">Mechanical behavior of Polylactic acid/Polycaprolactone porous layered functional composites.</a> Composites Part B: Engineering. 98, 70-77 (2016).</li><li>Halili, A. N., Hasirci, N., Hasirci, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+multilayer+tissue+engineered+meniscus+substitute.">A multilayer tissue engineered meniscus substitute.</a> Journal of Materials Science: Materials in Medicine. 25 (4), 1195-1209 (2014).</li><li>Bai, H., Wang, D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Biomimetic+gradient+scaffold+from+ice-templating+for+self-seeding+of+cells+with+capillary+effect.">Biomimetic gradient scaffold from ice-templating for self-seeding of cells with capillary effect.</a> Acta Biomaterialia. 20, 113-119 (2015).</li><li>Algul, D., Sipahi, H., Aydin, A., Kelleci, F., Ozdatli, S., Yener, F. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Biocompatibility+of+biomimetic+multilayered+alginate-chitosan/&#946;-TCP+scaffold+for+osteochondral+tissue.">Biocompatibility of biomimetic multilayered alginate-chitosan/&#946;-TCP scaffold for osteochondral tissue.</a> International Journal of Biological Macromolecules. 79, 363-369 (2015).</li><li>Scaffaro, R., Lopresti, F., Botta, L., Rigogliuso, S., Ghersi, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Preparation+of+three-layered+porous+PLA/PEG+scaffold+relationship+between+morphology+,+mechanical+behavior+and+cell+permeability.">Preparation of three-layered porous PLA/PEG scaffold relationship between morphology , mechanical behavior and cell permeability.</a> Journal of the Mechanical Behavior of Biomedical Materials. 54, 8-20 (2016).</li><li>Lo Re, G., Lopresti, F., Petrucci, G., Scaffaro, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+facile+method+to+determine+pore+size+distribution+in+porous+scaffold+by+using+image+processing.">A facile method to determine pore size distribution in porous scaffold by using image processing.</a> Micron. 76, 37-45 (2015).</li><li>Levingstone, T. J., Matsiko, A., Dickson, G. R., O'Brien, F. J., Gleeson, J. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+biomimetic+multi-layered+collagen-based+scaffold+for+osteochondral+repair.">A biomimetic multi-layered collagen-based scaffold for osteochondral repair.</a> Acta Biomaterialia. 10 (5), 1996-2004 (2014).</li><li>Scaffaro, R., Botta, L., Maio, A., Mistretta, M. C., La Mantia, F. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effect+of+Graphene+Nanoplatelets+on+the+Physical+and+Antimicrobial+Properties+of+Biopolymer-Based+Nanocomposites.">Effect of Graphene Nanoplatelets on the Physical and Antimicrobial Properties of Biopolymer-Based Nanocomposites.</a> Materials. 9 (5), 351 (2016).</li><li>Maio, A., Fucarino, R., Khatibi, R., Rosselli, S., Bruno, M., Scaffaro, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+novel+approach+to+prevent+graphene+oxide+re-aggregation+during+the+melt+compounding+with+polymers.">A novel approach to prevent graphene oxide re-aggregation during the melt compounding with polymers.</a> Composites Science and Technology. 119, 131-137 (2015).</li><li>Maio, A., Agnello, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+rapid+and+eco-friendly+route+to+synthesize+graphene-doped+silica+nanohybrids.">A rapid and eco-friendly route to synthesize graphene-doped silica nanohybrids.</a> Journal of Alloys and Compounds. 664, 428-438 (2015).</li><li>Maio, A., Giallombardo, D., Scaffaro, R., Piccionello, A. P., Pibiri, I. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Synthesis+of+a+fluorinated+graphene+oxide-silica+nanohybrid:+improving+oxygen+affinity.">Synthesis of a fluorinated graphene oxide-silica nanohybrid: improving oxygen affinity.</a> RSC Advances. 6 (52), 46037-46047 (2016).</li></ol>

The first critical step is the optimization of sieving efficiency. The high control of the NaCl particle size is fundamental for preparing scaffold with desired pore size distribution. Another critical step is avoiding the fracture of the thin PLA monolayers during the sample extraction from the mold. The image processing analysis might not be representative of the whole device.

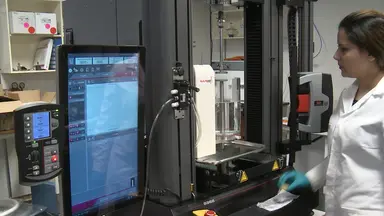

During tensile tests, the sample can tear away from the equipment.
Prior to sieving step...

The interest in biodegradable polymers has grown in importance during the last years both in academia and in the industry, due to the rising concerns regarding plastic waste and the reduction in using non-renewable sources1-7. In particular, biocompatible and biodegradable synthetic polymers are widespread in several biomedical application fields, such as drug controlled release8,9, absorbable suture threads8,10, bioprocess intensification11 and tissue engineering12.
Tissue engineering focuses on the development of devices capable to restore and maintain normal function in diseased or injured tissues. Most of the native tissues are composed by different types of cells and extracellular matrices (ECMs) in specific spatial hierarchies. For example, articular cartilage (AC) consists of different zones with varying types and orientations of collagen fibers and collagen-binding proteins. Moreover, cartilage and bone show significantly different hierarchical structures. In this context, the preparation of multilayer scaffolds with engineered properties in each layer could allow replacing heterogeneous tissues by taking into accounts all the local microenvironments of these complex systems13,14.
Based on the cellular/biological and/or physical-chemical characteristics of the scaffolds, the main strategies adopted by the tissue engineering can be divided into monophasic, biphasic, and triphasic. Biphasic and triphasic approaches (BTA) use two or three different pores architectures, materials, or fillers to prepare multilayered functional devices. Furthermore, a single material can be used to achieve biphasic or triphasic devices, as long as it is possible to create a gradient in its physical properties12.
Cell migration plays a key-role in the morphogenesis, inflammation, wound healing and tumor metastasis. Cell movement is encouraged by the presence of a gradient of chemical-physical properties from the surface to the core of the device. Therefore, biomaterials fulfilling the above discussed requirements can be helpful in studying cell migration. In addition to chemical gradients that trigger cells migration (chemotaxis), mechanical properties of cells culture substrate can also lead to cell movement (mechanotaxis)15.
The multilayer structure can also provide the tunable release of specific drugs incorporated within the polymer matrix, by changing the specific area of the layer or the amount of loaded drugs.
Over the past decade, in order to develop scaffolds possessing a discrete or continuous gradient of morphological properties, such as porosity or pore size, several approaches have been presented16-31. The most recent papers focused on the preparation of BTA by adopting: particle leaching 12,28,32, gas foaming technique16, electrospinning17-19, layer by layer casting technique20, rapid prototyping21,22, thermally induced phase separation (TIPS)22, centrifugation freeze drying24,25, triply periodic minimal surfaces (TPMS)26, freeze casting27-30.
Within the frame of this work, we present a fast and simple route to achieve PLA-based three-layer porous scaffolds (TLS), by combining melt mixing, compression molding and salt leaching. Differently from most of the technologies commonly used for scaffold production, the strategy herein adopted can be considered fully eco-friendly, since it does not require any toxic solvent potentially dangerous for environment and for living cells and tissues32. The basic processing-structure-property relationships established in this study by analyzing both morphological features and mechanical behavior of fabricated devices provide guidance to future advances in designing multifunctional graded scaffolds with specific target properties.

<table border="0" cellpadding="0" cellspacing="0" width="828">
	<tbody>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Poly(lactic acid)</td>
			<td style="width:149px;">NatureWorks</td>
			<td style="width:207px;">PLA 2002D</td>
			<td style="width:257px;"></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Poly(ethylene glycol)</td>
			<td style="width:149px;">Sigma</td>
			<td style="width:207px;">83797-1KG-F</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Sodium Cloride</td>
			<td style="width:149px;">Sigma</td>
			<td style="width:207px;">793566-5KG-D</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Phosfate Buffer Solution</td>
			<td style="width:149px;">Sigma</td>
			<td style="width:207px;">P5368-10PAK</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Laboratory Mixer</td>
			<td style="width:149px;">Brabender</td>
			<td style="width:207px;">PLE 330 - Plasticorder</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Laboratory Press</td>
			<td style="width:149px;">Carver</td>
			<td style="width:207px;"></td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Scanning Electron Microscopy</td>
			<td style="width:149px;">Phenom-world</td>
			<td style="width:207px;">ProX</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Universal Testing Machine</td>
			<td style="width:149px;">Instron</td>
			<td style="width:207px;">3365 (UK)</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">BioPuls Bath</td>
			<td style="width:149px;">Instron, Norwood</td>
			<td style="width:207px;"></td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Sieving Machine</td>
			<td style="width:149px;">Endecotts</td>
			<td style="width:207px;">E.V.F.1.</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Vacuum Oven</td>
			<td style="width:149px;">ISCO</td>
			<td style="width:207px;">NSV9035</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:216px;">Precision Balance</td>
			<td style="width:149px;">Sartorius</td>
			<td style="width:207px;">AX224</td>
			<td></td>
		</tr>
	</tbody>
</table>

a facile and eco-friendly route to fabricate poly(lactic acid) scaffolds with graded pore size

Over the recent years, functionally graded scaffolds (FGS) gaineda crucial role for manufacturing of devices for tissue engineering. The importance of this new field of biomaterials research is due to the necessity to develop implants capable of mimicking the complex functionality of the various tissues, including a continuous change from one structure or composition to another. In this latter context, one topic of main interest concerns the design of appropriate scaffolds for bone-cartilage interface tissue. In this study, three-layered scaffolds with graded pore size were achieved by melt mixing poly(lactic acid) (PLA), sodium chloride (NaCl) and polyethylene glycol (PEG). Pore size distributions were controlled by NaCl granulometry and PEG solvation. Scaffolds were characterized from a morphological and mechanical point of view. A correlation between the preparation method, the pore architecture and compressive mechanical behavior was found. The interface adhesion strength was quantitatively evaluated by using a custom-designed interfacial strength test. Furthermore, in order to imitate the human physiology, mechanical tests were also performed in phosphate buffered saline (PBS) solution at 37 &#176;C. The method herein presented provides a high control of porosity, pore size distribution and mechanical performance, thus offering the possibility to fabricate three-layered scaffolds with tailored properties by following a simple and eco-friendly route.

The influence of NaCl particle size on the pore architecture of the scaffolds was assessed qualitatively and quantitatively by investigating the morphology of the samples and calculating the pore size distribution by image analysis, respectively. Figure 2a-f shows SEM micrographs of mono-layered scaffolds resulting from salt-leaching of materials containing different NaCl particle sizes.
More in...

Watch this Scientific Journal Video about A Facile and Eco-friendly Route to Fabricate PolyLactic Acid Scaffolds with Graded Pore Size at JoVE.com

A Facile and Eco-friendly Route to Fabricate PolyLactic Acid Scaffolds with Graded Pore Size

In this work, poly(lactic acid)/polyethylene glycol (PLA/PEG) scaffolds were prepared by using a combination of melt mixing and selective leaching. The method herein discussed permitted to develop three-layer scaffolds by highly controlling both porosity and pore size. The mechanical properties were also evaluated in a physiological environment.

A Facile and Eco-friendly Route to Fabricate Poly(Lactic Acid) Scaffolds with Graded Pore Size

Over the recent years, functionally graded scaffolds (FGS) gaineda crucial role for manufacturing of devices for tissue engineering. The importance of ...

Tissue engineering focuses on the development of devices capable to restore and maintain normal function in diseased or injured tissues. Most of the native tissues are composed by different types of cells and extracellular matrices in specific spatial hierarchies. For example, articular cartilage consists in different zones with varying types and orientation of collagen fibers and collagen binding proteins.The main strategies adopted in tissue engineering can be divided in monophasic, biphasic, and triphasic approaches. Biphasic and triphasic approaches use two or three different pore architectures, materials, or fillers to prepare multi-layered functional devices. A single material can also be used to achieve biphasic or triphasic devices if it possible to create a gradient of one or more physical properties.In the frame of this work, a fast and simple route to achieve polylactic acid based three layered pore scaffold is presented. Differently from many other scaffold production technologies, the strategy here adopted can be considered eco-friendly, since it does not require any toxic solvent potentially dangerous for environment and for living cells in tissues. In particular, the pathway proposed combines melt mixing, compression molding, and salt leaching.Both the morphological analysis and the mechanical behavior of the structures were investigated, paying particular attention to the processing structure property's relationships of the prepared devices. Sodium chloride was ground in a laboratory grinder for 20 minutes. Thereafter, sodium chloride was dried on a heater at 100 degrees C prior to sieving in a sieving machine for 30 minutes at the highest available frequency not showing resonance.The six selected fractions ranged from 1, 000 microns to 500 microns, from 500 microns to 300 microns, from 200 microns to 100 micron, from 100 micron to 90, and from 65 to 45, the last fraction with salt particle size smaller than 45 microns. All the materials were vacuum dried overnight, in order to avoid hydrolytic scission during processing, polylactic acid at 90 degrees C, polyethylene glycol at 25 degrees C, and sodium chloride at 105 degrees C.Before melt mixing, polylactic acid, polyethylene glycol, and sodium chloride were mechanically mixed in a beaker in the proportion of 20 weight percent for the polylactic acid, five weight percent for polyethylene glycol, and 75 weight percent for sodium chloride. The materials were then fed to a batch mixer.The temperature was set to 190 degrees C, and the rotor speed was set to 60 RPM. The materials were processed until a constant value of torque was achieved, usually after about 10 minutes. The blend was then fed out and abruptly cooled in liquid nitrogen.In order to prepare each layer, the blends were compression molded in a laboratory press at 210 degrees C.The samples were molded in an appropriate cylindrical mold with diameter of 10 millimeter and a height of three millimeter. The materials were pre-heated for 60 seconds at ambient pressure and 210 degrees C.Then the pressure was raised to 180 bars and kept for three minutes. The blends were then cooled at room temperature, keeping the pressure at 180 bars.Polymer sodium chloride blends prepared using different salt particle size were put into an appropriate cylindrical mold with a diameter of 10 millimeters and a height of three millimeters. The materials were then compression molded again for five minutes. More in detail, two different three layered scaffolds were prepared.In one case, the three layered structure was obtained by assembling blends filled with sodium chloride particle size ranged from 1, 000 microns to 500 microns, from 500 microns to 300 microns, and from 200 microns to 100 microns. The other three layered scaffold was obtained by assembling blends filled with sodium chloride particle size ranged from 100 microns to 90, from 65 to 45 microns, and the last layer with salt particle size smaller than 45 microns. The blends were then removed from the cylindrical mold, weighed, and put in boiling de-mineralized water for three hours, without stirring.The resulting structures were then left to dry for 12 hours at room temperature under fume hood. Furthermore, in order to evaluate connectivity and water uptake the samples were weighed before and after drying. The theoretical porosity for each sample was evaluated according to the following expressions.The composition of the mixture was designed in order to obtain scaffolds with a theoretical porosity of 70.8%The porosity calculated by question two is very close to the theoretical one for all the scaffold types, which makes it reasonable to conclude that all the porogen agents were extracted from the devices. The morphologies of the scaffolds were evaluated by scanning electron microscopy. The samples were broken under liquid nitrogen.Then, the specimens were attached onto an aluminum stub using an adhesive carbon tape. Before compressive tests in physiological environment, samples were filled by phosphate buffer saline solution by using a vacuum flask. This method permits the solution to fill all the void volume of the scaffold.Finally, tensile tests were performed in order to evaluate the interfacial adhesion strength occurring between the layers. Scanning electron microscopy analysis confirmed the strong influence of the sodium chloride particle size on the porous architecture of the scaffold. Figures one a, f show images obtained by scanning electron microscopy of scaffolds achieved by leaching materials filled with different salt granulometry.The measurement of pore size revealed the scaffold average pore size strongly controlled by the sodium chloride size filled into the polymer matrix. In particular, the scaffold obtained from the blend containing salt sieved in the range 1, 000 to 500 microns showed pores with an average diameter of 500 microns, probably due to the breakage of salt particles with diameter higher than 500 micron during melt mixing. As clearly visible in the same figure, pore architecture is characterized by a low number of irregular pores, poorly interconnected, and surrounded by walls of about 10 microns.Figure one b shows the morphology of the scaffold obtained by using salt in the range 500 to 300 microns. In this case, the pores were found to exhibit an average diameter within the same range of the salt particles filled during melt mixing, thus confirming that no particle breakage occurred within melt mixing process. Walls around pores were found to be thinner, about five microns, than the previous one.The scaffold obtained by using salt in the range 200 to 100 microns showed a bimodal porous structure characterized by a heterogeneous network composed by large pores 100 to 200 microns, surrounded by smaller ones. This pore architecture enhances the interconnection between pores and their amount per unit of volume, although determines a drastic thinning of wall thickness. The morphology of the scaffold obtained by using salt in the range 100, 90 microns showed roughly cubic pores, homogeneously distributed throughout the polymer matrix.Micro-pores, due to the polyethylene glycol solvation, were found inside the walls that in fact appear very rough. The scanning electron microscopy micrograph of the scaffold obtained by using salt in the range 45, 65 microns displayed a big amount of pores per unit of volume with the diameters ranging from 45 to 765 microns. Finally, the scaffold obtained by using salt smaller than 45 microns displayed the highest amount of pores per unit of volume.The pore architecture showed an average pore size of about 20 microns, with a high degree of interconnection and very thin walls with thickness lower than one micron. The morphology of the assembled scaffolds were characterized by three well distinct layers showing three different average pore size. As expected, each layer kept the same pore architecture after assembly and leaching steps.As clearly visible, the whole devices do not present any internal cleavages, nor matrix discontinuity among the different layers. During the compressive tests it was observed a decrease of the elastic modulus of the samples while decreasing their respective average pore size. Testing in wet conditions caused the decrease of the elastic moduli of about 10%Anyhow, the overall mechanical behavior of the devices did not change.The three layered devices presented an elastic modulus comparable with that of their respective weakest layer. The test highlighted that the fracture occurred about in the middle part of the weakest layer of the three layered devices, thus, not observing any delamination process. The collected data confirmed that the interfacial adhesion strength was higher than 10 size strength of the weakest layer, thus corroborating what observed by scanning electron microscopy analysis.Concluding, in this work polylactic acid based degradable scaffolds with a discrete pore size gradient has been developed by combining melt mixing, compression molding, and selective leaching. The devices present I interconnected pore structure with a porosity of about 70%and I predictability of pore size by controlling the granulometry of sodium chloride in the melt mixing step as confirmed by scanning electron microscopy analysis. Morphological analysis also showed that the three layer scaffolds are characterized by well fixed layers with different pore size.Interfacial adhesion strength tests revealed I layer adhesion without delamination.

a-facile-eco-friendly-route-to-fabricate-polylactic-acid-scaffolds

Research

JoVE Journal

Bioengineering

Micropatterned Surfaces to Study Hyaluronic Acid Interactions with Cancer Cells

Cancer invasion and progression involves a motile cell phenotype, which is under complex regulation by growth factors/cytokines and extracellular matrix (ECM) components within the tumor microenvironment. Hyaluronic acid (HA) is one stromal ECM component that is known to facilitate tumor progression by enhancing invasion, growth, and angiogenesis1. Interaction of HA with its cell surface receptor CD44 induces signaling events that promote tumor cell growth, survival, and migration, thereby increasing metastatic spread2-3. HA is an anionic, nonsulfated glycosaminoglycan composed of repeating units of D-glucuronic acid and D-N-acetylglucosamine. Due to the presence of carboxyl and hydroxyl groups on repeating disaccharide units, native HA is largely hydrophilic and amenable to chemical modifications that introduce sulfate groups for photoreative immobilization 4-5. Previous studies involving the immobilizations of HA onto surfaces utilize the bioresistant behavior of HA and its sulfated derivative to control cell adhesion onto surfaces6-7. In these studies cell adhesion preferentially occurs on non-HA patterned regions.
To analyze cellular interactions with exogenous HA, we have developed patterned functionalized surfaces that enable a controllable study and high-resolution visualization of cancer cell interactions with HA. We utilized microcontact printing (uCP) to define discrete patterned regions of HA on glass surfaces. A "tethering" approach that applies carbodiimide linking chemistry to immobilize HA was used 8. Glass surfaces were microcontact printed with an aminosilane and reacted with a HA solution of optimized ratios of EDC and NHS to enable HA immobilization in patterned arrays. Incorporating carbodiimide chemistry with mCP enabled the immobilization of HA to defined regions, creating surfaces suitable for in vitro applications. Both colon cancer cells and breast cancer cells implicitly interacted with the HA micropatterned surfaces. Cancer cell adhesion occurred within 24 hours with proliferation by 48 hours. Using HA micropatterned surfaces, we demonstrated that cancer cell adhesion occurs through the HA receptor CD44. Furthermore, HA patterned surfaces were compatible with scanning electron microscopy (SEM) and allowed high resolution imaging of cancer cell adhesive protrusions and spreading on HA patterns to analyze cancer cell motility on exogenous HA.

A novel approach that allows the high-resolution analysis of cancer cell interactions with exogenous hyaluronic acid (HA) is described. Patterned surfaces are fabricated by combining carbodiimide chemistry and microcontact printing.

Cancer invasion and progression involves a motile cell phenotype, which is under complex regulation by growth factors/cytokines and extracellular matrix ...

Design of a Cyclic Pressure Bioreactor for the Ex Vivo Study of Aortic Heart Valves

The aortic valve, located between the left ventricle and the aorta, allows for unidirectional blood flow, preventing backflow into the ventricle. Aortic valve leaflets are composed of interstitial cells suspended within an extracellular matrix (ECM) and are lined with an endothelial cell monolayer. The valve withstands a harsh, dynamic environment and is constantly exposed to shear, flexion, tension, and compression. Research has shown calcific lesions in diseased valves occur in areas of high mechanical stress as a result of endothelial disruption or interstitial matrix damage1-3. Hence, it is not surprising that epidemiological studies have shown high blood pressure to be a leading risk factor in the onset of aortic valve disease4.
The only treatment option currently available for valve disease is surgical replacement of the diseased valve with a bioprosthetic or mechanical valve5. Improved understanding of valve biology in response to physical stresses would help elucidate the mechanisms of valve pathogenesis. In turn, this could help in the development of non-invasive therapies such as pharmaceutical intervention or prevention. Several bioreactors have been previously developed to study the mechanobiology of native or engineered heart valves6-9. Pulsatile bioreactors have also been developed to study a range of tissues including cartilage10, bone11 and bladder12. The aim of this work was to develop a cyclic pressure system that could be used to elucidate the biological response of aortic valve leaflets to increased pressure loads.
The system consisted of an acrylic chamber in which to place samples and produce cyclic pressure, viton diaphragm solenoid valves to control the timing of the pressure cycle, and a computer to control electrical devices. The pressure was monitored using a pressure transducer, and the signal was conditioned using a load cell conditioner. A LabVIEW program regulated the pressure using an analog device to pump compressed air into the system at the appropriate rate. The system mimicked the dynamic transvalvular pressure levels associated with the aortic valve; a saw tooth wave produced a gradual increase in pressure, typical of the transvalvular pressure gradient that is present across the valve during diastole, followed by a sharp pressure drop depicting valve opening in systole. The LabVIEW program allowed users to control the magnitude and frequency of cyclic pressure. The system was able to subject tissue samples to physiological and pathological pressure conditions. This device can be used to increase our understanding of how heart valves respond to changes in the local mechanical environment.

Design of a Cyclic Pressure Bioreactor for the Ex Vivo Study of Aortic Heart Valves

A cyclic pressure bioreactor capable of subjecting heart valve tissue to physiological and pathological pressure conditions has been designed. A LabVIEW program allows users to control pressure magnitude, amplitude and frequency. This device can be used to study the mechanobiology of heart valve tissue or isolated cells.

The aortic valve, located between the left ventricle and the aorta, allows for unidirectional blood flow, preventing backflow into the ventricle. Aortic ...

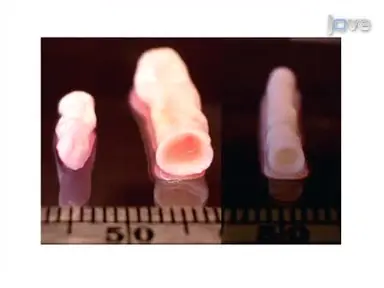

Directed Cellular Self-Assembly to Fabricate Cell-Derived Tissue Rings for Biomechanical Analysis and Tissue Engineering

Each year, hundreds of thousands of patients undergo coronary artery bypass surgery in the United States.1 Approximately one third of these patients do not have suitable autologous donor vessels due to disease progression or previous harvest. The aim of vascular tissue engineering is to develop a suitable alternative source for these bypass grafts. In addition, engineered vascular tissue may prove valuable as living vascular models to study cardiovascular diseases. Several promising approaches to engineering blood vessels have been explored, with many recent studies focusing on development and analysis of cell-based methods.2-5 Herein, we present a method to rapidly self-assemble cells into 3D tissue rings that can be used in vitro to model vascular tissues.
To do this, suspensions of smooth muscle cells are seeded into round-bottomed annular agarose wells. The non-adhesive properties of the agarose allow the cells to settle, aggregate and contract around a post at the center of the well to form a cohesive tissue ring.6,7 These rings can be cultured for several days prior to harvesting for mechanical, physiological, biochemical, or histological analysis. We have shown that these cell-derived tissue rings yield at 100-500 kPa ultimate tensile strength8 which exceeds the value reported for other tissue engineered vascular constructs cultured for similar durations (&lt;30 kPa).9,10 Our results demonstrate that robust cell-derived vascular tissue ring generation can be achieved within a short time period, and offers the opportunity for direct and quantitative assessment of the contributions of cells and cell-derived matrix (CDM) to vascular tissue structure and function.

This article outlines a versatile method to create cell-derived tissue rings by cellular self-assembly. Smooth muscle cells seeded into ring-shaped agarose wells aggregate and contract to form robust three-dimensional (3D) tissues within 7 days. Millimeter-scale tissue rings are conducive to mechanical testing and serve as building blocks for tissue assembly.

Each year, hundreds of thousands of patients undergo coronary artery bypass surgery in the United States.1 Approximately one third of these patients do ...

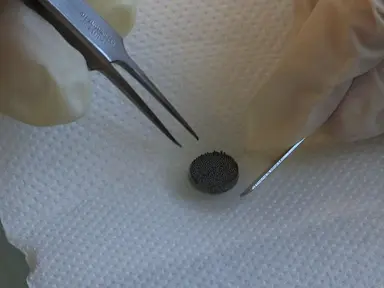

Multi-Scale Modification of Metallic Implants With Pore Gradients, Polyelectrolytes and Their Indirect Monitoring In vivo
