Name: direct imaging of laser-driven ultrafast molecular rotation
Uploaded: 2017-02-04T13:00:00
Description: Watch this Scientific Journal Video about Direct Imaging of Laser-driven Ultrafast Molecular Rotation at JoVE.com

This work was supported in part by grants-in-aid KAKENHI from the Japan Society for the Promotion of Science (JSPS) and the Ministry of Education, Culture, Sports, Science, and Technology (MEXT) Japan (#26104539, #26620020, #26810011, #15H03766, #15KT0060, #16H00826, and #16K13927); the Konica Minolta Science and Technology Foundation; the "Planting Seeds for Research" program of TokyoTech; the Imaging Science Project of the Center for Novel Science Initiatives (CNSI) at the National Institutes of Natural Sciences (NINS) (#IS261006); the RIKEN-IMS joint program on "Extreme Photonics;" and the Consortium for Photon Science and Technology (CPhoST).

NOTE: Through this protocol, we clarify what we actually did to develop the present method. Exact parameters, including chamber and optical setup design and the sizes and types of the parts, are not always essential to apply the present system to the reader&#39;s apparatus. The essence of the procedures will be given as notes in each step.

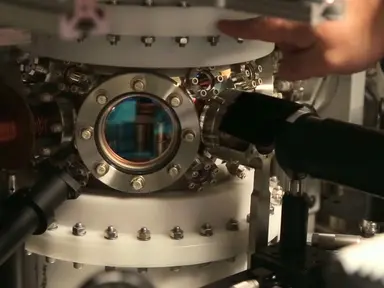

1. Construction of a 2D-slice Imaging Apparatus
NOTE: Throughout this step, all the commercially available parts and equipment, su...

<ol>
	<li>Stapelfeldt, H., Constant, E., Sakai, H., Corkum, P. B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Time-resolved+Coulomb+explosion+imaging:+A+method+to+measure+structure+and+dynamics+of+molecular+nuclear+wave+packets.">Time-resolved Coulomb explosion imaging: A method to measure structure and dynamics of molecular nuclear wave packets.</a> Phys. Rev. A. 58, 426-433 (1998).</li><li>Hishikawa, A., Matsuda, A., Fushitani, M., Takahashi, E. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Visualizing+Recurrently+Migrating+Hydrogen+in+Acetylene+Dication+by+Intense+Ultrashort+Laser+Pulses.">Visualizing Recurrently Migrating Hydrogen in Acetylene Dication by Intense Ultrashort Laser Pulses.</a> Phys. Rev. Lett. 99, 258302 (2007).</li><li>L&#233;gar&#233;, F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Laser+Coulomb-explosion+imaging+of+small+molecules.">Laser Coulomb-explosion imaging of small molecules.</a> Phys. Rev. A. 71, 013415 (2005).</li><li>Stapelfeldt, H., Seideman, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Colloquium:+Aligning+molecules+with+strong+laser+pulses.">Colloquium: Aligning molecules with strong laser pulses.</a> Rev. Mod. Phys. 75, 543-557 (2003).</li><li>Ohshima, Y., Hasegawa, H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Coherent+rotational+excitation+by+intense+nonresonant+laser+fields.">Coherent rotational excitation by intense nonresonant laser fields.</a> Int. Rev. Phys. Chem. 29, 619-663 (2010).</li><li>Kitano, K., Hasegawa, H., Ohshima, Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ultrafast+Angular+Momentum+Orientation+by+Linearly+Polarized+Laser+Fields.">Ultrafast Angular Momentum Orientation by Linearly Polarized Laser Fields.</a> Phys. Rev. Lett. 103, 223002 (2009).</li><li>Fleischer, S., Khodorkovsky, Y., Prior, Y., Averbukh, I. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Controlling+the+sense+of+molecular+rotation.">Controlling the sense of molecular rotation.</a> New J. Phys. 11, 105039 (2009).</li><li>Korobenko, A., Milner, A. A., Milner, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+Observation,+Study,+and+Control+of+Molecular+Superrotors.">Direct Observation, Study, and Control of Molecular Superrotors.</a> Phys. Rev. Lett. 112, 113004 (2014).</li><li>Rosca-Pruna, F., Vrakking, M. J. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Revival+structures+in+picosecond+laser-induced+alignment+of+I2+molecules.+I.+Experimental+results.">Revival structures in picosecond laser-induced alignment of I2 molecules. I. Experimental results.</a> J. Chem. Phys. 116, 6567-6578 (2002).</li><li>Dooley, P. W., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+imaging+of+rotational+wave-packet+dynamics+of+diatomic+molecules.">Direct imaging of rotational wave-packet dynamics of diatomic molecules.</a> Phys. Rev. A. 68, 023406 (2003).</li><li>Mizuse, K., Kitano, K., Hasegawa, H., Ohshima, Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Quantum+unidirectional+rotation+directly+imaged+with+molecules.">Quantum unidirectional rotation directly imaged with molecules.</a> Sci. Adv. 1, 1400185 (2015).</li><li>Lin, K., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Visualizing+molecular+unidirectional+rotation.">Visualizing molecular unidirectional rotation.</a> Phys. Rev. A. 92, 013410 (2015).</li><li>Korobenko, A., Hepburn, J. W., Milner, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Observation+of+nondispersing+classical-like+molecular+rotation.">Observation of nondispersing classical-like molecular rotation.</a> Phys. Chem. Chem. Phys. 17, 951-956 (2015).</li><li>Whitaker, B. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Imaging in Molecular Dynamics. , (2003).</li><li>Ullrich, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Recoil-ion+and+electron+momentum+spectroscopy:+reaction-microscopes.">Recoil-ion and electron momentum spectroscopy: reaction-microscopes.</a> Rep. Prog. Phys. 66, 1463 (2003).</li><li>Lee, S. K., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Coincidence+ion+imaging+with+a+fast+frame+camera.">Coincidence ion imaging with a fast frame camera.</a> Rev Sci Instrum. 85, 123303 (2014).</li><li>Lee, S. K., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Communication:+Time-+and+space-sliced+velocity+map+electron+imaging.">Communication: Time- and space-sliced velocity map electron imaging.</a> J. Chem. Phys. 141, 221101 (2014).</li><li>John, J. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=PImMS,+a+fast+event-triggered+monolithic+pixel+detector+with+storage+of+multiple+timestamps.">PImMS, a fast event-triggered monolithic pixel detector with storage of multiple timestamps.</a> Journal of Instrumentation. 7, 8001 (2012).</li><li>Nomerotski, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Pixel+Imaging+Mass+Spectrometry+with+fast+and+intelligent+Pixel+detectors.">Pixel Imaging Mass Spectrometry with fast and intelligent Pixel detectors.</a> Journal of Instrumentation. 5, 07007 (2010).</li><li>Luria, K., Christen, W., Even, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Generation+and+Propagation+of+Intense+Supersonic+Beams.">Generation and Propagation of Intense Supersonic Beams.</a> J. Phys. Chem. A. 115, 7362-7367 (2011).</li><li>Eppink, A. T. J. B., Parker, D. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Velocity+map+imaging+of+ions+and+electrons+using+electrostatic+lenses:+Application+in+photoelectron+and+photofragment+ion+imaging+of+molecular+oxygen.">Velocity map imaging of ions and electrons using electrostatic lenses: Application in photoelectron and photofragment ion imaging of molecular oxygen.</a> Rev. Sci. Instrum. 68, 3477-3484 (1997).</li><li>Gebhardt, C. R., Rakitzis, T. P., Samartzis, P. C., Ladopoulos, V., Kitsopoulos, T. N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Slice+imaging:+A+new+approach+to+ion+imaging+and+velocity+mapping.">Slice imaging: A new approach to ion imaging and velocity mapping.</a> Rev. Sci. Instrum. 72, 3848 (2001).</li><li>St&#246;hr, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> NEXAFS Spectroscopy. , 132 (1992).</li><li>Siders, C. W., Siders, J. L. W., Taylor, A. J., Park, S. -. G., Weiner, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Efficient+High-Energy+Pulse-Train+Generation+Using+a+2+n-Pulse+Michelson+Interferometer.">Efficient High-Energy Pulse-Train Generation Using a 2 n-Pulse Michelson Interferometer.</a> Appl. Opt. 37, 5302-5305 (1998).</li><li>Pitzer, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+Determination+of+Absolute+Molecular+Stereochemistry+in+Gas+Phase+by+Coulomb+Explosion+Imaging.">Direct Determination of Absolute Molecular Stereochemistry in Gas Phase by Coulomb Explosion Imaging.</a> Science. 341, 1096-1100 (2013).</li><li>Rakitzis, T. P., Samartzis, P. C., Kitsopoulos, T. N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Observing+the+symmetry+breaking+in+the+angular+distributions+of+oriented+photofragments+using+velocity+mapping.">Observing the symmetry breaking in the angular distributions of oriented photofragments using velocity mapping.</a> J. Chem. Phys. 111, 10415 (1999).</li><li>Chang, B. -. Y., Hoetzlein, R. C., Mueller, J. A., Geiser, J. D., Houston, P. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Improved+two-dimensional+product+imaging:+The+real-time+ion-counting+method.">Improved two-dimensional product imaging: The real-time ion-counting method.</a> Rev. Sci. Instrum. 69, 1665 (1998).</li><li>Wiley, W. C., McLaren, I. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Time-of-Flight+Mass+Spectrometer+with+Improved+Resolution.">Time-of-Flight Mass Spectrometer with Improved Resolution.</a> Rev. Sci. Instrum. 26, 1150 (1955).</li><li>Townsend, D., Minitti, M. P., Suits, A. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+current+slice+imaging.">Direct current slice imaging.</a> Rev. Sci. Instrum. 74, 2530 (2003).</li><li>Wu, G., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+new+crossed+molecular+beam+apparatus+using+time-sliced+ion+velocity+imaging+technique.">A new crossed molecular beam apparatus using time-sliced ion velocity imaging technique.</a> Rev. Sci. Instrum. 79, 094104 (2008).</li><li>Treacy, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Optical+pulse+compression+with+diffraction+gratings.">Optical pulse compression with diffraction gratings.</a> Quantum Electronics, IEEE Journal of. 5, 454-458 (1969).</li><li>D&#246;rner, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cold+Target+Recoil+Ion+Momentum+Spectroscopy:+a+'momentum+microscope'+to+view+atomic+collision+dynamics.">Cold Target Recoil Ion Momentum Spectroscopy: a 'momentum microscope' to view atomic collision dynamics.</a> Physics Reports. 330, 95-192 (2000).</li><li>Herwig, P., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Imaging+the+Absolute+Configuration+of+a+Chiral+Epoxide+in+the+Gas+Phase.">Imaging the Absolute Configuration of a Chiral Epoxide in the Gas Phase.</a> Science. 342, 1084-1086 (2013).</li><li>Suzuki, Y. -. I., Suzuki, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Linear+and+circular+dichroism+in+photoelectron+angular+distributions+caused+by+electron+correlation.">Linear and circular dichroism in photoelectron angular distributions caused by electron correlation.</a> Phys. Rev. A. 91, 053413 (2015).</li></ol>

The present procedure enables us to capture a real-time movie of molecular rotation with a slit-based 2D imaging setup. Because the observed ions pass through the slit, step 1.5 is one of the critical steps. The edges of the slit blades must be sharp. When there is a small defect, such as a 0.3 mm dent in the slit, a scratch is observed in the ion image (Figure 6). In such a case, the slit blade should be polished with 2,000-grit wet sandpaper.
Apart from the unique camera ang...

For a deeper understanding and better use of the dynamic nature of molecules, it is essential to clearly visualize molecular motions of interest. Time-resolved Coulomb explosion imaging is one of the powerful approaches to achieve this objective1,2,3. In this approach, the molecular dynamics of interest are initiated by a pump ultrashort laser field and are then probed by a time-delayed probe pulse. Upon probe irradiation, molecules are multiply ionized and broken into fragment ions due to the Coulomb repulsion. The spatial distribution of the ejected ions is a measure of the molecular structure and spatial orientation at the probe irradiation. A sequence of measurement scanning the pump-probe delay time leads to the creation of a molecular movie. It is noteworthy that, for the simplest case &#8211; diatomic molecules &#8211; the angular distribution of the ejected ions directly reflects the molecular axis distribution (i.e., the squared rotational wave function).
With regard to the pump process, recent progress in the coherent control of molecular motion using ultrashort laser fields has led to the creation of highly controlled rotational wave packets4,5. Furthermore, the direction of rotation can be actively controlled by using a polarization-controlled laser field6,7,8. It has therefore been expected that a detailed picture of molecular rotation, including wave natures, could be visualized when the Coulomb explosion imaging technique is combined with such a pump process9,10,11,12,13. However, we sometimes encounter experimental difficulties associated with the existing imaging methods, as mentioned below. The purpose of this paper is to present a new way of overcoming these difficulties and of creating a high-quality movie of molecular rotational wave packets. The first experimental movie of molecular rotation taken with the present method, along with its physical implications, were presented in our previous paper11. The background of development, the detailed theoretical aspect of the present imaging technique, and a comparison with other existing techniques will be given in a forthcoming paper. Here, we will mainly focus on the practical and technical aspects of the procedure, including the combination of the typical pump-probe optical setup and the new imaging apparatus. As in the previous paper, the target system is unidirectionally rotating nitrogen molecules11.
The main experimental difficulty of the existing imaging setup, schematically shown in Figure 1, has to do with the position of the detector, or the camera angle. Because the rotational axis coincides with the laser propagation axis6,7,8 in laser-field-induced molecular rotation, it is not practical to install a detector along the rotational axis. When the detector is installed so as to avoid laser irradiation, the camera angle corresponds to a side observation of rotation. In this case, it is impossible to reconstruct the original orientation of molecules from the projected (2D) ion image14. A 3D imaging detector14,15,16,17,18,19, with which the arrival time to the top detector and the ion impact positions can be measured, offered a unique way to directly observe molecular rotation using Coulomb explosion imaging10,12. However, the acceptable ion counts per laser shot are low (typically &#60; 10 ions) in the 3D detector, meaning that it is difficult to create a long movie of molecular motion with high image quality14. The dead time of the detectors (typically ns) also affects the image resolution and imaging efficiency. It is also not a simple task to make a good pump-probe beam overlap by monitoring a real-time ion image with a laser repetition rate of &#60;~1 kHz. Although several groups have observed rotational wave packets using the 3D technique, the spatial information was limited and/or direct, and a detailed visualization of wave nature, including complicated nodal structures, was not achieved10,12.
The essence of the new imaging technique is the use of the &#34;new camera angle&#34; in Figure 1. In this configuration, laser beam exposure to a detector is avoided while the 2D detector is parallel to the rotational plane, leading to the observation from the rotational axis direction. The slit allows only the ion in the rotational plane (the polarization plane of the laser pulses) to contribute to an image. A 2D detector, which offers a higher count rate (typically ~100 ions) than a 3D detector, can be used. The setup of the electronics is simpler than in the case of 3D detection, while the measurement efficiency is higher. Time-consuming mathematical reconstruction, such as Abel inversion14, is also not needed to extract angular information. These features lead to the easy optimization of the measurement system and to the production of high-quality movies. A standard 2D/3D charged-particle imaging apparatus can be easily modified to the present setup without the use of expensive equipment.

<table border="0" cellpadding="0" cellspacing="0" width="618">
	<tbody>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">CMOS camera</td>
			<td style="width:83px;">Toshiba TELI</td>
			<td style="width:119px;">BU-238M-ES</td>
			<td style="width:167px;">equipped with SONY IMX174 sensor</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">High voltage switch</td>
			<td style="width:83px;">Behlke</td>
			<td style="width:119px;">HTS-41-03-GSM</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">High voltage switch</td>
			<td style="width:83px;">Behlke</td>
			<td style="width:119px;">HTS-80-03</td>
			<td></td>
		</tr>
		<tr height="63">
			<td height="63" style="height:63px;width:249px;">Digital delay generator</td>
			<td style="width:83px;">Stanford research systems</td>
			<td style="width:119px;">DG535</td>
			<td></td>
		</tr>
		<tr height="63">
			<td height="63" style="height:63px;width:249px;">Digital delay generator</td>
			<td style="width:83px;">Stanford research systems</td>
			<td style="width:119px;">DG645</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Microchannel plate</td>
			<td style="width:83px;">Photonis</td>
			<td align="right" style="width:119px;">3075</td>
			<td></td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">Pulsed valve</td>
			<td style="width:83px;">LAMID LTD</td>
			<td style="width:119px;">Even-Lavie valve&#160;</td>
			<td style="width:167px;">High repetition, room temperature model</td>
		</tr>
		<tr height="84">
			<td height="84" style="height:84px;width:249px;">Molecular beam skimmers</td>
			<td style="width:83px;">Institute for Molecular Science</td>
			<td style="width:119px;">13C11</td>
			<td style="width:167px;">3 and 1.5 mm center hole, 25 degrees full inner angle, and ~50 mm length</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Optical Comparator</td>
			<td style="width:83px;">Nikon</td>
			<td style="width:119px;">V-24B</td>
			<td style="width:167px;"></td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">DPSS laser</td>
			<td style="width:83px;">Lighthouse Photonics</td>
			<td style="width:119px;">Sprout</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Femtosecond Ti:Sapphire oscillator</td>
			<td style="width:83px;">KMLabs</td>
			<td style="width:119px;">Halcyon</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Femtosecond Ti:Sapphire amplifier</td>
			<td style="width:83px;">Quantronix</td>
			<td style="width:119px;">Odin-II HE</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Motorized linear stage</td>
			<td style="width:83px;">Sigma Koki</td>
			<td style="width:119px;">KST(GS)-100X</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Manual X-stage</td>
			<td style="width:83px;">Sigma Koki</td>
			<td style="width:119px;">TSD-601S</td>
			<td></td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">High resolution mirror mount</td>
			<td style="width:83px;">Newport</td>
			<td style="width:119px;">Suprema SX100-F2KN-254</td>
			<td></td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">High resolution mirror mount</td>
			<td style="width:83px;">LIOP-TEC GmbH</td>
			<td style="width:119px;">SR100-100R-2-HS</td>
			<td></td>
		</tr>
		<tr height="63">
			<td height="63" style="height:63px;width:249px;">Polarization checker</td>
			<td style="width:83px;">Paradigm Devices, Inc.</td>
			<td style="width:119px;">O-tool VIS</td>
			<td></td>
		</tr>
		<tr height="44">
			<td height="44" style="height:44px;width:249px;">Instrument communication interface</td>
			<td style="width:83px;">National Instruments</td>
			<td style="width:119px;">NI-MAX</td>
			<td></td>
		</tr>
		<tr height="45">
			<td height="45" style="height:45px;width:249px;">Graphical development environment for measurement programs</td>
			<td style="width:83px;">National Instruments</td>
			<td style="width:119px;">LabVIEW 2014</td>
			<td></td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">Laser line dielectric mirror</td>
			<td style="width:83px;">CVI/LEO</td>
			<td style="width:119px;">TLM2-400/800-45UNP</td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Laser line dielectric mirror</td>
			<td style="width:83px;">Altechna</td>
			<td colspan="2">Low GDD Ultrafast mirror</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:249px;">Laser line dielectric mirror</td>
			<td style="width:83px;">Altechna</td>
			<td colspan="2">Low GDD Ultrafast mirror</td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:249px;">Femtosecond polarizer</td>
			<td style="width:83px;">Advanced Thin Films</td>
			<td style="width:119px;">PBS-GVD</td>
			<td></td>
		</tr>
	</tbody>
</table>

direct imaging of laser-driven ultrafast molecular rotation

We present a method for visualizing laser-induced, ultrafast molecular rotational wave packet dynamics. We have developed a new 2-dimensional Coulomb explosion imaging setup in which a hitherto-impractical camera angle is realized. In our imaging technique, diatomic molecules are irradiated with a circularly polarized strong laser pulse. The ejected atomic ions are accelerated perpendicularly to the laser propagation. The ions lying in the laser polarization plane are selected through the use of a mechanical slit and imaged with a high-throughput, 2-dimensional detector installed parallel to the polarization plane. Because a circularly polarized (isotropic) Coulomb exploding pulse is used, the observed angular distribution of the ejected ions directly corresponds to the squared rotational wave function at the time of the pulse irradiation. To create a real-time movie of molecular rotation, the present imaging technique is combined with a femtosecond pump-probe optical setup in which the pump pulses create unidirectionally rotating molecular ensembles. Due to the high image throughput of our detection system, the pump-probe experimental condition can be easily optimized by monitoring a real-time snapshot. As a result, the quality of the observed movie is sufficiently high for visualizing the detailed wave nature of motion. We also note that the present technique can be implemented in existing standard ion imaging setups, offering a new camera angle or viewpoint for the molecular systems without the need for extensive modification.

Figure 4A shows a probe-only raw image of the N2+ ion ejected upon probe irradiation (Coulomb explosion), taken for one probe laser shot. Each bright spot corresponds to one ion. Figure 4B shows a summed image of 10,000 binarized raw camera images. These images show that our imaging setup can monitor the molecules of all the orientation angles in the polarization plane. Figure 4C shows the normalized polar plot correspo...

Watch this Scientific Journal Video about Direct Imaging of Laser-driven Ultrafast Molecular Rotation at JoVE.com

Direct Imaging of Laser-driven Ultrafast Molecular Rotation

We present a protocol for creating a real-time movie of a molecular rotational wave packet using a high-resolution Coulomb explosion imaging setup.

We present a method for visualizing laser-induced, ultrafast molecular rotational wave packet dynamics. We have developed a new 2-dimensional Coulomb ...
