نشكر KY تان، P. الكرسي وGC Tettamanzi لإجراء مناقشات مفيدة. ونحن نعترف بدعم مالي من المجلس الأسترالي للبحوث (منحة رقم DP120104710)، وأكاديمية فنلندا (منحة رقم 251748، 135794، 272806) وبدعم من الاسترالي مرفق التصنيع الوطنية لتصنيع الجهاز. يعترف AR بدعم مالي من برنامج منحة باحث جامعة نيو ساوث ويلز في وقت مبكر الوظيفي. ومن المسلم به أيضا توفير التسهيلات والدعم الفني من قبل جامعة آلتو في مركز Micronova Nanofabrication.

ملاحظة: يصف هذا البروتوكول الإجراءات المستخدمة لتلفيق، حزمة واختبار مضخات واحد الإلكترون على أساس السيليكون التكنولوجيا MOS QD. يتم تنفيذ الخطوات التي نوقشت في الأقسام الفرعية 1 و 2 في غرف الأبحاث ISO5، في حين أن من القسم 3 يتم تنفيذها في مختبرات ISO6. يتم التحكم باستمرار الظروف المحيطة. يتم تعيين القيم الاسمية لدرجة الحرارة والرطوبة في 20 ± 1 درجة مئوية و 55٪ ± 5٪، على التوالي. 1. التصنيع الدقيق <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> أكسيد الميدان <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> تنظيف الرقاقة عن طريق الغمر في ما يلي: حفر سمكة البيرانا (10 دقيقة)، منزوع الأيونات (DI) الماء (10 دقيقة)، RCA-2 الحل (DI الماء 175 مل، 30 مل حمض الهيدروكلوريك، H 2 O 2 30 مل بسعر 100 ° C لمدة 10 دقيقة)، والماء منزوع الأيونات (5 دقائق)، الهيدروفلوريك (HF) حمض المخفف في الماء 10: 1 (10 ثانية)، والمياه DI (10 دقيقة). استخدام الملابس الواقية عند التعامل مع HF (أي، نظارات، المريلة البلاستيكية، وقفازات PVC). المضي قدما في النظام المذكور. </li><li style=";text-align:right;direction:rtl"> وضع رقاقةفي أكسدة الفرن على 900 درجة مئوية، وأكسدة في خطوات على النحو التالي: O الجاف 2 (10 دقيقة)، O الرطب 2 (40 دقيقة)، O الجاف 2 (10 دقيقة)، N 2 (15 دقيقة). </li></ol></li><li style=";text-align:right;direction:rtl"> أومية اتصالات <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> تنفيذ ضوئيه وأكسيد حفر. <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> إيداع طبقة قليل نانومتر سميكة من التصاق المروج hexamethyldisilazane (HMDS) على سطح الرقاقة على النحو التالي: مرحلة ما قبل الخبز على موقد على 110 درجة مئوية لمدة 1 دقيقة، صب ~ 50 مل من HMDS في كوب من الزجاج، ضع الكأس والرقاقة في فراغ الغرفة، إخلاء والانتظار لمدة 2 دقيقة. </li><li style=";text-align:right;direction:rtl"> تدور طبقة 2-4 ميكرون سميكة من مقاوم الضوء على كل من الظهر والجانبين الأمامية للرقاقة (3،000-5،000 دورة في الدقيقة، 25-40 ثانية اعتمادا على سمك المطلوب). </li><li style=";text-align:right;direction:rtl"> فضح لضوء الأشعة فوق البنفسجية في قناع اليجنر (10 ميغاواط / سم 2 ل10/04 ثانية وفقا لمقاومة سمك). بعد خبز على موقد على 110 درجة مئوية لمدة 1 دقيقة. </li><li style=";text-align:right;direction:rtl"> تطوير لمدة 1-2 دقائق، ثم يشطف في الماء منزوع الأيونات. </لى&gt; <li style=";text-align:right;direction:rtl"> أداء O حفر 2 البلازما لمدة 20 دقيقة (الضغط = 340 mTorr؛ قوة الحادث = 50 W، تنعكس قوة &lt;1 W). </li><li style=";text-align:right;direction:rtl"> أكسيد حفر في مخزنة محلول حمض HF (15: 1، 4-5 دقيقة، احفر معدل ≈ 20 نانومتر / دقيقة عند 30 ° C). شطف في الماء منزوع الأيونات (5 دقائق). ضربة الجافة مع N 2. </li></ol></li><li style=";text-align:right;direction:rtl"> إزالة مقاومة للضوء عن طريق الغمر في الأسيتون. شطف في الأيزوبروبانول (IPA)، ثم ضربة الجافة مع N 2. </li><li style=";text-align:right;direction:rtl"> وضع رقاقة في الفرن على 1000 درجة مئوية مع مصدر الفوسفور (N 2 تدفق ل30-45 دقيقة اعتمادا على الكثافة المطلوبة المنشطات). </li><li style=";text-align:right;direction:rtl"> إزالة طبقة أكسيد الملوثة مع حمض HF المخفف في الماء (10: 1، 3-4 دقيقة، ومعدل حفر ≈ 40 نانومتر / دقيقة عند 30 ° C)، وشطف في الماء منزوع الأيونات (10 دقيقة). </li><li style=";text-align:right;direction:rtl"> أكسدة كما هو الحال في 1.1.2. </li></ol></li><li style=";text-align:right;direction:rtl"> بوابة أكسيد <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> كرر الخطوات من 1.2.1 و 1.2.2. </li><li style=";text-align:right;direction:rtl"> وضع رقاقة في فرن مخصص في 800 ° C وأكسدة في خطوات على النحو التالي: O الجاف 2 (10 دقيقة)، دichloroethylene + O 2 (20 دقيقة)، O الجاف 2 (10-30 دقيقة حسب المطلوب سمك أكسيد)، N 2 (15 دقيقة). </li></ol></li><li style=";text-align:right;direction:rtl"> أومية اتصالات معدنة <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> كرر الخطوة 1.2.1. </li><li style=";text-align:right;direction:rtl"> وضع رقاقة في شعاع الإلكترون المبخر. تتبخر 100 نيوتن متر من الألومنيوم في 0،2-0،5 نانومتر / ثانية و 5 × 10 -6 عربة. </li><li style=";text-align:right;direction:rtl"> نقع في رقاقة N -methyl-2-pyrrolidone (NMP) على موقد في 80 درجة مئوية لمدة 1 ساعة لرفع قبالة المعادن. استخدام التحريض بالموجات فوق الصوتية إذا لزم الأمر. شطف في IPA لمدة 2 دقيقة. ضربة الجافة مع N 2. </li><li style=";text-align:right;direction:rtl"> يصلب في تشكيل الغاز في 400 درجة مئوية لمدة 15 دقيقة على الأقل. </li></ol></li></ol> 2. Nanofabrication <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> رقاقة التكعيب <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> تدور أي مقاومة على الرقاقة لتكون بمثابة طلاء واقية (نوع من البوليمر والغزل المعلمات ليست ذات صلة في هذه المرحلة). </li><li style=";text-align:right;direction:rtl"> استخدام الماس الحافة المقامر لخفض الرقاقة إلى رقائق الفردية ~ 10 × 2 مم 2. </li></ol></li><li style=";text-align:right;direction:rtl">تنظيف <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> نقع في NMP لمدة 1 ساعة على موقد في 80 درجة مئوية، ثم يشطف في IPA لمدة 2 دقيقة. ضربة الجافة مع N 2. </li><li style=";text-align:right;direction:rtl"> أداء O حفر 2 البلازما لمدة 5 دقائق (قوة الحادث = 50 W، تنعكس قوة &lt;1 W). </li><li style=";text-align:right;direction:rtl"> تدور نظيفة مع الأسيتون وIPA (7500 دورة في الدقيقة، 30 ثانية) </li></ol></li><li style=";text-align:right;direction:rtl"> علامات المحاذاة الزخرفة <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> تدور ميتاكريلات (PMMA 950k) A4 مقاومة (5،000-7،500 دورة في الدقيقة، 30 ثانية اعتمادا على سمك المطلوب). سمك عمل نموذجي ≈ 150-200 نانومتر. خبز مقاومة على موقد على حرارة 180 درجة مئوية لمدة 90 ثانية. </li><li style=";text-align:right;direction:rtl"> تنفيذ شعاع ه الطباعة الحجرية. استخدام شروط الكتابة التالية: شعاع الطاقة = 30 كيلو، شعاع الحالية ≈ 30 السلطة الفلسطينية، جرعة منطقة ≈ 500-650 μC / سم 2 اعتمادا على علامات حجم ومقاومة سماكة. </li><li style=";text-align:right;direction:rtl"> تطوير مقاومة في حل من كيتون إيسوبوتيل الميثيل وIPA (1: 3) عن 40-60 ثانية، ثم يشطف في IPA لمدة 20 ثانية. ضربة الجافة مع N 2 بندقية. </li><li style=";text-align:right;direction:rtl"> مكانرقاقة في شعاع الإلكترون المبخر. تتبخر 15 نانومتر من منظمة الشفافية الدولية و 65 نانومتر من حزب العمال في 0،2-0،4 نانومتر / ثانية و 5 × 10 -6 عربة. </li><li style=";text-align:right;direction:rtl"> رفع قبالة المعدن كما في الخطوة 1.4.3. </li><li style=";text-align:right;direction:rtl"> رقاقة نظيفة كما في الخطوات 2.2.2-2.2.3. </li></ol></li><li style=";text-align:right;direction:rtl"> بوابة الزخرفة <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> تدور مقاومة كما هو الحال في 2.3.1. </li><li style=";text-align:right;direction:rtl"> تنفيذ شعاع ه الطباعة الحجرية. استخدام شروط الكتابة التالية لميزات عالية الدقة: شعاع الطاقة = 30 كيلو، شعاع الحالية ≈ 30 السلطة الفلسطينية، جرعة منطقة ≈ 500-700 μC / سم 2. إرسال شروط ملامح منخفضة القرار: شعاع الطاقة = 15 كيلو، شعاع الحالية ≈ 10 غ، جرعة منطقة ≈ 400-600 μC / سم 2. </li><li style=";text-align:right;direction:rtl"> تطوير مقاومة كما هو الحال في 2.3.3. </li><li style=";text-align:right;direction:rtl"> ضع الشريحة في المبخر الحراري. تتبخر آل في 0،1-0،4 نانومتر / ثانية و1-9 × 10 -6 م بار. سمك الهدف يختلف وفقا لعدد طبقة، كما هو مبين في الشكل 2B (25-35 نانومتر للطبقة 1، 45-65 نانومتر للطبقة 2، 75-90 نم للطبقة 3). </li><li style=";text-align:right;direction:rtl"> رفع قبالة المعدن كما في الخطوة 1.4.3. </li><li style=";text-align:right;direction:rtl"> أداء آل الأكسدة على موقد في 150 درجة مئوية لمدة 5-10 دقيقة. </li><li style=";text-align:right;direction:rtl"> رقاقة نظيفة كما في الخطوة 2.2.3. </li><li style=";text-align:right;direction:rtl"> كرر الخطوات 2.4.1-2.4.7 مرتين لتحقيق البوابة 3-طبقة المكدس. </li></ol></li></ol> 3. جهاز التعبئة والتغليف <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> رقاقة الزهر كما في الخطوة 2.1 </li><li style=";text-align:right;direction:rtl"> شطف الناتجة رقائق صغيرة في الأسيتون وIPA لمدة 2 دقيقة. </li><li style=";text-align:right;direction:rtl"> الغراء الفرد قطعة لوحة الدوائر المطبوعة (PCB) مع PMMA A5. الانتظار 2 دقيقة حتى يجف. بدلا من ذلك، من أجل تعزيز thermalization، تستخدم الفضة الايبوكسي. </li><li style=";text-align:right;direction:rtl"> تحميل PCB الصعود إلى بوندر إسفين والمضي قدما في الأسلاك. </li></ol> 4. اختبارات النزاهة الأجهزة <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> جبل PCB التي تحتوي على جهاز سلكي على تحقيق تراجع. </li><li style=";text-align:right;direction:rtl"> سلك الخطوط الكهربائية من الكلور لتلك لجنة التحقيق تراجع. </li><li style=";text-align:right;direction:rtl"> إدراج التحقيق في وعاء يحتوي الهليوم السائل. المضي قدما ببطء لتجنب الإفراط في الهليوم بالنفط خارج. </li><li style=";text-align:right;direction:rtl"> لكل بوابة الجهاز، ربط المقابل القطب درجة حرارة الغرفة لجنة التحقيق إلى وحدة المصدر التدبير، مع الحفاظ على بوابات أخرى الارض. تعيين الامتثال الحالي لعدد قليل غ. اكتساح الجهد من صفر إلى 1.5V في الخطوات من 0.1 V، وقياس وتسجيل التيار. </li><li style=";text-align:right;direction:rtl"> ربط كل سطر بوابة لمصدر متغير العاصمة الجهد بطارية تعمل بالطاقة، خط المصدر إلى المدمج في مصدر التيار الكهربائي المتردد من مكبر للصوت قفل في وخط هجرة إلى مدخل الميناء من القفل في مكبر للصوت. </li><li style=";text-align:right;direction:rtl"> قياس مصدر لاستنزاف تصرف للتكوينات بوابة الجهد مختلفة (انظر الشكل 4). <ol style=";text-align:right;direction:rtl"><li style=";text-align:right;direction:rtl"> المنحدر عالميا تصل الفولتية المطبقة على بوابات BL، BR، PL، SL وDL، عن طريق الحفاظ C1 و C2 البوابات على الارض. تسجيل خصائص الجهاز &#39;بدوره على&#39;. </li><li style=";text-align:right;direction:rtl"> المنحدر بشكل فردي أسفل كل بوابة الجهد وتسجيل الخصائص بوابات &quot;قرصة قبالة &#39;. </li><li style=";text-align:right;direction:rtl"> ضبط الفولتية بوابة لتعريف كهربية لتشونقطة أنتم سلفنا من خلال تحديد الفولتية على BL وBR (PL، SL وDL) أصغر (أكبر) من منعطف على الفولتية. تسجيل الخصائص الحصار كولوم. </li></ol></li></ol>

<ol>
	<li>Sze, S. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Physics of Semiconductor Devices. , 505-566 (1969).</li><li>Moore, G. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cramming+More+Components+onto+Integrated+Circuits.">Cramming More Components onto Integrated Circuits.</a> Electronics. 38, 114-117 (1965).</li><li>Voisin, B., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Few-Electron+Edge-State+Quantum+Dots+in+a+Silicon+Nanowire+Field-Effect+Transistor.">Few-Electron Edge-State Quantum Dots in a Silicon Nanowire Field-Effect Transistor.</a> Nano Lett. 14 (4), 2094-2098 (2014).</li><li>Asenov, A., Brown, A. R., Davies, J. H., Savas, K., Slavcheva, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Simulation+of+Instrinsic+Parameter+Fluctuations+in+Decananometer+and+Nanometer-Scale+MOSFETs.">Simulation of Instrinsic Parameter Fluctuations in Decananometer and Nanometer-Scale MOSFETs.</a> IEEE Trans Electron Devices. 50 (9), 1837-1852 (2003).</li><li>Zwanenburg, F. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Silicon+Quantum+Electronics.">Silicon Quantum Electronics.</a> Rev. Mod. Phys. 85 (3), 961-1019 (2013).</li><li>Ladd, T. D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Quantum+computers.">Quantum computers.</a> Nature. 464 (7285), 45-53 (2010).</li><li>Piquemal, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Genev&#232;s,+G.+for+a+direct+realization+of+the+quantum+metrological+triangle.">Genev&#232;s, G. for a direct realization of the quantum metrological triangle.</a> Metrologia. 37 (3), 207-211 (2000).</li><li>Angus, S. J., Ferguson, A. J., Dzurak, A. S., Clark, R. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Gate-Defined+Quantum+Dots+in+Intrinsic+Silicon.">Gate-Defined Quantum Dots in Intrinsic Silicon.</a> Nano Lett. 7 (7), 2051-2055 (2007).</li><li>Gonzalez-Zalba, M. F., Heiss, D., Podd, G., Ferguson, A. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tunable+aluminium-gated+single+electron+transistor+on+a+doped+silicon-on-insulator+etched+nanowire.">Tunable aluminium-gated single electron transistor on a doped silicon-on-insulator etched nanowire.</a> Appl. Phys. Lett. 101 (10), 103504-103501 (2014).</li><li>Lim, W. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Observation+of+the+single-electron+regime+in+a+highly+tunable+silicon+quantum+dot.">Observation of the single-electron regime in a highly tunable silicon quantum dot.</a> Appl. Phys. Lett. 95 (24), 242102-242103 (2009).</li><li>Yang, C. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Spin-valley+lifetimes+in+silicon+quantum+dots+with+tunable+valley+splitting.">Spin-valley lifetimes in silicon quantum dots with tunable valley splitting.</a> Nat. Commun. 4 (2069), (2013).</li><li>Chan, K. W., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Single-electron+shuttle+based+on+a+silicon+quantum+dot.">Single-electron shuttle based on a silicon quantum dot.</a> Appl. Phys. Lett. 98 (21), 212103-212101 (2011).</li><li>Rossi, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+accurate+single-electron+pump+based+on+a+highly+tunable+silicon+quantum+dot.">An accurate single-electron pump based on a highly tunable silicon quantum dot.</a> Nano Lett. 14 (6), 3405-3411 (2014).</li><li>Pekola, J. P., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Single-electron+current+sources:+Toward+a+refined+definition+of+the+ampere.">Single-electron current sources: Toward a refined definition of the ampere.</a> Rev. Mod. Phys. 85 (4), 1421-1472 (2013).</li><li>Giblin, S. P., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Towards+a+quantum+representation+of+the+ampere+using+single+electron+pumps.">Towards a quantum representation of the ampere using single electron pumps.</a> Nat. Commun. 3, 930 (2012).</li><li>Kouwenhoven, L. P., Austing, D. G., Tarucha, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Few-electron+quantum+dots.">Few-electron quantum dots.</a> Rep. Prog. Phys. 64 (6), 701-736 (2001).</li><li>Veldhorst, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+addressable+quantum+dot+qubit+with+fault-tolerant+control+fidelity.">An addressable quantum dot qubit with fault-tolerant control fidelity.</a> Nat. Nanotech. 9 (12), 981-985 (2014).</li><li>Fujiwara, A., Nishiguchi, K., Ono, Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nanoampere+charge+pump+by+single-electron+ratchet+using+silicon+nanowire+metal-oxide-semiconductor+field-effect+transistor.">Nanoampere charge pump by single-electron ratchet using silicon nanowire metal-oxide-semiconductor field-effect transistor.</a> Appl. Phys. Lett. 92 (4), 042102-1-042102-3 (2008).</li><li>Jehl, X., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Hybrid+Metal-Semiconductor+Electron+Pump+for+Quantum+Metrology.">Hybrid Metal-Semiconductor Electron Pump for Quantum Metrology.</a> Phys. Rev. X. 3 (2), 021012-1-021012-7 (2013).</li><li>Tettamanzi, G. C., Wacquez, R., Rogge, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Charge+pumping+through+a+single+donor+atom.">Charge pumping through a single donor atom.</a> New J. Phys. 16 (6), 063036-1-063036-17 (2014).</li><li>Koppinen, P. J., Stewart, M. D., Zimmerman, N. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fabrication+and+Electrical+Characterization+of+Fully+CMOS-Compatible+Si+Single-Electron+Devices.">Fabrication and Electrical Characterization of Fully CMOS-Compatible Si Single-Electron Devices.</a> IEEE Trans Electron Devices. 60 (1), 78-83 (2013).</li><li>Fletcher, J. D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Stabilization+of+single-electron+pumps+by+high+magnetic+fields.">Stabilization of single-electron pumps by high magnetic fields.</a> Phys. Rev. B. 86 (15), 155311-1-155311-6 (2012).</li><li>Kataoka, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tunable+Nonadiabatic+Excitation+in+a+Single-Electron+Quantum+Dot.">Tunable Nonadiabatic Excitation in a Single-Electron Quantum Dot.</a> Phys. Rev. Lett. 106 (12), 126801-1-126801-4 (2011).</li></ol>

الكتاب ليس لديهم ما يكشف.

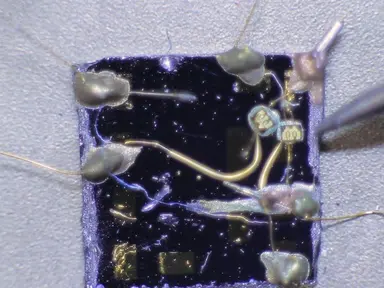

بروتوكول الواردة في هذه الدراسة يصف التقنيات لتصنيع السيليكون MOS QDS، فضلا عن الإجراءات التجريبية لاختبار سلامتها الفنية وتشغيلها مثل مضخات واحد الإلكترون. بشكل ملحوظ، من خلال تكييف تصميم البوابة، ويمكن استخدام عملية التصنيع ذاتها لإنتاج أجهزة مناسبة لنوعية الشيء قراءات والتحكم 17، فضلا عن تهمة ضخ 12،13. نلاحظ أن العديد من المعلمات عملية نقل في هذه المقالة قد تختلف اعتمادا على أدوات التصنيع المستخدمة (المعايرة، أو نموذج)، وكذلك على نوع من الركيزة السيليكون (سمك وكثافة الخلفية المنشطات). كميات مثل جرعة التعرض الطباعة الحجرية أو الوقت اللازم لتطوير، والحفر أو مدة الأكسدة، ويجب أن تكون محسوبة بدقة واختبارها للتأكد من تحقيق عائد موثوق بها. وعلاوة على ذلك، لا بد من تجنب انتقال الملوثات الناتجة عن استخدام أدوات التصنيع نفسها لعمليات مختلفة. تحقيقا لهذه الغاية، وعدد من كريتم تنفيذ الخطوات itical بمعدات مخصصة حصرا لتصنيع السيليكون مثل تبخر المعادن، وأفران الأكسجين والحمامات HF. بشكل أعم، والسيليكون يقترب اهتماما متزايدا كمادة من خيار لتحقيق مضخات تهمة 18-20. ويرجع هذا جزئيا إلى وجهة نظر جذابة تنفيذ معيار التيار الكهربائي الجديد القائم على الكم باستخدام عملية السيليكون في صناعة المتوافقة مع هذا. وهذا من شأنه الاستفادة من تقنيات التكامل راسخة وموثوقة لتطويره، الموازاة والنفقات العامة القيادة. الأهم، وهو مكمل MOS (CMOS) تقنية كاملة، وخالية من المعدن التقليدي كمادة البوابة، وقد أظهرت تقلص إلى حد كبير خلفية التقلبات المسؤول في أجهزة احد الإلكترون 21. ويمكن لهذه التقلبات أن تكون ضارة في تحقيق الدقة المترولوجية. بروتوكول مناقشتها هنا يقتصر على تحقيق MOS النانو الأجهزة مع البوابات المعدنية. لذلك، لachieلقد التوافق الكامل الصناعي والحد من التقلبات تهمة، ستكون هناك حاجة إلى تعديل أساليب ترسب البوابة واستخدام مخدر للغاية السيليكون متعدد الكريستالات كمادة البوابة. في الختام، المضخات MOS QD مناقشتها هنا تضافرت مؤخرا ميزة تكنولوجية من السيليكون مع أداء جيد جدا من حيث الجيل الحالي دقيقة 13. هذا نابع من مرونة عالية لعملية تصميم وتصنيع والتي تسمح لأحد على كومة طبقات بوابة متعددة تؤدي إلى نظام التعاقد وتنوعا. وtunability غرامة الناتجة من الحبس الكهربائي من نقطة جنبا إلى جنب مع القدرة على خفض خلفية التقلبات تهمة يمهد الطريق للتغلب على التحديات الرئيسية التي لوحظت في مجال أشباه الموصلات الأخرى مضخات 22،23.

Silicon is the material of choice for most of the modern microelectronics. Its properties, combined with advanced lithographic techniques, have allowed the semiconductor industry to achieve very large-scale integration and deliver billions of transistors per chip. The metal-oxide-semiconductor (MOS) technology1 has been the key of this relentless technological progress2. In brief, it is based on a selectively doped Si substrate which is thermally oxidized to grow a high quality SiO2 gate oxide on which a metal gate electrode is deposited. Recently, it has been shown that the use of a stack of gate oxides could be beneficial3 . While present industry standards have reached minimum feature sizes for gate lengths below 20 nm, it is becoming increasingly evident that, at this level of miniaturization, detrimental quantum mechanical phenomena come into play that may complicate further downscaling4.
Remarkably, silicon is also an excellent host material to exploit the quantum properties of the electron charge and spin5. This has broadened its range of applicability to entirely new fields such as quantum computing6 and quantum electrical metrology7. Among other approaches5, the use of a multi-gate MOS technology8,9 has led to electrostatically-defined quantum dots (QD) whose occupancy can be controlled down to single-electron level10. Unlike the conventional MOS process where just one gate per transistor is needed1, these QDs are defined via a three-layer stack of Al/AlyOx gates which are used to selectively accumulate electrons at the Si/SiO2 interface, as well as provide lateral and vertical confinement11.
Although these devices had been originally developed for quantum computing applications, they have also recently shown promising performances as metrological tools12,13. In the field of quantum electrical metrology, a long-standing goal is the redefinition of the unit ampere in terms of the elementary charge (e) 14. In particular, the emphasis is on the realization of nano-scale charge pumps to clock the transfer of individual electrons timely and accurately. These devices generate macroscopic quantized electric currents, I=nef, where f is the frequency of an external driving oscillator and n is an integer. To date, the best performance has been achieved with a GaAs-based pump by yielding a current in excess of 150 pA with a relative uncertainty of 1.2 parts per million15. Recently, silicon MOS QDs have also stood out for the implementation of highly accurate single-electron pumps thanks to the capability of finely tuning the charge confinement13.
Here, we discuss the protocol used for the fabrication of silicon MOS QDs. Furthermore, the cryogenic set-up used to test the integrity of the devices after fabrication and the one to perform charge pumping experiments are described. Finally, representative measurements of quantized electric current are reported.

<table border="0" cellpadding="0" cellspacing="0">
	<tbody>
		<tr>
			<td>Silicon wafers</td>
			<td>TOPSIL</td>
			<td></td>
			<td>4 inch</td>
		</tr>
		<tr>
			<td>Electron-beam lithography machine</td>
			<td>Raith gmbh</td>
			<td></td>
			<td>Raith 150two</td>
		</tr>
		<tr>
			<td>E-beam resist&#160;</td>
			<td>MicroChem gmbh</td>
			<td></td>
			<td>PMMA</td>
		</tr>
		<tr>
			<td>Photoresist</td>
			<td>MicroChem gmbh</td>
			<td></td>
			<td>nLOF2020</td>
		</tr>
		<tr>
			<td>Mask aligner</td>
			<td>Quintel</td>
			<td></td>
			<td>Q6000</td>
		</tr>
		<tr>
			<td>Photoresist developer</td>
			<td>MicroChem gmbh</td>
			<td></td>
			<td>AZ826MIF</td>
		</tr>
	</tbody>
</table>

silicon metal-oxide-semiconductor quantum dots for single-electron pumping

As mass-produced silicon transistors have reached the nano-scale, their behavior and performances are increasingly affected, and often deteriorated, by quantum mechanical effects such as tunneling through single dopants, scattering via interface defects, and discrete trap charge states. However, progress in silicon technology has shown that these phenomena can be harnessed and exploited for a new class of quantum-based electronics. Among others, multi-layer-gated silicon metal-oxide-semiconductor (MOS) technology can be used to control single charge or spin confined in electrostatically-defined quantum dots (QD). These QD-based devices are an excellent platform for quantum computing applications and, recently, it has been demonstrated that they can also be used as single-electron pumps, which are accurate sources of quantized current for metrological purposes. Here, we discuss in detail the fabrication protocol for silicon MOS QDs which is relevant to both quantum computing and quantum metrology applications. Moreover, we describe characterization methods to test the integrity of the devices after fabrication. Finally, we give a brief description of the measurement set-up used for charge pumping experiments and show representative results of electric current quantization.

Watch this Scientific Journal Video about Silicon Metal-oxide-semiconductor Quantum Dots for Single-electron Pumping at JoVE.com

Silicon Metal-oxide-semiconductor Quantum Dots for Single-electron Pumping

The fabrication process and experimental characterization techniques relevant to single-electron pumps based on silicon metal-oxide-semiconductor quantum dots are discussed.

السيليكون المعدنية أكسيد أشباه الموصلات الكم النقاط لالضخ وحيد الإلكترون

As mass-produced silicon transistors have reached the nano-scale, their behavior and performances are increasingly affected, and often deteriorated, by ...

silicon-metal-oxide-semiconductor-quantum-dots-for-single-electron
