著者は、WT (グラント号 41272368) に NSFC および QKX (許可番号 41630205) の財政支援を認めます。

NOTE: The data processing procedures include: synthetic seismogram calculation, synthetic-real seismic trace correlation, and geo-body extraction. Below are the step-by-step details of each procedure.
1. Calculation of Synthetic Seismogram
<ol>
	<li>Calculate the acoustic impedance at each interval of the down-well logging curve.
	NOTE: Acoustic impedance is the product of &#39;seismic wave velocities&#39; and &#39;density&#39; (&#961;*&#957;)). The data are often averaged to sampling intervals larger than 1 ft, in order to reduce the computation time and aliasing.</li>
	<li>Calculate the reflection coefficients (R0) at each interface by using the acoustic impedance calculation:
	<img alt="Equation" src="/files/ftp_upload/55930/55930eq1.jpg" />
	where &#957;1 and &#957;2 are the averaged velocities of the layers below and above the interface, respectively; &#961;1 and &#961;2 are the corresponding averaged densities.
	<ol>
		<li>If the well does not intersect the igneous bodies, use nearby wells that have intersected the target rocks to obtain the parameters (velocity, density, etc.).</li>
	</ol>
	</li>
	<li>Chose a wavelet that has an amplitude and phase spectrum similar to that of the nearby seismic data.</li>
	<li>Convolve the synthetic wavelet with the reflection series for the entire well survey and generate a synthetic seismic trace. The final simulated seismic trace T(t) can be described by the convolutional model as below:
	<img alt="Equation" src="/files/ftp_upload/55930/55930eq2.jpg" />
	where R0(t) is the reflection coefficient, w(t) is the wavelet and n(t) is the noise.</li>
	<li>If the frequency of the seismic data has large variations throughout the whole well, re-compute the synthetic seismic trace using a wavelet with a different phase and a dominant frequency at different depth intervals.
	<ol>
		<li>Repeat the process if the match between the synthetic trace and the seismic data is not satisfactory.</li>
	</ol>
	</li>
	<li>Perform the calculation with the provided software (e.g., Petrel E&#38;P Software Platform).
	<ol>
		<li>Start the software. Select File | Open Project | and then select the demo research project tlm (users can select their own desired projects). The project should contain well data, wired log, well tops, seismic cube, and interpretation surface in the research area.</li>
		<li>Click on Home | Windows | 2D Windows | 3D Windows to open two display windows to show the data sets according to user&#39;s preference.</li>
		<li>In the &#34;Wells Tree of Input Pane&#34;, right click the desired well. Open the Settings window of the well and select the Time tab to create a new time log. Select Velocity Function, then select DT data in the new time log. Click the OK button to close settings window. A new one-way time log is automatically created and will be shown in the &#34;Wells Tree of Input Pane&#34;.
		NOTE: A one-way time log is a time-depth relationship of this well. Wired log domains can be transformed to time domains and be shown in the time domain window.</li>
		<li>Activate an existing 3D Window by clicking the displayed window. If there is no 3D Window displayed, create a new 3D Window by clicking Home | Windows | 3D Windows. Select TWT in the toolbar of the 3D Window to show the 3D Window in time domain.</li>
		<li>Select representative wired logs (such as &#39;GR&#39;, &#39;DT&#39;, or &#39;RT&#39;) in the Wells Tree to show them in the 3D Window; at the same time, select the seismic profile in the &#39;seismic&#39; tree of the &#39;input&#39; pane to show them in the same 3D Window.</li>
		<li>Use the Manipulate Plane tool in the toolbar of the 3D Window to adjust the location of the profile to intersect the well; the user will see that the wired log has been transformed to the time domain and displayed with the seismic profile in the same 3D window.</li>
		<li>Click Seismic Interpretation | Seismic Well Tie | Seismic Well Tie Process. Choose Integrated Seismic Well Tie in the type of study row, and add desired well in the Well row. Choose calibrated one-way time log as time-depth relationship in the TDR row of the input tab, choose seismic cube in the seismic row. Choose any log in the RC calculation method.</li>
		<li>Click Launch Wavelet Toolbox to create a Ricker wavelet to apply in this process. Click OK and a new well section window and synthetic seismogram display will be created.</li>
	</ol>
	</li>
</ol>
2. Correlate the Synthetic Traces with the Real Seismic Reflectors
<ol>
	<li>Use an automated correlation application, like Seismic Well Tie in the platform, to adapt the resulting synthetic trace to the vertical scale of the seismic section.</li>
	<li>Adjust the synthetic seismogram to increase the overlapping of high amplitude reflectors of the synthetic trace and real trace.</li>
	<li>Adjust the synthetic seismogram and the real trace repeatedly. When the overlapping trace reaches the maximum, the interpreter has reached the &#34;best fits&#34; between the obtained synthetic seismogram and real traces.
	<ol>
		<li>Repeat the process until the correlations reach the desired level.</li>
	</ol>
	</li>
	<li>Perform the correlation with the provided software.
	<ol>
		<li>Activate the window created in step 1.6.3, which is the one-way time log automatically created from the acoustic log.
		NOTE: This automatically created &#39;one-way time log&#39; is not perfectly correlated with the real seismic reflectors. The users should calibrate the correlations between the one-way time log and the real seismic reflectors.</li>
		<li>To calibrate their correlations, choose a continual and representative reflector that is intersected by the well. Then manually adjust the depth of the well log. For example, to adjust the depth of the DT log, right click the One-Way Time Log in well tree | select the Calculator tool | then add a small time increment (for example, 10 ms) by typing &#39;DT=DT+10&#39; in the input dialog of the Calculator tool.</li>
		<li>If the &#39;10 ms&#39; increment is too large or too small, change the increment to another time (can be negative value) in the &#39;calculator&#39; tool. Check the correlation between the well log and the selected seismic horizon repeatedly and then adjust the time increment repeatedly, until the correlation is perfectly calibrated.</li>
	</ol>
	</li>
</ol>
3. Extraction of Basaltic Sills
<ol>
	<li>Pick 2 high-amplitude reflectors encasing the target sills.
	NOTE: Most intrusions are expressed in seismic data as tuned reflection packages, whereby the reflections from the upper and lower intrusion contacts cannot be distinguished. Tuning occurs when the vertical intrusion thickness is between &#955;/4 and &#955;/8 (&#955; is seismic wavelength)19. Therefore, sills are shown as a set of strong reflections in the seismic section, and their apparent thickness is false.</li>
	<li>Extract probes between the horizons corresponding to the two high-amplitude reflectors.
	NOTE: There are different tools based on the rendering technique that can help the interpreters better visualize the targets, such as &#34;box probes&#34;, &#34;surfaces probes&#34; and &#34;well probes&#34;. However, for identification of contacts between the sills and encasing strata, the best tool is &#34;surface probe&#34;. (&#34;Surface probe, etc.&#34; are terms in &#39;Petrel&#39; software. The software users should be familiar with these terms).</li>
	<li>Remove the areas surrounding the geological objects of interest by changing the Voxel connectivity opacity threshold value. Set the default threshold value to 20%. The visualization method of &#34;opacity rendering&#34; is used here to display the result of the extraction of basaltic sills ( Figure 2C).
	NOTE: There are high amplitude reflections along the surface between igneous rock and sedimentary rock because of their significant difference in acoustic impedance. Make the low amplitude parts transparent to highlight the shape of the igneous bodies.</li>
	<li>As the value for isolation can be higher than 20 - 30%, change the value with small increments to make sure all important igneous bodies are not lost; the larger the value, the higher the risk of losing the volume of the real igneous bodies.</li>
	<li>Perform the operation with the provided software.
	<ol>
		<li>Click the Seismic Interpretation pane, click Insert a Horizon Probe. A probe will be added in the geobody interpretation probes tree of input pane. Double click the added horizon probe and a pop-up window will appear.</li>
		<li>Click the Horizons tab in the pop-up window and choose two seismic surfaces that isolate the zone of sills. Click OK to apply the operation.</li>
		<li>Check the newly added probe in the geobody interpretation probes tree shown in the input pane. A seismic cube will then appear in the 3D window.</li>
		<li>Double click the probe and choose the Opacity tab. A histogram of seismic amplitude will be shown in the tab. Use the left mouse button to draw a line in the histogram to control the opacity of the seismic cube. The low amplitude parts of the tube should be invisible and the high amplitude parts will be left.</li>
		<li>Adjust the histogram repeatedly until the desired shape of the interested geobody is achieved.</li>
	</ol>
	</li>
</ol>
4. Extraction of the Feeding Conduits
<ol>
	<li>Choose continuous and high energy reflection horizons at different depths beneath the surface lava flow.</li>
	<li>Do time slicing along the selected horizons, to find out discontinuities corresponding to the vertical conduits.</li>
	<li>Adjust the Two-Way Time (TWT) repeatedly, to achieve the best imaging of the discontinuities of the conduits.
	NOTE: Seismic data cannot image vertical structures well, so better images from amplitude volumes and variance volumes are chosen by comparing clearness at different travel times.</li>
	<li>Try different slicing techniques, and then choose which can better image the discontinuities.
	NOTE: Different tools can be used here, such as variance body slicing. Its theoretical basis is the similarity between each seismic section and adjacent seismic traces in the seismic data. Another tool, the variance cube, is a new data body processed by the conventional seismic data, which is helpful for the identification of changes in the structure and lithology, plane combination of the fault, etc.20</li>
	<li>Plot the slices at different travel times or depths into a 3D space.</li>
	<li>Perform the operation with the provided software.
	<ol>
		<li>Double click Volume Attributes in the geophysics tree of the processes pane. Check Structural Methods in the category column and Variance in the attribute column. Select the seismic cube to input box and adjust the other parameter in the parameter tab. For better reading performance, check the box in the realize column. A variance cube is created in the seismic tree of the input pane.</li>
		<li>Right click the variance cube and click Insert Time Slice Intersection to show more horizontal intersections in the 3D window. Use the Manipulate Plane tool in the toolbar of the 3D window to adjust the location of the slices to optimize the display of conduits.</li>
		<li>Right click the seismic amplitude cube and click Insert Time Slice Intersection to show more horizontal intersections in 3D window. Do the same operation as step 4.6.2 to adjust the location of the slices to optimize the display of conduits.</li>
	</ol>
	</li>
</ol>

<ol>
	<li>Smallwood, J. R., Maresh, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+properties,+morphology+and+distribution+of+igneous+sills:+modelling,+borehole+data+and+3D+seismic+from+the+Faroe-Shetland+area.">The properties, morphology and distribution of igneous sills: modelling, borehole data and 3D seismic from the Faroe-Shetland area.</a> Geol. Soc. London Spec. Publ. 197 (1), 271-306 (2002).</li><li>Millett, J. M., Hole, M. J., Jolley, D. W., Schofield, N., Campbell, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Frontier+exploration+and+the+North+Atlantic+Igneous+Province:+new+insights+from+a+2.6+km+offshore+volcanic+sequence+in+the+NE+Faroe-Shetland+Basin.">Frontier exploration and the North Atlantic Igneous Province: new insights from a 2.6 km offshore volcanic sequence in the NE Faroe-Shetland Basin.</a> J. Geol. Soc. 173 (2), 320-336 (2016).</li><li>Lee, G. H., Kwon, Y. I., Yoon, C. S., Kim, H. J., Yoo, H. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Igneous+complexes+in+the+eastern+Northern+South+Yellow+Sea+Basin+and+their+implications+for+hydrocarbon+systems.">Igneous complexes in the eastern Northern South Yellow Sea Basin and their implications for hydrocarbon systems.</a> Mar. Pet. Geol. 23 (6), 631-645 (2006).</li><li>Rateau, R., Schofield, N., Smith, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+potential+role+of+igneous+intrusions+on+hydrocarbon+migration,+West+of+Shetland.">The potential role of igneous intrusions on hydrocarbon migration, West of Shetland.</a> Pet. Geosci. 19 (3), 259-272 (2013).</li><li>Magee, C., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Lateral+magma+flow+in+mafic+sill+complexes.">Lateral magma flow in mafic sill complexes.</a> Geosphere. 12 (3), 809-841 (2016).</li><li>Magee, C., Jackson, C. A. L., Schofield, N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Diachronous+sub-volcanic+intrusion+along+deep-water+margins:+insights+from+the+Irish+Rockall+Basin.">Diachronous sub-volcanic intrusion along deep-water margins: insights from the Irish Rockall Basin.</a> Basin Res. 26 (1), 85-105 (2014).</li><li>Symonds, P., Planke, S., Frey, O., Skogseid, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Volcanic+evolution+of+the+Western+Australian+continental+margin+and+its+implications+for+basin+development.">Volcanic evolution of the Western Australian continental margin and its implications for basin development.</a> The sedimentary basins of Western Australia. 2, 33-54 (1998).</li><li>Thomson, K., Hutton, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Geometry+and+growth+of+sill+complexes:+insights+using+3D+seismic+from+the+North+Rockall+Trough.">Geometry and growth of sill complexes: insights using 3D seismic from the North Rockall Trough.</a> BVol. 66 (4), 364-375 (2004).</li><li>Planke, S., Rasmussen, T., Rey, S., Myklebust, R., Dor&#233;, A. G., Vining, B. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Petroleum Geology: North-West Europe and Global Perspectives-Proceedings of the 6th Petroleum Geology Conference. 6, 833-844 (2005).</li><li>Magee, C., Hunt Stewart, ., E, C. A. L., Jackson, <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Volcano+growth+mechanisms+and+the+role+of+sub-volcanic+intrusions:+Insights+from+2D+seismic+reflection+data.">Volcano growth mechanisms and the role of sub-volcanic intrusions: Insights from 2D seismic reflection data.</a> Earth Planet. Sci. Lett. 373, 41-53 (2013).</li><li>Schofield, N. J., Brown, D. J., Magee, C., Stevenson, C. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sill+morphology+and+comparison+of+brittle+and+non-brittle+emplacement+mechanisms.">Sill morphology and comparison of brittle and non-brittle emplacement mechanisms.</a> J. Geol. Soc. 169 (2), 127-141 (2012).</li><li>Wang, L., Tian, W., Shi, Y. M., Guan, P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Volcanic+structure+of+the+Tarim+flood+basalt+revealed+through+3-D+seismological+imaging.">Volcanic structure of the Tarim flood basalt revealed through 3-D seismological imaging.</a> Sci. Bull. 60 (16), 1448-1456 (2015).</li><li>Sun, Q., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neogene+igneous+intrusions+in+the+northern+South+China+Sea:+Evidence+from+high-resolution+three+dimensional+seismic+data.">Neogene igneous intrusions in the northern South China Sea: Evidence from high-resolution three dimensional seismic data.</a> Mar. Pet. Geol. 54, 83-95 (2014).</li><li>Schofield, N., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Seismic+imaging+of+'broken+bridges':+linking+seismic+to+outcrop-scale+investigations+of+intrusive+magma+lobes.">Seismic imaging of 'broken bridges': linking seismic to outcrop-scale investigations of intrusive magma lobes.</a> J. Geol. Soc. 169 (4), 421-426 (2012).</li><li>Thomson, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Volcanic+features+of+the+North+Rockall+Trough:+application+of+visualisation+techniques+on+3D+seismic+reflection+data.">Volcanic features of the North Rockall Trough: application of visualisation techniques on 3D seismic reflection data.</a> BVol. 67 (2), 116-128 (2005).</li><li>Jackson, C. A. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Seismic+reflection+imaging+and+controls+on+the+preservation+of+ancient+sill-fed+magmatic+vents.">Seismic reflection imaging and controls on the preservation of ancient sill-fed magmatic vents.</a> J. Geol. Soc. 169 (5), 503-506 (2012).</li><li>Tian, W., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Tarim+picrite-basalt-rhyolite+suite,+a+Permian+flood+basalt+from+northwest+China+with+contrasting+rhyolites+produced+by+fractional+crystallization+and+anatexis.">The Tarim picrite-basalt-rhyolite suite, a Permian flood basalt from northwest China with contrasting rhyolites produced by fractional crystallization and anatexis.</a> CoMP. 160 (3), 407-425 (2010).</li><li>Chen, M. -. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Peridotite+and+pyroxenite+xenoliths+from+Tarim,+NW+China:+Evidences+for+melt+depletion+and+mantle+refertilization+in+the+mantle+source+region+of+the+Tarim+flood+basalt.">Peridotite and pyroxenite xenoliths from Tarim, NW China: Evidences for melt depletion and mantle refertilization in the mantle source region of the Tarim flood basalt.</a> Lithos. 204, 97-111 (2014).</li><li>Magee, C., Maharaj, S. M., Wrona, T., Jackson, C. A. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Controls+on+the+expression+of+igneous+intrusions+in+seismic+reflection+data.">Controls on the expression of igneous intrusions in seismic reflection data.</a> Geosphere. 11 (4), 1024-1041 (2015).</li><li>Bahorich, M., Farmer, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=3-D+seismic+discontinuity+for+faults+and+stratigraphic+features:+The+coherence+cube.">3-D seismic discontinuity for faults and stratigraphic features: The coherence cube.</a> The Leading Edge. 14 (10), 1053-1058 (1995).</li></ol>

著者が明らかに何もありません。

ここで埋没の玄武岩質火山の配管システムの構造や形態を説明するための 2 つの方法を紹介します。不透明度のレンダリング、他のスライス時間です。
不透明度のレンダリング方法は連続し, 地層と水平界面を持つ地質体に適しています。このメソッドは、マグマの葉の 3 D 形状を抽出することが 1 つ。通常、流れ方向はマグマの葉長軸に沿ってする必要があります。ま?...

堆積盆内工業地震イメージング プロジェクトのほとんどの目的は、炭化水素貯留層を探索することです。近年、炭化水素の探査は塊状の洗面器の多くはかなりの石油とガス貯留層を持っているので、火成岩類の多量を含む流域に拡大しています。ただし、塊状の流域における火成岩類のインタ フェースが、地震データ処理、一連の減らされたエネルギー伝送、減衰、干渉効果、屈折、散乱1など、さまざまな攻撃による課題。したがって、油田会社は地震イメージング2,3,4にこのような「否定的な影響」を減らすこと努力を注いでいます。
堆積盆地内の火成岩体は, 岩1,5,6大音響インピー ダンス コントラストのための 2 つの次元または三次元反射法地震イメージングによって簡単に識別されます。このメソッドは、火山配管システム7,8,9,10、11,12,13の垂直方向と水平方向の構造の壮大なイメージを提供することができます。ただし、地下の火山をイメージングの戦略は非常に異なっている石油・ ガス探査8,14,15。これは別にいくつかの成功事例10,15,16, 地下の火山の研究で産業の地震探査データの使用を制限されています。本稿では、地下の火山の解釈のためにカスタマイズされる地震データ処理の詳細な手順を報告します。我々 は TZ47、YM2 の 2 つの耐震キューブを処理 (図 1)、タリム川洪水玄武岩17で埋められた火成岩体を可視化する方法を示します。

<table><tbody><tr><td>The Petrel E&amp;amp;P software platform</td><td>Schlumberger</td><td></td><td>software version:2014</td></tr></tbody></table>

data processing methods for 3d seismic imaging of subsurface volcanoes: applications to the tarim flood basalt

形態と配管システムの構造は、噴出量および玄武岩溶岩のスタイルに重要な情報を提供できます。地下地質体を勉強する最も強力な方法は、産業の三次元反射地震学的イメージングを使用することです。ただし、地下の火山をイメージするための戦略は非常に異なっている石油とガス貯留層の。本研究で我々 は不透明度レンダリング技術により敷居を視覚化する方法と時間をスライスして、コンジットをイメージする方法を説明するために北部タリム盆地、中国からの地震データ キューブを処理します。最初のケースでは、分離したプローブ敷居の間の接点をマーキングと被覆層、耐震の視野によって地震のキューブから敷居を抽出する不透明度レンダリング技法を適用します。流れ方向は、ドームの中心から縁に結果の詳細な敷居形態を示しています。2 番目の地震キューブにしておりますタイム スライス画像の導管、, 岩内のマーク付きの不連続に対応します。異なる深さで得られたタイム スライスのセットは、タリム川洪水玄武岩が別のパイプのような導管によって供給される中央の火山から噴出したことを表示します。

火山管の垂直、水平敷居火成岩体の 2 種類にそれらを適用することによって上記の手法の有用性を示す.不透明なレンダリング手法を用いて敷居の抽出を実施し、火山の火道の解釈はスライシング加工技術を使用して行われます。
敷居の抽出
産業掘削井戸が17北...

Watch this Scientific Journal Video about Data Processing Methods for 3D Seismic Imaging of Subsurface Volcanoes: Applications to the Tarim Flood Basalt at JoVE.com

Data Processing Methods for 3D Seismic Imaging of Subsurface Volcanoes: Applications to the Tarim Flood Basalt

三次元 (3 D) 反射法地震は、地下の火山のイメージングのための強力な方法です。タリム盆地から工業用 3 D 地震データを用いた地震探査データ キューブから、土台と地下の火山の導管を抽出する方法を示します。

地下の火山の 3 D イメージングのデータ処理方法: タリム洪水玄武岩のアプリケーション

The morphology and structure of plumbing systems can provide key information on the eruption rate and style of basalt lava fields. The most powerful way ...

data-processing-methods-for-3d-seismic-imaging-subsurface-volcanoes

Research

JoVE Journal

Environment

9.3K ビュー.  Peking University. 三次元 (3 D) 反射法地震は、地下の火山のイメージングのための強力な方法です。タリム盆地から工業用 3 D 地震データを用いた地震探査データ キューブから、土台と地下の火山の導管を抽出する方法を示します。

ビデオ: Data Processing Methods for 3D Seismic Imaging of Subsurface Volcanoes: Applications to the Tarim Flood Basalt

Measuring Carbon-based Contaminant Mineralization Using Combined CO2 Flux and Radiocarbon Analyses

A method is described which uses the absence of radiocarbon in industrial chemicals and fuels made from petroleum feedstocks which frequently contaminate the environment. This radiocarbon signal &#8212; or rather the absence of signal &#8212; is evenly distributed throughout a contaminant source pool (unlike an added tracer) and is not impacted by biological, chemical or physical processes (e.g., the 14C radioactive decay rate is immutable). If the fossil-derived contaminant is fully degraded to CO2, a harmless end-product, that CO2 will contain no radiocarbon. CO2 derived from natural organic matter (NOM) degradation will reflect the NOM radiocarbon content (usually &#60;30,000 years old). Given a known radiocarbon content for NOM (a site background), a two end-member mixing model can be used to determine the CO2 derived from a fossil source in a given soil gas or groundwater sample. Coupling the percent CO2 derived from the contaminant with the CO2 respiration rate provides an estimate for the total amount of contaminant degraded per unit time. Finally, determining a zone of influence (ZOI) representing the volume from which site CO2 is collected allows determining the contaminant degradation per unit time and volume. Along with estimates for total contaminant mass, this can ultimately be used to calculate time-to-remediate or otherwise used by site managers for decision-making.

Measuring Carbon-based Contaminant Mineralization Using Combined CO2 Flux and Radiocarbon Analyses

A protocol is described wherein CO2 mineralized from organic contaminant (derived from petroleum feedstocks) biodegradation is trapped, quantified, and analyzed for 14C content. A model is developed to determine CO2 capture zone's spatial extent. Spatial and temporal measurements allow integrating contaminant mineralization rates for predicting remediation extent and time.

複合COを用いたカーボンベースの汚染鉱化作用を測定します<sub&gt; 2</sub&gt;フラックスと放射性炭素分析

A method is described which uses the absence of radiocarbon in industrial chemicals and fuels made from petroleum feedstocks which frequently contaminate ...

環境学

Extracting Metrics for Three-dimensional Root Systems: Volume and Surface Analysis from In-soil X-ray Computed Tomography Data

Plant roots play a critical role in plant-soil-microbe interactions that occur in the rhizosphere, as well as processes with important implications to climate change and crop management. Quantitative size information on roots in their native environment is invaluable for studying root growth and environmental processes involving plants. X-ray computed tomography (XCT) has been demonstrated to be an effective tool for in situ root scanning and analysis. We aimed to develop a costless and efficient tool that approximates the surface and volume of the root regardless of its shape from three-dimensional (3D) tomography data. The root structure of a Prairie dropseed (Sporobolus heterolepis) specimen was imaged using XCT. The root was reconstructed, and the primary root structure was extracted from the data using a combination of licensed and open-source software. An isosurface polygonal mesh was then created for ease of analysis. We have developed the standalone application imeshJ, generated in MATLAB1, to calculate root volume and surface area from the mesh. The outputs of imeshJ are surface area (in mm2) and the volume (in mm3). The process, utilizing a unique combination of tools from imaging to quantitative root analysis, is described. A combination of XCT and open-source software proved to be a powerful combination to noninvasively image plant root samples, segment root data, and extract quantitative information from the 3D data. This methodology of processing 3D data should be applicable to other material/sample systems where there is connectivity between components of similar X-ray attenuation and difficulties arise with segmentation.

A methodology for obtaining visual and quantitative root structure information from X-ray computed tomography data acquired in-soil is presented.

三次元根系のための抽出メトリック：イン土壌のX線コンピュータ断層撮影データからボリュームおよび表面分析

Plant roots play a critical role in plant-soil-microbe interactions that occur in the rhizosphere, as well as processes with important implications to ...

Reservoir Condition Pore-scale Imaging of Multiple Fluid Phases Using X-ray Microtomography

X-ray microtomography was used to image, at a resolution of 6.6 &#181;m, the pore-scale arrangement of residual carbon dioxide ganglia in the pore-space of a carbonate rock at pressures and temperatures representative of typical formations used for CO2 storage. Chemical equilibrium between the CO2, brine and rock phases was maintained using a high pressure high temperature reactor, replicating conditions far away from the injection site. Fluid flow was controlled using high pressure high temperature syringe pumps. To maintain representative in-situ conditions within the micro-CT scanner a carbon fiber high pressure micro-CT coreholder was used. Diffusive CO2 exchange across the confining sleeve from the pore-space of the rock to the confining fluid was prevented by surrounding the core with a triple wrap of aluminum foil. Reconstructed brine contrast was modeled using a polychromatic x-ray source, and brine composition was chosen to maximize the three phase contrast between the two fluids and the rock. Flexible flow lines were used to reduce forces on the sample during image acquisition, potentially causing unwanted sample motion, a major shortcoming in previous techniques. An internal thermocouple, placed directly adjacent to the rock core, coupled with an external flexible heating wrap and a PID controller was used to maintain a constant temperature within the flow cell. Substantial amounts of CO2 were trapped, with a residual saturation of 0.203 &#177; 0.013, and the sizes of larger volume ganglia obey power law distributions, consistent with percolation theory.

We present a methodology for the imaging of multiple fluid phases at reservoir conditions by the use of x-ray microtomography. We show some representative results of capillary trapping in a carbonate rock sample.

X線マイクロトモグラフィーを使用した複数の流体相の貯水池条件ポアスケールのイメージング

X-ray microtomography was used to image, at a resolution of 6.6 &#181;m, the pore-scale arrangement of residual carbon dioxide ganglia in the pore-space ...

工学

Using Synchrotron Radiation Microtomography to Investigate Multi-scale Three-dimensional Microelectronic Packages

Synchrotron radiation micro-tomography (SR&#181;T) is a non-destructive three-dimensional (3D) imaging technique that offers high flux for fast data acquisition times with high spatial resolution. In the electronics industry there is serious interest in performing failure analysis on 3D microelectronic packages, many which contain multiple levels of high-density interconnections. Often in tomography there is a trade-off between image resolution and the volume of a sample that can be imaged. This inverse relationship limits the usefulness of conventional computed tomography (CT) systems since a microelectronic package is often large in cross sectional area 100-3,600 mm2, but has important features on the micron scale. The micro-tomography beamline at the Advanced Light Source (ALS), in Berkeley, CA USA, has a setup which is adaptable and can be tailored to a sample&#39;s properties, i.e., density, thickness, etc., with a maximum allowable cross-section of 36 x 36 mm. This setup also has the option of being either monochromatic in the energy range ~7-43 keV or operating with maximum flux in white light mode using a polychromatic beam. Presented here are details of the experimental steps taken to image an entire 16 x 16 mm system within a package, in order to obtain 3D images of the system with a spatial resolution of 8.7 &#181;m all within a scan time of less than 3 min. Also shown are results from packages scanned in different orientations and a sectioned package for higher resolution imaging. In contrast a conventional CT system would take hours to record data with potentially poorer resolution. Indeed, the ratio of field-of-view to throughput time is much higher when using the synchrotron radiation tomography setup. The description below of the experimental setup can be implemented and adapted for use with many other multi-materials.

For this study synchrotron radiation micro-tomography, a non-destructive three-dimensional imaging technique, is employed to investigate an entire microelectronic package with a cross-sectional area of 16 x 16 mm. Due to the synchrotron&#39;s high flux and brightness the sample was imaged in just 3 min&#160;with an 8.7 &#181;m spatial resolution.

マルチスケール三次元マイクロエレクト​​ロニクスパッケージを調査するために放射光マイクロトモグラフィーを用いて、

Synchrotron radiation micro-tomography (SR&#181;T) is a non-destructive three-dimensional (3D) imaging technique that offers high flux for fast data ...

Dynamic Pore-scale Reservoir-condition Imaging of Reaction in Carbonates Using Synchrotron Fast Tomography

Underground storage permanence is a major concern for carbon capture and storage. Pumping CO2 into carbonate reservoirs has the potential to dissolve geologic seals and allow CO2 to escape. However, the dissolution processes at reservoir conditions are poorly understood. Thus, time-resolved experiments are needed to observe and predict the nature and rate of dissolution at the pore scale. Synchrotron fast tomography is a method of taking high-resolution time-resolved images of complex pore structures much more quickly than traditional &#181;-CT. The Diamond Lightsource Pink Beam was used to dynamically image dissolution of limestone in the presence of CO2-saturated brine at reservoir conditions. 100 scans were taken at a 6.1 &#181;m resolution over a period of 2 hours. The images were segmented and the porosity and permeability were measured using image analysis and network extraction. Porosity increased uniformly along the length of the sample; however, the rate of increase of both porosity and permeability slowed at later times.

Synchrotron fast tomography was used to dynamically image dissolution of limestone in the presence of CO2-saturated brine at reservoir conditions. 100 scans were taken at a 6.1 &#181;m resolution over a period of 2 h.

シンクロトロン高速断層撮影法を使用した炭酸における反応の動的細孔スケール貯水池条件イメージング

Underground storage permanence is a major concern for carbon capture and storage. Pumping CO2 into carbonate reservoirs has the potential to dissolve ...

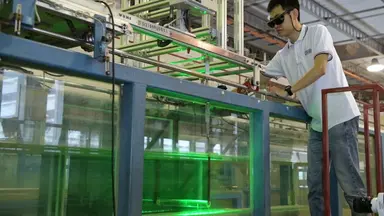

Visualization of Flow Field Around a Vibrating Pipeline Within an Equilibrium Scour Hole
