Shrinky-Dink Hanging Drops: A Simple Way to Form and Culture Embryoid Bodies

Summary

We show a simple and rapid method to load pre-defined numbers of cells into microfabricated wells and maintain them for embryoid body development.

Abstract

Embryoid bodies (EB) are aggregates of embryonic stem cells. The most common way of creating these aggregates is the hanging drop method, a laborious approach of pipetting an arbitrary number of cells into well plates. The interactions between the stem cells forced into close proximity of one another promotes the generation of the EBs. Because the media in each of the wells has to be manually exchanged every day, this approach is manually intensive.

Moreover, because environmental parameters including cell-cell, cell-soluble factor interactions, pH, and oxygen availability can be functions of EB size, cell populations obtained from traditional hanging drops can vary dramatically even when cultured under identical conditions. Recent studies have indeed shown that the initial number of cells forming the aggregate can have significant effects on stem cell differentiation. We have developed a simple, rapid, and scalable culture method to load pre-defined numbers of cells into microfabricated wells and maintain them for embryoid body development. Finally, these cells are easily accessible for further analysis and experimentation. This method is amenable to any lab and requires no dedicated equipment. We demonstrate this method by creating embryoid bodies using a red fluorescent mouse cell line (129S6B6-F1).

Protocol

1. Making Shrinky-Dink Mold

1. Print the desired pattern on shrinky-dink sheet using a good definition printer.
2. Bake shrinky-dink sheet at 163° C for about 10 minutes, or until fully shrunk and having aquired a regular shape.
3. After shrinky-dink mold has cooled down, submerge it in an isopropanol bath until the complete surface is barely covered.
4. Carefully, spray some acetone over the mold and shake container a few times. Add more isopropanol to wash out acetone excess and repeat this step a few times until shrinky-mold looks clean.
5. Immerse mold in distilled water for 10 minutes to wash off any remaining organic solvent.
6. Air clean shrinky-mold. Re-heat it for about 5 minutes at 163° C. This will compact ink and evaporate any remaining solvent.

2. Making PDMS microwells

1. Prepare a 10:1 PDMS/curing agent mixture, and agitate vigorously for few minutes.
2. Place shrinky-dink mold in a small petri dish. Pour PDMS mixture until it reaches about 1/2 cm over the mold surface.
3. Place dish under vacuum bell to eliminate all bubbles from PDMS mixture.
4. Place dish in oven at 70°C, overnight.
5. Cut off solid PDMS from mold and bind it to a glass slide just by applying pressure.
6. Discard first microwell-chip, since it has ink residues incrusted between PDMS.
7. Repeat this procedure to produce a second chip that is ink-free and has a more defined shape.
8. Clean microwell-chip using 70% ethanol solution. Place it under UV light source for 10 minutes to sterilize it.

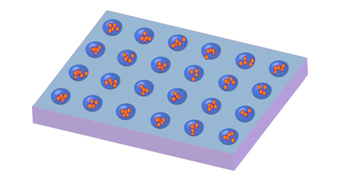

3. Trapping cells in microwells

1. Count cells and dilute them in culture media to desired concentration (depending on how many initial cells in wells you would like). For example, to get approximately 10-15 cells per well (average = 11, SD = 5.4, loading rate= 93%), we used a concentration of 8×10⁴ cells/ml. For a concentration of 17×10⁴ cells/ml, we could reliably get between 25 and 35 cells per well (average = 27.17857 SD = 7.7, loading rate = 100%).
2. Carefully place microwell chip in a 50 ml centrifuge tube containing a solidified PDMS base.
3. Add about 2JDP ml of the cell solution.
4. Centrifuge for 5 minutes at 760 rpm and 4°C.
5. Pipet out excess solution and carefully wash microwell with PBS 1X solution.
6. Place microwell in a small petry dish, being careful while taking the chip out of the centrifuge tube.
7. Wash cell excess using 1 X PBS solution.
8. Place microwell chip under an inverted microscope to verify intended number of cells per well.
9. Incubate microwell containing cells at standard conditions.



4. Cell incubation

1. Follow the normal EB protocol in the lab.
2. Change the medium slowly from the side of the chamber; avoid disturbing the cell in the microwell.

Discussion

We have developed a simple, rapid, and scalable culture method to load pre-defined numbers of cells into microfabricated wells (molded from Shrinky-Dinks) and maintain them for embryoid body development. Finally, these cells are easily accessible for further analysis and experimentation. This method is amenable to any lab and requires no dedicated equipment because we obviate the need for photolithography. We can vary the size of the microwells as well as the concentration of cells/ wells to change the number and size of...

Materials

Name	Company	Catalog Number	Comments
Material Name	Type	Company	Catalogue Number
Shrink-Dink Film	Material	K&B Innovations	D300-10A
PDMS	Material	Dow Corning	Sylgard 184
Acetone	Reagent	Fisher Scientific	A16P-4
Ethanol	Reagent	Fisher Scientific	A405P-4
PBS	Reagent	Sigma	P4417
BMP-4	Reagent	R and D systems	314-BP-010
Knock-Out DMEM (KO DMEM)	Reagent	Invitrogen	10829
KnockOut Sirum Replacement (KSR)	Reagent	Invitrogen	10828
Penn-Strep	Reagent	Invitrogen	15070-063
L-glutamine	Reagent	Invitrogen	25030-081
Non-essential Amino Acids (NEAA)	Reagent	Invitrogen	11140
D-mercaptoethanol (BME)	Reagent	Calbiochem	444203
Leukemia Inhibitory Factor (LIF) {ESGRO 106 units}	Reagent	Chemicon	ESG1106
Printer	Tool	HP	Laser Jet 2420d
Oven	Tool	Yamato Scientific	DP-22
For the mESC media(McCloskey lab protocol): (for total media prepared: 50ml; 100ml) KO DMEM: 40.8ml; 81.6ml 15% KSR: 7.5ml; 15ml 1x Penn-Strep: .5ml; 1ml 2mM L-glutamine: .5ml; 1ml NEAA : .5ml; 1ml LIF: 100ul; 200ul BMP-4 (10ng/ml): 50ul; 100ul Diluted BME: 50ul; 100ul (Add 35ul of sterile filtered BME to 5ml of PBS and syringe filter sterilize. Discard after 2 weeks. Final concentration in the solution is .1mM)
