Name: automated quantification of hematopoietic cell &#8211; stromal cell interactions in histological images of undecalcified bone
Uploaded: 2015-04-08T14:00:00
Description: Watch this Scientific Journal Video about Automated Quantification of Hematopoietic Cell â€“ Stromal Cell Interactions in Histological Images of Undecalcified Bone at JoVE.com

We thank Andreas Radbruch for valuable discussions. We are grateful to Sabine Gruczek, Patrick Thiemann and Manuela Ohde for assistance with animal care and Robert G&#252;nther for excellent technical assistance. We thank our trained raters Laura Oehme, Jannike Bayat-Sarmadi, Karolin Pollok, Katrin Roth, Florence Pache and Katharina Horn for evaluation of the histology samples and Randy Lindquist for proofreading of the manuscript. We thank J. and N. Lee, Mayo Clinic, Scottsdale, Arizona, USA for MBP-specific antibodies.
This work was supported by DFG HA5354/4-1, by JIMI-a DFG core facility network grant for intravital microscopy and by TRR130/TP17,and DFG FOR 2165 (HA5354/6-1) to A.E.H. S.Z. was supported by the International Max Planck School for Infectious Diseases and Immunology (IMPRS-IDI), Berlin.

The animal experiments were approved by the appropriate state committees for animal welfare (Landesamt f&#252;r Gesundheit und Soziales, Berlin) and were performed in accordance with current guidelines and regulations (animal experiment license G0194/11).
1. Generation of Fluorescent Bone Marrow Chimeric Mice
NOTE: The generation of fluorescent bone marrow chimeric mice to visualize bone marrow stromal cells is performed as described before9.
<ol>
	<li>...

<ol>
	<li>Kunisaki, Y., Frenette, P. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+secrets+of+the+bone+marrow+niche:+Enigmatic+niche+brings+challenge+for+HSC+expansion.">The secrets of the bone marrow niche: Enigmatic niche brings challenge for HSC expansion.</a> Nat Med. 18, 864-865 (2012).</li><li>Morrison, S. J., Scadden, D. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+bone+marrow+niche+for+haematopoietic+stem+cells.">The bone marrow niche for haematopoietic stem cells.</a> Nature. 505, 327-334 (2014).</li><li>Tokoyoda, K., Egawa, T., Sugiyama, T., Choi, B. I., Nagasawa, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cellular+niches+controlling+B+lymphocyte+behavior+within+bone+marrow+during+development.">Cellular niches controlling B lymphocyte behavior within bone marrow during development.</a> Immunity. 20, 707-718 (2004).</li><li>Cariappa, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Perisinusoidal+B+cells+in+the+bone+marrow+participate+in+T-independent+responses+to+blood-borne+microbes.">Perisinusoidal B cells in the bone marrow participate in T-independent responses to blood-borne microbes.</a> Immunity. 23, 397-407 (2005).</li><li>Sapoznikov, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Perivascular+clusters+of+dendritic+cells+provide+critical+survival+signals+to+B+cells+in+bone+marrow+niches.">Perivascular clusters of dendritic cells provide critical survival signals to B cells in bone marrow niches.</a> Nat Immunol. 9, 388-395 (2008).</li><li>Tokoyoda, K., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Professional+memory+CD4++T+lymphocytes+preferentially+reside+and+rest+in+the+bone+marrow.">Professional memory CD4+ T lymphocytes preferentially reside and rest in the bone marrow.</a> Immunity. 30, 721-730 (2009).</li><li>Mazo, I. B., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Bone+marrow+is+a+major+reservoir+and+site+of+recruitment+for+central+memory+CD8++T+cells.">Bone marrow is a major reservoir and site of recruitment for central memory CD8+ T cells.</a> Immunity. 22, 259-270 (2005).</li><li>Lin, G. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Contribution+of+4-1BBL+on+radioresistant+cells+in+providing+survival+signals+through+4-1BB+expressed+on+CD8(+)+memory+T+cells+in+the+bone+marrow.">Contribution of 4-1BBL on radioresistant cells in providing survival signals through 4-1BB expressed on CD8(+) memory T cells in the bone marrow.</a> Eur J Immunol. 42, 2861-2874 (2012).</li><li>Zehentmeier, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Static+and+dynamic+components+synergize+to+form+a+stable+survival+niche+for+bone+marrow+plasma+cells.">Static and dynamic components synergize to form a stable survival niche for bone marrow plasma cells.</a> Eur J Immunol. 44, 2306-2317 (2014).</li><li>Nagasawa, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microenvironmental+niches+in+the+bone+marrow+required+for+B-cell+development.">Microenvironmental niches in the bone marrow required for B-cell development.</a> Nat Rev Immunol. 6, 107-116 (2006).</li><li>Luche, H., Weber, O., Nageswara Rao, T., Blum, C., Fehling, H. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Faithful+activation+of+an+extra-bright+red+fluorescent+protein+in+'knock-in'+Cre-reporter+mice+ideally+suited+for+lineage+tracing+studies.">Faithful activation of an extra-bright red fluorescent protein in 'knock-in' Cre-reporter mice ideally suited for lineage tracing studies.</a> Eur J Immunol. 37, 43-53 (2007).</li><li>Schwenk, F., Baron, U., Rajewsky, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+cre-transgenic+mouse+strain+for+the+ubiquitous+deletion+of+loxP-flanked+gene+segments+including+deletion+in+germ+cells.">A cre-transgenic mouse strain for the ubiquitous deletion of loxP-flanked gene segments including deletion in germ cells.</a> Nucleic Acids Res. 23, 5080-5081 (1995).</li><li>Kawamoto, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Use+of+a+new+adhesive+film+for+the+preparation+of+multi-purpose+fresh-frozen+sections+from+hard+tissues,+whole-animals,+insects+and+plants.">Use of a new adhesive film for the preparation of multi-purpose fresh-frozen sections from hard tissues, whole-animals, insects and plants.</a> Arch Histol Cytol. 66, 123-143 (2003).</li><li>Kawamoto, T., Kawamoto, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Preparation+of+thin+frozen+sections+from+nonfixed+and+undecalcified+hard+tissues+using+Kawamot's+film+method.">Preparation of thin frozen sections from nonfixed and undecalcified hard tissues using Kawamot's film method.</a> Arch Histol Cytol. 1130 (2012), 149-164 (2012).</li><li>Smith, C. L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Basic+confocal+microscopy.">Basic confocal microscopy.</a> Current protocols in neuroscience / editorial board, Jacqueline N. Crawley ... [et al.]. 2 (Unit 2.2), (2001).</li><li>Otsu, N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+threshold+selection+method+from+gray-level+histograms.">A threshold selection method from gray-level histograms.</a> IEEE Trans. Sys., Man., Cyber. 9, 62-66 (1979).</li><li>Hughes, I., Hase, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Measurements and Their Uncertainties: A Practical Guide To Modern Error Analysis. , (2010).</li><li>Quinn, G. P., Keough, M. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Experimental Design and Data Analysis for Biologists. , (2002).</li><li>Kiel, M. J., Morrison, S. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Uncertainty+in+the+niches+that+maintain+haematopoietic+stem+cells.">Uncertainty in the niches that maintain haematopoietic stem cells.</a> Nat Rev Immunol. 8, 290-301 (2008).</li><li>MacQueen, J. B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Some+Methods+for+classification+and+Analysis+of+Multivariate+Observations.">Some Methods for classification and Analysis of Multivariate Observations.</a> Proceedings of 5th Berkeley Symposium on Mathematical Statistics and Probability Vol. 1. , 666 (1967).</li><li>Livet, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Transgenic+strategies+for+combinatorial+expression+of+fluorescent+proteins+in+the+nervous+system.">Transgenic strategies for combinatorial expression of fluorescent proteins in the nervous system.</a> Nature. 450, 56-62 (2007).</li><li>Jarjour, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fate+mapping+reveals+origin+and+dynamics+of+lymph+node+follicular+dendritic+cells.">Fate mapping reveals origin and dynamics of lymph node follicular dendritic cells.</a> J Exp Med. 211, 1109-1122 (2014).</li><li>Gerner, M. Y., Kastenmuller, W., Ifrim, I., Kabat, J., Germain, R. N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Histo-cytometry:+a+method+for+highly+multiplex+quantitative+tissue+imaging+analysis+applied+to+dendritic+cell+subset+microanatomy+in+lymph+nodes.">Histo-cytometry: a method for highly multiplex quantitative tissue imaging analysis applied to dendritic cell subset microanatomy in lymph nodes.</a> Immunity. 37, 364-376 (2012).</li><li>Moreau, H. D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Dynamic+in+situ+cytometry+uncovers+T+cell+receptor+signaling+during+immunological+synapses+and+kinapses+in+vivo.">Dynamic in situ cytometry uncovers T cell receptor signaling during immunological synapses and kinapses in vivo.</a> Immunity. 37, 351-363 (2012).</li><li>Siffrin, V., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=In+vivo+imaging+of+partially+reversible+th17+cell-induced+neuronal+dysfunction+in+the+course+of+encephalomyelitis.">In vivo imaging of partially reversible th17 cell-induced neuronal dysfunction in the course of encephalomyelitis.</a> Immunity. 33, 424-436 (2010).</li><li>Shen, Q., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Adult+SVZ+stem+cells+lie+in+a+vascular+niche:+a+quantitative+analysis+of+niche+cell-cell+interactions.">Adult SVZ stem cells lie in a vascular niche: a quantitative analysis of niche cell-cell interactions.</a> Cell Stem Cell. 3, 289-300 (2008).</li><li>Danielsson, P. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Euclidian+distance+mapping.">Euclidian distance mapping.</a> Computer Graphics and Image Processing. 14, 21 (1980).</li><li>Tellier, J., Kallies, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Finding+a+home+for+plasma+cells+-+a+niche+to+survive.">Finding a home for plasma cells - a niche to survive.</a> Eur J Immunol. , (2014).</li><li>Winter, O., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Megakaryocytes+constitute+a+functional+component+of+a+plasma+cell+niche+in+the+bone+marrow.">Megakaryocytes constitute a functional component of a plasma cell niche in the bone marrow.</a> Blood. 116, 1867-1875 (2010).</li><li>Rozanski, C. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sustained+antibody+responses+depend+on+CD28+function+in+bone+marrow-resident+plasma+cells.">Sustained antibody responses depend on CD28 function in bone marrow-resident plasma cells.</a> J Exp Med. 208, 1435-1446 (2011).</li><li>Rodriguez Gomez, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Basophils+support+the+survival+of+plasma+cells+in+mice.">Basophils support the survival of plasma cells in mice.</a> J Immunol. 185, 7180-7185 (2010).</li><li>Belnoue, E., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Homing+and+adhesion+patterns+determine+the+cellular+composition+of+the+bone+marrow+plasma+cell+niche.">Homing and adhesion patterns determine the cellular composition of the bone marrow plasma cell niche.</a> J Immunol. 188, 1283-1291 (2012).</li><li>Kohler, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=G-CSF-mediated+thrombopoietin+release+triggers+neutrophil+motility+and+mobilization+from+bone+marrow+via+induction+of+Cxcr2+ligands.">G-CSF-mediated thrombopoietin release triggers neutrophil motility and mobilization from bone marrow via induction of Cxcr2 ligands.</a> Blood. 117, 4349-4357 (2011).</li></ol>

Despite the progress in modern optical imaging methods, the analysis of histological data is still often hindered by the lack of proper quantification tools and methods, or by biased analyses that focus on a small area of interest. The synergistic approach presented here combines image analysis covering the entire bone marrow region, automated segmentation and object recognition of various hematopoietic and stromal cell types, co-localization analysis, and finally a validation tool of non-randomly occurring contacts prov...

Due to recent rapid technological developments in microscopy, including optical imaging, the analysis of cells within the context of the whole tissue has become increasingly accessible for immunologists. The characterization of single cells in suspension represents a valuable and indispensable method to understand cellular and molecular function. However, the analysis of the cells within their (micro)-anatomical environment is essential for understanding the interactions between various cell types that collaborate in complex processes such as the development of immune responses.
While it is relatively easy for microscopists to obtain qualitative information from images, it remains a challenge to quantify these data, partly due to the fact that analysis methods in this field are lagging behind compared to what is possible in image acquisition. Many researchers still rely on time-consuming manual cell counting in their histology images, thus introducing a bias amongst different raters and hindering replication by other groups. Oftentimes, one representative image is chosen to underline a statement on cellular position or co-localization in a publication, making it hard for the reader to judge the statistical relevance of such an event.
Together with the fact that the full information content of image data is rarely exploited, this emphasizes the need for a more unbiased, faster and comprehensive approach to analyze histological images.
The bone marrow is a complex tissue, which takes on important vital functions as the organ of hematopoiesis in adult vertebrates. Besides being the birthplace for hematopoietic cells1,2 and playing an important role in B lymphocyte development3, it also acts as a site where immune reactions are initiated4 and supports mature, recirculating B cells5. In addition, its role in maintaining immunological memory has become increasingly appreciated in the last decade, as several types of cells constituting immune memory have been found to reside there6-9.
The relation between the complex tissue architecture of the bone marrow and its functions still remain elusive. Unlike secondary lymphoid organs, which are organized in macro-compartments such as T and B cell zones, the bone marrow lacks a clear macro-compartmentalization. So far distinct compartments in bone marrow are defined by their proximity to the bone cortex or to vasculature. The importance of the various resident stromal cell populations in the bone marrow for a number of processes such as supporting stem cells, development of B cells or maintenance of immune memory cell populations (such as long-lived plasma cells (PCs), CD4+ and CD8+ memory T cells) clearly indicates that there is a certain degree of micro-compartmentalization in the bone marrow.
These observations have led to the concept of distinct microanatomical niches, which are specialized in certain functionalities (stem cell maintenance, B cell development at various stages, and maintenance of immunological memory) in the bone marrow. Although there seems to be a certain degree of heterogeneity among the niches that serve different functions, some of the factors produced by stromal cells, such as CXC-chemokine ligand 12 (CXCL12) or interleukin 7 (IL-7), are crucial components for several of these niches10. The visualization and characterization of stromal cells in the bone marrow is difficult due to their morphological features with long, thin dendritic extensions forming a network throughout the bone marrow, and the lack of appropriate markers to discriminate stromal subpopulations.
It is not yet clear as to what extent these niches share common features with respect to their cellular and molecular composition, and which elements render a certain niche unique. In addition to stromal cells, hematopoietic cell types have been shown to play a crucial role by providing certain signals at least for some of the niches. Clearly, the complexity of the niche composition requires their analysis in situ, and it has become increasingly important for immunologists and hematologists to zoom in on bone marrow microarchitecture, e.g., by analyzing the spatial relationships between its cellular components.
Here, a strategy to quantify cellular co-localization and neighborhood relationships in the bone marrow in an automated and unbiased way is presented. A detailed workflow including the generation of chimeric mice, harboring fluorescent stromal cells and non-fluorescent hematopoietic cells, preparation of histological sections from undecalcified bones, acquisition of confocal images covering the whole bone, as well as the automated image analysis of cellular co-localization and its validation/discrimination from random positioning by a simulation tool is provided (Figure 8).

<table border="0" cellpadding="0" cellspacing="0" width="1864">
	<tbody>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Name of Reagent/ Equipment</td>
			<td style="width:145px;">Company</td>
			<td style="width:155px;">Catalog Number</td>
			<td style="width:1200px;">Comments/Description</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Neomycin</td>
			<td style="width:145px;">Sigma</td>
			<td style="width:155px;">N6386 SIGMA</td>
			<td>Neomycin trisulfate salt hydrate, EU hazard code: GHS08; www.sigmaaldrich.com</td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:365px;">Ursovit AD3EC</td>
			<td style="width:145px;">Serumwerke Bernburg</td>
			<td style="width:155px;"></td>
			<td>1 ml contains: 50.000 I.E retinyl palmitate,&#160; 5.000 I.E. cholecalciferol, 30 mg tocopheryl acetate, 100 mg ascorbic acid, 1 mg sorbic acid, 200 mg polyoxyl 35 castor oil, 0,5 mg propyl gallate</td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:365px;">Transfer buffer (100ml PBS, 1ml 1M HEPES, 50U/ml Penicillin/Streptomycin)</td>
			<td style="width:145px;">Sigma</td>
			<td style="width:155px;">P4333&#160;&#160; Sigma&#160;&#160;&#160;&#160; H3375&#160;&#160; Sigma&#160;&#160;</td>
			<td>www.sigmaaldrich.com</td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:365px;">4-Hydroxy-3-nitrophenylacetyl hapten conjugated to chicken gamma globulin)</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td></td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Chicken gamma globulin (CGG) 100 mg</td>
			<td style="width:145px;">Rockland</td>
			<td style="width:155px;">D602-0100</td>
			<td>www.rockland-inc.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">20 % Paraformaldehyde solution (EM-grade)</td>
			<td style="width:145px;">Science Services</td>
			<td style="width:155px;">15713</td>
			<td>EU hazard codes: GHS02, GHS05, GHS07, GHS08</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">D(+)-Sucrose</td>
			<td style="width:145px;">Carl Roth</td>
			<td style="width:155px;">4621.1</td>
			<td>www.carlroth.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Dry ice</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td></td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:365px;">Acetone</td>
			<td style="width:145px;">Sigma.Aldrich</td>
			<td style="width:155px;">179124 SIGMA-ALDRICH</td>
			<td>EU hazard codes: GHS02, GHS07; www.sigmaaldrich.com</td>
		</tr>
		<tr height="42">
			<td height="42" style="height:42px;width:365px;">Hexane</td>
			<td style="width:145px;">Sigma-Aldrich</td>
			<td style="width:155px;">208752 SIGMA-ALDRICH</td>
			<td>EU hazard codes: GHS02, GHS07, GHS08, GHS09; www.sigmaaldrich.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Tissue-Tek cryomolds (standard)</td>
			<td style="width:145px;">Sakura&#160;</td>
			<td style="width:155px;">4557</td>
			<td>25 x 20 x 5 mm; www.sakuraus.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Tissue-Tek O.C.T.</td>
			<td style="width:145px;">Sakura&#160;</td>
			<td style="width:155px;">4583</td>
			<td>&#160;www.sakuraus.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Kawamoto&#39;s SCEM embedding medium</td>
			<td style="width:145px;">Section-Lab, JP</td>
			<td style="width:155px;"></td>
			<td>http://section-lab.jp/index.html</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Kawamoto&#39;s cryosection preparation kit&#160;</td>
			<td style="width:145px;">Section-Lab, JP</td>
			<td style="width:155px;"></td>
			<td>http://section-lab.jp/index.html</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Kawamoto&#39;s cryofilm type 2C(9)</td>
			<td style="width:145px;">Section-Lab, JP</td>
			<td style="width:155px;"></td>
			<td>http://section-lab.jp/index.html</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Microtome blade MX35 Premier Plus, Low Profile</td>
			<td style="width:145px;">Thermo Scientific</td>
			<td style="width:155px;">3052835</td>
			<td>L X W: 80 x 8 mm (31.5 x 3.13&#34;), thickness: 0.25 mm (0.01&#34;);www.thermoscientific.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">polyclonal rabbit anti-RFP antibody, biotinylated</td>
			<td style="width:145px;">Rockland</td>
			<td style="width:155px;">600-406-379</td>
			<td>www.rockland-inc.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Alexa Fluor 555 streptavidin</td>
			<td style="width:145px;">Life Technologies</td>
			<td style="width:155px;">S-32355</td>
			<td>www.lifetechnologies.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">rat anti-MBP</td>
			<td style="width:145px;">J. and N. Lee</td>
			<td style="width:155px;"></td>
			<td>available from: J. and N. Lee, Mayo Clinic, Scottsdale, AZ , U.S.A., clone MT-14.7</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">goat anti-rat-Alexa Fluor 647</td>
			<td style="width:145px;">Life Technologies</td>
			<td style="width:155px;">A-21247</td>
			<td>www.lifetechnologies.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">rat anti-B220 - Alexa Fluor 594</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>produced and coupled in-house (DRFZ), clone RA3.6B2, Alexa Fluor 594 from Life Technologies</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">mouse anti-l1 light chain -FITC</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>produced and coupled in-house (DRFZ), clone LS136</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">rat anti-k light chain - FITC</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>produced and coupled in-house (DRFZ), clone 187.1</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">DAPI (4&#8242;,6-diamidino-2-phenylindole dihydrochloride)</td>
			<td style="width:145px;">Sigma</td>
			<td style="width:155px;">D9542 SIGMA</td>
			<td>www.sigmaaldrich.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Fluorescent mounting medium</td>
			<td style="width:145px;">DAKO</td>
			<td style="width:155px;">S3023</td>
			<td>www.dako.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Cover slips (24mm x 24mm x 0.13-0.16 mm)</td>
			<td style="width:145px;">Carl Roth</td>
			<td style="width:155px;">H875.2</td>
			<td>www.carlroth.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Superfrost slides glasses (75 mm x 25 mm)</td>
			<td style="width:145px;">VWR</td>
			<td style="width:155px;">48311-703</td>
			<td>www.vwr.com</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Laser scanning confocal microscope&#160;</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>equipped with laser lines of 405, 488, 561, 594, 633 nm and a 20x/0.8 NA air objective lens; We used a Zeiss LSM710 and Zen 2010 Version 6.0 software.</td>
		</tr>
		<tr height="21">

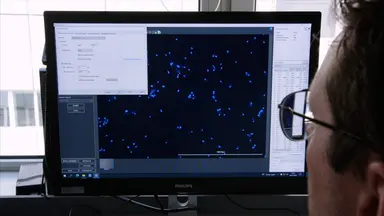

			<td height="21" style="height:21px;width:365px;">Automated image analysis tools for bone marrow</td>
			<td style="width:145px;">Wimasis, Munich</td>
			<td style="width:155px;"></td>
			<td>The cell contact tool and cell vicinity tool will be made available by Wimasis upon request: www.wimasis.de</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;">VC2012 Runtime</td>
			<td style="width:145px;">Microsoft</td>
			<td style="width:155px;"></td>
			<td>free download: http://www.microsoft.com/en-us/download/details.aspx?id=30679</td>
		</tr>
		<tr height="21">

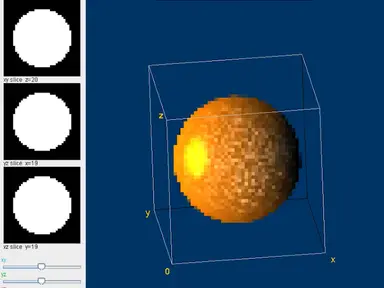

			<td height="21" style="height:21px;width:365px;">Simulation tool for random cell positioning</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>available from us, upon request</td>
		</tr>
		<tr height="43">
			<td height="43" style="height:43px;width:365px;">Image analysis software with image segmentation functions</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>We used Volocity (Perkin Elmer) for measuring cell size distributions of hematopoietic cell types in bone marrow (Figure 5). Alternatives are Definiens Image Analysis (Definiens) or Cell Profiler (free download: http://www.cellprofiler.org)&#160;&#160;</td>
		</tr>
		<tr height="21">
			<td height="21" style="height:21px;width:365px;">Fiji image analysis software&#160;</td>
			<td style="width:145px;"></td>
			<td style="width:155px;"></td>
			<td>free download: http://fiji.sc/Fiji. Fiji was used by trained raters for manual cell count (Figure 3).</td>
		</tr>
	</tbody>
</table>

automated quantification of hematopoietic cell &#8211; stromal cell interactions in histological images of undecalcified bone

Confocal microscopy is the method of choice for the analysis of localization of multiple cell types within complex tissues such as the bone marrow. However, the analysis and quantification of cellular localization is difficult, as in many cases it relies on manual counting, thus bearing the risk of introducing a rater-dependent bias and reducing interrater reliability. Moreover, it is often difficult to judge whether the co-localization between two cells results from random positioning, especially when cell types differ strongly in the frequency of their occurrence. Here, a method for unbiased quantification of cellular co-localization in the bone marrow is introduced. The protocol describes the sample preparation used to obtain histological sections of whole murine long bones including the bone marrow, as well as the staining protocol and the acquisition of high-resolution images. An analysis workflow spanning from the recognition of hematopoietic and non-hematopoietic cell types in 2-dimensional (2D) bone marrow images to the quantification of the direct contacts between those cells is presented. This also includes a neighborhood analysis, to obtain information about the cellular microenvironment surrounding a certain cell type. In order to evaluate whether co-localization of two cell types is the mere result of random cell positioning or reflects preferential associations between the cells, a simulation tool which is suitable for testing this hypothesis in the case of hematopoietic as well as stromal cells, is used. This approach is not limited to the bone marrow, and can be extended to other tissues to permit reproducible, quantitative analysis of histological data.

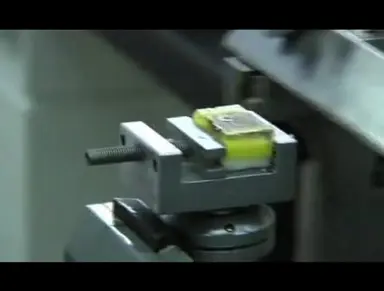

Cutting cryosections of undecalcified bone with the Kawamoto tape method allows the whole bone to be cut as an intact section, with the bone marrow of the endosteal region still attached to the mineralized bone, both in the diaphysis as well as in the epiphyseal areas with their high density of trabecular bone (Figure 1). Nuclear staining of the sections reveals that although small cracks in the preparation cannot be fully avoided, the structure of the sinusoids and arteries as well as the reticular netw...

Watch this Scientific Journal Video about Automated Quantification of Hematopoietic Cell â€“ Stromal Cell Interactions in Histological Images of Undecalcified Bone at JoVE.com

Automated Quantification of Hematopoietic Cell &amp;#8211; Stromal Cell Interactions in Histological Images of Undecalcified Bone

A strategy to quantitatively analyze histological data in the bone marrow is presented. Confocal microscopy of fluorescently labeled cells in tissue sections results in 2-dimensional images, which are automatically analyzed. Co-localization analyses of different cell types are compared to data from simulated images, giving quantitative information about cellular interactions.

Automated Quantification of Hematopoietic Cell &#8211; Stromal Cell Interactions in Histological Images of Undecalcified Bone

Confocal microscopy is the method of choice for the analysis of localization of multiple cell types within complex tissues such as the bone marrow. ...

automated-quantification-hematopoietic-cell-stromal-cell-interactions

Research

JoVE Journal

Developmental Biology

Quantification of  Colonic Stem Cell Mutations

The ability to measure stem cell mutations is a powerful tool to quantify in a critical cell population if, and to what extent, a chemical can induce mutations that potentially lead to cancer. The use of an enzymatic assay to quantify stem cell mutations in the X-linked glucose-6-phosphate dehydrogenase gene has been previously reported.1 This method requires the preparation of frozen sections and incubation of the sectioned tissue with a reaction mixture that yields a blue color if the cells produce functional glucose-6-phosphate dehydrogenase (G6PD) enzyme. If not, the cells appear whitish. We have modified the reaction mixture using Optimal Cutting Temperature Compound (OCT) medium in place of polyvinyl alcohol. This facilitates pH measurement, increases solubilization of the G6PD staining components and restricts diffusion of the G6PD enzyme. To demonstrate that a mutation occurred in a stem cell, the entire crypt must lack G6PD enzymatic activity. Only if a stem cell harbors a phenotypic G6PD mutation will all of the progeny in the crypt lack G6PD enzymatic activity. To identify crypts with a stem cell mutation, four consecutive adjacent frozen sections (a level) were cut at 7 &#181;m thicknesses. This approach of making adjacent cuts provides conformation that a crypt was fully mutated since the same mutated crypt will be observed in adjacent sections. Slides with tissue samples that were more than 50 &#181;m apart were prepared to assess a total of &#62;104 crypts per mouse. The mutation frequency is the number of observed mutated (white) crypts &#247; by the number of wild type (blue) crypts in a treatment group.

We report significant improvements for the reproducible measurement of somatic colonic stem cell mutations after exposure of mice to potential DNA damaging agents.

The ability to measure stem cell mutations is a powerful tool to quantify in a critical cell population if, and to what extent, a chemical can induce ...

Competitive Transplants to Evaluate Hematopoietic Stem Cell Fitness

The gold standard definition of a hematopoietic stem cell (HSC) is a cell that when transferred into an irradiated recipient will have the ability to reestablish blood cell production for the lifespan of the recipient. This protocol explains how to set up a functional assay to compare the HSC capacities of two different populations of cells, such as bone marrow from mice of two different genotypes, and how to analyze the recipient mice by flow cytometry. The protocol uses HSC equivalents rather than cell sorting for standardization and discusses the advantages and disadvantages of both approaches. We further discuss different variations to the basic protocol, including serial transplants, limiting dilution assays, homing assays and non-competitive transplants, including the advantages and preferred uses of these varied approaches. These assays are central for the study of HSC function and could be used not only for the investigation of fundamental HSC intrinsic aspects of biology but also for the development of preclinical assays for bone marrow transplant and HSC expansion in culture.

This protocol provides step-by-step guidelines for setting up competitive mouse bone marrow transplant experiments to study hematopoietic stem/progenitor cell function without prior purification of stem cells by cell sorting.

The gold standard definition of a hematopoietic stem cell (HSC) is a cell that when transferred into an irradiated recipient will have the ability to ...

Temporal Ordering of Dynamic Expression Data from Detailed Spatial Expression Maps

During somitogenesis, pairs of epithelial somites form in a progressive manner, budding off from the anterior end of the pre-somitic mesoderm (PSM) with a strict species-specific periodicity. The periodicity of the process is regulated by a molecular oscillator, known as the "segmentation clock," acting in the PSM cells. This clock drives the oscillatory patterns of gene expression across the PSM in a posterior-anterior direction. These so-called clock genes are key components of three signaling pathways: Wnt, Notch, and fibroblast growth factor (FGF). In addition, Notch signaling is essential for synchronizing intracellular oscillations in neighboring cells. We recently gained insight into how this may be mechanistically regulated. Upon ligand activation, the Notch receptor is cleaved, releasing the intracellular domain (NICD), which moves to the nucleus and regulates gene expression. NICD is highly labile, and its phosphorylation-dependent turnover acts to restrict Notch signaling. The profile of NICD production (and degradation) in the PSM is known to be oscillatory and to resemble that of a clock gene. We recently reported that both the Notch receptor and the Delta ligand, which mediate intercellular coupling, themselves exhibit dynamic expression at both the mRNA and protein levels. In this article, we describe the sensitive detection methods and detailed image analysis tools that we used, in combination with the computational modeling that we designed, to extract and overlay expression data from distinct points in the expression cycle. This allowed us to construct a spatio-temporal picture of the dynamic expression profile for the receptor, the ligand, and the Notch target clock genes throughout an oscillation cycle. Here, we describe the protocols used to generate and culture the PSM explants, as well as the procedure to stain for the mRNA or protein. We also explain how the confocal images were subsequently analyzed and temporally ordered computationally to generate ordered sequences of clock expression snapshots, hereafter defined as "kymographs," for the visualization of the spatiotemporal expression of Delta-like1 (Dll1) and Notch1 throughout the PSM.

The segmentation clock drives oscillatory gene expression across the pre-somitic mesoderm (PSM). Dynamic Notch activity is key to this process. We use imaging and computational analyses to extract temporal dynamics from spatial expression data to demonstrate that Delta ligand and Notch receptor expression oscillate in the vertebrate PSM.

During somitogenesis, pairs of epithelial somites form in a progressive manner, budding off from the anterior end of the pre-somitic mesoderm (PSM) with a ...

Isolation and Characterization of Mesenchymal Stromal Cells from Human Umbilical Cord and Fetal Placenta

The human umbilical cord (UC) and placenta are non-invasive, primitive and abundant sources of mesenchymal stromal cells (MSCs) that have increasingly gained attention because they do not pose any ethical or moral concerns. Current methods to isolate MSCs from UC yield low amounts of cells with variable proliferation potentials. Since UC is an anatomically-complex organ, differences in MSC properties may be due to the differences in the anatomical regions of their isolation. In this study, we first dissected the cord/placenta samples into three discrete anatomical regions: UC, cord-placenta junction (CPJ), and fetal placenta (FP). Second, two distinct zones, cord lining (CL) and Wharton&#39;s jelly (WJ), were separated. The explant culture technique was then used to isolate cells from the four sources. The time required for the primary culture of cells from the explants varied depending on the source of the tissue. Outgrowth of the cells occurred within 3 - 4 days of the CPJ explants, whereas growth was observed after 7 - 10 days and 11 - 14 days from CL/WJ and FP explants, respectively. The isolated cells were adherent to plastic and displayed fibroblastoid morphology and surface markers, such as CD29, CD44, CD73, CD90, and CD105, similarly to bone marrow (BM)-derived MSCs. However, the colony-forming efficiency of the cells varied, with CPJ-MSCs and WJ-MSCs showing higher efficiency than BM-MSCs. MSCs from all four sources differentiated into adipogenic, chondrogenic, and osteogenic lineages, indicating that they were multipotent. CPJ-MSCs differentiated more efficiently in comparison to other MSC sources. These results suggest that the CPJ is the most potent anatomical region and yields a higher number of cells, with greater proliferation and self-renewal capacities in vitro. In conclusion, the comparative analysis of the MSCs from the four sources indicated that CPJ is a more promising source of MSCs for cell therapy, regenerative medicine, and tissue engineering.

Here, we present a protocol for the dissection of human umbilical cord (UC) and fetal placenta sample into cord lining (CL), Wharton&#39;s jelly (WJ), cord-placenta junction (CPJ), and fetal placenta (FP) for the isolation and characterization of mesenchymal stromal cells (MSCs) using the explant culture technique.

The human umbilical cord (UC) and placenta are non-invasive, primitive and abundant sources of mesenchymal stromal cells (MSCs) that have increasingly ...

A Novel Mammary Fat Pad Transplantation Technique to Visualize the Vessel Generation of Vascular Endothelial Stem Cells

Endothelial cells (ECs) are the fundamental building blocks of the vascular architecture and mediate vascular growth and remodeling to ensure proper vessel development and homeostasis. However, studies on endothelial lineage hierarchy remain elusive due to the lack of tools to gain access as well as to directly evaluate their behavior in vivo. To address this shortcoming, a new tissue model to study angiogenesis using the mammary fat pad has been developed. The mammary gland develops mostly in the postnatal stages, including puberty and pregnancy, during which robust epithelium proliferation is accompanied by extensive vascular remodeling. Mammary fat pads provide space, matrix, and rich angiogenic stimuli from the growing mammary epithelium. Furthermore, mammary fat pads are located outside the peritoneal cavity, making them an easily accessible grafting site for assessing the angiogenic potential of exogenous cells. This work also describes an efficient tracing approach using fluorescent reporter mice to specifically label the targeted population of vascular endothelial stem cells (VESCs) in vivo. This lineage tracing method, coupled with subsequent tissue whole-mount microscopy, enable the direct visualization of targeted cells and their descendants, through which the proliferation capability can be quantified and the differentiation commitment can be fate-mapped. Using these methods, a population of bipotent protein C receptor (Procr) expressing VESCs has recently been identified in multiple vascular systems. Procr+ VESCs, giving rise to both new ECs and pericytes, actively contribute to angiogenesis during development, homeostasis, and injury repair. Overall, this manuscript describes a new mammary fat pad transplantation and in vivo lineage tracing techniques that can be used to evaluate the stem cell properties of VESCs.

This work demonstrates a novel approach to assess the proliferation, differentiation, and vessel-forming potential of vascular endothelial stem cells (VESCs) through mammary fat pad transplantation followed by whole-mount tissue preparation for microscopic observation. A lineage tracing strategy to investigate the behavior of VESCs in vivo is also presented.

Endothelial cells (ECs) are the fundamental building blocks of the vascular architecture and mediate vascular growth and remodeling to ensure proper ...

Bioengineering of Humanized Bone Marrow Microenvironments in Mouse and Their Visualization by Live Imaging

Human hematopoietic stem cells (HSCs) reside in the bone marrow (BM) niche, an intricate, multifactorial network of components producing cytokines, growth factors, and extracellular matrix. The ability of HSCs to remain quiescent, self-renew or differentiate, and acquire mutations and become malignant depends upon the complex interactions they establish with different stromal components. To observe the crosstalk between human HSCs and the human BM niche in physiological and pathological conditions, we designed a protocol to ectopically model and image a humanized BM niche in immunodeficient mice. We show that the use of different cellular components allows for the formation of humanized structures and the opportunity to sustain long-term human hematopoietic engraftment. Using two-photon microscopy, we can live-image these structures in situ at the single-cell resolution, providing a powerful new tool for the functional characterization of the human BM microenvironment and its role in regulating normal and malignant hematopoiesis.

A method to create and live-image different humanized bone-marrow niches in mice is presented. Based on the supportive niche created by human mesenchymal cells, the addition of human endothelial cells induces the formation of human vessels, while the addition of rhBMP-2 induces the formation of human-mouse chimeric mature bone tissue.

Human hematopoietic stem cells (HSCs) reside in the bone marrow (BM) niche, an intricate, multifactorial network of components producing cytokines, growth ...

Corneal Tissue Engineering: An In Vitro Model of the Stromal-nerve Interactions of the Human Cornea

Tissue engineering has gained substantial recognition due to the high demand for human cornea replacements with an estimated 10 million people worldwide suffering from corneal vision loss1. To address the demand for viable human corneas, significant progress in three-dimensional (3D) tissue engineering has been made2,3,4. These cornea models range from simple monolayer systems to multilayered models, leading to 3D full-thickness corneal equivalents2.
However, the use of a 3D tissue-engineered cornea in the context of in vitro disease models studied to date lacks resemblance to the multilayered 3D corneal tissue structure, function, and the networking of different cell types (i.e., nerve, epithelium, stroma, and endothelium)2,3. In addition, the demand for in vitro cornea tissue models has increased in an attempt to reduce animal testing for pharmaceutical products. Thus, more sophisticated models are required to better match systems to human physiological requirements, and the development of a model that is more relevant to the patient population is absolutely necessary. Given that multiple cell types in the cornea are affected by diseases and dystrophies, such as Keratoconus, Diabetic Keratopathy, and Fuchs, this model includes a 3D co-culture model of primary human corneal fibroblasts (HCFs) from healthy donors and neurons from the SH-SY5Y cell line. This allows us for the first time to investigate the interactions between the two cell types within the human corneal tissue. We believe that this model could potentially dissect the underlying mechanisms associated with the stromal-nerve interactions of corneal diseases that exhibit nerve damages. This 3D model mirrors the basic anatomical and physiological nature of the corneal tissue in vivo and can be used in the future as a tool for investigating corneal defects as well as screening the efficacy of various agents before animal testing.

Corneal Tissue Engineering: An In Vitro Model of the Stromal-nerve Interactions of the Human Cornea

This protocol describes a novel three-dimensional in vitro model, where corneal stromal cells and differentiated neuronal cells are cultured together to assist in the examination and understanding of the interactions of the two cell types.

Tissue engineering has gained substantial recognition due to the high demand for human cornea replacements with an estimated 10 million people worldwide ...

A RANKL-based Osteoclast Culture Assay of Mouse Bone Marrow to Investigate the Role of mTORC1 in Osteoclast Formation

Osteoclasts are unique bone-resorbing cells that differentiate from the monocyte/macrophage lineage of bone marrow. Dysfunction of osteoclasts may result in a series of bone metabolic diseases, including osteoporosis. To develop pharmaceutical targets for the prevention of pathological bone mass loss, the mechanisms by which osteoclasts differentiate from precursors must be understood. The ability to isolate and culture a large number of osteoclasts in vitro is critical in order to determine the role of specific genes in osteoclast differentiation. Inactivation of the mammalian/mechanistic target of rapamycin complex 1 (TORC1) in osteoclasts can decrease osteoclast number and increase bone mass; however, the underlying mechanisms require further study. In the present study, a RANKL-based protocol to isolate and culture osteoclasts from mouse bone marrow and to study the influence of mTORC1 inactivation on osteoclast formation is described. This protocol successfully resulted in a large number of giant osteoclasts, typically within one week. Deletion of Raptor impaired osteoclast formation and decreased the activity of secretory tartrate-resistant acid phosphatase, indicating that mTORC1 is critical for osteoclast formation.

This manuscript describes a protocol to isolate and culture osteoclasts in vitro from mouse bone marrow, and to study the role of the mammalian/mechanistic target of rapamycin complex 1 in osteoclast formation.

Osteoclasts are unique bone-resorbing cells that differentiate from the monocyte/macrophage lineage of bone marrow. Dysfunction of osteoclasts may result ...

Single-Cell Quantification of Protein Degradation Rates by Time-Lapse Fluorescence Microscopy in Adherent Cell Culture

Proteins are in a dynamic state of synthesis and degradation and their half-lives can be adjusted under various circumstances. However, most commonly used approaches to determine protein half-life are either limited to population averages from lysed cells or require the use of protein synthesis inhibitors. This protocol describes a method to measure protein half-lives in single living adherent cells, using SNAP-tag fusion proteins in combination with fluorescence time-lapse microscopy. Any protein of interest fused to a SNAP-tag can be covalently bound by a fluorescent, cell permeable dye that is coupled to a benzylguanine derivative, and the decay of the labeled protein population can be monitored after washout of the residual dye. Subsequent cell tracking and quantification of the integrated fluorescence intensity over time results in an exponential decay curve for each tracked cell, allowing for determining protein degradation rates in single cells by curve fitting. This method provides an estimate for the heterogeneity of half-lives in a population of cultured cells, which cannot easily be assessed by other methods. The approach presented here is applicable to any type of cultured adherent cells expressing a protein of interest fused to a SNAP-tag. Here we use mouse embryonic stem (ES) cells grown on E-cadherin-coated cell culture plates to illustrate how single cell degradation rates of proteins with a broad range of half-lives can be determined.

This protocol describes a method to determine protein half-lives in single living adherent cells, using pulse labeling and fluorescence time-lapse imaging of SNAP-tag fusion proteins.

Proteins are in a dynamic state of synthesis and degradation and their half-lives can be adjusted under various circumstances. However, most commonly used ...

Clonal Analysis of Embryonic Hematopoietic Stem Cell Precursors Using Single Cell Index Sorting Combined with Endothelial Cell Niche Co-culture

The ability to study hematopoietic stem cell (HSC) genesis during embryonic development has been limited by the rarity of HSC precursors in the early embryo and the lack of assays that functionally identify the long-term multilineage engraftment potential of individual putative HSC precursors. Here, we describe methodology that enables the isolation and characterization of functionally validated HSC precursors at the single cell level. First, we utilize index sorting to catalog the precise phenotypic parameter of each individually sorted cell, using a combination of phenotypic markers to enrich for HSC precursors with additional markers for experimental analysis. Second, each index-sorted cell is co-cultured with vascular niche stroma from the aorta-gonad-mesonephros (AGM) region, which supports the maturation of non-engrafting HSC precursors to functional HSC with multilineage, long-term engraftment potential in transplantation assays. This methodology enables correlation of phenotypic properties of clonal hemogenic precursors with their functional engraftment potential or other properties such as transcriptional profile, providing a means for the detailed analysis of HSC precursor development at the single cell level.

Here we present methodology for the clonal analysis of hematopoietic stem cell precursors during murine embryonic development. We combine index sorting of single cells from the embryonic aorta-gonad-mesonephros region with endothelial cell co-culture and transplantation to characterize the phenotypic properties and engraftment potential of single hematopoietic precursors.

The ability to study hematopoietic stem cell (HSC) genesis during embryonic development has been limited by the rarity of HSC precursors in the early ...
