In the present protocol, the whole-cell MALDI-TOF technique is used to obtain a mass spectrum considered as a fingerprint of the sample. A bioinformatic analysis allowed the comparison and the classification of these fingerprints. There were three main parts in this protocol:
<ol>
	<li>The preparation of the biological samples: control macrophages and macrophages stimulated with different agonists.</li>
	<li>The analysis of each type of sample with technical replicates by whole-cell MALDI-TOF MS.</li>
	<li>The bioinformatics analysis of raw data.</li>
</ol>
Prepare sterile solutions for cell isolation and culture. Prepare and store all reagents at 4 &#176;C
1. Preparation of Human Monocytes
<ol>
	<li>Prepare cell culture medium. Add 55 ml&#160;of human serum AB+ or fetal bovine serum (FBS) and 5 ml&#160;of the antibiotic solution (penicillin at 10,000 UI/ml and streptomycin at 10,000 &#956;g/ml; final concentration of 100 UI/ml&#160;for penicillin and 100 &#956;g/ml&#160;for streptomycin) to RPMI 1640 medium (500 ml).
	<ol>
		<li>Isolate peripheral blood mononuclear cells (PBMCs) from leukopacks (leukocyte concentrates).
		<ol>

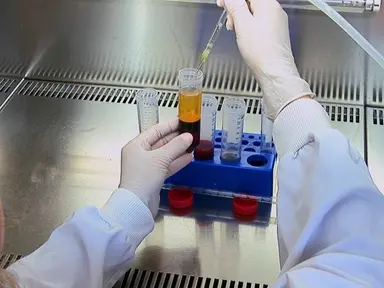

			<li>Prepare 50&#160;ml&#160;tubes containing 15 ml&#160;Ficoll. Dilute the blood in saline (vol/vol, 1/10). Deposit 30 ml&#160;diluted PBMCs on Ficoll as previously described26.</li>
			<li>Centrifuge at 700 x g for 20 min. Recover PBMCs at the interface between Ficoll (density of 1.077 g/ml) and diluted plasma. Dilute PBMCs in culture medium and centrifuge at 300 x g for 5 min.</li>
		</ol>
		</li>
		<li>Prepare CD14+ monocytes from PBMCs using magnetic beads coated with anti-CD14 antibodies.
		Note: Keep products and cells at 4 &#176;C until monocyte obtention.
		<ol>
			<li>Prepare running buffer consisting of phosphate-buffered saline (PBS) pH 7.2, 0.5% bovine serum albumin (BSA) and 2 mM ethylenediaminetetraacetic acid (EDTA).</li>
			<li>Gently dissociate pelleted PBMCs (107 cells per assay) into 80 &#956;l&#160;of running buffer.</li>
			<li>Add 20 &#956;l&#160;CD14 MicroBeads to PBMCs. Mix and incubate PBMCs for 15 min. Wash PBMCs with 5 ml&#160;of running buffer and centrifuge at 300 x g for 5 min. Gently dissociate pelleted PBMCs into 500 &#956;l&#160;of running buffer for 108 PBMCs.
			Note: use 500 &#956;l&#160;of running buffer for PBMC concentrations lower than 108 PBMCs.</li>
			<li>Proceed to magnetic separation.
			Note: for less than 2 x 108 PBMCs, use MS column; for more than 2 x 108 PBMCs and less than 2 x 109 PBMCs, use LS column.</li>
			<li>Rinse precolumn and column with running buffer (500 &#956;l&#160;for MS column or 3 ml&#160;for LS column). Add PBMCs into the precolumn (wait for unlabeled cells to pass through the column). Rinse 3 times with running buffer (500 &#956;l&#160;for MS column or 3 ml&#160;for LS column). Remove the precolumn.</li>
			<li>Place the column on 15&#160;ml&#160;tubes. Add running buffer (1 ml&#160;for MS column or 5 ml for LS column) on the column and elute CD14+ cells by applying a pressure on the column.</li>
			<li>Centrifuge the eluate at 300 x g for 5 min. Discard the supernatant. Wash monocyte pellet with 10 ml&#160;of culture medium.
			Note: Analyze the purity of monocyte preparation using anti-CD14 antibodies and flow cytometry (classically higher than 95%).</li>
		</ol>
		</li>
	</ol>
	</li>
	<li>Differentiation of monocytes into macrophages.
	<ol>
		<li>Incubate monocytes (106 monocytes per well in 6&#160;well plates) in 3 ml&#160;of culture medium containing 10% human serum AB+ at 37 &#176;C. After 4 days, replace the culture medium containing human serum by 3 ml&#160;culture medium containing 10% FBS for 3 additional days.</li>
		<li>Identify the obtained cell population as monocyte-derived macrophages (MDMs) by flow cytometry (see Figure 1).
		<ol>
			<li>Replace the culture medium by 3 ml&#160;PBS. Scrape MDMs with a rubber policeman and collect MDM suspensions. Centrifuge at 400 x g for 5 min. Add PBS containing 2% BSA to pelleted MDMs and gently agitate cell suspension. Adjust the cell concentration (106 MDMs in 200 ml&#160;PBS) and incubate at 4 &#176;C.</li>
			<li>Add 10 ml&#160;of anti-CD14 antibodies and 10 ml&#160;of anti-CD68 antibodies to MDM suspension and incubate at 4 &#176;C for 20 min in the dark.
			Note: these antibodies must be labeled with two different fluorochromes consistent with flow cytometry analysis. For example, anti-CD14 antibodies may be conjugated with phycoerythrin coupled (for monocytes staining) and anti-CD68 antibodies with Alexa Fluor 647 coupled (for macrophages staining).</li>
			<li>Centrifuge MDMs at 400 x g for 5 min. Remove supernatants. Gently dissociate the cell pellet and incubate MDMs in 250 ml&#160;3% paraformaldehyde (PFA) for 15 min at room temperature. Centrifuge PFA-fixed MDMs at 400 x g for 5 min. Wash MDMs with 3 ml&#160;PBS and centrifuge MDMs at 400 x g for 5 min. Gently dissociate MDM pellet in 400 ml&#160;PBS.</li>
			<li>Analyze the differentiation of monocytes (that express CD14 but not CD68) into monocytes (that express CD68 but not CD14). Note: classically more than 95% of cells are MDM.</li>
		</ol>
		</li>
	</ol>
	</li>
	<li>18 hr&#160;stimulation of MDMs.
	<ol>
		<li>Replace the culture medium of adherent MDMs by fresh 3 ml&#160;culture medium (containing 10% FBS).</li>
		<li>To induce a M1 or M2 polarization, use the following human recombinant cytokines: IFN-&#947; and TNF for M1 polarization, and IL-4 for M2 polarization. M1 macrophages are also obtained by stimulation with LPS. Note that stock-solutions of cytokines are conserved at -80 &#176;C and that the stock-solution of LPS is conserved at -20 &#176;C.
		<ol>
			<li>Dilute the stock-solution of IFN-g&#947; (1 mg/ml) at 1/100 in culture medium to obtain a dilution of 10 ng/ml. Add 6 &#956;l of this IFN-&#947; dilution to MDMs to obtain a final IFN-&#947; concentration of 20 ng/ml.</li>
			<li>Dilute the stock-solution of TNF (1 mg/ml) at 1/100 in culture medium to obtain a dilution of 10 ng/ml. Add 6 &#956;l of this TNF dilution to MDMs to obtain a final TNF concentration of 20 ng/ml.</li>
			<li>Dilute the stock-solution of IL-4 (1 mg/ml) at 1/100 in culture medium to obtain a dilution of 10 ng/ml. Add 6 &#956;l of this IL-4 dilution to MDMs to obtain a final IL-4 concentration of 20 ng/ml.</li>
			<li>Add 3 &#956;l of the stock-solution of LPS (1 mg/ml) to MDMs to obtain a final LPS concentration of 1 &#956;g/ml.</li>
		</ol>
		</li>
		<li>To stimulate MDMs with bacteria, use heat-killed bacteria. Wash living bacteria with PBS and heat them at 95 &#176;C for 1 hr. Use Orientia tsutsugamushi (strain Kato (CSUR R163), Mycobacterium bovis (Bacillus Calmette-Gu&#233;rin, BCG CIP strain 671203) and Coxiella burnetii (Nine Mile in phase I) were because these pathogens are known to infect macrophages. Thus, prepare a O. tsutsugamushi suspension at 109 bacteria/ml. Add 50 &#956;l to MDMs . Repeat the same step for M. bovis and C. burnetii.</li>
	</ol>
	</li>
	<li>Preparation of biological samples for MALDI-TOF MS.
	<ol>
		<li>Wash stimulated MDMs with PBS without Ca2+ or Mg2+ (cells may agglutinate in the presence of Ca2+ or Mg2+). Scrape MDMs with a rubber policeman and collect MDM suspensions. Centrifuge MDMs. Wash again MDMs in PBS without Ca2+ or Mg2+ at 400 x g for 5 min to discard FBS contamination.</li>
		<li>Adjust the cell concentration (2 x 106 MDMs per assay). Centrifuge MDMs at 400 x g for 5 min and discard supernatants. Collect cell pellets in 20 &#956;l of PBS without Ca2+ or Mg2+.</li>
		<li>Analyze samples immediately or store them in PBS at -80 &#176;C before analysis.</li>
	</ol>
	</li>
</ol>
2. Analysis of Macrophages by Whole-Cell Maldi-TOF MS
<ol>
	<li>Preparation of CHCA matrix.
	<ol>
		<li>Add 500 &#956;l of acetonitrile, 250 &#956;l 10% trifluoroacetic acid, and 250 &#956;l of high-performance liquid chromatography (HPLC) water to a vial. Dilute 10 mg of CHCA in this solution to a final concentration of 10 mg/ml. Mix and sonicate for at least 20 min.
		Note: sonication will improve the saturation of the matrix but this step is not mandatory.</li>
		<li>Centrifuge at 13,000 x g for 5 min. Discard the pellet and keep the supernatant.
		Note: prepare the matrix solution just before use. A matrix solution that contains crystals does not allow a good ionization of sample molecules, and this may affect the quality of the spectra.</li>
	</ol>
	</li>
	<li>Preparation of MALDI steel target.
	<ol>
		<li>Moisten the polished steel target with hot tap water. Rub with precision wipe paper. Add 70% ethanol and rub. Rinse with water by rubbing. Add 70% ethanol and rub with precision paper.</li>
		<li>Immerse the target in 70% ethanol and sonicate for at least 15 min. Cover the target with 500 &#956;l to 1 ml&#160;of trifluoroacetic acid at 80%. Rub and wipe with precision paper. Rinse with HPLC water without rubbing. Dry the target at room temperature.
		Note: an improperly cleaned target may affect the quality of the spectra.</li>
	</ol>
	</li>
	<li>Preparation of deposits.
	<ol>
		<li>Place the clean target on a horizontal and level support to obtain uniform deposits.</li>
		<li>Gently thaw MDM samples on ice. Note: rapid and vigorous thawing may alter samples, thus affecting the quality of the spectra. Homogenize MDMs (by pipetting back and forth the cell suspension) before deposition of 1 &#956;l (containing approximately 1 x 105 cells) on the MALDI target. Add 1 &#956;l of the MALDI matrix solution on the sample. Avoid mixing spot with the pipette. Mixing spots with pipettes alters the quality of the spectra. Depose 12-16 samples/assay (technical replicates).</li>
		<li>Evaporate spontaneously at room temperature. Note: evaporation takes place gradually and leads to the formation of matrix/sample crystals. The deposits may be immediately analyzed or stored in the dark for several days before analysis (up to 2 weeks).</li>
		<li>User should control that the cytokines or heat-killed bacteria used in the experiment do not provide peaks within the range of stimulated macrophages&#39; spectra. Here, we checked that the cytokines and heat-killed bacteria alone did not provide any signal within the studied range (0-20 kDa).</li>
	</ol>
	</li>
	<li>Mass spectrometer tuning and data acquisition.
	<ol>
		<li>Insert the steel target containing samples in the mass spectrometer.</li>
		<li>Configure the mass spectrometer and run data acquisition. Use the default configuration for automated acquisition of the data.</li>
		<li>Note: a detailed view of the configuration of flexControl software is given in the appendix/Table 1. This may vary according to mass spectrometer and software used.</li>
	</ol>
	</li>
</ol>
3. Bioinformatic Analysis
Note: the bioinformatic analysis was performed using the free and open source statistical analysis software R, along with specific analysis libraries (MALDIquant). R can be downloaded freely from its website <a href="http://cran.r-project.org/">http://cran.r-project.org/</a>. A detailed description of the script is provided as supplementary material.
<ol>
	<li>Loading and pretreatment of raw data.
	<ol>
		<li>Store raw data on the computer associated with the mass spectrometer in multiple files and folders. Retrieve the root folder of the experiment with all subfolders. Copy root folder to personal computer for analysis.</li>
		<li>Use readBrukerFlexData and MALDIquant libraries to load and analyze raw data.
		Note: readBrukerFlexData allows the loading of raw data from the mass spectrometer into a specific object in R for further analysis. See MALDIquant description for further information27.</li>
		<li>Analyze generated spectra.
		Note: each spectrum consists of a list of peaks with their respective masses and intensities (relative abundance). Use the square root of the intensities to enhance the graphical visualization of the spectra. Correct the background using a statistic-sensitive nonlinear peak-clipping algorithm for baseline estimation27. Use a signal-to-noise ratio of 6 to detect peaks. Consider that the detected peaks are similar across spectra when the mass/charge (m/z) values are within a 2,000 ppm window.</li>
	</ol>
	</li>
	<li>Score definition and computation. Classify the spectra using a hierarchical clustering with a ward algorithm for agglomeration and a dissimilarity matrix based on the Jaccard distance.
	Note: the Jaccard index measures the similarity between Boolean sample sets (i.e. the presence/absence of a list of peaks).</li>
	<li>Comparison of spectra and viewing.
	<ol>
		<li>Analyze raw spectra plots. Note: x-axis represents the m/z ratio (in Daltons) and the y-axis represents the intensity (relative abundance).</li>
		<li>Assess the similarity between spectra by hierarchical clustering. Represent similarity (or divergence) as dendrogram.</li>
		<li>Assess the reproducibility by the mean of virtual gel-view representation. Note: virtual gel-view representation is a modified heatmap plot where relative abundance is color-coded with increasing intensities of blue.</li>
	</ol>
	</li>
</ol>

<ol>
	<li>Mass Gross, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Spectrometry: A Textbook. , (2011).</li><li>Villanueva, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Serum+Peptide+Profiling+by+Magnetic+Particle-Assisted,+Automated+Sample+Processing+and+MALDI-TOF+Mass+Spectrometry..">Serum Peptide Profiling by Magnetic Particle-Assisted, Automated Sample Processing and MALDI-TOF Mass Spectrometry..</a> Anal. Chem. 76 (6), 1560-1570 (2004).</li><li>Diamandis, E. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mass+Spectrometry+as+a+Diagnostic+and+a+Cancer+Biomarker+Discovery+Tool+Opportunities+and+Potential+Limitations.">Mass Spectrometry as a Diagnostic and a Cancer Biomarker Discovery Tool Opportunities and Potential Limitations.</a> Molec. Cell. Proteomics. 3 (4), 367-378 (2004).</li><li>Pusch, W., Kostrzewa, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Application+of+MALDI-TOF+Mass+Spectrometry+in+Screening+and+Diagnostic.">Application of MALDI-TOF Mass Spectrometry in Screening and Diagnostic.</a> 11 (20), 2577-2591 (2005).</li><li>Aebersold, R., Mann, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mass+spectrometry-based+proteomics.">Mass spectrometry-based proteomics.</a> Nature. 422 (6928), 198-207 (2003).</li><li>Domon, B., Aebersold, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mass+Spectrometry+and+Protein+Analysis.">Mass Spectrometry and Protein Analysis.</a> Science. 312 (5771), 212-217 (2006).</li><li>Carbonnelle, E., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Robustness+of+two+MALDI-TOF+mass+spectrometry+systems+for+bacterial+identification.">Robustness of two MALDI-TOF mass spectrometry systems for bacterial identification.</a> J. Microbiol. Methods. 89 (2), 133-136 (2012).</li><li>Bizzini, A., Jaton, K., Romo, D., Bille, J., Prod&#8217;hom, G., Greub, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Matrix-Assisted+Laser+Desorption+Ionization&#8211;Time+of+Flight+Mass+Spectrometry+as+an+Alternative+to+16S+rRNA+Gene+Sequencing+for+Identification+of+Difficult-To-Identify+Bacterial+Strains.">Matrix-Assisted Laser Desorption Ionization&#8211;Time of Flight Mass Spectrometry as an Alternative to 16S rRNA Gene Sequencing for Identification of Difficult-To-Identify Bacterial Strains.</a> J. Clin. Microbiol. 49 (2), 693-696 (2011).</li><li>Buchanan, C. M., Malik, A. S., Cooper, G. J. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+visualisation+of+peptide+hormones+in+cultured+pancreatic+islet+alpha-+and+beta-cells+by+intact-cell+mass+spectrometry.">Direct visualisation of peptide hormones in cultured pancreatic islet alpha- and beta-cells by intact-cell mass spectrometry.</a> Rapid Commun. Mass Spectrom. 21 (21), 3452-3458 (2007).</li><li>Ouedraogo, R., Flaudrops, C., Ben Amara, A., Capo, C., Raoult, D., Mege, J. -. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Global+analysis+of+circulating+immune+cells+by+matrix-assisted+laser+desorption+ionization+time-of-flight+mass+spectrometry.">Global analysis of circulating immune cells by matrix-assisted laser desorption ionization time-of-flight mass spectrometry.</a> PloS One. 5 (10), 13691 (2010).</li><li>Munteanu, B., von Reitzenstein, C., H&#228;nsch, G. M., Meyer, B., Hopf, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sensitive+robust+and+automated+protein+analysis+of+cell+differentiation+and+of+primary+human+blood+cells+by+intact+cell+MALDI+mass+spectrometry+biotyping.">Sensitive robust and automated protein analysis of cell differentiation and of primary human blood cells by intact cell MALDI mass spectrometry biotyping.</a> Anal. Bioanal. Chem. 404 (8), 2277-2286 (2012).</li><li>Feng, H., Sim, L. C., Wan, C., Wong, N. S. C., Yang, Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Rapid+characterization+of+protein+productivity+and+production+stability+of+CHO+cells+by+matrix-assisted+laser+desorption/ionization+time-of-flight+mass+spectrometry.">Rapid characterization of protein productivity and production stability of CHO cells by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry.</a> Rapid Commun. Mass Spectrom. 25 (10), 1407-1412 (2011).</li><li>Ouedraogo, R., Daumas, A., Ghigo, E., Capo, C., Mege, J. -. L., Textoris, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Whole-cell+MALDI-TOF+MS:+A+new+tool+to+assess+the+multifaceted+activation+of+macrophages.">Whole-cell MALDI-TOF MS: A new tool to assess the multifaceted activation of macrophages.</a> J. Proteomics. 75 (18), 5523-5532 (2012).</li><li>Amann, J. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Selective+profiling+of+proteins+in+lung+cancer+cells+from+fine-needle+aspirates+by+matrix-assisted+laser+desorption+ionization+time-of-flight+mass+spectrometry.">Selective profiling of proteins in lung cancer cells from fine-needle aspirates by matrix-assisted laser desorption ionization time-of-flight mass spectrometry.</a> Clin. Cancer Res. 12 (17), 5142-5150 (2006).</li><li>Maurer, K., Eschrich, K., Schellenberger, W., Bertolini, J., Rupf, S., Remmerbach, T. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Oral+brush+biopsy+analysis+by+MALDI-ToF+Mass+Spectrometry+for+early+cancer+diagnosis.">Oral brush biopsy analysis by MALDI-ToF Mass Spectrometry for early cancer diagnosis.</a> Oral Oncol. 49 (2), 152-156 (2013).</li><li>Ishii, K. J., Koyama, S., Nakagawa, A., Coban, C., Akira, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Host+innate+immune+receptors+and+beyond:+making+sense+of+microbial+infections.">Host innate immune receptors and beyond: making sense of microbial infections.</a> Cell Host Microbe. 3 (6), 352-363 (2008).</li><li>Mantovani, A., Sica, A., Locati, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Macrophage+polarization+comes+of+age.">Macrophage polarization comes of age.</a> Immunity. 23 (4), 344-346 (2005).</li><li>Martinez, F. O., Sica, A., Mantovani, A., Locati, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Macrophage+activation+and+polarization.">Macrophage activation and polarization.</a> Front. Biosci. 13, 453-461 (2008).</li><li>Mosser, D. M., Edwards, J. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Exploring+the+full+spectrum+of+macrophage+activation.">Exploring the full spectrum of macrophage activation.</a> Nat. Rev. Immunol. 8 (12), 958-969 (2008).</li><li>Murray, P. J., Wynn, T. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Protective+and+pathogenic+functions+of+macrophage+subsets.">Protective and pathogenic functions of macrophage subsets.</a> Nat. Rev. Immunol. 11 (11), 723-737 (2011).</li><li>Benoit, M., Desnues, B., Mege, J. -. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Macrophage+polarization+in+bacterial+infections.">Macrophage polarization in bacterial infections.</a> J. Immunol. 181 (6), 3733-3739 (2008).</li><li>Biswas, S. K., Sica, A., Lewis, C. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Plasticity+of+macrophage+function+during+tumor+progression:+regulation+by+distinct+molecular+mechanisms.">Plasticity of macrophage function during tumor progression: regulation by distinct molecular mechanisms.</a> J. Immunol. 180 (4), 2011-2017 (2008).</li><li>Cassetta, L., Cassol, E., Poli, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Macrophage+polarization+in+health+and+disease.">Macrophage polarization in health and disease.</a> Sci. World J. 11, 2391-2402 (2011).</li><li>Gordon, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Alternative+activation+of+macrophages.">Alternative activation of macrophages.</a> Nat. Rev. Immunol. 3 (1), 23-35 (2003).</li><li>Mantovani, A., Sica, A., Sozzani, S., Allavena, P., Vecchi, A., Locati, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+chemokine+system+in+diverse+forms+of+macrophage+activation+and+polarization.">The chemokine system in diverse forms of macrophage activation and polarization.</a> Trends Immunol. 25 (12), 677-686 (2004).</li><li>Delaby, A., Gorvel, L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Defective+monocyte+dynamics+in+Q+fever+granuloma+deficiency.">Defective monocyte dynamics in Q fever granuloma deficiency.</a> J. Infect. Dis. 205 (7), 1086-1094 (2012).</li><li>Gibb, S., Strimmer, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=MALDIquant:+a+versatile+R+package+for+the+analysis+of+mass+spectrometry+data.">MALDIquant: a versatile R package for the analysis of mass spectrometry data.</a> Bioinformatics. 28 (17), 2270-2271 (2012).</li></ol>

The authors have no conflict of interest to declare. RO, JLM and CC are inventors of an international patent WO 2011/154650, named "Proc&#233;d&#233; d&#39;identification de cellules de mammif&#232;res par spectrom&#233;trie de masse MALDI-TOF".

This protocol describes the use of MALDI-TOF-MS on eukaryotic whole cells. Here, we illustrate the accuracy of the method by analyzing the multiple activation states of macrophages in response to their microenvironment.
The success of the protocol relies on few critical steps. First, any solution contaminant may alter the spectra. For example, it is important to wash cells in PBS to remove culture medium and serum proteins before deposition on the target. A cell concentration of 1 x 105</...

Matrix-Assisted Laser Desorption/Ionization Time-Of-Flight Mass Spectrometry (MALDI-TOF MS) is a popular mass spectrometry technique to study biological samples. Using a laser beam and an energy-absorbing matrix allows a soft ionization process: the evaporation and genesis of large mostly single-charged biomolecules. This process is called desorption/ionization, justifying the acronym MALDI. These ions are then accelerated by application of voltage and enter a TOF analyzer that allows the separation of these ions and the quantification of their respective masses1.
MALDI-TOF MS has been extensively used in biology, chemistry, and medicine to identify molecules and biomarkers2-4&#160;or to monitor post-translational modifications on&#160;proteins5,6. Recently, several groups applied MALDI-TOF MS to the identification of microorganisms from clinical samples7,8. This microbiological application is now used routinely in the clinical settings. Whole cell MALDI-TOF has many advantages compared to classical applications of MALDI-TOF MS. Samples containing whole cells are directly processed, avoiding time consuming steps to fractionate or separate large amounts of material. Moreover, no characterization of the various peaks is needed: the whole spectrum is considered as a fingerprint of the sample, and matching algorithms compare the tested spectrum with a database of reference spectra.
We and others have applied this whole-cell analysis technique to eukaryotic cells. Many applications may be derived from this technique: (1) identify the main cell types from a mixed sample9-11; (2) assess the viability of cell cultures over time (including quality control industrial applications)12; (3) monitor activation states of a single cell type13; (4) assess the malignant transformation of a clinical sample14,15.
Here, we describe the use of whole-cell MALDI-TOF MS to explore the various polarization phenotypes of macrophages in response to cytokines or heat-killed bacteria. Macrophages play a pivotal role in the immune response to microbial pathogens. They detect infectious agents in the tissues through pattern recognition receptors able to detect conserved microbial patterns, such as lipopolysaccharide (LPS)16. Macrophages are professional antigen-presenting cells that interact with T cells to mount the adaptive immune response. T cells influence macrophages by releasing cytokines that either reinforce or regulate the microbicidal activity of macrophages. By analogy to the Th1/Th2 lymphocyte polarization, inflammatory, microbicidal, and tumoricidal macrophages have been classified into M1 macrophages and immunoregulator macrophages as M2 macrophages17-19. The term M1 refers to the classical activation of macrophages by type I cytokines, such as interferon (IFN)-&#947; and tumor necrosis factor (TNF), or bacterial products, such as LPS18,20-23, whereas macrophages activated by alternative pathways (interleukin (IL)-4, IL-10, Transforming Growth Factor-&#946;1 are considered M2 macrophages19,24,25. The high phenotypic and functional plasticity of macrophages in response to their microenvironment renders these macrophages useful to analyze subtle changes by a MALDI-TOF MS approach.

whole-cell maldi-tof mass spectrometry is an accurate and rapid method to analyze different modes of macrophage activation

MALDI-TOF is an extensively used mass spectrometry technique in chemistry and biochemistry. It has been also applied in medicine to identify molecules and biomarkers. Recently, it has been used in microbiology for the routine identification of bacteria grown from clinical samples, without preparation or fractionation steps. We and others have applied this whole-cell MALDI-TOF mass spectrometry technique successfully to eukaryotic cells. Current applications range from cell type identification to quality control assessment of cell culture and diagnostic applications. Here, we describe its use to explore the various polarization phenotypes of macrophages in response to cytokines or heat-killed bacteria. It allowed the identification of macrophage-specific fingerprints that are representative of the diversity of proteomic responses of macrophages. This application illustrates the accuracy and simplicity of the method. The protocol we described here may be useful for studying the immune host response in pathological conditions or may be extended to wider diagnostic applications.

The aim of the present protocol is to demonstrate the accuracy of whole-cell MALDI-TOF MS to assess the responsiveness of macrophages to their microenvironment.
Figure 1 describe preparation of stimulated macrophages from blood samples. Figure 2 represents the analysis of monocytes and MDMs by flow cytometry. Note that monocytes expressed CD14 but not CD68 (Figure 1A). Conversely, MDMs expressed CD68 but not CD14 (Figure 1B).<...
