XRPD is a suitable technique for conservation research as it is non-destructive, fast and easy-to-use. XRPD data can be used in routine qualitative analysis, owing to the fact that the powder pattern is a fingerprint signature to the corresponding crystal structure. The biggest advantage of XRPD over other analytic techniques is the ability of performing simultaneous qualitative and quantitative analysis of crystalline constituents in mixtures by using the Rietveld refinement method5. Moreover, the presence of amorphous content can be detected and its amount estimated. However, this procedure requires knowledge on every crystal structure present in the mixture that is a subject to investigation.
To apply the method of XRPD routinely for structure determination to conservation science, several critical boundary conditions for the laboratory powder diffractometer must be fulfilled: 1.) To avoid preferred orientation in powder samples, transmission or even better Debye-Scherrer geometry must be used. 2.) Laboratory powder diffractometers should be equipped with a primary beam monochromator to ensure strict monochromatization and a position sensitive strip detector for high intensity (= good counting statistics) and high resolution. This particular type of instrument leads to sharp peak profiles which can be adequately described by few fundamental parameters being of great benefit for the separation of overlapping reflections.
Indexing of the powder pattern which is often regarded as the bottleneck in the structure determination process should be done with exhaustive methods like "singular value decomposition", which is also insensitive to small amounts of impurities. Due to the strongly reduced information content of a powder pattern as compared to a single crystal data set, a sophisticated combination of direct and reciprocal space structure determination algorithms is needed for a high success rate. The combination of charge flipping, simulated annealing and difference-Fourier analysis has been proven to be among the most promising approaches. Providing that the material under investigation is reasonably crystalline, crystal structures with 20-25 structural parameters can nowadays been solved almost routinely from powder diffraction data if the procedure described above is used. It can be expected that this limit can be pushed to much more complex crystal structures with the advent of better instrumentation, the use of synchrotron radiation, and even more sophisticated structure determination algorithms.
Even after 250 (!) years of conservation research and 100 years of crystal structure analysis, there are still many crystalline corrosion products on artifacts of unknown exact composition and structure. This is mainly due to the unavailability of naturally or synthetically grown single crystals of suitable size. XRPD data analysis as described here can overcome this restriction since powder samples are amenable to investigation. A quantum leap forward in Conservation Science as well as in other fields!

保存科学は、成果物の保存に科学的な（しばしば化学）メソッドを適用します。 （？：どのようにそれはその時に行われた「技術的な美術史」）とその崩壊経路の適切な保全治療法を開発するための前提条件としてこれは人工物の生産の調査を含んでいます。しばしば、これらの研究は、炭酸塩、ギおよび酢酸塩などの有機金属塩を扱います。それらのいくつかが意図的に適切な化合物（ 例えば、酢）を使用して製造されている、他のものは大気中（屋内の大気汚染から二酸化炭素またはカルボニル化合物）1を劣化反応に由来します。実際の問題として、これらの腐食防止材料の多くの結晶構造はまだ不明です。幾何学的構造の知識がより良い生産と崩壊反応を理解し、混合物の場合には完全な定量分析を可能にするために、保存科学をするのに役立ちますので、これは、不幸な事実です。 関心のある材料は、十分な大きさと品質の単結晶を形成することを条件として、単結晶回折結晶構造を決意するための選択方法です。これらの境界条件が満たされない場合、粉末回折最も近い代替物です。単結晶回折に比べて粉末回折の最大の欠点は、（ベクトル散乱）相互D -ベクトルD *の配向情報の損失にあります。換言すれば、単一の回折スポットの強度は、球体の表面上に塗抹されています。これは、粉末パターンの一次元2θ軸上に三次元回折（=逆数）空間の投影と考えることができます。結果として、異なる方向が、同じまたは類似の長さのベクトルを散乱、それが困難または不可能にさえ、これらの反射2（Fを分離すること系統的または偶然重なっigure 1）。これはまた、その初期の発明にもかかわらず、粉末回折は、わずか4年第1単結晶実験3,4の後、半世紀以上も相同定および定量化のために主に使用された主な理由です。それにもかかわらず、簡単に図2から推論することができるように粉末パターンの情報量が膨大である。実際の課題は、しかしながら、ルーチンの方法で可能な限り多くの情報を明らかにすることです。 この目標に向けた重要なステップは、疑いなく、粉末回折データから結晶構造精密化のための局所最適化技術を発明1969年5でヒューゴリートフェルトのアイデアでした。従って、この方法は、アカウントに本質的にピークの重なりを取って、単一の強度を絞り込むが、複雑さを増すのモデルに対する全体の粉末パターンはありません。その時から、粉末回折法を用いて、科学者は、もはやデータ解析bに限定されませんでしたyの方法は、単結晶調査のために開発されました。数年リートベルト法を発明した後、 第一原理構造決定のための粉末回折法の力が認められました。この方法は、まだルーチンとみなすことはできないが、より多くの複雑な結晶構造を決定するために、今日では、ほとんどすべての自然科学の枝やエンジニアリング用粉末回折。最後の十年の中では、実験室での粉末回折計の新世代は、高解像度、高エネルギー、高強度を提供する設計されました。高いエネルギーが吸収を戦うながら、よりよい解決はすぐに優れたピーク分離につながります。基本的な物理パラメータに基づいて、より優れたピークプロファイルの説明（ 図3）の利点は、より詳細な構造の調査を可能にするブラッグ反射のより正確な強度です。ドメインサイズとmicrostraなどの近代的な機器やソフトウェアであっても微細構造のパラメータを持ちます日常的に粉末回折データから推定されます。 粉末回折データから結晶構造を決意するためのすべてのアルゴリズムは、単一のピーク強度は、全粉末パターンまたは両方の組み合わせを使用します。従来の単結晶逆空間技術は、多くの場合、利用可能な観察と構造パラメータとの間の好ましくない比に失敗します。この状況は、シミュレーテッドアニーリング技術7（ 図5）が最も顕著な代表される「電荷フリッピング」技術6（ 図4）と直接空間での大域的最適化手法の開発、の導入により劇的に変化しました。具体的には、構造決意プロセスに化学的知識の導入は、剛体または結合長に関わる分子化合物の既知の接続を使用して強く必要なパラメータの数を減少させる角度。換言すれば、内すべての単一原子のための3つの位置パラメータの代わりには、原子のグループの自由の唯一の外部（および内部数）度を決定する必要があります。これは、粉末法単結晶分析に真の選択肢になる構造の複雑さのこの減少です。 著者8,9の二つの先駆的な事例は、粉末回折データを用いて複雑な腐食生成物の複雑な結晶構造を解決することが可能であることを証明しました。他のアプローチに比べ結晶学的研究の優位性は、両方の場合で報告式を解く結晶構造を考慮した後に修正しなければならなかったという事実によって特に示されました。 博物館での調査中の両方の材料の発生は、木製のキャビネットに自分のストレージに関連するか、またはカルボニル汚染物質の他の供給源にさらされています。調査中の第1の材料は、水酸化ナトリウム、ギ酸銅、水酸化酸化ヒドラましたTE、銅4のNa 4 O美術館のコレクションにソーダガラス/銅合金複合体の歴史的なオブジェクト（ 例えば、エナメル）上に形成さ（HCOO）8（OH）2∙4H 2 O（サンプル1）、ホルムアルデヒド及びギ酸にさらさなどの木製収納キャビネット、接着剤、から。この劣化現象は最近、「ガラス誘発される金属腐食」10として特徴付けられています。第二のケーススタディ、thecotrichite、カルシウム3（CH 3 COO）3 Clで（NO 3）2∙6H 2 O（サンプル2）については、選ばれました。 Thecotrichiteは、オーク材のキャビネットやディスプレイケースに格納されているタイルや石灰岩の博物館のオブジェクト、上の針状微結晶を形成頻繁に観察風化塩です。この場合、木は人工物からの可溶性塩化物及び硝酸塩と反応して酢酸のソースとして機能します。 次のテキストの一部、構造dの個々のステップで保存科学から腐食生成物に適用される粉末回折データを用いeterminationプロセスが詳細に示されています。

<table><tbody><tr><td>Stadi-P&amp;nbsp;</td><td>Stoe &amp;amp; Cie GmbH</td><td></td><td>Powder Diffractometer</td></tr><tr><td>Mythen 1-K (450 &amp;mu;m)</td><td>Dectris Ltd.</td><td></td><td>Position Sensitive Detector</td></tr><tr><td>Mark tube borosilicate glass No. 50, 0.5 mm diameter</td><td>Hilgenberg GmbH</td><td>4007605</td><td>Low absorbing capillaries</td></tr><tr><td>Topas 5.0</td><td>Bruker AXS Advanced X-ray Solutions GmbH</td><td></td><td>Powder Diffraction Evaluation Software</td></tr></tbody></table>

x-ray powder diffraction in conservation science: towards routine crystal structure determination of corrosion products on heritage art objects

実験室の高分解能X線粉末回折（XRPD）を使用して歴史的な美術品の結晶構造決意及び腐食生成物の改良プロセスは、2つのケーススタディを介して詳細に示されています。 調査中の第1の材料は、水酸化ナトリウム、ギ酸銅、水酸化酸化物水和物、銅4のNa 4 O（HCOO）ソーダガラス/銅合金複合体の歴史的なオブジェクト（ 例えば 、エナメル）上に形成さ8（OH）2∙4H 2 O（サンプル1）でした博物館のホルムアルデヒドと木製収納キャビネットから放出されたギ酸にさらさコレクション、接着剤などでこの劣化現象は最近、「ガラス誘発される金属の腐食」として特徴付けられています。 第二のケーススタディ、thecotrichite、カルシウム3（CH 3 COO）3 Clで（NO 3）2∙6H 2 O（サンプル2）については、風化している、選ばれました塩は、木製キャビネットやディスプレイケースに格納されているタイルや石灰岩オブジェクトの針状微結晶を形成します。この場合、木は人工物またはその環境からの可溶性塩化物及び硝酸塩と反応して酢酸のソースとして機能します。 幾何学的構造の知識は、より良い生産と崩壊反応を理解し、混合物の頻繁な場合には、完全な定量分析を可能にするために、保存科学をするのに役立ちます。

Watch this Scientific Journal Video about X-ray Powder Diffraction in Conservation Science: Towards Routine Crystal Structure Determination of Corrosion Products on Heritage Art Objects at JoVE.com

X-ray Powder Diffraction in Conservation Science: Towards Routine Crystal Structure Determination of Corrosion Products on Heritage Art Objects

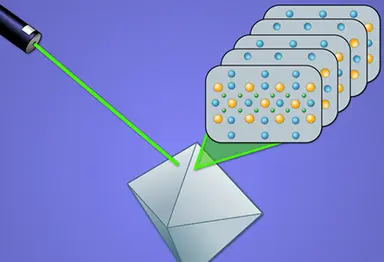

Modern high resolution X-ray powder diffraction (XRPD) in the laboratory is used as an efficient tool to determine crystal structures of long-known corrosion products on historic objects.

保存科学における粉末X線回折：遺産アートオブジェクトに対する腐食製品のルーチンの結晶構造の決意に向けて

The crystal structure determination and refinement process of corrosion products on historic art objects using laboratory high-resolution X-ray powder ...
