This protocol introduces TED applied to cell lines, hippocampal neurons and cortical glial cells. TED performance is best when TED vectors are stably expressed, for instance by lentiviral vectors. A schematic overview of the TED method is shown in Figure 4.
1. Preparation of Solutions
The following solutions should be prepared before starting and can be stored as indicated. We generally use sterilized glass and plastic material and autoclaved water.</...

<ol>
	<li>Berridge, M. J., Bootman, M. D., Roderick, H. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Calcium+signalling:+dynamics,+homeostasis+and+remodelling.">Calcium signalling: dynamics, homeostasis and remodelling.</a> Nature reviews. Molecular Cell Biology. 4, 517-529 (2003).</li><li>Berridge, M. J., Lipp, P., Bootman, M. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+versatility+and+universality+of+calcium+signalling.">The versatility and universality of calcium signalling.</a> Nature reviews. Molecular Cell Biology. 1, 11-21 (2000).</li><li>Agulhon, C., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=What+is+the+role+of+astrocyte+calcium+in+neurophysiology.">What is the role of astrocyte calcium in neurophysiology.</a> Neuron. 59, 932-946 (2008).</li><li>Augustine, G. J., Santamaria, F., Tanaka, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Local+calcium+signaling+in+neurons.">Local calcium signaling in neurons.</a> Neuron. 40, 331-346 (2003).</li><li>Berridge, M. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neuronal+calcium+signaling.">Neuronal calcium signaling.</a> Neuron. 21, 13-26 (1998).</li><li>Grienberger, C., Konnerth, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Imaging+calcium+in+neurons.">Imaging calcium in neurons.</a> Neuron. 73, 862-885 (2012).</li><li>Neher, E., Sakaba, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Multiple+roles+of+calcium+ions+in+the+regulation+of+neurotransmitter+release.">Multiple roles of calcium ions in the regulation of neurotransmitter release.</a> Neuron. 59, 861-872 (2008).</li><li>Jaepel, J., Blum, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Capturing+ER+calcium+dynamics.">Capturing ER calcium dynamics.</a> European Journal of Cell Biology. 90, 613-619 (2011).</li><li>Verkhratsky, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Physiology+and+pathophysiology+of+the+calcium+store+in+the+endoplasmic+reticulum+of+neurons.">Physiology and pathophysiology of the calcium store in the endoplasmic reticulum of neurons.</a> Physiological Reviews. 85, 201-279 (2005).</li><li>Burdakov, D., Petersen, O. H., Verkhratsky, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Intraluminal+calcium+as+a+primary+regulator+of+endoplasmic+reticulum+function.">Intraluminal calcium as a primary regulator of endoplasmic reticulum function.</a> Cell Calcium. 38, 303-310 (2005).</li><li>Streb, H., Irvine, R. F., Berridge, M. J., Schulz, I. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Release+of+Ca2++from+a+nonmitochondrial+intracellular+store+in+pancreatic+acinar+cells+by+inositol-1,4,5-trisphosphate.">Release of Ca2+ from a nonmitochondrial intracellular store in pancreatic acinar cells by inositol-1,4,5-trisphosphate.</a> Nature. 306, 67-69 (1983).</li><li>Choi, J. H., Ryu, S. H., Suh, P. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=On/off-regulation+of+phospholipase+C-gamma+1-mediated+signal+transduction.">On/off-regulation of phospholipase C-gamma 1-mediated signal transduction.</a> Advances in Enzyme Regulation. 47, 104-116 (2007).</li><li>Clapham, D. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=TRP+channels+as+cellular+sensors.">TRP channels as cellular sensors.</a> Nature. 426, 517-524 (2003).</li><li>Cahalan, M. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=STIMulating+store-operated+Ca(2+)+entry.">STIMulating store-operated Ca(2+) entry.</a> Nature Cell Biology. 11, 669-677 (2009).</li><li>Soboloff, J., Madesh, M., Gill, D. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sensing+cellular+stress+through+STIM+proteins.">Sensing cellular stress through STIM proteins.</a> Nature Chemical Biology. 7, 488-492 (2011).</li><li>Erdmann, F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Interaction+of+calmodulin+with+Sec61alpha+limits+Ca2++leakage+from+the+endoplasmic+reticulum.">Interaction of calmodulin with Sec61alpha limits Ca2+ leakage from the endoplasmic reticulum.</a> The EMBO Journal. 30, 17-31 (2011).</li><li>Sch&#228;uble, N., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=BiP-mediated+closing+of+the+Sec61+channel+limits+Ca(2+)+leakage+from+the+ER.">BiP-mediated closing of the Sec61 channel limits Ca(2+) leakage from the ER.</a> The EMBO Journal. , (2012).</li><li>Park, M. K., Choi, Y. M., Kang, Y. K., Petersen, O. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+endoplasmic+reticulum+as+an+integrator+of+multiple+dendritic+events.">The endoplasmic reticulum as an integrator of multiple dendritic events.</a> The Neuroscientist : a review journal bringing neurobiology, neurology and psychiatry. 14, 68-77 (2008).</li><li>Cooney, J. R., Hurlburt, J. L., Selig, D. K., Harris, K. M., Fiala, J. C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Endosomal+compartments+serve+multiple+hippocampal+dendritic+spines+from+a+widespread+rather+than+a+local+store+of+recycling+membrane.">Endosomal compartments serve multiple hippocampal dendritic spines from a widespread rather than a local store of recycling membrane.</a> The Journal of Neuroscience : the official journal of the Society for Neuroscience. 22, 2215-2224 (2002).</li><li>Holbro, N., Grunditz, A., Oertner, T. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Differential+distribution+of+endoplasmic+reticulum+controls+metabotropic+signaling+and+plasticity+at+hippocampal+synapses.">Differential distribution of endoplasmic reticulum controls metabotropic signaling and plasticity at hippocampal synapses.</a> Proceedings of the National Academy of Sciences of the United States of America. 106, 15055-15060 (2009).</li><li>Terasaki, M., Slater, N. T., Fein, A., Schmidek, A., Reese, T. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Continuous+network+of+endoplasmic+reticulum+in+cerebellar+Purkinje+neurons.">Continuous network of endoplasmic reticulum in cerebellar Purkinje neurons.</a> Proceedings of the National Academy of Sciences of the United States of America. 91, 7510-7514 (1994).</li><li>Barreto-Chang, O. L., Dolmetsch, R. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Calcium+imaging+of+cortical+neurons+using+Fura-2+AM.">Calcium imaging of cortical neurons using Fura-2 AM.</a> J. Vis. Exp. (23), e1067 (2009).</li><li>Lang, S., Sch&#228;uble, N., Cavalie, A., Zimmermann, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Live+cell+calcium+imaging+combined+with+siRNA+mediated+gene+silencing+identifies+Ca(2)(+)+leak+channels+in+the+ER+membrane+and+their+regulatory+mechanisms.">Live cell calcium imaging combined with siRNA mediated gene silencing identifies Ca(2)(+) leak channels in the ER membrane and their regulatory mechanisms.</a> J. Vis. Exp. (53), e2730 (2011).</li><li>Rudolf, R., Mongillo, M., Rizzuto, R., Pozzan, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Looking+forward+to+seeing+calcium.">Looking forward to seeing calcium.</a> Nature reviews. Molecular Cell Biology. 4, 579-586 (2003).</li><li>Mank, M., Griesbeck, O. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Genetically+encoded+calcium+indicators.">Genetically encoded calcium indicators.</a> Chemical Reviews. 108, 1550-1564 (2008).</li><li>Miyawaki, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fluorescent+indicators+for+Ca2++based+on+green+fluorescent+proteins+and+calmodulin.">Fluorescent indicators for Ca2+ based on green fluorescent proteins and calmodulin.</a> Nature. 388, 882-887 (1997).</li><li>Montero, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Monitoring+dynamic+changes+in+free+Ca2++concentration+in+the+endoplasmic+reticulum+of+intact+cells.">Monitoring dynamic changes in free Ca2+ concentration in the endoplasmic reticulum of intact cells.</a> The EMBO Journal. 14, 5467-5475 (1995).</li><li>Griesbeck, O., Baird, G. S., Campbell, R. E., Zacharias, D. A., Tsien, R. Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Reducing+the+environmental+sensitivity+of+yellow+fluorescent+protein.+Mechanism+and+applications.">Reducing the environmental sensitivity of yellow fluorescent protein. Mechanism and applications.</a> The Journal of Biological Chemistry. 276, 29188-29194 (2001).</li><li>Ishii, K., Hirose, K., Iino, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ca2++shuttling+between+endoplasmic+reticulum+and+mitochondria+underlying+Ca2++oscillations.">Ca2+ shuttling between endoplasmic reticulum and mitochondria underlying Ca2+ oscillations.</a> EMBO Reports. 7, 390-396 (2006).</li><li>Palmer, A. E., Jin, C., Reed, J. C., Tsien, R. Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Bcl-2-mediated+alterations+in+endoplasmic+reticulum+Ca2++analyzed+with+an+improved+genetically+encoded+fluorescent+sensor.">Bcl-2-mediated alterations in endoplasmic reticulum Ca2+ analyzed with an improved genetically encoded fluorescent sensor.</a> Proceedings of the National Academy of Sciences of the United States of America. 101, 17404-17409 (2004).</li><li>Hofer, A. M., Machen, T. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Technique+for+in+situ+measurement+of+calcium+in+intracellular+inositol+1,4,5-trisphosphate-sensitive+stores+using+the+fluorescent+indicator+mag-fura-2.">Technique for in situ measurement of calcium in intracellular inositol 1,4,5-trisphosphate-sensitive stores using the fluorescent indicator mag-fura-2.</a> Proceedings of the National Academy of Sciences of the United States of America. 90, 2598-2602 (1993).</li><li>Solovyova, N., Verkhratsky, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Monitoring+of+free+calcium+in+the+neuronal+endoplasmic+reticulum:+an+overview+of+modern+approaches.">Monitoring of free calcium in the neuronal endoplasmic reticulum: an overview of modern approaches.</a> Journal of Neuroscience Methods. 122, 1-12 (2002).</li><li>Solovyova, N., Veselovsky, N., Toescu, E. C., Verkhratsky, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ca(2+)+dynamics+in+the+lumen+of+the+endoplasmic+reticulum+in+sensory+neurons:+direct+visualization+of+Ca(2+)-induced+Ca(2+)+release+triggered+by+physiological+Ca(2+)+entry.">Ca(2+) dynamics in the lumen of the endoplasmic reticulum in sensory neurons: direct visualization of Ca(2+)-induced Ca(2+) release triggered by physiological Ca(2+) entry.</a> The EMBO Journal. 21, 622-630 (2002).</li><li>Rehberg, M., Lepier, A., Solchenberger, B., Osten, P., Blum, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+new+non-disruptive+strategy+to+target+calcium+indicator+dyes+to+the+endoplasmic+reticulum.">A new non-disruptive strategy to target calcium indicator dyes to the endoplasmic reticulum.</a> Cell Calcium. 44, 386-399 (2008).</li><li>Blum, R., Verkhratsky, A., Petersen, O. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Calcium imaging of intracellular organelles: endoplasmic reticulum. 43, (2010).</li><li>Shaner, N. C., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Improving+the+photostability+of+bright+monomeric+orange+and+red+fluorescent+proteins.">Improving the photostability of bright monomeric orange and red fluorescent proteins.</a> Nature Methods. 5, 545-551 (2008).</li><li>Lois, C., Hong, E. J., Pease, S., Brown, E. J., Baltimore, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Germline+transmission+and+tissue-specific+expression+of+transgenes+delivered+by+lentiviral+vectors.">Germline transmission and tissue-specific expression of transgenes delivered by lentiviral vectors.</a> Science. 295, 868-872 (2002).</li><li>Zufferey, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Self-inactivating+lentivirus+vector+for+safe+and+efficient+in+vivo+gene+delivery.">Self-inactivating lentivirus vector for safe and efficient in vivo gene delivery.</a> Journal of Virology. 72, 9873-9880 (1998).</li><li>Zufferey, R., Nagy, D., Mandel, R. J., Naldini, L., Trono, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Multiply+attenuated+lentiviral+vector+achieves+efficient+gene+delivery+in+vivo.">Multiply attenuated lentiviral vector achieves efficient gene delivery in vivo.</a> Nature Biotechnology. 15, 871-875 (1997).</li><li>Li, D., Herault, K., Oheim, M., Ropert, N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=FM+dyes+enter+via+a+store-operated+calcium+channel+and+modify+calcium+signaling+of+cultured+astrocytes.">FM dyes enter via a store-operated calcium channel and modify calcium signaling of cultured astrocytes.</a> Proceedings of the National Academy of Sciences of the United States of America. 106, 21960-21965 (2009).</li><li>Blum, R., Petersen, O. H., Verkhratsky, A., Verkhratsky, A., Petersen, O. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Calcium measurement methods. Vol. Neuromethods 43 (Springer protocols), 147-167 (2010).</li><li>Tian, L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Selective+esterase-ester+pair+for+targeting+small+molecules+with+cellular+specificity.">Selective esterase-ester pair for targeting small molecules with cellular specificity.</a> Proceedings of the National Academy of Sciences of the United States of America. 109, 4756-4761 (2012).</li><li>Samtleben, S., Blum, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Improved+vectors+for+direct+ER+calcium+imaging+with+targeted-estersase+induced+dye+loading.">Improved vectors for direct ER calcium imaging with targeted-estersase induced dye loading.</a> , (2012).</li></ol>

The advantages and disadvantages of the TED method have been discussed extensively in recent publications 34,35. Compared to other methods described above, TED circumvents the problem of disrupting and perfusing the cells. Furthermore, two aspects need to be emphasized. The principle of TED for ER calcium imaging requires (1.) the targeted expression of an active carboxylesterase in the ER lumen with the help of TED vector constructs and (2.) the efficient and preferential release of low-affinity synthe...

In order to resolve physiological calcium responses of the ER, we developed a new strategy to improve the trapping of synthetic calcium sensitive dyes into the ER. The method enables the direct, non-disruptive real-time monitoring of free ER calcium in presence of extracellular calcium.
	Function and signaling of ER Calcium
	Calcium signals are found in different cell types, e.g. muscle-cells, neurons and glial cells and their functions range from mediating muscle contraction to an involvement in synaptic transmission in learning and memory 1,2. Changes in free calcium concentration are of high scientific interest because calcium is involved in the regulation of gene transcription, cell proliferation, neuronal excitability, cell death and other cell signaling events 1-7. All these cellular calcium signals are functionally connected and contribute to intracellular calcium store dynamics 8-10.

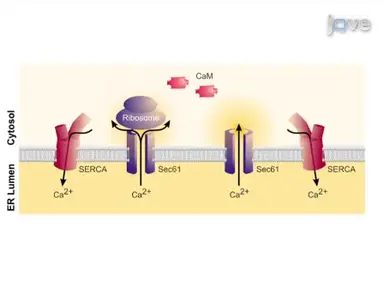

	A common feature among all calcium signals is the flow of calcium between the extracellular space, the cytosol and organelles, mainly the ER and mitochondria. This causes dynamic changes in calcium concentration within these organelles, which are sensed by different signaling components. In general, the calcium concentration in the ER ranges between 100 to 800 &mu;M, in the cytosol the calcium concentration is close to 100 nM, and in the extracellular space the concentration is around 1-2 mM. Accordingly, there is a high chemical driving force for calcium flow towards the cytosol 2,9,10.
	The most commonly investigated ER-derived calcium signals depend on the stimulation of G-protein coupled receptors (GpcR), which then activate phospholipase C (PLC). PLC in turn produces inositol 1,4,5-trisphosphate (IP3) 1. Upon binding of IP3 to its receptor (IP3-Rec, Figure 1) in the ER-membrane, calcium ions are released from the ER lumen. Historically, IP3-mediated calcium release from the ER was first - even though indirectly - measured in acinar pancreatic cells by Streb et al. in 1983 11. This publication suggested for the first time a signaling cascade involving acetylcholine, phospholipase C, and IP3. This way of calcium release is generally termed IP3-induced calcium release (IiCR) (Figure 1). Kinase-dependent activation of phospholipase C&gamma; by receptor tyrosin kinases links the action of growth factors and neurotrophic factors to ER calcium signaling after IP3 elevation 12. In addition to IiCR, calcium elevation may be mediated by ionotropic calcium entry, for instance via voltage-gated calcium channels (CaV), and subsequent calcium-induced calcium release (CiCR) by ryanodine receptors (RyR). IiCR and CiCR are physiologically linked to store-operated calcium entry (SOCE). SOCE includes the action of STIM (stroma interacting molecule), which is a sensor for ER calcium release. STIM has been shown to stimulate extracellular calcium entry through transient receptor potential channels (Trp) 13, Orai calcium channels 14 and even voltage-gated calcium channels 15 (Figure 1) . Loss of ER calcium is dynamically rescued by the action of the sarco-endoplasmic reticulum calcium ATPase (SERCA), which actively pumps calcium back into the ER. Blocking the SERCA with drugs such as thapsigargin unveils a continuous loss of ER calcium to the cytosolic compartment. This ER calcium "leak" is caused by ER intramembrane pore complexes such as the Sec61 protein complex 16,17 (Figure 1).
	In 1998, Berridge published a model, the "neuron within a neuron model", which suggests a principle physiological role of the ER in integrating neuronal calcium 5. This model considers the existence of a continuous ER membrane system forming an intracellular "image" of the neuronal plasma membrane 5. This binary eukaryotic membrane system was claimed to be a basic prerequisite for temporal and spatial integration of fast and slow calcium signals in neurons. Calcium signals that occur either concomitantly or subsequently in different spines or dendrites of the same neuron are conferred to the cell's soma or nucleus via the ER, where they are summed up 5,18. Then, their sum may have effects on the excitability of the neuron, regulation of gene transcription or integration of signaling cascades. Thus, the ER supports the integration of calcium signals. One prerequisite for this concept is the continuity of the ER in a single cell, which has been claimed by several studies and which has been proven at least for somato-dendritic areas and short distance axonal projections 19-21. Whether there is ER continuity within long axonal projections is a matter of debate.
	Strategies to measure the flow of free calcium over the ER membrane
	Calcium signals are most frequently monitored in the cytosol 22,23. Therefore, it cannot easily be distinguished whether Ca2+ is flowing into the cytosol from extracellular or from intracellular stores 6,24. To overcome this limitation, methodological strategies for direct ER calcium imaging have been developed. In summary, the following strategies are used: (1) ER-targeted genetically engineered protein-indicators 25-27. Protein-based low-affinity Ca2+ indicators use the bioluminescent protein aequorin or GFP in combination with a calcium sensing protein. These genetically engineered Ca2+ indicators (GECIs) can be targeted to the ER with the help of a signal peptide and are actively kept in the ER using a retention and retrieval motif. Common ER Ca2+ indicators base on the Cameleon principle and are the Cameleon YC4.3 26,28; Cameleon split YC7.3ER 29, and Cameleon D1 30. (2) Direct esterase-based dye loading of AM-ester low-affinity Ca2+ indicators 31,32. AM-derivatives of the indicator dyes (Mag-Fura2-AM, Mag-Fluo4-AM or Fluo5N-AM) pass the biological membranes in a lipophilic, calcium-insensitive state. Then, in the cytosol as well as in the ER, endogenous esterases cleave of the AM-ester group and release the Ca2+ indicator, leaving behind a certain amount of active dye in the cytosol and in the ER. Therefore, this approach is useful under conditions of a high calcium concentration in the ER as long as the cytosolic calcium concentration stays well below the detection limit of the low-affinity indicators, particularly during characteristic calcium signals (e.g. nM to low &mu;M). (3) AM-ester loading in combination with plasma membrane permeabilization 32. Any remaining cytosolic Ca2+ indicator is removed by plasma membrane permeabilization with small amounts of a "mild" detergent (e.g. saponin) in an artificial intracellular buffer. Thus, the intracellular membranes may be stimulated, e.g. with IP3 in the intracellular buffer, directly through "pores" in the plasma membrane. (4) Dialysis of the cytosol under whole-cell configuration and simultaneous measurements of Ca2+ in the ER lumen and the cytosol 32,33. A cell is first loaded with a low-affinity Ca2+ indicator (e.g. Mag-Fura2-AM, ratiometric, UV-light). Afterwards, with the help of a patch pipette, any remaining cytosolic low-affinity Ca2+ indicator is dialysed out of the cytosol with a buffer containing a high-affinity Ca2+ indicator (e.g. Fluo-3, visible light). This strategy enables the simultaneous recording of cytosolic and ER derived signals. (5) Targeted-esterase-induced dye loading 8,34. A Carboxylesterase (CES) is targeted to the lumen of the ER and provides a high esterase activity for efficient trapping of the AM-ester form of low-affinity Ca2+ indicators.
	Targeted-esterase induced dye loading (TED)
	To improve targeting of low-affinity Ca2+ indicators to the ER lumen, TED was developed. TED requires the overexpression of an ER targeted mouse carboxylesterase (CES2) (Figure 2), which is achieved via expression constructs. Cells expressing a recombinant CES-construct are incubated with the AM-ester form of a calcium indicator dye (Fluo5N-AM, Figure 2). Then, in the ER, the dye is converted to the Ca2+ sensitive, membrane impermeable Ca2+ indicator complex (Fluo5N/Ca2+) by the high esterase activity, therefore trapping the dye in a high concentration in the ER lumen 8,34. The method is especially useful to investigate ER calcium-release via the IiCR-pathways for instance via metabotropic, purinergic- or glutamate receptors 8,34 and to visualize ER calcium depletion via "leak channels" directly, for instance after blockade of the SERCA 17,34. To our experience the low-affinity Ca2+ indicator Fluo5N-AM is currently the best available indicator to use with the TED dye loading strategy. Fluo5N-AM has a low-affinity for Ca2+ (dissociation constant KD ~90 &mu;M, Figure 2), is almost non-fluorescent in its AM-form, but provides high fluorescence emission upon calcium binding 8,34. The Fluo5N/Ca2+ complex can be excited with a standard light source of ~490 nm, which corresponds to standard dyes such as FITC, Alexa 488, or eGFP. Cytosolic calcium signals scarcely reach a concentration in the low &mu;M range and are therefore barely detected by Fluo5N in the cytosol 35.
	To improve the TED performance, several recombinant vector constructs were developed (Figure 3). Originally, TED vectors based on the coding sequence of CES2 (Refseq accession number NM_145603, CES2c) and best TED performance is observed with stable expression of CES constructs. New TED vectors express a core element of CES2 fused to the red fluorescence protein TagRFP-T2 36. These vectors have the advantage that they can be used to identify transduced cells and to use the red fluorescence as an internal control for the normalization of changes in Fluo5N/Ca2+ fluorescence. The red fluorescence also offers the possibility to visualize the structural distribution of the ER and changes in ER dynamics under stimulation conditions.
