This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education, Science and Technology (2013068067); by the Brain Korea 21 Graduate Programme of the Korean Ministry of Education, Science and Technology, Seoul National University Hospital, the Korean Society of Hypertension (2013), SK Telecom Research Fund (no. 3420130290) and from the National Natural Science Foundation of China (NSFC&#160;31460265; NSFC 81260035).

The protocol is in accordance with the Guide for the Care and Use of Laboratory Animals published by the UN National Institutes of Health (NIH Publication No. 85-23, revised 1996). It was approved by the Institutional Animal Care and Use Committee (IACUC) of Seoul National University (IACUC approval no.: SNU-101213-1).
1. Buffer Preparation (Table Materials and Equipment)
<ol>
	<li>Prepare 300 ml of fresh isolation solution on the day of the experiment (in mM: NaCl, 135; KCl, 5.4; MgCl2, 3.5; glucose, 5; HEPES, 5; Na2HPO4, 0.4; taurine, 20; pH 7.4 with NaOH).</li>
	<li>Prepare 100 ml of fresh storage solution on the day of the experiment (in mM: NaCl 120; KCl 5.4; MgSO4 5; CaCl2 0.2; sodium-pyruvate 5; glucose 5.5; taurine 20; HEPES 10; mannitol 29; pH 7.4 with NaOH).</li>
	<li>Prepare 1L of perfusion solution (in mM: NaCl, 141.4; KCl, 4; NaH2PO4, 0.33; MgCl2, 1; HEPES, 10; glucose, 5.5; CaCl2, 1.8; mannitol, 14.5; pH 7.4 with NaOH).</li>
	<li>Prepare 30 ml of collagenase solution 1 by adding collagenase (1 mg/ml), protease (0.1 mg/ml), bovine serum albumin (BSA, 1.67mg/ml), and Ca2+ (0.05 mM) to 25 ml of isolation solution.</li>
	<li>Prepare 20 ml of collagenase solution 2 by adding collagenase (1 mg/ml), BSA (1.67 mg/ml), and Ca2+ (0.05 mM) to 16.7 ml of isolation solution.</li>
	<li>Prepare 40 ml of BSA solution by adding 0.4 g of BSA to 40 ml of isolation solution. Separate 10 ml and 30 ml into two beakers. Add Ca2+ to 30 ml of BSA solution so that the final Ca2+ concentration in the BSA solution is 1 mM.</li>
</ol>
2. Preparation for the Isolation of Left Ventricular (LV) Myocytes
<ol>
	<li>Transfer 8-12 week-old, male Sprague-Dawley (SD) rats in clean transport cages from the animal facility to the preparation and isolation room.</li>
	<li>Heat two water baths to 37 o C.
	Note: Use one water bath for the water - jacketed reservoir and the perfusion tubes of the Langendorff perfusion system. Use the other water bath to agitate myocardial tissue trunks in order to separate single myocytes.</li>
	<li>Add 5 ml and 3.3 ml of BSA solution (without Ca2+) to 25 ml of collagenase solution 1 and 16.7 ml collagenase solution 2 to make up the volume to 30 ml and 20 ml, respectively.</li>
	<li>Add isolation solution (100 ml) and collagenase solution 1 (30 ml) to column 1 (Col. 1) and column 2 (Col. 2) in the Langendorff perfusion system, respectively (Figure 1A).</li>
	<li>Oxygenate the isolation solution and collagenase solution 1 in Col. 1 and Col.2 via the oxygen connection tube in the Langendorff perfusion system (Figure 1A). Similarly, oxygenate collagenase solution 2 and the BSA solution in the shaking water bath with 100% O2&#160;via the oxygen connection tube.</li>
</ol>
3. Isolation of LV Myocytes
<ol>
	<li>Anesthetize a SD rat via intraperitoneal injection of pentobarbital sodium (30 mg/kg) and confirm the anesthetic status by toe pinching and lack of withdrawal reflection.</li>
	<li>Move the rat to a dissection tray. In the supine position, secure the four legs to the sides of the body with tape.</li>
	<li>Apply thoracic mid-axial incisions with surgical scissors to open the chest, ensuring not to damage the heart. Use another pair of clean scissors to dissect the heart from the connecting vessels (e.g., superior and inferior vena cava, pulmonary vessels, and aorta) and pericardial membrane13.</li>
	<li>Leave a portion of the aorta of a sufficient length (5 - 8 mm), clamp the aorta with fine forceps, and rapidly mount the cannula of the Langendorff perfusion system within 1 min (Figure 1A). Tie suture thread 4/0 tightly over the aorta.</li>
	<li>Turn on the valve on Col. 1 and perfuse the isolated heart with pre-warmed and oxygenated isolation solution for 10 min (perfusion rate: 12-14 ml/min). Turn off the valve on Col. 1, turn on the valve on Col. 2 and perfuse the heart with collagenase solution 1 for 8 - 10 min.</li>
	<li>Dismount the digested heart by cutting the aorta and transfer it by holding the aorta with forceps into the flask containing fresh isolation solution (Figure 1Bi). Use fine scissors and forceps to cut most of the LV free wall (including the septum) into smaller pieces (~22 mm, Figure 1Bii).</li>
	<li>Transfer the pieces into a flask containing pre-warmed and oxygenated fresh collagenase solution 2 (Figure 1Biii). Shake for 10 min. Keep delivering oxygen to the myocyte-containing collagenase solution 2.</li>
	<li>Move the myocyte - suspension to a 10 ml centrifuge tube using droppers with a suction bulb and add Ca2+ - containing BSA solution (1:1 in volume). Centrifuge at 30 g for 2 min and discard the supernatant. Re-suspend the myocyte pellet in 5 ml of BSA solution. Centrifuge and discard the supernatant.</li>
	<li>Disperse the myocyte pellets and keep myocytes in 10 ml of pre-oxygenated storage solution at RT (Figure 1Biv-vi).</li>
	<li>Repeat the procedures (steps 3.7 - 3.9) with the remaining LV tissue in the flask.
	Note: Keep repeating the procedures (steps 3.7 - 3.9) again until most of the LV tissue disappears to obtain a good yield of myocytes.</li>
	<li>Keep the myocytes in storage solution for 6-8 hr at RT until the end of experiments.</li>
</ol>
4. Simultaneous Measurements of Intracellular Ca2+ Transients and Myocyte Contraction
<ol>
	<li>Load LV myocytes with the acetoxymethyl ester Fura-2 AM (2 &#181;M).
	Note: Perform all loading procedures and experiments with loaded myocytes in a dark tube (Figure 1Bvii).
	<ol>
		<li>Centrifuge the myocyte suspension (1 ml) at 2,000 x g for 10 sec. Discard the supernatant and re-suspend the myocyte pellet in 1 ml of Tyrode solution with a low Ca2+ concentration (250 &#181;M, Table Materials and Equipment).</li>
		<li>Add Fura-2AM and poloxamer 407 (2 &#181;l), gently disperse the myocyte suspension, and keep the mixture at RT (20 - 24o C) for 15 min&#160;(Figure 1Bvii).</li>
		<li>Centrifuge the mixture for 5 sec, discard the supernatant and disperse the myocyte pellet in 1 ml of perfusion solution containing 500 &#181;M Ca2+. After 10 min, centrifuge the mixture for 5 sec and discard the supernatant.</li>
		<li>Add fresh perfusion solution (500 &#181;M Ca2+, 1 ml) and keep the Fura-2AM - loaded myocyte pellet in this solution for recordings.</li>
	</ol>
	</li>
	<li>Measurement of LV myocyte contraction and intracellular Ca2+
	<ol>
		<li>Before recording, fill the perfusion tube that runs through a water jacket with the Tyrode solution, which is pre-warmed to 36 o C.</li>
		<li>Place a few drops of the Fura 2 AM - loaded LV myocyte suspension on the chamber of an inverted fluorescence microscope for 5 - 8 min. Slowly perfuse the Tyrode solution (2.2 ml/min).</li>
		<li>Press the &#34;start&#34; button on the front panel of the digital stimulator to start field stimulation (2 Hz).
		Note: The output voltage (10 V, 5 msec duration) is applied to the myocytes in the chamber through platinum wires positioned on either side of the chamber.
		<ol>
			<li>Select myocytes that contract stably (not those displaying hyper- or hypo-contraction) for recording.</li>
		</ol>
		</li>
		<li>Adjust the myocyte of choice in the horizontal position of the video-based sarcomere detection system and adjust the focus of the microscope to obtain optimal images of sarcomeres. Position the purple rectangular box on the area in which clear sarcomeres are clearly observed until the average of sarcomere lengths (red peak) displays a singular sharp peak (Figure 2A, lower image).</li>
		<li>Record the changes of sarcomere length in response to field stimulation (Figure 2A and B).
		Note: Use the loaded myocytes within 1 - 2 hr.</li>
		<li>Adjust the aperture of the camera so that the field in the video-based sarcomere detection system is the size of the myocyte (Figure 2A). Stimulate the myocyte with excitation at 360 nm/380 nm and emission at 510 nm (acquisition frequency 1,000 Hz). Record sarcomere shortening and the Fura2 AM ratio with field stimulation (Figure 2B).</li>
	</ol>
	</li>
</ol>
5. Assessment of Myofilament Ca2+ Sensitivity
<ol>
	<li>Average the sarcomere lengths and Ca2+ transients at steady-state (10 - 20 traces) and plot the phase-plane loop of the Fura-2 ratio vs. sarcomere length of the same myocyte (both with measured values and delta changes; Figure 2C).</li>
	<li>In each plot, define Fura -2 ratio at 50% relaxation (EC50, Figure 2C). Compare both the loop and EC50 of each intervention.</li>
</ol>

<ol><li>Bers, D. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Cardiac+excitation-contraction+coupling%5BTitle%5D)+AND+%22Nature%22%5BJournal%5D)">Cardiac excitation-contraction coupling.</a> Nature. 415 (6868), 198-205 (2002).</li>
<li>Eisner, D. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Integrative+analysis+of+calcium+cycling+in+cardiac+muscle%5BTitle%5D)+AND+%22Circ+Res%22%5BJournal%5D)">Integrative analysis of calcium cycling in cardiac muscle.</a> Circ Res. 87 (12), 1087-1094 (2000).</li>
<li>Palmiter, K. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Molecular+mechanisms+regulating+the+myofilament+response+to+Ca2%2B%3A+implications+of+mutations+causal+for+familial+hypertrophic+cardiomyopathy%5BTitle%5D)+AND+%22Basic+Res+Cardiol%22%5BJournal%5D)">Molecular mechanisms regulating the myofilament response to Ca2+: implications of mutations causal for familial hypertrophic cardiomyopathy.</a> Basic Res Cardiol. 92 (S1), 63-74 (1997).</li>
<li>Missiaen, L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Abnormal+intracellular+Ca2%2B+homeostasis+and+disease%5BTitle%5D)+AND+%22Cell+Calcium%22%5BJournal%5D)">Abnormal intracellular Ca2+ homeostasis and disease.</a> Cell Calcium. 28 (1), 1-21 (2000).</li>
<li>Trafford, A. W., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((A+novel%2C+rapid+and+reversible+method+to+measure+Ca+buffering+and+time-course+of+total+sarcoplasmic+reticulum+Ca+content+in+cardiac+ventricular+myocytes%5BTitle%5D)+AND+%22Pflugers+Arch%22%5BJournal%5D)">A novel, rapid and reversible method to measure Ca buffering and time-course of total sarcoplasmic reticulum Ca content in cardiac ventricular myocytes.</a> Pflugers Arch. 437 (3), 501-503 (1999).</li>
<li>Berlin, J. R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Intrinsic+cytosolic+calcium+buffering+properties+of+single+rat+cardiac+myocytes%5BTitle%5D)+AND+%22Biophys+J%22%5BJournal%5D)">Intrinsic cytosolic calcium buffering properties of single rat cardiac myocytes.</a> Biophys J. 67 (4), 1775-1787 (1994).</li>
<li>Robertson, S. P., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((The+time-course+of+Ca2%2B+exchange+with+calmodulin%2C+troponin%2C+parvalbumin%2C+and+myosin+in+response+to+transient+increases+in+Ca2%2B%5BTitle%5D)+AND+%22Biophys+J%22%5BJournal%5D)">The time-course of Ca2+ exchange with calmodulin, troponin, parvalbumin, and myosin in response to transient increases in Ca2+.</a> Biophys J. 34 (3), 559-569 (1981).</li>
<li>Schober, T., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Myofilament+Ca2%2B+sensitization+increases+cytosolic+Ca2%2B+binding+affinity%2C+alters+intracellular+Ca2%2B+homeostasis%2C+and+causes+pause-dependent+Ca2%2B-triggered+arrhythmia%5BTitle%5D)+AND+%22Circ+Res%22%5BJournal%5D)">Myofilament Ca2+ sensitization increases cytosolic Ca2+ binding affinity, alters intracellular Ca2+ homeostasis, and causes pause-dependent Ca2+-triggered arrhythmia.</a> Circ Res. 112 (2), 170-179 (2012).</li>
<li>Briston, S. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Balanced+changes+in+Ca+buffering+by+SERCA+and+troponin+contribute+to+Ca+handling+during+%CE%B2-adrenergic+stimulation+in+cardiac+myocytes%5BTitle%5D)+AND+%22Cardiovasc+Res%22%5BJournal%5D)">Balanced changes in Ca buffering by SERCA and troponin contribute to Ca handling during β-adrenergic stimulation in cardiac myocytes.</a> Cardiovasc Res. 104 (2), 347-354 (2014).</li>
<li>Patel, B. G., Wilder, T., John Solaro, R. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Novel+control+of+cardiac+myofilament+response+to+calcium+by+S-glutathionylation+at+specific+sites+of+myosin+binding+protein+C%5BTitle%5D)+AND+%22Front+Physiol%22%5BJournal%5D)">Novel control of cardiac myofilament response to calcium by S-glutathionylation at specific sites of myosin binding protein C.</a> Front Physiol. 4, 336(2013).</li>
<li>Jin, C. Z., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Myofilament+Ca2%2B+desensitization+mediates+positive+lusitropic+effect+of+neuronal+nitric+oxide+synthase+in+left+ventricular+myocytes+from+murine+hypertensive+heart%5BTitle%5D)+AND+%22J+Mol+Cell+Cardiol%22%5BJournal%5D)">Myofilament Ca2+ desensitization mediates positive lusitropic effect of neuronal nitric oxide synthase in left ventricular myocytes from murine hypertensive heart.</a> J Mol Cell Cardiol. 60, 107-115 (2013).</li>
<li>Wang, Y., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Modulation+of+L-type+Ca2%2B+channel+activity+by+neuronal+nitric+oxide+synthase+and+myofilament+Ca2%2B+sensitivity+in+cardiac+myocytes+from+hypertensive+rat%5BTitle%5D)+AND+%22Cell+Calcium%22%5BJournal%5D)">Modulation of L-type Ca2+ channel activity by neuronal nitric oxide synthase and myofilament Ca2+ sensitivity in cardiac myocytes from hypertensive rat.</a> Cell Calcium. 58 (3), 264-274 (2015).</li>
<li>Louch, W. E., Sheehan, K. A., Wolska, B. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Methods+in+cardiomyocyte+isolation%2C+culture%2C+and+gene+transfer%5BTitle%5D)+AND+%22J+Mol+Cell+Cardiol%22%5BJournal%5D)">Methods in cardiomyocyte isolation, culture, and gene transfer.</a> J Mol Cell Cardiol. 51 (3), 288-298 (2011).</li>
<li>Spurgeon, H. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Cytosolic+calcium+and+myofilaments+in+single+rat+cardiac+myocytes+achieve+a+dynamic+equilibrium+during+twitch+relaxation%5BTitle%5D)+AND+%22J+Physiol%22%5BJournal%5D)">Cytosolic calcium and myofilaments in single rat cardiac myocytes achieve a dynamic equilibrium during twitch relaxation.</a> J Physiol. 447, 83-102 (1992).</li>
<li>Preston, L. C., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Functional+effects+of+the+DCM+mutant+Gly159Asp+troponin+C+in+skinned+muscle+fibres%5BTitle%5D)+AND+%22Pflugers+Arch%22%5BJournal%5D)">Functional effects of the DCM mutant Gly159Asp troponin C in skinned muscle fibres.</a> Pflugers Arch. 453 (6), 771-776 (2007).</li>
<li>Willott, R. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Mutations+in+Troponin+that+cause+HCM%2C+DCM+AND+RCM%3A+what+can+we+learn+about+thin+filament+function%3F%5BTitle%5D)+AND+%22J+Mol+Cell+Cardiol%22%5BJournal%5D)">Mutations in Troponin that cause HCM, DCM AND RCM: what can we learn about thin filament function?</a> J Mol Cell Cardiol. 48 (5), 882-892 (2010).</li>
<li>Yasuda, S. I., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((A+novel+method+to+study+contraction+characteristics+of+a+single+cardiac+myocyte+using+carbon+fibers%5BTitle%5D)+AND+%22Am+J+Physiol+Heart+Circ+Physiol%22%5BJournal%5D)">A novel method to study contraction characteristics of a single cardiac myocyte using carbon fibers.</a> Am J Physiol Heart Circ Physiol. 281 (3), H1442-H1446 (2001).</li>
<li>Sears, C. E., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Cardiac+neuronal+nitric+oxide+synthase+isoform+regulates+myocardial+contraction+and+calcium+handling%5BTitle%5D)+AND+%22Circ+Res%22%5BJournal%5D)">Cardiac neuronal nitric oxide synthase isoform regulates myocardial contraction and calcium handling.</a> Circ Res. 92 (5), e52-e59 (2003).</li>
<li>Ashley, E. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Cardiac+nitric+oxide+synthase+1+regulates+basal+and+beta-adrenergic+contractility+in+murine+ventricular+myocytes%5BTitle%5D)+AND+%22Circulation%22%5BJournal%5D)">Cardiac nitric oxide synthase 1 regulates basal and beta-adrenergic contractility in murine ventricular myocytes.</a> Circulation. 105 (25), 3011-3016 (2002).</li>
<li>Zhang, Y. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Reduced+phospholamban+phosphorylation+is+associated+with+impaired+relaxation+in+left+ventricular+myocytes+from+neuronal+NO+synthase-deficient+mice%5BTitle%5D)+AND+%22Circ+Res%22%5BJournal%5D)">Reduced phospholamban phosphorylation is associated with impaired relaxation in left ventricular myocytes from neuronal NO synthase-deficient mice.</a> Circ Res. 102 (2), 242-249 (2008).</li>
<li>Roe, M. W., Lemasters, J. J., Herman, B., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Assessment+of+Fura-2+for+measurements+of+cytosolic+free+calcium%5BTitle%5D)+AND+%22Cell+Calcium%22%5BJournal%5D)">Assessment of Fura-2 for measurements of cytosolic free calcium.</a> Cell Calcium. 11 (2-3), 63-73 (1990).</li>
<li>Grynkiewicz, G., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((A+new+generation+of+Ca2%2B+indicators+with+greatly+improved+fluorescence+properties%5BTitle%5D)+AND+%22J+Biol+Chem%22%5BJournal%5D)">A new generation of Ca2+ indicators with greatly improved fluorescence properties.</a> J Biol Chem. 260 (6), 3440-3450 (1985).</li>
</ol>

The authors declare that they have no competing financial interests.

Here, we describe the protocols to assess changes of myofilament Ca2+ sensitivity in single isolated cardiac myocyte and emphasize the importance of measuring this parameter alongside electrophysiological properties, intracellular Ca2+ transients, and myofilament dynamics. This is because the recordings of one or two of the parameters may not explicate the mechanisms underlying cardiac contraction and relaxation. Unlike conventional methods that measure myocyte contraction and the intracellular Ca<s...

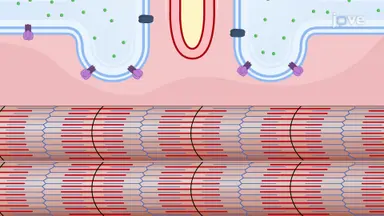

Cardiac excitation-contraction (E-C) coupling is the fundamental scheme for analyzing mechanical properties of the myocardium, i.e., the contractile function of the heart1,2. E-C coupling is initiated by membrane depolarization secondary to the activities of sarcolemmal ion channels (e.g., the voltage-gated Na+ channel, which can be measured via patch-clamp techniques). Subsequent activation of voltage-gated L-type Ca2+ channels (LTCCs) and Ca2+ influx via LTCCs trigger the bulk of Ca2+ release through ryanodine receptors (RyRs), increasing the cytosolic Ca2+ concentration from the nanomolar (nM) to micromolar (&#181;M) level. Such an increase in cytosolic Ca2+ promotes Ca2+ binding to troponin C (TnC) in thin filaments and elicits conformational changes of the filament complex to facilitate the actin-myosin interaction and attains myocardial contraction3. Conversely, the cytosolic Ca2+ is re-uptaken&#160;back into the sarcoplasmic reticulum (SR) through the Ca2+-ATPase in SR (SERCA2a) or is extruded out of the myocyte via the Na+/Ca2+ exchanger and the plasmalemmal Ca2+ ATPase1,2. Consequently, the decline in cytosolic Ca2+ instigates conformational changes of thin filaments back to the original state, resulting in the dissociation of actin-myosin and myocyte relaxation1-3. In this scheme, the activity of SERCA2a is generally considered to determine the speed of myocardial relaxation because it accounts for 70 - 90% of cytosolic Ca2+ removal in most mammalian heart cells1. As such, abnormal Ca2+ handling by LTCC, RyR and SERCA2a, etc. has been considered the primary mechanisms for impaired contractility and relaxation in the diseased heart1-4.
In reality, free cytosolic Ca2+ that functions as the messenger in E-C coupling accounts for around 1% of total intracellular Ca2+ and the majority of Ca2+ is bound to intracellular Ca2+ buffers5,6. This is due to the fact that various Ca2+ buffers are abundant in cardiac myocytes, e.g., membrane phospholipids, ATP, phosphocreatine, calmodulin, parvalbumin, myofibril TnC, myosin, SERCA2a, and calsequestrin in the SR.5,6,7. Among them, SERCA2a and TnC are the predominant Ca2+ buffers5,6,7. Furthermore, Ca2+ binding to its buffers is a dynamic process during twitch (e.g., 30-50% of Ca2+ binds to TnC and dissociate from it during Ca2+ transients7) and the change in Ca2+ binding cause additional &#34;release&#34; of free Ca2+ to the cytosol, results in the alterations of the intracellular Ca2+ concentration. Consequently, perturbation of the intracellular Ca2+ level induces abnormal myofilament movements, which are the precursors of contractile dysfunction and arrhythmias8,9. Many factors (both physiological and pathological) can be the sources of post-transcriptional modifications of myofilament proteins, which influence myofilament Ca2+ buffering and myofilament Ca2+ sensitivity8-10. Recently, it was reported that mutations in myofilament proteins increase the Ca2+ binding affinity and intracellular Ca2+ handling, triggering pause-dependent potentiation of Ca2+ transients, abnormal Ca2+ release, and arrhythmias8. In line with this concept, we have also shown that myofilament Ca2+ desensitization in hypertensive rat hearts secondary to the up-regulation of neuronal nitric oxide synthase is associated with elevated diastolic and systolic Ca2+ levels11, which in turn, increases the vulnerability of the LTCC to Ca2+-dependent inactivation12. Hence, myofilament Ca2+ sensitivity is an &#34;active&#34; regulator of intracellular Ca2+ homeostasis and myocyte contractile function. It has become necessary to analyze interactions between myofilament and Ca2+ handling proteins for thorough investigation of myocyte E-C coupling and cardiac function.
Here, we describe a protocol that assesses the changes of myofilament Ca2+ sensitivity in isolated cardiac myocytes. Comprehensive analysis of&#160;intracellular Ca2+ profile, myofilament Ca2+ sensitivity and contraction will unearth novel mechanisms underlying myocardial mechanics.

<table><tbody><tr><td>Sprague Dawley rat</td><td>Koatech</td><td></td><td>8-12 weeks</td></tr><tr><td>Pentobarbital Sodium</td><td>Hanlim Pharmaceutical (Korea)</td><td>AHN901</td><td>Insurance code:645301220</td></tr><tr><td>NaCl</td><td>Sigma</td><td>S9625</td><td></td></tr><tr><td>KCl</td><td>Sigma</td><td>P4504</td><td></td></tr><tr><td>NaH&lt;sub&gt;2&lt;/sub&gt;PO&lt;sub&gt;4&lt;/sub&gt;</td><td>Sigma</td><td>S8282</td><td></td></tr><tr><td>HEPES</td><td>Sigma</td><td>H3375</td><td></td></tr><tr><td>Glucose</td><td>Sigma</td><td>G8270</td><td></td></tr><tr><td>CaCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>C2002</td><td></td></tr><tr><td>MgCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>M2001</td><td></td></tr><tr><td>Mannitol</td><td>Sigma</td><td>M4125</td><td></td></tr><tr><td>MgSO&lt;sub&gt;4&lt;/sub&gt;</td><td>Sigma</td><td>M5921</td><td></td></tr><tr><td>Sodium Pyruvate</td><td>Sigma</td><td>P2256</td><td></td></tr><tr><td>Taurine</td><td>Merck</td><td>8.08616.1000</td><td></td></tr><tr><td>Na&lt;sub&gt;2&lt;/sub&gt;HPO&lt;sub&gt;4&amp;nbsp;&lt;/sub&gt;</td><td>Sigma</td><td>71649</td><td></td></tr><tr><td>Bovine Fetal Albumin</td><td>Sigma</td><td>A7906</td><td></td></tr><tr><td>Collagenase Type 2</td><td>Worthington</td><td>LS004177</td><td></td></tr><tr><td>Protease</td><td>Sigma</td><td>P6911</td><td></td></tr><tr><td>Fura-2 (AM)</td><td>Molecular Probes</td><td>F1221</td><td></td></tr><tr><td>Pluronic F127 20% solution in DMSO</td><td>Invitrogen</td><td>P3000MP</td><td></td></tr><tr><td>Shaking Water Bath</td><td>Chang Shin Scientific</td><td>Model: C-108</td><td></td></tr><tr><td>IonWizard Softwae Suite</td><td>IonOptix Ltd</td><td>Experimental Builder</td><td>Acquisition and Analysis of EC Coupling Data in Myocytes</td></tr><tr><td>Myocyte Calcium &amp;amp; Contractility Recording System</td><td>IonOptix Ltd</td><td></td><td></td></tr><tr><td>Circulating Water Bath</td><td>BS-Tech</td><td>BW2-8</td><td></td></tr><tr><td>Myocyte Fluorescence Microscope</td><td>Nikon</td><td>DIATPHOTO 200</td><td></td></tr><tr><td>MyoCam-S Power</td><td>IonOptix</td><td></td><td></td></tr><tr><td>Fluorescence &amp;amp; Video Detection</td><td>IonOptix</td><td>MyoCam-S</td><td></td></tr><tr><td>CFA300</td><td></td><td></td><td></td></tr><tr><td>PMT400</td><td></td><td></td><td></td></tr><tr><td>Fluorescence &amp;amp; System Interface</td><td>IonOptix</td><td>FSI700</td><td></td></tr><tr><td>Excitation Light Source</td><td>IonOptix</td><td>mSTEP</td><td></td></tr><tr><td>High intensity ARC Lamp Power supply</td><td>Cairn Reseach</td><td></td><td></td></tr><tr><td>Filter wheel controller</td><td>IonOptix</td><td>GB/MUS200</td><td></td></tr><tr><td>Digital Stimulator</td><td>Medical Systems Corportion</td><td>S-98 Mutimode</td><td></td></tr><tr><td>&lt;strong&gt;Compositions of Experimental Solutions&lt;/strong&gt;</td><td></td><td></td><td></td></tr><tr><td>&lt;strong&gt;Name&lt;/strong&gt;</td><td>&lt;strong&gt;Company&lt;/strong&gt;</td><td>&lt;strong&gt;Catalog Number&lt;/strong&gt;</td><td>&lt;strong&gt;Comments&lt;/strong&gt;</td></tr><tr><td>Isolation Solution (pH: 7.4, NaOH)</td><td></td><td></td><td></td></tr><tr><td>NaCl</td><td>Sigma</td><td>S9625</td><td>Concentration (mmol) 135</td></tr><tr><td>KCl</td><td>Sigma</td><td>P4504</td><td>Concentration (mmol) 5.4</td></tr><tr><td>HEPES</td><td>Sigma</td><td>H3375</td><td>Concentration (mmol) 5</td></tr><tr><td>Glucose</td><td>Sigma</td><td>G8270</td><td>Concentration (mmol) 5</td></tr><tr><td>MgCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>M2001</td><td>Concentration (mmol) 3.5</td></tr><tr><td>Taurine</td><td>Sigma</td><td>CB2742654</td><td>Concentration (mmol) 20</td></tr><tr><td>Na&lt;sub&gt;2&lt;/sub&gt;HPO&lt;sub&gt;4&amp;nbsp;&lt;/sub&gt;</td><td>Sigma</td><td>71649</td><td>Concentration (mmol) 0.4</td></tr><tr><td>Storage Solution (pH: 7.4, NaOH)</td><td></td><td></td><td></td></tr><tr><td>NaCl</td><td>Sigma</td><td>S9625</td><td>Concentration (mmol) 120</td></tr><tr><td>KCl</td><td>Sigma</td><td>P4504</td><td>Concentration (mmol) 5.4</td></tr><tr><td>HEPES</td><td>Sigma</td><td>H3375</td><td>Concentration (mmol) 10</td></tr><tr><td>Glucose</td><td>Sigma</td><td>G8270</td><td>Concentration (mmol) 5.5</td></tr><tr><td>CaCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>C2002</td><td>Concentration (mmol) 0.2</td></tr><tr><td>Mannitol</td><td>Sigma</td><td>M4125</td><td>Concentration (mmol) 29</td></tr><tr><td>MgSO&lt;sub&gt;4&lt;/sub&gt;</td><td>Sigma</td><td>M5921</td><td>Concentration (mmol) 5</td></tr><tr><td>Sodium Pyruvate</td><td>Sigma</td><td>P2256</td><td>Concentration (mmol) 5</td></tr><tr><td>Taurine</td><td>Sigma</td><td>CB2742654</td><td>Concentration (mmol) 20</td></tr><tr><td>Perfusion Solution (Tyrode solution, pH: 7.4, NaOH)</td><td></td><td></td><td></td></tr><tr><td>NaCl</td><td>Sigma</td><td>S9625</td><td>Concentration (mmol) 141.4</td></tr><tr><td>KCl</td><td>Sigma</td><td>P4504</td><td>Concentration (mmol) 4</td></tr><tr><td>NaH&lt;sub&gt;2&lt;/sub&gt;PO&lt;sub&gt;4&lt;/sub&gt;</td><td>Sigma</td><td>S8282</td><td>Concentration (mmol) 0.33</td></tr><tr><td>HEPES</td><td>Sigma</td><td>H3375</td><td>Concentration (mmol) 10</td></tr><tr><td>Glucose</td><td>Sigma</td><td>G8270</td><td>Concentration (mmol) 5.5</td></tr><tr><td>CaCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>C2002</td><td>Concentration (mmol) 1.8&amp;nbsp;&amp;nbsp;&amp;nbsp;&amp;nbsp;&amp;nbsp; For Fura 2AM loading, CaCl2 concentrations are 0.25 mM and 0.5 mM</td></tr><tr><td>MgCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>M2001</td><td>Concentration (mmol) 1</td></tr><tr><td>Mannitol</td><td>Sigma</td><td>M4125</td><td>Concentration (mmol) 14.5</td></tr><tr><td>Collangenase Solution 1</td><td></td><td></td><td></td></tr><tr><td>Isolation Solution (30mL)</td><td></td><td></td><td></td></tr><tr><td>Bovine Fetal Albumin (BSA solution 5 ml)</td><td></td><td></td><td>Concentration (mmol) 1.67 mg/mL</td></tr><tr><td>Collagenase Type 2</td><td>Worthington</td><td>LS004177</td><td>Concentration (mmol) 1 mg/mL</td></tr><tr><td>Protease</td><td>Sigma</td><td>P6911</td><td>Concentration (mmol) 0.1 mg/mL</td></tr><tr><td>CaCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>C2002</td><td>Concentration (mmol) 0.05 mM</td></tr><tr><td>Collangenase Solution 2</td><td></td><td></td><td></td></tr><tr><td>Isolation Solution (20mL)</td><td></td><td></td><td></td></tr><tr><td>Bovine Fetal Albumin (BSA solution 3.3 mL)</td><td></td><td></td><td>Concentration (mmol) 1.67 mg/mL</td></tr><tr><td>Collagenase Type 2</td><td>Worthington</td><td>LS004177</td><td>Concentration (mmol) 1 mg/mL</td></tr><tr><td>CaCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>C2002</td><td>Concentration (mmol) 0.05 mM</td></tr><tr><td>BSA solution</td><td></td><td></td><td></td></tr><tr><td>Isolation Solution (40mL)</td><td></td><td></td><td></td></tr><tr><td>Bovine Fetal Albumin</td><td>Sigma</td><td>A7906</td><td>Concentration (mmol) 400 mg</td></tr><tr><td>CaCl&lt;sub&gt;2&lt;/sub&gt;</td><td>Biosesang</td><td>C2002</td><td>Concentration (mmol) 1mM</td></tr></tbody></table>

assessment of myofilament ca2+ sensitivity underlying cardiac excitation-contraction coupling

Heart failure and cardiac arrhythmias are the leading causes of mortality and morbidity worldwide. However, the mechanism of pathogenesis and myocardial malfunction in the diseased heart remains to be fully clarified. Recent compelling evidence demonstrates that changes in the myofilament Ca2+ sensitivity affect intracellular Ca2+ homeostasis and ion channel activities in cardiac myocytes, the essential mechanisms responsible for the cardiac action potential and contraction in healthy and diseased hearts. Indeed, activities of ion channels and transporters underlying cardiac action potentials (e.g., Na+, Ca2+ and K+ channels and the Na+-Ca2+ exchanger) and intracellular Ca2+ handling proteins (e.g., ryanodine receptors and Ca2+-ATPase in sarcoplasmic reticulum (SERCA2a) or phospholamban and its phosphorylation) are conventionally measured to evaluate the fundamental mechanisms of cardiac excitation-contraction (E-C) coupling. Both electrical activities in the membrane and intracellular Ca2+ changes are the trigger signals of E-C coupling, whereas myofilament is the functional unit of contraction and relaxation, and myofilament Ca2+ sensitivity is imperative in the implementation of myofibril performance. Nevertheless, few studies incorporate myofilament Ca2+ sensitivity into the functional analysis of the myocardium unless it is the focus of the study. Here, we describe a protocol that measures sarcomere shortening/re-lengthening and the intracellular Ca2+ level using Fura-2 AM (ratiometric detection) and evaluate the changes of myofilament Ca2+ sensitivity in cardiac myocytes from rat hearts. The main aim is to emphasize that myofilament Ca2+ sensitivity should be taken into consideration in E-C coupling for mechanistic analysis. Comprehensive investigation of ion channels, ion transporters, intracellular Ca2+ handling, and myofilament Ca2+ sensitivity that underlie myocyte contractility in healthy and diseased hearts will provide valuable information for designing more effective strategies of translational and therapeutic value.

LV myocytes are isolated from normal and hypertensive rat hearts. Rod-shaped myocytes with clear striations (representing sarcomeres) and stable contractions in response to field stimulation are considered to be the optimal myocytes and are selected for recordings (Figure 2A). In the example shown in Figure 2A, a Fura 2 AM -loaded LV myocyte is positioned horizontally and the aperture of the camera is adjusted so that the myocyte occupies most of the reco...

Watch this Scientific Journal Video about Assessment of Myofilament Ca2+ Sensitivity Underlying Cardiac Excitation-contraction Coupling at JoVE.com

Assessment of Myofilament Ca2+ Sensitivity Underlying Cardiac Excitation-contraction Coupling

This paper describes a protocol that assesses the changes of myofilament Ca2+ sensitivity during contraction in isolated cardiac myocytes from rat heart. Together with cardiac electrophysiology, systolic/diastolic cytosol Ca2+ levels and contraction/relaxation, this measurement is imperative in underpinning the mechanisms mediating cardiac excitation-contraction coupling in healthy and diseased hearts.

Assessment of Myofilament Ca2+ Sensitivity Underlying Cardiac Excitation-contraction Coupling

Heart failure and cardiac arrhythmias are the leading causes of mortality and morbidity worldwide. However, the mechanism of pathogenesis and myocardial ...
