Nanofiber arrays were fabricated at the Center for Nanophase Materials Sciences, which is a Department of Energy Office of Science User Facility (Proposal ID: CNMS2019-103 and CNMS2022-A-1182). Support from CNMS is awarded through a peer-reviewed proposal system and is provided at no cost to successful applicants who intend to publish their results (http://www.cnms.ornl.gov/user/becoming_a_user.shtml). We thank Kevin Lester and CNMS for assistance with the production of nanofiber arrays. We thank Dr. John Caughmen, Dr. Timothy McKnight, Dr. Amber Webb, Daryl Briggs, and Travis Bee for critical discussions on experimental design. We thank Dr. Adam Rondinone for the schematic of the PECVD machine. We thank Leslie Carol for the scientific illustrations. This work was funded by the Bioimaging Science Program, U.S. Department of Energy, Office of Science, Biological and Environmental Research, DE-SC0019104, and United States Department of Agriculture, 2021-67013-34835. JMM was supported by the United States Department of Agriculture: National Institute of Food and Agriculture: Agriculture and Food Research Initiative Predoctoral Fellowship 2021-67034-35167.

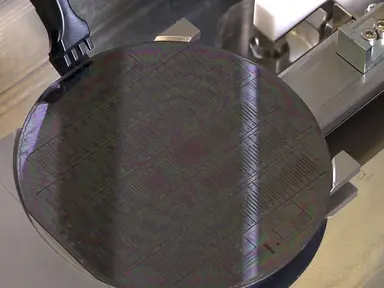

1. VACNFs production (Figure 2 and Figure 3)
<ol>
	<li>Spincoat a silicon wafer with polymethyl methacrylate (PMMA) 495 A4&#160;resist at 4000 rpm and bake it at 180 &#176;C for 5 min.
	NOTE: Let the wafer cool for 10 s before proceeding to the next step.</li>
	<li>Spincoat a second layer of resist (PMMA 950 A2) and bake it at 180 &#176;C for 5 min.</li>
	<li>Use electron beam lithography to define the catalyst dots with diameters of 300 nm at a specified lateral spacing (pitch: 10 &#181;m, or 35 &#181;m) in 3 mm x 3 mm arrays.</li>
	<li>Develop the resist in 30-40 mL of 1:3 methyl-isobutyl ketone: isopropyl alcohol (IPA) for 1.5 min, followed by rinsing it with IPA and drying it with N2.
	NOTE: Check for the array of dots using a brightfield microscope (20x objective).</li>
	<li>Clean the wafer of the residual resist with a 6 s exposure in oxygen plasma (descum) in a silicon etcher.</li>
	<li>Use electron beam evaporation to deposit first an adhesive layer of metal (Ti or Cr, 10 nm) and then deposit a second layer, which is the Ni catalyst (130 nm or 150 nm). During Ti or Ni metal deposition, keep the current below 0.2 A at 10 kV, the pressure below 5 x 10-6 Torr, and the deposition rate at ~1 A/s for line-of-sight deposition.</li>
	<li>Use sequential bath sonication to remove the metal (Ni) deposited on the underlying resist layer, leaving the Ni deposited directly on the silicon wafer. This process is called lift-off.
	<ol>
		<li>For this, prepare 3 containers with acetone and bath sonicate the wafer in acetone for 1 min; repeat 3 times at room temperature (RT, 20 &#176;C) at a frequency of 35 kHz. Rinse with IPA and dry with N2.
		NOTE: Never let acetone dry on the wafer. After the last acetone sonication, immediately rinse with IPA and then dry with N2 gas. If at any point the wafer becomes prematurely dry (prior to IPA rinse) there is the possibility that not all the excess metal and resist will be removed and the acetone can leave a residue.</li>
	</ol>
	</li>
	<li>Check the geometry of catalyst shape using scanning electron microscopy (SEM). To capture SEM images of the VACNF chips, tilt the stage to a 30&#176; angle and use a voltage of 1-3 kV, with a beam current of ~100 pA, and a ~5 mm working distance.
	NOTE: The catalyst should look like a hockey puck (a compact cylinder) (Figure 4). The height of the compact cylinder should reflect the thickness of Ni deposited on the silicon wafer. If the profile of the Ni dot is tall and appears to be concave at the top, resembling a volcano (Figure 4), then the catalyst is more likely to dewet into multiple Ni droplets resulting in branching of the carbon nanofibers9(Figure 4 and Figure 5). Such problems can result from resist melting during metal evaporation because of long deposition times or issues with the lift-off procedure (Figure 4 and Figure 5).</li>
	<li>Quarter the silicon wafer and place it in the direct current plasma enhanced chemical vapor deposition chamber (dc-PECVD) with the acetylene/ammonia mixture. Optimize the growth parameters to control the length and taper of nanofibers (tips &#60;200 nm).
	<ol>
		<li>Use a current of 1-1.5 A and a voltage range of 440-560 V. When growing the fibers, use a pre-treatment phase with ammonia flow while the machine and substrate heat up to 620 &#176;C. Ensure to turn on the carbon source (acetylene) 10 s before starting the plasma.
		NOTE: Quarter wafers are used in case the PECVD machine run parameters need to be optimized. To produce fibers with lengths greater than 40 &#181;m and tips less than 200 nm in diameter, the following parameters are suggested: with a Ni catalyst thickness of 130 nm, use a current of 1.75 A, growth time of 70 min, and an acetylene : ammonia ratio of 45 standard cubic centimeter per minute (sccm) : 100 sccm. With a Ni thickness of 150 nm, use a current of 1.5 A, a growth time of 80 min, and an acetylene : ammonia ratio of 48 sccm : 100 sccm. Use the following parameters to grow VACNFs regardless of catalyst thickness: growth temperature of 620 &#176;C, pressure of 10 torr during plasma, and a shower head height of 20 mm (Figure 6).</li>
	</ol>
	</li>
	<li>Assess the geometry of the resulting fibers using SEM at a 30&#176; tilt with an acceleration potential of 1 kV.
	NOTE: Optimal fibers will be straight and non-branching. It is impossible to control the crystal orientation of the Ni catalyst with the electron beam evaporator. As a result, there will be some fibers that branch because of catalyst dewetting9. Also, the crystal orientation causes the VACNFs to grow to different heights, so uniform heights on all VACNFs are difficult.</li>
	<li>Spincoat a layer of photoresist (SPR955) onto the fibers at 1000 rpm for 45 s. Then dice the &#188; wafer into 3 mm x 3 mm arrays using a dicing saw. Store the fibers at this point for later use.
	&#8203;NOTE: Do not conduct step 1.11 if planning to transfer fibers to a flexible substrate.</li>
</ol>
2. Transferring VACNFs to a flexible substrate (Figure&#160;7 and Figure 8)
<ol>
	<li>After the fibers are synthesized, spincoat SU-8 2015 photoresist onto the wafers or quarter wafers at 4000 rpm for 45 s.</li>
	<li>Softbake the wafer for 3 min at 95 &#176;C.</li>
	<li>Using a contact aligner, expose the wafer with a 3 mm 3 mm array patterned mask that aligns with the defined pattern from electron beam lithography at 95 mJ/cm2.
	NOTE: Use a proximity contact mode with an exposure gap that is at 20 &#181;m greater than the tallest fiber. There is the possibility that fibers could be knocked over during this step in the process.</li>
	<li>Perform a post-exposure bake for 6 min at 95 &#176;C.</li>
	<li>Develop the wafer in SU-8 developer for 15 s, rinse it with IPA, and dry the wafer with N2, moving from top to bottom.
	&#8203;NOTE: When developing the wafer, ensure it is completely submerged.</li>
	<li>Spincoat patterned wafers with a protective layer of thin photoresist (SPR 955 CM 0.7) at 3000 rpm for 45 s and softbake for 30 s at 90 &#176;C.</li>
	<li>Deposit a thin silicon oxide layer to the wafer (2-3 nm) by placing it in an atomic layer deposition for 22 cycles at 100 &#176;C.</li>
	<li>Use a dicing saw to cut the wafer into 3 mm x 3 mm squares. Align the dicing saw to the preexisting pattern on the wafer.</li>
	<li>Assess the geometry of the resulting fibers using SEM at a 30&#176; tilt with an acceleration potential of 3 kV.</li>
	<li>Stop here if storing chips for long-term use (&#62;1 week). Store chips in the dark.</li>
	<li>To separate flexible substrates from rigid substrates, place individual chips in acetone for 30 min or until the SU-8 starts to curl.</li>
	<li>Wash SU-8 films (either attached to or detached from rigid substrates) with IPA for 5 min and then with water for 5 min. Place the chips in a commercial box with a sticky pad when transporting them.</li>
	<li>OPTIONAL: Place the fiberless side of the SU-8 film on water-soluble tape or on top of thin silicone rubber with a thin polyethylene terephthalate (PET) (12.5 &#181;m thick) backing.
	<ol>
		<li>Use a pair of tweezers to transfer the SU-8 film. Press on the edges of the SU-8 square to help it stick to the tape/silicone rubber-PET; this is to avoid breaking off fibers. At this point, the VACNF films are ready for immediate use.</li>
		<li>To prepare a silicone rubber/PET holder, do the following: using a 2-part kit for silicone rubber, mix the two parts together (the elastomer and the crosslinker). Next, cut out a square of PET and tape it down in a clear plastic dish. Pour a very thin layer of silicone rubber on top of the PET and cure it at 80 &#176;C for 1-2 h.</li>
	</ol>
	</li>
</ol>
3. On-plant method (where a drop of solution to deliver is placed on a plant surface) using fibers in a rigid substrate (Figure 1A)
<ol>
	<li>Remove the photoresist with increment washes of acetone (100%, 5 min), IPA (100%, 5 min), and ddH2O (5 min) prior to use.</li>
	<li>Place the plant tissue to be impaled on a hard surface for support.</li>
	<li>Place a 1 &#181;L droplet of dye or DNA&#160;(200 ng) onto the surface of the plant tissue.</li>
	<li>Place a VACNF chip with a rigid substrate on the top of the droplet, with the fibers oriented such that they will come into contact with the droplet.
	NOTE: The orientation of the chips can be determined by the &#34;shininess&#34; of the wafer. The shiny side of the chip has fibers, and the opaque side does not.</li>
	<li>Using the flat side of a pair of tweezers, tap the chip. Mark the area of the plant that the chip came into contact with using a soft-tipped marker. Remove the VACNF chips after delivery.
	NOTE: The amount of force applied when tapping will vary depending on the type of plant tissue used. It is recommended to practice tapping chips prior to conducting the impalement of fibers. Avoid damage to plant tissues. Damage is apparent when one can see the outline of the VACNF chip in the plant tissue.</li>
	<li>Repeat steps 3.1-3.5 for controls (+Dye/DNA, -Fibers; -Dye/DNA, +Fibers; and -Dye/DNA, -Fibers). -Fibers is the fiberless side of a chip.</li>
	<li>Store intact plants or excised plant organs in humid chambers in long-day conditions (16 h light, 8 h dark) if needed. For excised organs, use a plastic Petri dish with wet paper towels.</li>
</ol>
4. On-chip method (where a drop of solution to deliver is placed on a VACNF chip), rigid substrate (Figure 1B)
<ol>
	<li>Remove the photoresist with increment washes of acetone (100%, 5 min), IPA (100%, 5 min), and ddH2O (5 min) prior to use.</li>
	<li>Drop cast 1 &#181;L droplet of dye or plasmid DNA (200 ng) onto the fiber side of VACNF chip with rigid substrate. Ensure to place the droplet in the center of the chip and cover several fibers. Let the droplet dry for 15 min.
	NOTE: The orientation of the chips can be determined by the &#34;shininess&#34; of the wafer. The shiny side of the chip has fibers, and the opaque side does not.</li>
	<li>When working with leaves or other excised organs, place them on top of a hard surface. When working with intact plants, place a hard surface beneath the organ to which VACNFs are applied.</li>
	<li>After the 15 min drying step, position the VACNF chip such that the fiber side comes in contact with the plant tissue. Tap the chip with the back end of a pair of tweezers.
	NOTE: The amount of force applied when tapping will vary depending on the type of plant tissue used. It is recommended to practice tapping chips.</li>
	<li>Repeat steps 3.6-3.7 of the on-plant method.</li>
</ol>
5. Applying VACNFs in SU-8 films to plant tissue using the on-chip method (Figure 1C)
<ol>
	<li>Place 1 &#181;L droplet of dye or DNA (200 ng) onto the fiber side of the SU-8 film and let it dry for 10 min. Be sure to place the droplet in the center of the chip.
	NOTE: There are different drying times depending upon the substrate used.</li>
	<li>Using a pair of sharp tweezers, place the VACNF film onto the plant surface.
	NOTE: The longer the SU-8 films are left out in the air, the more brittle the films become. To limit the risk of losing the SU-8 films, ensure to have all plants/samples and equipment near the SU-8 films.</li>
	<li>Gently roll a small makeup applicator over the VACNF film. Mark the areas where the flexible substrates are placed with a soft-tipped marker. Remove the flexible substrates from the plant surface using tape.
	NOTE: The amount of force applied when rolling the makeup applicator will vary among the plant tissues used. Practice applying the VACNF films prior to conducting biomolecule or dye delivery. Visible damage to plant tissues is apparent when one can see the outlines of VACNF film in the plant tissue.</li>
	<li>Repeat steps 5.1-5.3 for controls and store plants as mentioned in step 3.7 of the on-plant method.</li>
</ol>
6. Microscopy and image analysis for all delivery methods
<ol>
	<li>Image the samples using a confocal microscope using emission and excitation wavelengths suitable for the delivered fluorescent probe/reporter.
	NOTE: The time required for the transient transformation varies with the plant species and the marker delivered. For example, the expression of fluorescent markers was detected after 48 h in Arabidopsis versus 96 h in lettuce leaves7.</li>
	<li>When imaging, try to focus on a region with detached fibers. Fibers will have different orientations. The success of delivery is not dependent on appearance of broken-off fibers.
	NOTE: Fibers will be fluorescent with the most common excitation/emission settings due to the formation of silicon nitride layer resulting from the fiber formation in PECVD18.</li>
	<li>Capture at least 5 images for each sample. The resulting signal will vary.</li>
	<li>Measure the fluorescence values as total fluorescence (integrated density) in 20 &#181;m x 20 &#181;m confocal image areas7 using ImageJ19.</li>
</ol>

Using Carbon Nanofiber Arrays for Efficient Biomolecule and Dye Delivery to Plants

<ol><li>Canto, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Transient+expression+systems+in+plants%3A+potentialities+and+constraints%5BTitle%5D)+AND+%22Advances+in+Experimental+Medicine+and+Biology%22%5BJournal%5D)">Transient expression systems in plants: potentialities and constraints.</a> Advances in Experimental Medicine and Biology. 896, 287-301 (2016).</li>
<li>Gou, Y. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Optimization+of+the+protoplast+transient+expression+system+for+gene+functional+studies+in+strawberry+%28Fragaria+vesca%29%5BTitle%5D)+AND+%22Plant+Cell%2C+Tissue%2C+and+Organ+Culture%22%5BJournal%5D)">Optimization of the protoplast transient expression system for gene functional studies in strawberry (Fragaria vesca).</a> Plant Cell, Tissue, and Organ Culture. 141, 41-53 (2020).</li>
<li>Baltes, N. J., Gil-Humanes, J., Voytas, D. F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Genome+engineering+and+agriculture%3A+Opportunities+and+challenges%5BTitle%5D)+AND+%22Progress+in+Molecular+Biology+and+Translational+Science%22%5BJournal%5D)">Genome engineering and agriculture: Opportunities and challenges.</a> Progress in Molecular Biology and Translational Science. 149, 1-26 (2017).</li>
<li>Ren, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Highly+efficient+protoplast+isolation+and+transient+expression+system+for+functional+characterization+of+flowering+related+genes+in+Cymbidium+orchids%5BTitle%5D)+AND+%22International+Journal+of+Molecular+Sciences%22%5BJournal%5D)">Highly efficient protoplast isolation and transient expression system for functional characterization of flowering related genes in Cymbidium orchids.</a> International Journal of Molecular Sciences. 21 (7), 2264(2020).</li>
<li>Kumar, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Nanovehicles+for+plant+modifications+towards+pest-and+disease-resistance+traits%5BTitle%5D)+AND+%22Trends+in+Plant+Science%22%5BJournal%5D)">Nanovehicles for plant modifications towards pest-and disease-resistance traits.</a> Trends in Plant Science. 25 (2), 198-212 (2020).</li>
<li>Davern, S. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Carbon+nanofiber+arrays%3A+a+novel+tool+for+microdelivery+of+biomolecules+to+plants%5BTitle%5D)+AND+%22PLoS+One%22%5BJournal%5D)">Carbon nanofiber arrays: a novel tool for microdelivery of biomolecules to plants.</a> PLoS One. 11 (4), e0153621(2016).</li>
<li>Morgan, J. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((An+efficient+and+broadly+applicable+method+for+transient+transformation+of+plants+using+vertically+aligned+carbon+nanofiber+arrays%5BTitle%5D)+AND+%22Frontiers+in+Plant+Science%22%5BJournal%5D)">An efficient and broadly applicable method for transient transformation of plants using vertically aligned carbon nanofiber arrays.</a> Frontiers in Plant Science. 13, 1051340(2022).</li>
<li>Melechko, A. V., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Vertically+aligned+carbon+nanofibers+and+related+structures%3A+Controlled+synthesis+and+directed+assembly%5BTitle%5D)+AND+%22Journal+of+Physics+D%3A+Applied+Physics%22%5BJournal%5D)">Vertically aligned carbon nanofibers and related structures: Controlled synthesis and directed assembly.</a> Journal of Physics D: Applied Physics. 97, 041301(2005).</li>
<li>Melechko, A. V., Desikan, R., McKnight, T. E., Klein, K. L., Rack, P. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Synthesis+of+vertically+aligned+carbon+nanofibres+for+interfacing+with+live+systems%5BTitle%5D)+AND+%22Journal+of+Physics+D%3A+Applied+Physics%22%5BJournal%5D)">Synthesis of vertically aligned carbon nanofibres for interfacing with live systems.</a> Journal of Physics D: Applied Physics. 42 (19), 193001(2009).</li>
<li>Nelson-Fitzpatrick, N. <a target="_blank" href="http://scholar.google.com/scholar?hl=en&safe=off&q=%22Novel+Materials+for+the+Design+of+Cantilever+Transducers+%5B%5D%22">Novel Materials for the Design of Cantilever Transducers [dissertation]</a>. , University of Alberta, Edmonton, Alberta. (2011).</li>
<li>Fletcher, B. L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Transfer+of+flexible+arrays+of+vertically+aligned+carbon+nanofiber+electrodes+to+temperature-sensitive+substrates%5BTitle%5D)+AND+%22Advanced+Materials%22%5BJournal%5D)">Transfer of flexible arrays of vertically aligned carbon nanofiber electrodes to temperature-sensitive substrates.</a> Advanced Materials. 18 (13), 1689-1694 (2006).</li>
<li>Keller, S., Blagoi, G., Lillemose, M., Haefliger, D., Boisen, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Processing+of+thin+SU-8+films%5BTitle%5D)+AND+%22Journal+of+Micromechanics+and+Microengineering%22%5BJournal%5D)">Processing of thin SU-8 films.</a> Journal of Micromechanics and Microengineering. 18 (12), 125020(2008).</li>
<li>Wouters, K., Puers, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Diffusing+and+swelling+in+SU-8%3A+insight+in+material+properties+and+processing%5BTitle%5D)+AND+%22Journal+of+Micromechanics+and+Microengineering%22%5BJournal%5D)">Diffusing and swelling in SU-8: insight in material properties and processing.</a> Journal of Micromechanics and Microengineering. 20 (9), 095013(2010).</li>
<li>Jamal, M., Zarafshar, A. M., Gracias, D. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Differentially+photo-crosslinked+polymers+enable+self-assembling+microfluidics%5BTitle%5D)+AND+%22Nature+Communications%22%5BJournal%5D)">Differentially photo-crosslinked polymers enable self-assembling microfluidics.</a> Nature Communications. 2, 527(2011).</li>
<li>Williams, R., Goodman, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Wetting+of+thin+layers+of+SiO2+by+water%5BTitle%5D)+AND+%22Applied+Physics+Letters%22%5BJournal%5D)">Wetting of thin layers of SiO2 by water.</a> Applied Physics Letters. 25 (10), 531-532 (1974).</li>
<li>Kundu, A., Nogueira Campos, M. G., Santra, S., Rajaraman, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Precision+vascular+delivery+of+agrochemicals+with+micromilled+microneedles+%28%C2%B5MMNs%29%5BTitle%5D)+AND+%22Scientific+Reports%22%5BJournal%5D)">Precision vascular delivery of agrochemicals with micromilled microneedles (µMMNs).</a> Scientific Reports. 9, 14008(2019).</li>
<li>Acanda, Y., Welker, S., Orbović, V., Levy, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((A+simple+and+efficient+agroinfiltration+method+for+transient+gene+expression+in+Citrus%5BTitle%5D)+AND+%22Plant+Cell+Reports%22%5BJournal%5D)">A simple and efficient agroinfiltration method for transient gene expression in Citrus.</a> Plant Cell Reports. 40 (7), 1171-1179 (2021).</li>
<li>Pearce, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Synthesis+and+properties+of+SiNx+coatings+as+stable+fluorescent+markers+on+vertically+aligned+carbon+nanofibers%5BTitle%5D)+AND+%22AIMS+Materials+Science%22%5BJournal%5D)">Synthesis and properties of SiNx coatings as stable fluorescent markers on vertically aligned carbon nanofibers.</a> AIMS Materials Science. 1 (2), 87-102 (2014).</li>
<li>Schindelin, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Fiji%3A+an+open-source+platform+for+biological-image+analysis%5BTitle%5D)+AND+%22Nature+Methods%22%5BJournal%5D)">Fiji: an open-source platform for biological-image analysis.</a> Nature Methods. 9 (7), 676-682 (2012).</li>
<li>Crafts, A. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Translocation+in+plants%5BTitle%5D)+AND+%22Plant+Physiology%22%5BJournal%5D)">Translocation in plants.</a> Plant Physiology. 13 (4), 791(1938).</li>
<li>Martens, H. J., Hansen, M., Schulz, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Caged+probes%3A+a+novel+tool+in+studying+symplasmic+transport+in+plant+tissues%5BTitle%5D)+AND+%22Protoplasma%22%5BJournal%5D)">Caged probes: a novel tool in studying symplasmic transport in plant tissues.</a> Protoplasma. 223, 63-66 (2004).</li>
<li>Liu, J., Essner, J., Li, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Hybrid+supercapacitor+based+on+coaxially+coated+manganese+oxide+on+vertically+aligned+carbon+nanofiber+arrays%5BTitle%5D)+AND+%22Chemistry+of+Materials%22%5BJournal%5D)">Hybrid supercapacitor based on coaxially coated manganese oxide on vertically aligned carbon nanofiber arrays.</a> Chemistry of Materials. 22 (17), 5022-5030 (2010).</li>
<li>Saleem, A. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Low+temperature+and+cost-effective+growth+of+vertically+aligned+carbon+nanofibers+using+spin-coated+polymer-stabilized+palladium+nanocatalysts%5BTitle%5D)+AND+%22Science+and+Technology+of+Advanced+Materials%22%5BJournal%5D)">Low temperature and cost-effective growth of vertically aligned carbon nanofibers using spin-coated polymer-stabilized palladium nanocatalysts.</a> Science and Technology of Advanced Materials. 16, 015007(2015).</li>
<li>Merkulov, V. I., Lowndes, D. H., Wei, Y. Y., Eres, G., Voelkl, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Patterned+growth+of+individual+and+multiple+vertically+aligned+carbon+nanofibers%5BTitle%5D)+AND+%22Applied+Physics+Letters%22%5BJournal%5D)">Patterned growth of individual and multiple vertically aligned carbon nanofibers.</a> Applied Physics Letters. 76 (24), 3555-3557 (2000).</li>
<li>Retterer, S. T., Melechko, A., Hensley, D. K., Simpson, M. L., Doktycz, M. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Positional+control+of+catalyst+nanoparticles+for+the+synthesis+of+high+density+carbon+nanofiber+arrays%5BTitle%5D)+AND+%22Carbon%22%5BJournal%5D)">Positional control of catalyst nanoparticles for the synthesis of high density carbon nanofiber arrays.</a> Carbon. 46 (11), 1378-1383 (2008).</li>
<li>Rooks, M. J., Wind, S., McEuen, P., Prober, D. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Fabrication+of+30-nm-scale+structures+for+electron+transport+studies+using+a+polymethylmethacrylate+bilayer+resist%5BTitle%5D)+AND+%22Journal+of+Vacuum+Science+%26+Technology+B%3A+Microelectronics+Processing+and+Phenomena%22%5BJournal%5D)">Fabrication of 30-nm-scale structures for electron transport studies using a polymethylmethacrylate bilayer resist.</a> Journal of Vacuum Science & Technology B: Microelectronics Processing and Phenomena. 5 (1), 318-321 (1987).</li>
<li>Lee, G., Sohn, D. K., Seok, S. H., Ko, H. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((The+effect+of+hole+density+variation+in+the+PECVD+reactor+showerhead+on+the+deposition+of+amorphous+carbon+layer%5BTitle%5D)+AND+%22Vacuum%22%5BJournal%5D)">The effect of hole density variation in the PECVD reactor showerhead on the deposition of amorphous carbon layer.</a> Vacuum. 163, 37-44 (2019).</li>
<li>Fowlkes, J. D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/pubmed?term=((Control+of+catalyst+particle+crystallographic+orientation+in+vertically+aligned+carbon+nanofiber+synthesis%5BTitle%5D)+AND+%22Carbon%22%5BJournal%5D)">Control of catalyst particle crystallographic orientation in vertically aligned carbon nanofiber synthesis.</a> Carbon. 44 (8), 1503-1510 (2006).</li>
</ol>

The authors have nothing to disclose.

In this paper, we presented methods for constructing vertically aligned carbon nanofiber arrays, transferring the fibers to a flexible substrate, and applying fibers in either a rigid or flexible substrate to plants for use in the delivery of biomolecules or dyes to plants. We described two general approaches, the on-chip and the on-plant methods, for deposition of the introduced materials and showed successful results in fibers on a rigid substrate as well as the on-chip method using VACNF films. The application of these fibers is simpler in practice and theory than traditional plant transformation methods (particle bombardment, protoplast transformation via PEG or electroporation) and may be used for plants recalcitrant to Agrobacterium-mediated transformation. However, only a few cells are transformed.
Vertically aligned carbon nanofibers were produced at Oak Ridge National Laboratory Center for Nanophase Materials Sciences through their user program. Users can apply to use this facility for the production of VACNFs. Alternatively, VACNF chips can be produced in clean rooms with direct current plasma-enhanced chemical vapor deposition machines with a carbon source22,23. With the methods described, there are a few steps that are critical to the production of the fibers, fiber transfer, and application of the VACNF chips/films. For fiber application to work, fibers must be straight and have a tapering diameter of &#60;200 nm at the tip for delivery in plant cells to be successful6,7(Figure 3). To create carbon nanofibers of particular size and pitch, there are a variety of parameters that can be changed, including dot size, lateral pitch, and the amount of catalyst deposited. To select the optimal dot size to be used for the carbon nanofiber production, fibers were grown from various dot sizes (as shown in Figure 5). We found that 300 nm diameters produced the best fibers, hence this dot size was selected (Figure 5). After finding the right parameters, we looked to use chips that have &#62;50% of fibers with the ideal geometry (straight and a tip diameter &#60;200 nm). To check the geometry of the fibers, we used scanning electron microscopy to image random fields of view on a sample of VACNF chips/films.
Additionally, the fibers must have a certain minimum length to achieve delivery within plant cells. The importance of producing fibers of different length is that longer fibers could be used to penetrate deeper tissue layers. Longer fibers (&#62;40 &#181;m in length) are essential for flexible films as the fiber transfer works by breaking the fibers from their base and requires layering SU-8 on top of the fibers. The working thickness of the SU-8 layer used for this protocol is 20-35 &#181;m. The minimum height necessary to accomplish delivery within the epidermis of various plants (curved or flat) is 10-15 &#181;m6,7. As a result, fibers with lengths &#62;40 &#181;m are necessary for VACNF films. There are several different parameters to consider when producing carbon nanofibers: catalyst material, catalyst geometry, thickness of catalyst material as well as conditions within the PECVD chamber (gas ratio, pressure, temperature, current, showerhead height, and growth time)8,9,24,25. To produce carbon nanofibers longer than 25 &#181;m used by Morgan et al.7 and Davern et al.6, we increased the amount of Ni catalyst, altered the acetylene : ammonia ratio, and increased the current and the growth time. Additionally, we paid more attention to the geometry of the catalyst material. To produce tall straight fibers, the deposited catalyst needed to have a hockey puck shape rather than a shape that resembles a volcano (Figure 4). Volcano structures arise from remnants of photoresist after lift-off. To prevent the formation of volcanoes, a double layer of PMMA was used to create an undercut during electron beam lithography26. The undercut aids in lift-off of the deposited metal catalyst (Figure 2). The thick layer of the catalyst is important for the growth of tall VACNFs. The morphology of the VACNFs has been examined by Merkulova et al.24. The vertical alignment of VACNFs is due to both the Ni catalyst tip-type growth and the alignments of the DC potential perpendicular to the substrate (Figure 6). The showerhead describes the geometry of PECVD reactor (Figure 6) and serves as the source for the potential for the electric field27.
To define the array of catalyst dots with electron beam lithography, we applied an electron beam resist (polymethyl methacrylate), then used the e-beam to make small holes in the resist with a specific shape and in specific locations on the wafer. Holes of the desired diameter were placed on a regular grid with the defined spacing (pitch) and a file specifying the desired pattern was loaded into the electron beam lithography tool prior to loading the substrate into the machine. In addition to fiber height, another critical parameter for successful fiber transfer is the amount of time spent in the acetone bath. The VACNF films need to be left in the acetone bath long enough that their edges begin to curl; if they are left in the acetone bath for too little time, they are more difficult to lift off the chips and may break. The older the chips are, the longer they will have to remain in the acetone bath. Following the acetone bath, the films/chips were placed in isopropanol and water to remove access acetone as well as to remove the protective photoresist on the fibers.
To perform spin coating, wafers or wafer pieces are placed on a vacuum chuck in the spin coater, and the central position of the wafer is verified using the test function of the spin coater. A small puddle (~2.5 cm in diameter) of resist is applied to the center of the wafer and spun (3000 rpm for 45 s) Images of the fibers before and after spin coating are included in Figure 8 showing the preservation of fiber geometry (height, orientation, and pitch). The presence of fibers causes resist to well-up at the base of the fibers and results in thicker-than-expected layers. Spin-coating after VACNF growth has been explored by other groups11,18.
Another step within the process that is of vital importance is to ensure that the right amount of force is applied to VACNF chips/films. The delivery mechanism is dependent upon fibers making small punctures in cell walls via the impulse force of the tweezer tapping on rigid substrates6,7 or rolling with the mini-makeup applicator on flexible substrates. Fibers may or may not break off and remain imbedded in plant cells6,7without impact on the outcome, but practice in conjunction with examination for dye uptake and tissue damage is necessary to get the pressure right. Additionally, it is important to choose appropriate imaging time points after DNA delivery with VACNF chips/films as the time to detectable expression varies between plant species and the types of vectors being delivered7 (Figure 16).
As broadly applicable as this method is to plants, it has a few limitations. For example, adding a thin layer of silicon oxide to the VACNF films does not always result in films being completely hydrophilic because of the protective layer of photoresist added on top of the SU-8. If this problem materializes, thicker layers of silicon oxide could be applied to VACNFs. To test if the films are hydrophobic or hydrophilic, they can be placed in water. If the films sink, they are hydrophilic, and if they float, they are hydrophobic. Additionally, there can be variation between batches of fibers produced. There are several parameters that can be altered when growing the fibers in the dc -PECVD machine; what is described in this protocol is a set of parameters for two different amounts of Ni catalyst. Additionally, the crystal orientation of the Ni catalyst cannot be controlled28 and some branching will inevitably result in the fibers.
While we demonstrated the delivery of fluorescein dye and DNA to plant cells using both rigid and flexible substrates for this paper, the method should be broadly applicable for other biomolecules and genetic modification approaches, for example, RNAi silencing for plant systems like apples or other fruits where it would take years to produce stable transgenic lines. Moreover, these fibers could also be used to deliver genetic editing materials or for stable transformations in plants.

Plant transformation (both transient and stable) has yet to become widely achievable in all plant tissues and species. The transient transformation of plants is a process by which genes encoded in plasmids are temporarily introduced into plants but are not stably incorporated into the genome. Traditional methods that use particle bombardment, Agrobacteria, electroporation, or polyethylene glycol treatment of protoplasts are slow or can be cumbersome. Furthermore, they are not applicable to every plant species1,2,3,4.&#160;The use of nanomaterials for DNA delivery is a burgeoning field that is still in its infancy5. Nanomaterials, specifically carbon nanofibers have also successfully been used to deliver proteins, dextrans and dyes to plant leaves without causing wound response6. The goal of this work is to provide a detailed protocol for using one type of nanomaterial, carbon nanofibers, for delivering biomolecules or dyes to plants. Here, we focus on DNA as the biomolecule of choice, which permits the transient transformation of cells in various plant organs.
Previously, Morgan et al.7 demonstrated the use of carbon nanofibers affixed to rigid silicon substrate to transiently transform leaves of lettuce, N. benthamiana, and poplar, and both leaves and roots of Arabidopsis. Although transformations were successful on a variety of organs, fibers were more difficult to apply to plant tissues with curved surfaces, such as roots or fruits. We reasoned that a flexible backing for nanofibers might improve their efficiency of delivery by conforming better to the shape of the organ.
Herein, we detail methods utilized for fabricating and designing vertically aligned carbon nanofibers, transferring VACNFs to flexible substrates, and applying VACNFs on both rigid and flexible substrates to plants to deliver biomolecules and dyes. Carbon nanofibers were produced using direct current catalytic plasma-enhanced chemical vapor deposition (dc C-PECVD) with Ni catalyst. The position, diameter, and height of Ni catalyst dots were controlled using a combination of electron beam lithography, metal evaporation, and lift-off processes as described by Melechko et al.8,9. Using a double-layer e-beam resist, a thicker Ni catalyst can be deposited on the substrate to give longer fibers10. Fiber transfer from a rigid to a flexible substrate is based on a modification of methods described in Fletcher et al.11, with the current methods foregoing the use of an amorphous carbon layer or a sacrificial photoresist layer. SU-8 lift-off with fiber transfer is achieved by utilizing the intrinsic tensile stress resulting from underbaking and underexposing the SU-812,13,14. SU-8, a complex polymer, is naturally hydrophobic, which makes its use for facilitating DNA delivery difficult. To counteract the hydrophobic nature of SU-8, we apply a thin layer of silicon oxide via atomic layer deposition15 after fibers are embedded in SU-8. Application of fibers on a rigid substrate for biomolecule/dye delivery utilizes the impact force of tweezer tapping described in Davern et al.6 and the on-plant and on-chip methods described in Morgan et al.7. Flexible VACNF films are applied to curved plant surfaces by first semidrying DNA or dye droplets on the film as with the on-chip method from Morgan et al.7and then rolling the films on curved plant surfaces using a small makeup applicator16,17. Figure 1 depicts various approaches for applying fibers in rigid and flexible substrates to plants.
