Funding for this work was provided by: AG007218 and NIH F32 AG031606.
Images were generated in the Core Optical Imaging Facility, which is supported by UTHSCSA, NIH-NCI P30 CA54174 (CTRC at UTHSCSA) and NIH-NIA P01AG19316.

Note: All animal procedures were approved by the Institutional Animal Care and Use Committee of the University of Texas Health Science Center San Antonio and were consistent with the ARRIVE guidelines.
1.&#160;Anesthetizing for Cortical Preparation
<ol>
	<li>Place the mouse in an induction chamber with 2-3% isofluorane mixed with oxygen to induce anesthesia. Observe the respiration rate decrease as the mouse is induced. Pinch the paw of the mouse to determine whether the mouse is ready to move to the nose cone. Note: Anesthesia level is a critical step in any in vivo preparation and care should be taken not to induce a level that will cause global ischemia.</li>
	<li>Once the mouse is sufficiently anesthetized, transfer the animal to the surgery/imaging platform and place the mouse&#8217;s nose in the nose cone and apply 1-1.2% isofluorane to maintain an anesthetized state. Ensure that the mouse is lying on a temperature controlled heating pad to maintain the body temperature (37&#176;C +/- 0.5&#176;C) throughout the remaining procedures. Place vet ointment over the eyes to prevent dryness while under anesthesia.</li>
	<li>Monitor the physiology of the mouse using a pulse oximetry system using the tail or foot clip provided with the system. Check that the respiratory rate is maintained between 50-65 breaths/min. Check that the heart rate remains between 300 to 450 bpm and oxygen saturation is maintained between 97-98% to ensure long-term survival of the animal.</li>
	<li>When the mouse is adequately anesthetized, shave the hair over the cranium using electric clippers, remove residual hair and clean with betadine, followed by an ethanol swab. Repeat this procedure up to three times to ensure a sterile surgical environment.</li>
</ol>
2. Surgical Procedure
<ol>
	<li>With the scalp fully cleaned and shaven, make a 5 mm incision in the scalp of the mouse to reveal the cranial fissures and to locate bregma.</li>
	<li>Use a sterile cotton applicator to remove any remaining fascia overlying the cranium.</li>

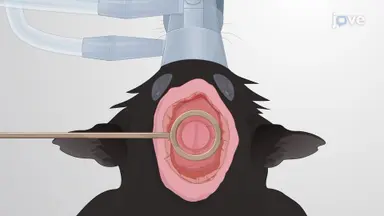

	<li>Glue a custom made stainless steel ring (Figure 1) with tissue adhesive to the bone overlying the parietal cortex using the stereotaxic coordinates of Bregma: -1 to -3 mm and lateral: 2-4 mm. Note: The glue typically sets within 2 min&#160;after the placement of the ring onto the bone.</li>
	<li>Affix the ring to a stereotaxic holder (Figure 2) to stabilize the mouse and to prevent movement during imaging.</li>
	<li>Under a surgical grade dissecting microscope, slowly drill a 1-2 mm section in the cranium using a speed controlled dremel-like tool (Meisinger 3.9 mm drill bit) making sure to keep the area level as it is drilled. Achieve this using a zig-zag pattern. To avoid heat build up, set the drill speed to low and take frequent breaks.</li>
	<li>When the cranial skull becomes shinny in appearance, continue the thinning of the skull using a scalpel blade utilizing the same zig-zag pattern to keep the thinned surface level to facilitate smooth removal of thin layers of cranial skull. Using the tip of the scalpel blade make small linear strokes with light pressure to remove thin layers of bone at a time. Continue this until the vasculature is clearly visible through the dissecting microscope.</li>
	<li>If the experimenter punctures through or break the skull during the thinning process, euthanize the animal due to likely damage to the underlying cortex.
	Note: The mouse skull is approximately 300 &#181;m in thickness and is comprised of two thin layers of compact bone (one external and one internal layer) and a layer of spongy bone sandwiched between the two layers of compact bone. The external layer of compact bone and most of the spongy bone are removed within the 5 mm drilling area resulting in an approximate 50 &#181;m layer of compact bone remaining (see Figure 2B). Visualization of the vasculature will ensure that the final intact thinned skull is approximately 50 &#181;m in thickness. The skull is therefore still present when thinned to this thickness.</li>
</ol>
3. Microscope Set-up
<ol>
	<li>Use an inverted microscope system (conventional, confocal or two-photon systems) that has an objective inverter. Note: It is also possible to utilize a standard upright microscope. The limiting factor will be the space between the stage and the objectives. Modifications to the stage may be necessary to accomplish this setup.</li>
	<li>Secure the surgical/imaging platform to a custom made stage that is located aside the base of the microscope. Note: The platform is made using a laboratory jack to allow vertical movement of the surgical/imaging platform under the objective. The laboratory jack is mounted to a plate affixed to four cylindrical poles. (See Figure 2).</li>
	<li>Position the objective inverter containing a 20X objective over the cranial window. Use an external light source to find the cranial window by looking through the eyepieces of the microscope and position the objective in the imaging area. Note: The imaging area will be denoted by the presence of the vasculature.</li>
	<li>For water-based objectives, use artificial cerebral spinal fluid (aCSF) (130 mM NaCl; 30 mM KCl; 12 mM KH2PO4; 200 mM NaHCO3; 30 mM HEPES; and 100 mM glucose) as the medium due to potential leakage into the cranial cavity during imaging (Figure 3).</li>
</ol>
4. Rose Bengal Dye Preparation, Administration and Induction of Stroke
<ol>
	<li>Prepare a fresh 20 mg/ml solution of Rose Bengal in artificial cerebral spinal fluid (aCSF); filter and sterilize before administration. Do not reuse or store the Rose Bengal once it has been mixed. Make a fresh solution for each experiment.</li>
	<li>Give a 0.1 ml tail vein injection of Rose Bengal while scanning the cranial window with a 561 nm laser to ensure adequate injection of the solution. Note: Rose Bengal will be visualized within 5 sec after injection in the vasculature of the brain. The entire vessel should be filled with Rose Bengal.</li>
	<li>Following adequate injection of Rose Bengal dye choose an appropriate vessel for thrombosis based on vessel diameter (40-80 &#181;m) to ensure reproducibility of a particular lesion volume. Differentiate between arteries and veins by looking at the direction of blood flow: arteries will move from larger diameter to smaller diameter vessels, veins move from smaller to larger diameter vessels. This is easily accomplished by visualization once Rose Bengal is injected.</li>
	<li>Change the microscope setting as follows:
	<ol>
		<li>Increase the dwell time. Note: This will vary depending on the microscope system being utilized.</li>
		<li>Increase the laser power to 100%.</li>
		<li>Collect time sequence images at 1 frame/sec&#160;using the maximum scan speed.</li>
	</ol>
	</li>
	<li>Scan the mouse until a stable clot is formed within the vessel. Note: This typically is achieved within 5 min&#160;of continuous scanning (See Figure 4).</li>
	<li>Following the induction of clot formation using Rose Bengal, remove the mouse from the imaging area back to the dissecting microscope. Carefully remove the stainless steel ring from the cranial skull. Examine the cranial window for any bleeding. If bleeding occurs, terminate the experiment.</li>
	<li>Use 6.0 monofilament suture to close the incision over the skull. Place antibiotic ointment along the suture line to prevent infection. Inject Buprenex (0.05 mg/kg) subcutaneously every 12 hr for three days for pain management.</li>
	<li>Return the mouse to a recovery chamber following removal from the anesthetic until fully awake and freely moving.</li>
	<li>Return the mouse to a clean cage for further investigation at a later time.</li>
</ol>
5. Longitudinal Imaging on Subsequent Days
<ol>
	<li>Employ the following methods to perform longitudinal imaging on subsequent days post-photothrombosis.
	<ol>
		<li>Anesthetize the mouse as described in Section 1 of the methods.</li>
		<li>Upon adequate anesthesia re-open the scalp by removing any residual sutures to reopen the skin overlying the previously drilled imaging field.</li>
		<li>Use a sterile cotton applicator to remove any remaining fascia overlying the cranium.</li>
		<li>Glue a custom made stainless steel ring (Figure 1) with tissue adhesive to the bone overlying the previous imaging field.</li>
		<li>Affix the ring to a stereotaxic holder (Figure 2) to stabilize the mouse and to prevent movement during imaging.</li>
		<li>Locate the vasculature underlying the previously thinned skull. Use tail vein injection of FITC-Dextran to verify the presence of the previously induced clot.</li>
		<li>Use 6.0 monofilament suture to close the incision over the skull. Place antibiotic ointment along the suture line to prevent infection. Inject Buprenex (0.05mg/kg) subcutaneously every 12 hr for three days for pain management.</li>
		<li>Return the mouse to a recovery chamber following removal from the anesthetic until fully awake and freely moving.</li>
	</ol>
	</li>
</ol>
6. Verification of Stroke Induction (Post-mortem)
<ol>
	<li>At the conclusion of a study, verify stroke volume using 2,3,5-triphenyltetrazolium chloride (TTC) staining as shown in Figure 5. The full method can be found in12.</li>
</ol>

<ol>
	<li>Watson, B. D., Dietrich, W. D., Busto, R., Wachtel, M. S., Ginsberg, M. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Induction+of+reproducible+brain+infarction+by+photochemically+initiated+thrombosis.">Induction of reproducible brain infarction by photochemically initiated thrombosis.</a> Annals of Neurology. 17, 497-504 (1985).</li><li>Rosenblum, W. I., El-Sabban, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Platelet+aggregation+in+the+cerebral+microcirculation:+effect+of+aspirin+and+other+agents.">Platelet aggregation in the cerebral microcirculation: effect of aspirin and other agents.</a> Circulation Research. 40, 320-328 (1977).</li><li>Owens, A. P., Mackman, N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sources+of+tissue+factor+that+contribute+to+thrombosis+after+rupture+of+an+atherosclerotic+plaque.">Sources of tissue factor that contribute to thrombosis after rupture of an atherosclerotic plaque.</a> Thrombosis Research. 129, S30-S33 (2012).</li><li>Carmichael, S. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Rodent+models+of+focal+stroke:+size,+mechanism,+and+purpose.">Rodent models of focal stroke: size, mechanism, and purpose.</a> NeuroRx : the journal of the American Society for Experimental NeuroTherapeutics. 2, 396-409 (2005).</li><li>. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Manual of stroke models in rats. , (2009).</li><li>Herz, R. C., Kasbergen, C. M., Hillen, B., Versteeg, D. H., de Wildt, D. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Rat+middle+cerebral+artery+occlusion+by+an+intraluminal+thread+compromises+collateral+blood+flow.">Rat middle cerebral artery occlusion by an intraluminal thread compromises collateral blood flow.</a> Brain Research. 791, 223-228 (1998).</li><li>Brint, S., Jacewicz, M., Kiessling, M., Tanabe, J., Pulsinelli, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Focal+brain+ischemia+in+the+rat:+methods+for+reproducible+neocortical+infarction+using+tandem+occlusion+of+the+distal+middle+cerebral+and+ipsilateral+common+carotid+arteries.">Focal brain ischemia in the rat: methods for reproducible neocortical infarction using tandem occlusion of the distal middle cerebral and ipsilateral common carotid arteries.</a> Journal of Cerebral Blood Flow and Metabolism : Official Journal of the International Society of Cerebral Blood Flow and Metabolism. 8, 474-485 (1988).</li><li>Zheng, W., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Purinergic+receptor+stimulation+reduces+cytotoxic+edema+and+brain+infarcts+in+mouse+induced+by+photothrombosis+by+energizing+glial+mitochondria.">Purinergic receptor stimulation reduces cytotoxic edema and brain infarcts in mouse induced by photothrombosis by energizing glial mitochondria.</a> PloS One. 5, e14401 (2010).</li><li>Zheng, D. M., Wewer, J., Lechleiter, J. P. 2. Y. 1. R. -. i. n. i. t. i. a. t. e. d. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=IP3R-dependent+stimulation+of+astrocyte+mitochondrial+metabolism+reduces+and+partially+reverses+ischemic+neuronal+damage+in+mouse.">IP3R-dependent stimulation of astrocyte mitochondrial metabolism reduces and partially reverses ischemic neuronal damage in mouse.</a> Journal of Cerebral Blood Flow and Metabolism. 33, 600-611 (2013).</li><li>Witte, O. W., Stoll, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Delayed+and+remote+effects+of+focal+cortical+infarctions:+secondary+damage+and+reactive+plasticity.">Delayed and remote effects of focal cortical infarctions: secondary damage and reactive plasticity.</a> Advances in Neurology. 73, 207-227 (1997).</li><li>Hagemann, G., Redecker, C., Neumann-Haefelin, T., Freund, H. J., Witte, O. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Increased+long-term+potentiation+in+the+surround+of+experimentally+induced+focal+cortical+infarction.">Increased long-term potentiation in the surround of experimentally induced focal cortical infarction.</a> Annals of Neurology. 44, 255-258 (1998).</li><li>Kramer, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=TTC+staining+of+damaged+brain+areas+after+MCA+occlusion+in+the+rat+does+not+constrict+quantitative+gene+and+protein+analyses.">TTC staining of damaged brain areas after MCA occlusion in the rat does not constrict quantitative gene and protein analyses.</a> Journal of Neuroscience Methods. 187, 84-89 (2010).</li><li>Blinder, P., Shih, A. Y., Rafie, C., Kleinfeld, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Topological+basis+for+the+robust+distribution+of+blood+to+rodent+neocortex.">Topological basis for the robust distribution of blood to rodent neocortex.</a> Proceedings of the National Academy of Sciences. 107, 12670-12675 (2010).</li><li>Nishimura, N., Rosidi, N. L., Iadecola, C., Schaffer, C. B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Limitations+of+collateral+flow+after+occlusion+of+a+single+cortical+penetrating+arteriole.">Limitations of collateral flow after occlusion of a single cortical penetrating arteriole.</a> Journal of Cerebral Blood Flow &amp; Metabolism. 30, 1914-1927 (2010).</li><li>Nishimura, N., Schaffer, C. B., Friedman, B., Lyden, P. D., Kleinfeld, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Penetrating+arterioles+are+a+bottleneck+in+the+perfusion+of+neocortex.">Penetrating arterioles are a bottleneck in the perfusion of neocortex.</a> Proceedings of the National Academy of Sciences. 104, 365 (2007).</li><li>Blum, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Memory+after+silent+stroke:+Hippocampus+and+infarcts+both+matter.">Memory after silent stroke: Hippocampus and infarcts both matter.</a> Neurology. 78, 38-46 (2012).</li><li>Heinsius, T., Bogousslavsky, J., Van Melle, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Large+infarcts+in+the+middle+cerebral+artery+territory+Etiology+and+outcome+patterns.">Large infarcts in the middle cerebral artery territory Etiology and outcome patterns.</a> Neurology. 50, 341-350 (1998).</li><li>Wardlaw, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=What+causes+lacunar+stroke.">What causes lacunar stroke.</a> Journal of Neurology, Neurosurgery &amp; Psychiatry. 76, 617-619 (2005).</li><li>Inoue, Y., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ischemic+stroke+under+anticoagulant+therapy].+Rinsho+shinkeigaku.">Ischemic stroke under anticoagulant therapy]. Rinsho shinkeigaku.</a> Clinical Neurology. 50, 455-460 (2010).</li><li>Tiannan Wang, W. C., Xie, Y., Zhang, W., Ding, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Controlling+the+Volume+of+the+Focal+Cerebral+Ischemic+Lesion+through+Photothrombosis.">Controlling the Volume of the Focal Cerebral Ischemic Lesion through Photothrombosis.</a> American Journal of Biomedical Sciences. 2, 33-42 (2009).</li><li>Head, B. P., Patel, P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Anesthetics+and+brain+protection.">Anesthetics and brain protection.</a> Current Opinion in Anaesthesiology. 20, 395-399 (2007).</li><li>Kirsch, J. R., Traystman, R. J., Hurn, P. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Anesthetics+and+cerebroprotection:+experimental+aspects.">Anesthetics and cerebroprotection: experimental aspects.</a> International Anesthesiology Clinics. 34, 73-93 (1996).</li><li>Koerner, I. P., Brambrink, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Brain+protection+by+anesthetic+agents.">Brain protection by anesthetic agents.</a> Current Opinion in Anaesthesiology. 19, 481-486 (2006).</li><li>Gelb, A. W., Bayona, N. A., Wilson, J. X., Cechetto, D. F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Propofol+anesthesia+compared+to+awake+reduces+infarct+size+in+rats.">Propofol anesthesia compared to awake reduces infarct size in rats.</a> Anesthesiology. 96, 1183-1190 (2002).</li><li>Bhardwaj, A., Castro, I. A., Alkayed, N. J., Hurn, P. D., Kirsch, J. R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Anesthetic+choice+of+halothane+versus+propofol:+impact+on+experimental+perioperative+stroke.">Anesthetic choice of halothane versus propofol: impact on experimental perioperative stroke.</a> Stroke; A Journal Of Cerebral Circulation. 32, 1920-1925 (2001).</li><li>Barretto, R. P., Messerschmidt, B., Schnitzer, M. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=In+vivo+fluorescence+imaging+with+high-resolution+microlenses.">In vivo fluorescence imaging with high-resolution microlenses.</a> Nature Methods. 6, 511-512 (2009).</li></ol>

The authors declare that they have no competing financial interests.

The ability to translate experimental stroke pathophysiology from animal to human application has been plagued with failure. However, the use of animal models, such as the photothrombosis model, allows for improved understanding of stroke pathophysiology and the exploration of new therapeutic approaches to provide neuroprotection following a stroke. Small cortical strokes and microinfarctions produced by the photothrombotic model are clinically relevant to subclinical or &#8220;silent&#8221; stroke13-15, which...

The technique described permits visualization of in vivo cellular responses immediately following induction of Rose Bengal photothrombosis in an intact mouse. Rose Bengal (4,5,6,7-tetrachloro-2&#39;,4&#39;,5&#39;,7&#39;-tetraiodofluorescein) is a photosensitive dye used to induce ischemic stroke in animal models (mouse and rat). Following a bolus injection of RB through the tail vein and subsequent illumination through a thinned skull with a 564 nm laser light, a thrombus is induced causing a physiologic stroke1. The method was originally described by Rosenblum and El-Sabban in 1977, and was later adapted by Watson in the mid 1980s1,2. In brief, Rose Bengal is irradiated with green excitation light (561 nm laser in our case), which generates the production of reactive oxygen species, which subsequently activates tissue factor, an initiator of the coagulation cascade. The induction of the coagulation cascade produces an ischemic lesion that is pathologically relevant to clinical stroke3.
Stroke has a complex pathophysiology due to the interplay of many different cells types including neurons, glia, endothelium and the immune system. Choosing the best technique to study a particular cellular process requires multiple considerations. Experimental techniques fall broadly into one of three categories: in vitro, in vivo and in silico with each having advantages and disadvantages. In vitro studies have the primary disadvantage of removing cells from their natural environment and therefore may not reproduce effects seen in an intact, living animal. In vivo techniques provide for enhanced experimental replication of disease states with increased translational significance. In silico generally refers to computer modeling of a disease or cellular process, and while increasingly utilized to study potential drug interactions for example, any information gleaned must still be tested in living cells or tissue.
The ideal model of stroke in the laboratory setting should demonstrate similar pathological features to those seen in the human population. While there are common physiologic characteristics of stroke in the human population, there are also many differences depending on the type of injury experienced. Stroke in the human population occurs as small or large vessel occlusions, hemorrhagic lesions, and artery-to artery or cardio-embolisms that result in varied infarct volumes as well as differences in mechanisms related to each pathology. The advantage of utilizing animal stroke models is the generation of reproducible infarcts that mimic characteristics of human stroke. The most common animal stroke models include artery occlusion using: middle cerebral artery occlusion (embolic or endovascular filament methods) which models distal MCAO and the photothrombosis model. The advantages and disadvantages of each model have been reviewed elsewhere (see 4 and 5). Global ischemic models (MCAO), while relatively easy to perform are less relevant to human stroke than are focal stroke models. In addition, these methods are highly variable in inducing reproducible brain infarct lesions. The photothrombosis model is highly reproducible as long as the experimenter controls their experiments well, providing a clear advantage over MCAO models. However, due to microvasculature insult the model has been described to display a minimal ischemic penumbra, the area where cells are thought to be salvageable 6,7. Additionally, vasogenic edema and cytotoxic edema formation may also be induced following irradiation of the imaging area. Despite these limitations the technique has provided new insight into many physiological processes following stroke8,9,10,11.

<table><tbody><tr><td colspan="4">Reagents</td></tr><tr><td>Rose Bengal</td><td>Sigma</td><td>330000</td><td></td></tr><tr><td>Isoflurane Anesthetic</td><td>MWI Veterinary Supply</td><td>088-076</td><td></td></tr><tr><td>Vetbond</td><td>1469SB</td><td>1469SB</td><td></td></tr><tr><td>aCSF&amp;nbsp;</td><td>126 mM NaCl, 2.5 mM KCl, 1.25 mM NaH&lt;sub&gt;2&lt;/sub&gt;PO&lt;sub&gt;4&lt;/sub&gt;, 2 mM MgCl&lt;sub&gt;2&lt;/sub&gt;, 2 mM CaCl&lt;sub&gt;2&lt;/sub&gt;, 10 mM glucose and 26 mM NaHCO&lt;sub&gt;3&lt;/sub&gt; (pH 7.4).</td><td></td><td></td></tr><tr><td colspan="4">[header]</td></tr><tr><td colspan="4">Equipment</td></tr><tr><td>Dissecting Scissors</td><td>Bioindustrial Products</td><td>500-410</td><td></td></tr><tr><td>Operating scissors 14 cm</td><td>Bioindustrial Products</td><td>12-055</td><td></td></tr><tr><td>Forceps Dumont High Tech #5 style, straight</td><td>Bioindustrial Products</td><td>TWZ-301.22</td><td></td></tr><tr><td>LabJack 132X80</td><td>Optosigma Co</td><td>123-6670</td><td></td></tr><tr><td>Platform for Labjack 8X 8</td><td>Optosigma Co</td><td>145-1110</td><td></td></tr><tr><td>Ear bar holder from stereotaxic setup</td><td>Stoelting/Cyborg</td><td>51654</td><td></td></tr><tr><td>Dispomed Labvent Rodent anesthesia machine</td><td>DRE, Inc.</td><td>15001</td><td></td></tr><tr><td>Tech IV Isoflurane vaporizer</td><td>DRE, Inc.</td><td>34001</td><td></td></tr><tr><td>F Air Canister</td><td>DRE, Inc</td><td>80120</td><td></td></tr><tr><td>Bain circuit breathing tube</td><td>DRE, Inc</td><td>86111B</td><td></td></tr><tr><td>Rodent adapter for bain tube</td><td>DRE, Inc</td><td>891000</td><td></td></tr><tr><td>O&lt;sub&gt;2&lt;/sub&gt; regulator for oxygen tanks</td><td>DRE, Inc</td><td>CE001E</td><td></td></tr><tr><td>Rodent induction chamber</td><td>DRE, Inc</td><td>15004C</td><td></td></tr><tr><td>Ethicon Silk 6-0; 18 in with P-3 needle</td><td>Suture Express</td><td>1639G</td><td></td></tr><tr><td>Objective inverter Optical Adapter</td><td>LSM technologies</td><td></td><td></td></tr><tr><td>Foredom drill Dual voltage 110/120</td><td>Foredom</td><td>134.53</td><td></td></tr><tr><td>Meisinger 3.9 mm drill bit</td><td>Meisinger</td><td></td><td>(Ref#310 104 001 001 009)</td></tr></tbody></table>
