Analyzing Protein Dynamics Using Hydrogen Exchange Mass Spectrometry

Summary

Protein conformation and dynamics are key to understanding the relationship between protein structure and function. Hydrogen exchange coupled with high-resolution mass spectrometry is a versatile method to study the conformational dynamics of proteins as well as characterizing protein-ligand and protein-protein interactions, including contact interfaces and allosteric effects.

Abstract

All cellular processes depend on the functionality of proteins. Although the functionality of a given protein is the direct consequence of its unique amino acid sequence, it is only realized by the folding of the polypeptide chain into a single defined three-dimensional arrangement or more commonly into an ensemble of interconverting conformations. Investigating the connection between protein conformation and its function is therefore essential for a complete understanding of how proteins are able to fulfill their great variety of tasks. One possibility to study conformational changes a protein undergoes while progressing through its functional cycle is hydrogen-¹H/²H-exchange in combination with high-resolution mass spectrometry (HX-MS). HX-MS is a versatile and robust method that adds a new dimension to structural information obtained by e.g. crystallography. It is used to study protein folding and unfolding, binding of small molecule ligands, protein-protein interactions, conformational changes linked to enzyme catalysis, and allostery. In addition, HX-MS is often used when the amount of protein is very limited or crystallization of the protein is not feasible. Here we provide a general protocol for studying protein dynamics with HX-MS and describe as an example how to reveal the interaction interface of two proteins in a complex.

Introduction

The number of crystal structures of proteins and protein complexes increased rapidly in recent years. They present invaluable snapshots of the structural organization of these proteins and provide a basis for structure-function analysis. However, the dynamics of proteins and the conformational changes, which are essential for their functions, are rarely revealed by X-ray crystallography. Cryo-electronmicroscopy, on the other hand, is able to capture protein and protein complexes in different conformations but generally cannot resolve conformational changes down to secondary structure level¹. Conformational dynamics of proteins in solution at atomic details can only be resolved by NMR, but this method is still restricted to proteins of relatively small sizes (generally ≤ 30 kDa) and needs high concentrations of proteins (≥ 100 μM), which hampers experiments with oligomerization or aggregation prone proteins². One method that is able to bridge between high-resolution X-ray crystallography and cryo-electronmicroscopy and which is not limited by protein size or concentration is amide hydrogen-¹H/²H-exchange (HX) in combination with mass spectrometry (MS). In recent years this method has developed to a valuable analytical tool for the analysis of protein dynamics, protein folding, protein stability and conformational changes^3-5. The molecular basis of this method is the labile nature of backbone amide hydrogens in proteins, which will exchange with deuterium atoms when the protein is placed in a D₂O solution. The subsequent increase in protein mass over time is measured with high-resolution MS.

In short unstructured peptides HX only depends on temperature, catalyst concentration (OH^-, H₃O⁺ i.e. pH, see Figure 3) and amino acid side chains of adjacent residues due to inductive, catalytic and steric effects. These effects on the intrinsic chemical exchange rate k_ch have been elegantly quantified by Bai et al.⁶ and a program is available (courtesy Z. Zhang), which calculates k_ch for each amino acid within a polypeptide dependent on pH and temperature. At neutral pH and ambient temperatures k_ch is in the order of 10¹-10³ sec^-1. In folded proteins HX can be 2-9 orders of magnitude slower mainly due to hydrogen bonding in the secondary structure and to a minor degree due to restricted access of hydrated OH^- ions to the interior of a tightly folded protein. HX in native proteins therefore implicates partial or global unfolding, chemical exchange and refolding to the native state according to equation (1) and the observed exchange rates k_obs depend on the opening rate k_op, the closing rate k_cl and the intrinsic chemical exchange rate k_ch according to equation (2).

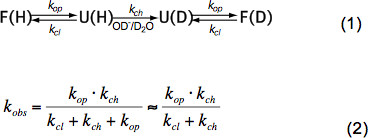

Under native state conditions k_op is much smaller than k_ch and can be neglected in the denominator. There are two extreme exchange regimes called EX1 and EX2. If the k_cl is much smaller than k_ch (EX1) the observed rate is practically equal to the opening rate and HX allows immediate observation of the unfolding of a structural element. Such an exchange regime, where all amide protons exchange at once upon opening of the structural element, is readily observable in MS by a bimodal distribution of the isotope peaks⁷. If k_cl is much greater than k_ch (EX2) the observed rate is proportional to k_ch whereby the proportionality constant is equal to the folding-unfolding equilibriums constant K_u = k_op/k_cl. Under these conditions, many opening and closing events are necessary before all amide protons exchange for deuterons, leading to a gradual increase in average mass while the isotopic distribution remains roughly the same. The EX2 regime allows the determination of the free energy of unfolding ΔG_u and therefore the stability of a structural element. Under native state condition the EX2 regime is most common. Increase of pH and addition of chaotropic agents can shift the exchange mechanism to EX1. Therefore, HX-MS can be used to explore thermodynamic as well as kinetic parameters of protein folding and conformational changes.

As mentioned above HX is intrinsically pH and temperature dependent and the exchange half-life of a completely solvent exposed proton of the backbone amide group is between 5-400 msec at physiological pH (pH 7.6) and 30 °C, but 10 min to >15 hr with an average of >2 hr at pH 2.9 and 0 °C (except for the proton of the first backbone amide bond of a polypeptide, which exchanges with a half-life of ca. 1-2 min). Under such slow exchanging conditions it is possible to digest the sample using proteases (e.g. pepsin) that are active under these conditions, with out losing all the information contained in the incorporated deuterons. Since the introduction of peptic digestion under slow exchanging conditions, not only the overall HX kinetics of full-length proteins can be analyzed but HX can be localized to specific regions^8,9. Spatial resolution is currently limited to the size of the peptic fragments generated, which is in general between 10-30 residues. However, overlapping fragments created due to the nonspecific nature of cleavage by pepsin could lead to an increase in spatial resolution. In addition, several other proteases were found to be active under quench conditions, however, much less efficient than pepsin¹⁰. Further increase of spatial resolution can be reached by fragmentation of peptides in the gas phase by methods that preserved the deuteration pattern such as electron capture dissociation (ECD), electron transfer dissociation (ETD) and infrared multiphoton dissociation (IRMPD)^11-13. These techniques prevent the loss of spatial resolution due to intramolecular proton migration ("scrambling"), which is observed by collision-induced dissociation (CID) the most commonly used fragmentation technique. However, these methods require optimization for every individual peptide and is thus still quite challenging.

HX-MS has been used to analyze protein-ligand and protein-protein interactions including viral capsid assembly^14-17. Protein unfolding and refolding as well as temperature induced conformational changes were investigated^7,18,19. Phosphorylation and single amino acid mutation-related conformational changes^16,20 and nucleotide-induced changes were analyzed^21,22. Therefore, this method seems ideally suitable to analyze assembly and dynamics of molecular machines. One attractive candidate, whose mechanism is of great general interest, is the Hsp90 chaperone complex.

Protocol

1. Preparation of Buffers and Protein Samples

1. Prepare H₂O buffer. Use Hsp90 standard buffer (40 mM HEPES/KOH, pH 7.5, 50 mM KCl, 5 mM MgCl₂, 10% glycerol) as H₂O buffer.
   Note: If the sample was dialyzed before analysis, use the dialysis buffer as H₂O buffer. It is essential that the D₂O buffer differs from the H₂O buffer only in the hydrogen isotope. Volatile buffers like NH₄CO₃ or NH₄-acetate or buffer components are not suitable!
2. Prepare D₂O buffer by lyophilization of Hsp90 standard buffer using a vacuum concentrator. After complete evaporation of H₂O add pure D₂O to the tube to reach the initial total volume (e.g. 1 ml buffer with 15% glycerol require the addition of 850 μl D₂O). Repeat the complete evaporation of the buffer and redissolve the buffer/salt components in D₂O 2x.
3. Prepare quench buffer (0.4 M KH₂PO₄/H₃PO₄ pH 2.2).
   Note: To improve the efficiency of peptic digest of very stable proteins 4 M guanidine hydrochloride and 0.5 M Tris(2-carboxyethyl)phosphine (TCEP-HCl) can be added.
4. Prepare 100% control sample (6 M guanidine hydrochloride, D₂O). Add guanidine hydrochloride to an Hsp90 aliquot to reach a final concentration of 6 M. Completely evaporate H₂O from the sample and add D₂O to the tube to reach the initial total volume (e.g. 100 μl sample with 10% glycerol require the addition of 90 μl D₂O). Repeat the complete evaporation of the buffer and redissolve the buffer/salt components in D₂O.
   Note: 20-100 pmol of sample are required for each injection. Prepare enough sample to have a 100% control for every day of HX-MS experiments.
5. Prepare 50 pmol Hsp90 in 5 μl Hsp90 standard buffer.
   Note: An amount of 20-100 pmol of sample is required for each point of raw data. The volume of sample in the reaction is 1-5 μl ideally. Adjust the concentration to fit these requirements. Any buffer can be used as long as it doesn't contain detergents or volatile components.

2. Preparation of Immobilized Pepsin on Aldehyde Activated Beads

1. Dissolve 80 mg fresh pepsin in 2 ml 50 mM sodium citrate (pH 5).
2. Dissolve 20 mg of sodium cyanoborohydride, handle with care (very toxic!) in 1 ml 2 M Na₂SO₄ and add to pepsin solution.
3. Incubate mixture for 10 min at room temperature while gently agitating (e.g. overhead shaker).
4. Add 600 mg beads with immobilized aldehyde groups to the mixture and incubate for 5-10 min at room temperature.
5. Add 2.2 ml of 2 M Na₂SO₄ (pH 5) in 100 μl aliquots every 3 min over one hour to slowly salt out the pepsin. Gently mix the sample between additions in an overhead shaker at room temperature.
6. Incubate the pepsin beads at 4 °C for 14-16 hr/overnight in an overhead shaker.
7. Quench the reaction by adding of 1 ml 1 M ethanolamine and incubation at room temperature for 2 hr.
8. Spin down the beads in a 50 ml falcon tube at 500 rpm, discard the supernatant and resuspend the beads in 0.1% formic acid. Repeat this step 2x. After the last centrifugation step, discard supernatant and estimate volume of beads. Add an equivalent volume of 0.1% formic acid and store at 4 °C.

3. Preparation of Columns for Amide Hydrogen-exchange

1. Use guard columns with an inner diameter of 1 mm for trapping columns and with 2 mm for pepsin columns.
2. Unscrew one side of the guard column and remove the filter. Tightly screw packing funnel onto the open end of the column. Use a 1/16 inch adapter and tubing to attach an empty syringe (5 ml) to the bottom outlet of the column. Make sure to fix it gas-tight to the guard column.
3. Apply a few drops of slurry bead material on top of the funnel. Pull the plunger of the syringe to suck the slurry through the funnel into the guard column. Apply more slurry bead material onto the funnel and continue the procedure until the guard column is completely filled with bead material. Remove the funnel and place filter and filter ring onto the open end. Tightly screw the column cap onto the guard column and remove the syringe from the other side. Close both ends of the guard columns with plugs to avoid drying out of column material.

4. Setting up the System for Hydrogen Exchange Mass Spectrometry (HX-MS)

1. Connect the trap column with the HPLC system (Figure 1). Equilibrate the column by setting the flow rate of pump A to 0.4 ml/min with 0.1% formic acid as solvent. Do not connect the pepsin column nor the analytical column yet.
2. Calibrate the mass spectrometer and connect the outlet of the HPLC to the source of the mass spectrometer.

5. Determination of the Dynamic Range of Exchange

1. Prepare ultrapure solvent A (0.1% formic acid in water) and ultrapure solvent B (0.1% formic acid in acetonitrile); ready mixed solvents are commercially available. Purge the HPLC pumps. Set up the chromatography and mass spectrometry methods in the control software by choosing a program with a step gradient after a short desalting step. For full-length Hsp90 use a 1-2 min desalting step followed by switching the 6-port valve from DESALT/LOAD to ELUTE and a step gradient from 90% solvent A/10% solvent B to 5% solvent A/95% solvent B. Before injection set the injection valve to LOAD and the 6-port valve to DESALT/LOADING position.
   Note: Do not use a pepsin or analytical column during this experiment.
2. Prepare 100-200 pmol of Hsp90 in 1-10 μl H₂O buffer and incubate for 10 min at 30 °C. Add temperature adjusted D₂O buffer to bring the sample volume up to 100 μl and incubate exactly for a defined period of time (e.g. 10 sec, 100 sec, 1,000 sec). Add 100 μl quench buffer and mix by pipetting up and down. Inject the 200 μl sample into the injection port of the injection valve with a Hamilton syringe. Start the chromatography program and switch the injection valve into INJECT position. After 2 min switch the 6-port valve from DESALT/LOADING to ELUTE. Repeat this for at least three time-points.
3. Repeat step 5.2 but add 2-3x excess of Sti1 to the Hsp90 sample prior to incubating for 10 min at 30 °C.
4. Determine the full-length protein masses by deconvolution of spectra in the mass spectrometry software. Calculate the number of incorporated deuterons by comparing the molecular weight of full-length Hsp90 with the observed mass after each run (e.g. 10 sec, 100 sec, 1,000 sec).
5. Plot the incorporated deuterons for Hsp90 in absence and presence of Sti1 (y-axis) versus time (x-axis). Determine the time-point in the dynamic range where the difference between both curves is maximal. Use this value for the incubation time in D₂O when identifying Hsp90-Sti1 interface and dynamics on peptide level.

6. Determination of Peptic Peptides Using MS/MS Spectra

1. Connect the pepsin column and analytical column to the system.
2. Set up the parameters for the chromatography and mass spectrometry in the control software by choosing gradient type and mass spectrometry method. Choose a long gradient (e.g. more than 90 min) to ensure good chromatographic resolution. Enable MS/MS spectra on the mass spectrometer.
   Note: Good resolution on the HPLC and high mass accuracy have highest priority in this step.
3. Prepare 100-200 pmol of Hsp90 in 100 μl H₂O buffer. Add 100 μl quench buffer and mix by pipetting up and down. Inject the 200 μl sample into the injection port of the injection valve with a Hamilton syringe. Start the chromatography program and switch the injection valve into INJECT position. After 2 min switch the 6-port valve from DESALT/LOADING to ELUTE position.
   Note: If more than one protein is to be analyzed in HX-MS (i.e. protein-protein interaction interfaces) the peptides for each protein have to be determined individually.
4. Identify peptic peptides of Hsp90 by searching a database (i.e. Mascot) for the resulting peptides.
   Note: It is possible to use a custom database as the aim is to determine as many peptic peptides as possible and analysis is done with purified protein. Sample purity will have to be taken into account.
5. Repeat this step without MS/MS and with the gradient that will be used for the actual HX experiment. For Hsp90 and Sti1 use a 10 min gradient from 90% solvent A/10% solvent B to 45% solvent A/55% solvent B.
   Note: Gradients are normally between 5-15 min and highly depend on sample complexity and HX system specifications.
6. Determine the retention times of the peptic peptides identified in 6.4 in the gradient used in 6.5 and create a list comprising 1.) peptide sequence 2.) peptide charge state and 3.) retention time. This will be used to identify each peptide after HX experiments.
   Note: Be aware that peptides with small m/z differences, identical charge state and identical retention time can be a source of ambiguity.

7. Identification of Protein-protein Interaction Interfaces

1. Set up the gradient and mass spectrometry method in the control software. Use a 10 min linear gradient from 90% solvent A/10% solvent B to 45% solvent A/55% solvent B. Load a mass spectrometry method that is optimized for detection of masses between 300-1,500 m/z, although most of the peptides will be below 1,000 m/z. Set the injection valve into LOAD position, the 6-port valve in LOADING/DESALTING Position. Set the flow rate of the loading pump to 0.4 ml/min.
   Note: Length and type of gradient are sample dependent and may have to be optimized. Longer gradients improve the resolution of the chromatography but decrease the incorporation of deuterons into proteins due to back-exchange. The chosen methods need to be the same for all experiments to be compared.
2. For the unexchanged reference prepare 20-100 pmol of Hsp90 in 100 μl H₂O buffer. Add 100 μl ice-cold quench buffer, pipette up and down twice and inject sample into the injection valve of the HPLC. Immediately start the chromatography program and switch the injection valve into INJECT position. After 2 min switch the 6-port valve from DESALT/LOADING to ELUTE position. Do this for Hsp90 and Sti1 individually and for the mixture of proteins.
3. Prepare 20-100 pmol of Hsp90 in a volume of 1-5 μl. Add temperature adjusted D₂O buffer to bring the sample volume up to 100 μl and incubate exactly for a defined period of time (e.g. 30 sec; for conformational dynamics see Note). Add 100 μl of ice-cold quench buffer, pipette up and down twice and quickly inject the 200 μl into the injection valve of the HPLC. Immediately start the chromatography program and switch the injection valve into INJECT position. After 2 min switch the 6-port valve from DESALT/LOADING to ELUTE position. Do this for each protein individually, to determine the deuteron incorporation into each peptide in absence of the interacting protein.
   Note: When studying the dynamics of conformational changes, repeat the experiment with different incubation times of Hsp90 in D₂O buffer. Try to cover a wide timescale by choosing incubation times logarithmically (e.g. 10 sec, 30 sec, 100 sec, 300 sec, 1,000 sec, etc.). D₂O buffer and sample buffer must be exactly identical except for the hydrogen isotope.
4. Prepare an equal amount of 100% control sample (20-100 pmol) and add D₂O buffer to bring the sample volume up to 100 μl. Add 100 μl of ice-cold quench buffer, pipette up and down twice and quickly inject the 200 μl into the injection valve of the HPLC. Immediately start the chromatography program and switch the injection valve into INJECT position. After 2 min switch the 6-port valve from DESALT/LOADING to ELUTE position.
5. To determine the interaction surface mix Hsp90 with an at least 2-fold excess of Sti1 to shift the equilibrium to the bound state (see Note) and incubate at the desired temperature until complex formation is at equilibrium. Add temperature adjusted D₂O buffer to bring the sample volume up to 100 μl and incubate exactly for a defined period of time (e.g. 30 sec). Add 100 μl of ice-cold quench buffer, pipette up and down twice and quickly inject into the injection valve of the HPLC. After 2 min switch the 6-port valve from DESALT/LOADING to ELUTE position. Repeat this experiment with 20-100 pmol of Sti1 and excess of Hsp90.
   Note: The absolute concentrations depend on the dissociation equilibrium constant of the interaction. Ideally, after dilution into D₂O the concentration of the protein added in excess should be at least 10x the K_D (corresponding to >85% of the lower concentrated protein bound).
6. Analyze the acquired data with suitable software and use the retention times determined in step 6.5 to find each peptide in the analysis. Calculate the centroid of the isotope distribution for the unexchanged protein (step 7.2) and for the HX experiments (step 7.3).
   Note: Although the isotope patterns of exchanged peptides look different from their unexchanged counterparts, both the knowledge about charge state of the peptide and the high mass accuracy of the mass spectrometer allows for easy determination of the centroids.
7. Compare incorporation of deuterons of target protein alone and with excess of binding partner. This can be done automatically with commercial software or manually with a spreadsheet program. The 100% control sample values denote the maximal exchange for each peptide and can be used to determine the amount of D₂O label lost during the experiment due to back exchange.

Results

Hsp90 is a molecular chaperone in yeast and member of the Hsp90 chaperone family. By going through a complex ATPase cycle it assists late folding steps of many protein clients. Efficient folding requires transfer of clients from Hsp70 and interaction of the co-chaperone Sti1/Hop. Sti1 directly binds to Hsp90 and facilitates client binding by inhibition of Hsp90's ATPase activity. Interaction of Hsp90 with Sti1 was recently studied using HX-MS²³. Here we present representative results of the underlying expe...

Discussion

Binding of an interaction partner to a protein inevitably causes changes in solvent accessibility on the binding site. Additionally, many proteins undergo dynamic conformational changes upon binding, which affect other regions than the actual binding interface. HX-MS is a robust method to monitor these changes and is even capable of revealing conformational changes in proteins on timescales that other methods cannot cover.

To successfully perform HX-MS three points are critical: 1) an optimal ...

Materials

Name	Company	Catalog Number	Comments
maXis QTOF	Bruker
nanoAcquity UPLC	Waters Corp.
Shimadzu 10AD-VP	Shimadzu
6-port Valve EPC6W with microelectric actuator	Valco	#EPC6W
Injection valve (manual)	Rheodyne	#7725
Poros AL20 media	Applied Biosystems	#1-6029-06
Poros R2	Applied Biosystems	#1-1118-02
Pepsin	Sigma	#P6887	use fresh pepsin
Microbore (1 mm)	IDEX	#C-128
Microbore (2 mm)	IDEX	#C-130B
Acquity UPLC BEH C8 Column	Waters Corp.	#186002876
Thermomixer	Eppendorf	#5355000.011
Tubing (various diameters)	IDEX
Fittings	IDEX	#PK-110 with PK-100
