Mimicking the Function of Signaling Proteins: Toward Artificial Signal Transduction Therapy

Summary

We present guidelines for developing synthetic 'chemical transducers' that can induce communication between naturally unrelated proteins. In addition, detailed protocols are presented for synthesizing and testing a specific 'transducer' that enables a growth factor to activate a detoxifying enzyme and consequently, to regulate the cleavage of an anticancer prodrug.

Abstract

Signal transduction pathways, which control the response of cells to various environmental signals, are mediated by the function of signaling proteins that interact with each other and activate one other with high specificity. Synthetic agents that mimic the function of these proteins might therefore be used to generate unnatural signal transduction steps and consequently, alter the cell's function. We present guidelines for designing 'chemical transducers' that can induce artificial communication between native proteins. In addition, we present detailed protocols for synthesizing and testing a specific 'transducer', which can induce communication between two unrelated proteins: platelet-derived growth-factor (PDGF) and glutathione-S-transferase (GST). The way by which this unnatural PDGF-GST communication could be used to control the cleavage of an anticancer prodrug is also presented, indicating the potential for using such systems in 'artificial signal transduction therapy'. This work is intended to facilitate developing additional 'transducers' of this class, which may be used to mediate intracellular protein-protein communication and consequently, to induce artificial cell signaling pathways.

Introduction

Signal transduction pathways play a significant role in virtually every cellular process and allow the cell to rapidly respond to environmental signals.¹ These pathways are often triggered by the binding of a signaling molecule to an extracellular receptor, which results in activation of intracellular enzymes. Amplification and propagation of this signal within the cell is mediated by the function of signaling proteins that form a network of protein-protein interactions in which enzymes are reversibly activated with high specificity. Because dysregulation of these networks frequently leads to cancer development, there has been much interest in establishing 'signal transduction therapy of cancer',² whereby drugs are designed to disrupt malignant signaling pathways. We have recently proposed an alternative approach to signal transduction therapy that relies on the ability of drugs to generate unnatural signal transduction pathways.³ In particular, we believe that by designing synthetic agents that mimic the function of signaling proteins, it would be possible to modulate the cell's function indirectly. For example, these artificial networks may enable protein biomarkers to activate enzymes that cleave prodrugs. Alternatively, these signaling protein mimetics might be able to activate unnatural cell signaling pathways, resulting in therapeutic effects.

To demonstrate the feasibility of this approach, we have recently created a synthetic 'chemical transducer'⁴ that enables platelet-derived growth factor (PDGF) to trigger the cleavage of an anticancer prodrug by activating glutathione-s-transferase (GST), which is not its natural binding partner. The structure of this 'transducer' consists of an anti-PDGF DNA aptamer that is modified with a bivalent inhibitor for GST. Hence, this synthetic agent belongs to a family of molecules with binding sites to different proteins,^5-7 such as chemical inducers of dimerization (CIDs)^8-10 and also to the group of protein-binders based on oligonucleotide-synthetic molecule conjugates.^11-21

The general principles underlying the design of such systems is described herein and detailed protocols for synthesizing and testing the function of this 'transducer' with conventional enzymatic assays are provided. This work is intended to facilitate developing additional 'transducers' of this class, which may be used to mediate intracellular protein-protein communication and consequently, to induce artificial cell signaling pathways.

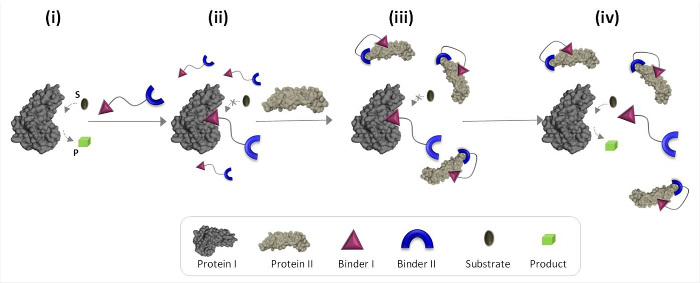

Figure 1 schematically describes the operating principles of synthetic 'chemical transducers' that can mediate unnatural protein-protein communications. In this illustration, a 'chemical transducer', which integrates synthetic binders for proteins I and II (binders I and II), enables protein II to trigger the catalytic activity of protein I, which is not its natural binding partner. In the absence of protein II, the transducer binds the catalytic site of the enzyme (protein I) and inhibits its activity (Figure 1, state ii). The binding of the 'transducer' to protein II, however, promotes interactions between binder I and the surface of protein II (Figure 1, state iii), which reduces its affinity toward protein I. As a result, the effective concentration of the 'free' transducer in the solution is reduced, which leads to dissociation of the transducer-protein I complex and to reactivation of protein I (Figure 1, state iv). Taken together, these steps highlight three fundamental principles underlying the design of efficient 'transducers': (1) a 'transducer' should have a specific binder for each of the protein targets, (2) the interaction between binder II and protein II should be stronger than the interaction between binder I and protein I, and (3) binder I must be able to interact with the surface of protein II. This last principle does not necessarily require that binder I alone would have a high affinity and selectivity toward protein II. Instead, it is based on our recent studies which showed that bringing a synthetic molecule in proximity to a protein is likely to promote interactions between this molecule and the surface of the protein.^19,22,23

Figure 1: Operating principles of 'chemical transducers'. When the 'chemical transducer' is added to an active protein I (state i), it binds to its active site through binder I and inhibits its activity (state ii). In the presence of protein II, however, the unbound 'chemical transducer' interacts with protein II through binder II, which promotes interactions between binder I and the surface of protein II. This induced binder I-protein II interaction reduces the effective concentration of binder I, which leads to dissociation of the 'transducer'-protein I complex and to protein I reactivation (state iv). Please click here to view a larger version of this figure.

Protocol

1. Synthesis of the 'Chemical Transducer'

1. Preliminary Preparations
   1. Prepare 2 M triethylammonium acetate (TEAA) buffer by mixing 278 ml of triethylamine with 114 ml of acetic acid and 400 ml of ultrapure water. Adjust the pH to 7 and add water to a final volume of 1 L. Keep it in a dark bottle.
      Note: This solution is stable for years.
   2. Prepare a 5 mM ascorbic acid solution by dissolving 18 mg of ascorbic acid in 20 ml of ultrapure water. Use a fresh solution; the solution is stable for one day.
   3. Prepare a 10 mM Cu(II)/Tris(benzyltriazolylmethyl)amine (TBTA) solution by dissolving 25 mg of copper(II) sulfate pentahydrate in 10 ml of ultrapure water and 58 mg of TBTA in 11 ml dimethyl sulfoxide (DMSO). Mix the two solutions. Keep it at room temperature and protect it from light.
2. Conjugation Procedure
   1. Dissolve 100 nmol of the modified oligonucleotide (ODN-1) in 80 µl of fresh ultrapure water. Add 20 µl of 2 M TEAA, pH = 7. Add 80 µl of a freshly made solution of ascorbic acid (5 mM in water).
   2. Dissolve 1.5 µmol (574.5 µg) of azido-modified ethacrynic acid in 180 µl of DMSO and add it to the solution. Degas the solution using Argon for 60 sec and quickly add 40 µl from the Cu(II)/TBTA solution (10 mM in 55% (v/v) DMSO/water).
   3. Purge again with Argon, close tightly, and stir overnight.
   4. Monitor the progress of the reaction and purify the conjugate by RP-HPLC (mobile phase: A) 5% Acetonitrile, 5% TEAA, 90% ultrapure water; B) 65% Acetonitrile, 5% TEAA, 30% ultrapure water).²⁴

2. Controlling GST Activity by PDGF

1. Preliminary Preparations
   1. Prepare 50 ml of the Assay buffer by mixing 33.9 ml of phosphate buffered saline (PBSx1) with 16.1 ml of ultrapure water to achieve an 8 mM final phosphate concentration and add 23.8 mg of MgCl₂ to achieve a 5 mM final concentration.
   2. Prepare a stock solution of GST M1-1 by dissolving the protein in a buffer containing 50 mM Tris pH 7.5, 50 mM NaCl, 1 mM dithiothreitol (DTT), and 5 mM ethylenediaminetetraacetic acid (EDTA) to a final concentration of 30 µM. Divide this solution into small aliquots and store at -80 ˚C. Dilute freshly, according to section 2.1.5.1, in the Assay buffer and keep on ice.
      Note: The solution will be stable for about 5 hr, or until there is a reduction in the enzyme activity.
   3. Prepare the substrate according to the following instructions:
      1. Dissolve 10 mg of reduced Glutathione (GSH) in 325 µl of ultrapure water to a final concentration of 100 mM stock solution. Dilute 21 µl from this stock solution in 979 µl of Assay buffer for a final concentration of 2.1 mM working solution.
      2. Dissolve 10 mg of 2,4-dinitrochlorobenzene (CDNB) in 492 µl of ethanol to a final concentration of 100 mM stock solution. Dilute 43.2 µl from the stock solution in 956.8 µl of an Assay buffer for a final concentration of 4.32 mM working solution.
   4. In a 96-well plate, put each substrate in a separate line (12 wells). Insert at least 60 µl into each well to allow fast and easy withdrawal of the solution. Cover the plate with an aluminum sheet for light protection.
   5. Prepare the following stock solutions in the Assay buffer:
      1. Dilute GST M1-1 by 50 to a final concentration of 0.6 µM of the dimer.
      2. Dilute the 'chemical transducer' to a 30 µM stock solution.
      3. Dilute PDGF to a final concentration of 40 µM.
      4. Dilute PDGF aptamer to a final concentration of 250 µM.
2. Measure the GST Activity in the Presence of the 'chemical transducer' and PDGF.
   1. Set up an experimental procedure in the plate reader for kinetic measurement.
      1. Create a new experiment as a 'standard protocol'.
      2. Press on 'procedure' to open up the procedure settings window.
      3. In the pop up list on the upper side of the window, choose '384 plate' type according to the plate manufacturer.
      4. Press 'Read' on the left menu.
      5. Regarding the detection method choose 'Absorbance'.
      6. Regarding the read type choose 'End point'.
      7. Write 340 nm on the wavelength window.
      8. Press on the 'Full plate' bottom on the upper-right side and choose the well to be measured.
      9. Press 'ok' to close the 'Read' window.
      10. Choose 'start kinetic' on the left menu.
      11. Make the run time 10 min.
      12. Select the minimum intervals option.
      13. Press 'ok' to close the kinetic window.
      14. Drag the 'Read' line into the kinetic measurement.
      15. Press the 'validate' button and then the 'ok' button.
      16. Save the experiment.
      17. Press the 'play' button. A dialog box will appear — press the 'ok' button only when the measurement should be started.
   2. In order to perform the triplicates experiment, prepare four samples each containing 3.25 µl of the 'chemical transducer' and 3.25 µl of GST M1-1. Add to each sample 0, 1.2, 2.4, or 4.9 µl of PDGF and 123.5, 122.3, 121.1, or 118.6 µl of the Assay buffer, respectively.
   3. Incubate the solution at room temperature for 10 min.
   4. In a 384-transparent well plate, insert 40 µl of sample to each well. Insert the samples only in the odd wells or only in the even wells in the same line to allow the use of a multi-pipettor for substrate addition.
   5. Using a 12-channel multi-pipettor, quickly add 10 µl from each of the substrates that were pre-prepared in the 96-well plate (section 2.1.4). Mix gently and quickly to avoid bubbles. Insert the plate into the reader and start the kinetic measurement. Since GST kinetics is quite fast, try to minimize the time between substrate addition and the beginning of the kinetic measurement.
3. GST Activation/Inhibition Cycles Mediated by the 'chemical transducer'.
   1. In order to perform the triplicates experiment, prepare 5 samples each containing 84.5 µl of Assay buffer, 3.25 µl of 'chemical transducer', and 3.25 µl of GST M1-1. Incubate at room temperature for 3 min.
   2. Add 3.65 µl of Assay buffer to sample 1 and 3.65 µl of PDGF to samples 2-5. Incubate at room temperature for 3 min.
   3. Add 3.12 µl of Assay buffer to samples 1-2 and 3.12 µl of PDGF aptamer to samples 3-5. Incubate at room temperature for 3 min.
   4. Add 24.4 µl of Assay buffer to samples 1-3 and 24.4 µl of PDGF to samples 4-5. Incubate at room temperature for 3 min.
   5. Add 7.8 µl of Assay buffer to samples 1-4 and 7.8 µl of PDGF aptamer to sample 5. Incubate at room temperature for 5 min.
   6. In a 384-transparent well plate, insert 40 µl of sample into each well. Insert samples only into the odd or only into the even wells in the same line.
   7. Using a 12-channel multi-pipettor, quickly add 10 µl from each substrate (pre-prepared in the 96-well plate). Mix gently and quickly to avoid bubbles. Insert the plate into the reader and start the kinetic measurement.
   8. Calculate the V₀ [mOD/min] under each condition by subtracting the OD measured at 340 nm at t = 0.5 min from the OD measured at 340 nm at t = 1.5 min to assess the activation/inhibition recyclability.²⁵
4. Evaluate the Real-time Response of the 'chemical transducer' to Changes in the Environment.
   1. Real-time effect of PDGF addition
      1. Set up an experimental procedure in the plate reader for kinetic measurement.
      2. Repeat steps 2.2.1.1-2.2.1.10.
      3. Make the run time 3.5 min.
      4. Select the minimum intervals option.
      5. Press 'ok' to close the kinetic window.
      6. Drag the 'Read' line into the kinetic measurement.
      7. Choose Plate Out/In on the left menu.
      8. Choose the option 'plate out (no dialog)'.
      9. Choose the 'Delay' option on the left menu and enter 30 sec.
      10. Choose Plate Out/In on the left menu.
      11. Choose the option 'plate in (no dialog)'.
      12. Create a second kinetic measurement by repeating steps 2.2.1.4 - 2.2.1.14 but in section 2.2.1.11 set the kinetic to be 25 min instead of 10 min.
      13. Press the 'validate' button and then the 'ok' button.
      14. Save the experiment.
      15. Press the 'play' button. A dialog box will appear – press the 'ok' button only when the measurement should be started.
      16. Prepare two samples by mixing 1 µl of GST M1-1 and 1 µl of the 'chemical transducer' in 38 µl of Assay buffer. Insert the samples into two wells of a 384-transparent well plate, leaving an empty well between these two wells.
      17. Using a 12-channel multi-pipettor, quickly add 10 µl from each substrate, mix gently and quickly to avoid bubbles, insert the plate into the reader and start the kinetic measurement.
      18. When the plate opens up (after 3.5 min), quickly add 1.125 µl of PDGF to one of the wells, mix gently, and allow the plate to close up for the remaining kinetic measurements.
   2. Real-time effect of adding the PDGF aptamer
      1. Repeat steps 2.4.1.1-2.4.1.15.
      2. Prepare two samples by mixing 1 µl of GST M1-1, 1 µl of the 'chemical transducer', and 1.125 µl of PDGF in 36.9 µl of Assay buffer. Insert the samples into two wells of a 384-transparent well plate, leaving an empty well between these two wells.
      3. Using a 12-channel multi-pipettor, quickly add 10 µl from each substrate, mix gently and quickly to avoid bubbles, insert the plate into the reader, and start the kinetic measurement.
      4. When the plate opens up (after 1.5 min), quickly add 1.2 µl of PDGF aptamer to one of the wells, mix gently and allow the plate to close up for the remaining kinetic measurements.
5. Measure JS-K Prodrug Activation by GST in the Presence of the 'chemical transducer' and PDGF.
   1. Set up an experimental procedure in the plate reader for kinetic measurement.
      1. Create a new experiment as a 'standard protocol'.
      2. Press on 'procedure' to open up the procedure settings window.
      3. In the pop up list on the upper side of the window choose '384 plate' type according to the plate manufacturer.
      4. Press 'Read' on the left menu.
      5. Regarding the detection method chose 'Absorbance'.
      6. Regarding the read type choose 'End point'.
      7. Write 305 nm on the wavelength window.
      8. Press on the 'Full plate' button on the upper-right side and choose the well to be measured.
      9. Press 'ok' to close the 'Read' window.
      10. Choose 'start kinetic' on the left menu.
      11. Make the run time 10 min.
      12. Select the minimum intervals option.
      13. Press 'ok' to close the kinetic window.
      14. Drag the 'Read' line into the kinetic measurement.
      15. Press the 'validate' button and then the 'ok' button.
      16. Save the experiment.
      17. Press the 'play' button. A dialog box will appear - press the 'ok' button only when the measurement should be started.
   2. For NO production measurements use a nitrite/nitrate calorimetric kit. In a 96-well plate insert 50 µl of assay buffer into one row, 70 µl of Griess I reagent into a second row, and 70 µl of Griess II reagent into a third row.
   3. In order to perform the triplicates experiment, prepare four samples each containing 4.8 µl of the 'chemical transducer'. To sample 1, add 155.2 µl of Assay buffer; to sample 2, add 3.2 µl of GST-M1-1 and 152 µl of Assay buffer; to sample 3, add 9.6 µl of PDGF and 145.6 µl of Assay buffer; and to sample 4, add 3.2 µl of GST-M1-1, 9.6 µl of PDGF, and 142.4 µl of Assay buffer.
   4. Incubate the solution at room temperature for 10 min.
   5. In a 384-transparent well plate, insert 50 µl of sample into each well. Insert samples only in the odd or only in the even wells in the same line to allow the use of a multi-pipettor for substrate addition.
   6. Add 0.54 µl of JS-K (5 mM in DMSO) to each well.
   7. Using a 12-channel multi-pipettor, quickly add 10 µl from the GSH solution (pre-prepared in the 96-well plate), mix gently and quickly to avoid bubbles. Insert the plate into the reader and start the kinetic measurement.
   8. Immediately after the kinetic measurement, using a 12-channel multi-pipettor, take 50 µl from each sample into the assay buffer row in the pre-prepared 96-well plate and quickly add to it 50 µl of Griess I reagent and 50 µl of Griess II reagent. Incubate while protecting from light for 10 min at RT and measure the absorbance at 550 nm.
      Note: The assay buffer and reagents volumes are dependent on the kits' protocol.

Results

The design, synthesis, and mechanism of action of a 'chemical transducer' that can induce artificial communication between PDGF and GST are presented in Figure 2. The structure of the 'transducer' integrates a PDGF DNA aptamer and a bis-ethacrynic amide (bEA), which is a known GST inhibitor (Figure 2a).¹⁹ These binders enable the 'transducer' to bind both PDGF and GST with different affinities, namely, with dissociation ...

Discussion

We presented a method for designing and testing of a 'chemical transducer' that can induce artificial communication between two naturally unrelated proteins, GST and PDGF, without modifying the native proteins. The unnatural GST-PDGF communications could be detected in real time by using enzymatic assays that follow the changes in the activity of GST in the presence of the 'chemical transducer' and increasing the concentrations of PDGF. In addition to detecting the activation of GST by PDGF, these assays were used to fol...
