This study was financed in part by the Coordena&#231;&#227;o de Aperfei&#231;oamento de Pessoal de N&#237;vel Superior - Brasil (CAPES) - Finance Code 001. This study was also supported in part by FAPESP - S&#227;o Paulo Research Foundation. E.C.P.D.M. is grateful for a Researcher Fellowship from National Council for Scientific and Technological Development (CNPq) 306330/2019-9.

1. Production of the probiotic cells
<ol>
	<li>Prepare De Man Rogosa and Sharpe (MRS) broth.</li>

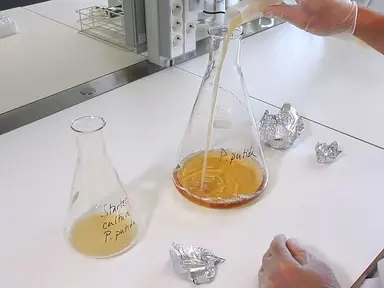

	<li>Reactivate 1% (v/v) of the culture of interest in the MRS broth (here, Lactiplantibacillus paraplantarum FT-259 was used).</li>
	<li>Incubate for 24 h at an adequate temperature (we used 37 &#176;C).</li>
</ol>
2. Separate the bacteria from the culture
<ol>
	<li>Centrifuge the bacterial culture at 7,197 x g for 5 min at 4 &#176;C using 50 mL conical tubes. It is important that the weight of the tubes is balanced before the procedure.</li>
	<li>Using a pipette, remove the supernatant, and discard it in a suitable container. Wash the pellets with a phosphate buffer (pH 7), and homogenize the solution.</li>
	<li>Repeat the centrifugation process as mentioned before.</li>
	<li>To obtain the pellet, use a pipette to remove and discard the supernatant in an appropriate container.</li>
</ol>
3. Addition of drying aids
<ol>
	<li>Select the combination of two drying aid compositions (protectants): inulin:maltodextrin mixture and simulated skim milk (Table 1)22,23.</li>
	<li>Weigh 5 g of inulin and 5 g of maltodextrin to obtain the first combination of protectants.</li>
	<li>Weigh 3 g of inulin, 3 g of lactose, 0.4 g of colloidal SiO2, and 3.6 g of whey protein to obtain the second combination of protectants.</li>
	<li>Add each of the drying aids to ultrapure water (1:10), and submit to magnetic stirring until solubilization.</li>
	<li>Ensure that the protectants and the water are homogeneous, then add the probiotics pellets to the mixture, and stir moderately for 20 min.</li>
</ol>
<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Drying aids</td>
			<td>Inulin and maltodextrin</td>
			<td>Simulated skim milk</td>
		</tr>
		<tr>
			<td>Maltodextrin</td>
			<td>5%</td>
			<td>-</td>
		</tr>
		<tr>
			<td>Whey protein</td>
			<td>-</td>
			<td>3.60%</td>
		</tr>
		<tr>
			<td>Lactose</td>
			<td>-</td>
			<td>3%</td>
		</tr>
		<tr>
			<td>Inulin</td>
			<td>5%</td>
			<td>3%</td>
		</tr>
		<tr>
			<td>Colloidal SiO2</td>
			<td>-</td>
			<td>0.40%</td>
		</tr>
	</tbody>
</table>
Table 1: Composition of the drying aids.
4. Spray-drying
<ol>
	<li>Turn on the spray dryer (SD), and set the drying gas flow rate, the inlet drying temperature, and the atomizer gas flow rate and pressure as follows:
	Inlet temperature: 80 &#176;C
	Air flow: 60 m&#179;/h
	Feed rate: 4 g/min
	Atomization flow: 17 L/min
	Atomization pressure: 1.5 kgf/cm&#178;
	Diameter of the atomizer nozzle: 1 mm</li>
	<li>Prepare the protectants composition and add the concentrated probiotic pellets.</li>
	<li>Start the feed of the probiotic composition (cells plus protectants) through a peristaltic pump.</li>
	<li>Start the timer, and place the product-collecting vessel when the solution enters the atomizer.</li>
	<li>Register the outlet temperature every 5 min to track possible temperature instabilities.</li>
	<li>Stop the timer when all the probiotic composition has been fed to the SD.</li>
	<li>Weigh the product-collecting vessel to determine the amount of composition fed to the system and the amount of dry product collected, to calculate the drying yield (product recovered) through a mass balance in the dryer.</li>
	<li>Use simulated skim milk to evaluate the effect of temperature on the viability of the probiotic cells, by setting up five different spray-drying temperatures (80 &#176;C, 100 &#176;C, 120 &#176;C, 140 &#176;C, and 160 &#176;C vs.&#160;outlet temperatures of 59 &#176;C, 70 &#176;C, 83 &#176;C, 96 &#176;C, and 108 &#176;C).</li>
</ol>
5. Powder characterization
<ol>
	<li>Product moisture content
	<ol>
		<li>Precisely weigh 100 mg of the dried product, and place it in the titration vessel of the Karl-Fischer equipment.</li>
		<li>Press the initiation button to initiate the bi-amperometric titration of the water present in the sample.</li>
	</ol>
	</li>
	<li>Water activity
	<ol>
		<li>Weigh 0.6 g of the dried product in the sample compartment of the hygrometer at 25 &#176;C.</li>
		<li>Close the equipment cover.
		&#8203;NOTE: The test will start automatically and stop when the sample reaches the equilibrium vapor pressure within the sample compartment.</li>
	</ol>
	</li>
</ol>
6. Probiotic viability
<ol>
	<li>Dilute the previously prepared bacterial suspensions in 9 mL of peptone water (0.1%, v/v).</li>
	<li>Vortex until complete dispersion.</li>
	<li>Perform serial decimal dilutions (1:10) in 9 mL of saline solution (0.9% NaCl).</li>
	<li>Seed the dilutions onto MRS agar plates, and incubate at 37 &#176;C for 24-48 h.</li>
	<li>Count the colony-forming units (CFU/g) using a colony counter with magnifying lens.</li>
	<li>Calculate the probiotic viability in the dried product according to the following equation:
	EE (%) = (N&#8725;No) &#215; 100
	where, N is the number of viable cells after spray drying, and No is the number of bacterial cells before spray drying.</li>
	<li>Express the number of viable cells in CFU/g of product dispersion.</li>
</ol>
7. Data analysis
<ol>
	<li>Tabulate the obtained data in statistical software, and perform the analysis using a multiple comparison test (ANOVA).</li>
</ol>

Optimizing Spray-Dried Probiotic Product Quality Through Process Development

<ol>
	<li>Food and Agricultural Organization of the United Nations and World Health Organization. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Probiotics+in+food:+Health+and+nutritional+properties+and+guidelines+for+evaluation.+FAO+Food+and+Nutrition+Paper+85.">Probiotics in food: Health and nutritional properties and guidelines for evaluation. FAO Food and Nutrition Paper 85.</a> Food and Agricultural Organization. , (2006).</li><li>Sharma, R., Rashidinejad, A., Jafari, S. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Application+of+spray+dried+encapsulated+probiotics+in+functional+food+formulations.">Application of spray dried encapsulated probiotics in functional food formulations.</a> Food and Bioprocess Technology. 15, 2135-2154 (2022).</li><li>Reid, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Probiotic+use+in+an+infectious+disease+setting.">Probiotic use in an infectious disease setting.</a> Expert Review of Anti-Infective Therapy. 15 (5), 449-455 (2017).</li><li>Alvarez-Olmos, M. I., Oberhelman, R. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Probiotic+agents+and+infectious+diseases:+a+modern+perspective+on+a+traditional+therapy.">Probiotic agents and infectious diseases: a modern perspective on a traditional therapy.</a> Clinical Infectious Diseases. 32 (11), 1567-1576 (2001).</li><li>He, X., Zhao, S., Li, Y. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Faecalibacterium+prausnitzii:+A+next-generation+probiotic+in+gut+disease+improvement.">Faecalibacterium prausnitzii: A next-generation probiotic in gut disease improvement.</a> Canadian Journal of Infectious Diseases and Medical Microbiology. 2021, 6666114 (2021).</li><li>Corona-Hernandez, R. I., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Structural+stability+and+viability+of+microencapsulated+probiotic+bacteria:+A+review.">Structural stability and viability of microencapsulated probiotic bacteria: A review.</a> Comprehensive Reviews in Food Science and Food Safety. 12 (6), 614-628 (2013).</li><li>Hill, C., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+International+Scientific+Association+for+Probiotics+and+Prebiotics+consensus+statement+on+the+scope+and+appropriate+use+of+the+term+probiotic.">The International Scientific Association for Probiotics and Prebiotics consensus statement on the scope and appropriate use of the term probiotic.</a> Nature Reviews Gastroenterology &amp; Hepatology. 11 (8), 506-514 (2014).</li><li>Ch&#225;vez, B. E., Ledeboer, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drying+of+probiotics:+Optimization+of+formulation+and+process+to+enhance+storage+survival.">Drying of probiotics: Optimization of formulation and process to enhance storage survival.</a> Drying Technology. 25 (7-8), 1193-1201 (2007).</li><li>Wang, G., Chen, Y., Xia, Y., Song, X., Ai, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Characteristics+of+probiotic+preparations+and+their+applications.">Characteristics of probiotic preparations and their applications.</a> Foods. 11 (16), 2472 (2022).</li><li>Baral, K. C., Bajracharya, R., Lee, S. H., Han, H. -. K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Advancements+in+the+pharmaceutical+applications+of+probiotics:+Dosage+forms+and+formulation+technology.">Advancements in the pharmaceutical applications of probiotics: Dosage forms and formulation technology.</a> International Journal of Nanomedicine. 16, 7535 (2021).</li><li>Bustamante, M., Oomah, B. D., Rubilar, M., Shene, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effective+Lactobacillus+plantarum+and+Bifidobacterium+infantis+encapsulation+with+chia+seed+(Salvia+hispanica+L.)+and+flaxseed+(Linum+usitatissimum+L.)+mucilage+and+soluble+protein+by+spray+drying.">Effective Lactobacillus plantarum and Bifidobacterium infantis encapsulation with chia seed (Salvia hispanica L.) and flaxseed (Linum usitatissimum L.) mucilage and soluble protein by spray drying.</a> Food Chemistry. 216, 97-105 (2017).</li><li>Tran, T. T. A., Nguyen, H. V. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effects+of+spray-drying+temperatures+and+carriers+on+physical+and+antioxidant+properties+of+lemongrass+leaf+extract+powder.">Effects of spray-drying temperatures and carriers on physical and antioxidant properties of lemongrass leaf extract powder.</a> Beverages. 4 (4), 84 (2018).</li><li>Oliveira, W. P., Oliveira, W. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Standardisation+of+herbal+extracts+by+drying+technologies.">Standardisation of herbal extracts by drying technologies.</a> Phytotechnology:A Sustainable Platform for the Development of Herbal Products. , 105-140 (2021).</li><li>Burgain, J., Gaiani, C., Linder, M., Scher, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Encapsulation+of+probiotic+living+cells:+From+laboratory+scale+to+industrial+applications.">Encapsulation of probiotic living cells: From laboratory scale to industrial applications.</a> Journal of Food Engineering. 104 (4), 467-483 (2011).</li><li>Boza, Y., Barbin, D., Scamparini, A. R. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Survival+of+Beijerinckia+sp.+microencapsulated+in+carbohydrates+by+spray-drying.">Survival of Beijerinckia sp. microencapsulated in carbohydrates by spray-drying.</a> Journal of Microencapsulation. 21 (1), 15-24 (2004).</li><li>De Castro-Cislaghi, F. P., dos Reis e Silva, C., Fritzen-Freir, C. B., Lorenz, J. G., Sant’Anna, E. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Bifidobacterium+Bb-12+micro+encapsulated+by+spray+drying+with+whey:+survival+under+simulated+gastrointestinal+conditions,+tolerance+to+NaCl,+and+viability+during+storage.">Bifidobacterium Bb-12 micro encapsulated by spray drying with whey: survival under simulated gastrointestinal conditions, tolerance to NaCl, and viability during storage.</a> Journal of Food Engineering. 113 (2), 186-193 (2012).</li><li>Fu, N., Huang, S., Xiao, J., Chen, X. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Producing+powders+containing+active+dry+probiotics+with+the+aid+of+spray+drying.">Producing powders containing active dry probiotics with the aid of spray drying.</a> Advances in Food and Nutrition Research. 85, 211-262 (2018).</li><li>Barbosa, J., Teixeira, P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Development+of+probiotic+fruit+juice+powders+by+spray-drying:+A+review.">Development of probiotic fruit juice powders by spray-drying: A review.</a> Food Reviews International. 33 (4), 335-358 (2017).</li><li>Waterhouse, G. I. N., Sun-Waterhouse, D., Su, G., Zhao, H., Zhao, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Spray-drying+of+antioxidant-rich+blueberry+waste+extracts;+Interplay+between+waste+pretreatments+and+spray-drying+process.">Spray-drying of antioxidant-rich blueberry waste extracts; Interplay between waste pretreatments and spray-drying process.</a> Food and Bioprocess Technology. 10 (6), 1074-1092 (2017).</li><li>Tulini, F. L., Winkelstr&#246;ter, L. K., De Martinis, E. C. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Identification+and+evaluation+of+the+probiotic+potential+of+Lactobacillus+paraplantarum+FT259,+a+bacteriocinogenic+strain+isolated+from+Brazilian+semi-hard+artisanal+cheese.">Identification and evaluation of the probiotic potential of Lactobacillus paraplantarum FT259, a bacteriocinogenic strain isolated from Brazilian semi-hard artisanal cheese.</a> Anaerobe. 22, 57-63 (2013).</li><li>Ribeiro, L. L. S. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Use+of+encapsulated+lactic+acid+bacteria+as+bioprotective+cultures+in+fresh+Brazilian+cheese.">Use of encapsulated lactic acid bacteria as bioprotective cultures in fresh Brazilian cheese.</a> Brazilian Journal of Microbiology. 52 (4), 2247-2256 (2021).</li><li>P&#237;seck&#253;, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Handbook of Milk Powder Manufacture. , (2012).</li><li>Patel, K. C., Chen, X. D., Kar, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+temperature+uniformity+during+air+drying+of+a+colloidal+liquid+droplet.">The temperature uniformity during air drying of a colloidal liquid droplet.</a> Drying Technology. 23 (12), 2337-2367 (2005).</li><li>Son, S. -. H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Antioxidant+and+immunostimulatory+effect+of+potential+probiotic+Lactobacillus+paraplantarum+SC61+isolated+from+Korean+traditional+fermented+food,+jangajji.">Antioxidant and immunostimulatory effect of potential probiotic Lactobacillus paraplantarum SC61 isolated from Korean traditional fermented food, jangajji.</a> Microbial Pathogenesis. 125, 486-492 (2018).</li><li>Choi, E. A., Chang, H. C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cholesterol-lowering+effects+of+a+putative+probiotic+strain+Lactobacillus+plantarum+EM+isolated+from+kimchi.">Cholesterol-lowering effects of a putative probiotic strain Lactobacillus plantarum EM isolated from kimchi.</a> LWT- Food Science and Technology. 62 (1), 210-217 (2015).</li><li>Kiep&#347;, J., Dembczy&#324;ski, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Current+trends+in+the+production+of+probiotic+formulations.">Current trends in the production of probiotic formulations.</a> Foods. 11 (15), 2330 (2022).</li><li>Kiekens, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Impact+of+spray-drying+on+the+pili+of+Lactobacillus+rhamnosus+GG.">Impact of spray-drying on the pili of Lactobacillus rhamnosus GG.</a> Microbial Biotechnology. 12 (5), 849-855 (2019).</li><li>Huang, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Spray+drying+of+probiotics+and+other+food-grade+bacteria:+A+review.">Spray drying of probiotics and other food-grade bacteria: A review.</a> Trends in Food Science and Technology. 63, 1-17 (2017).</li><li>Wang, N., Fu, N., Chen, X. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+extent+and+mechanism+of+the+effect+of+protectant+material+in+the+production+of+active+lactic+acid+bacteria+powder+using+spray+drying:+A+review.">The extent and mechanism of the effect of protectant material in the production of active lactic acid bacteria powder using spray drying: A review.</a> Current Opinion in Food Science. 44, 100807 (2022).</li><li>Broeckx, G., Vandenheuvel, D., Claes, I. J. J., Lebeer, S., Kiekens, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drying+techniques+of+probiotic+bacteria+as+an+important+step+towards+the+development+of+novel+pharmabiotics.">Drying techniques of probiotic bacteria as an important step towards the development of novel pharmabiotics.</a> International Journal of Pharmaceutics. 505 (1-2), 303-318 (2016).</li><li>Zheng, X., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+mechanisms+of+the+protective+effects+of+reconstituted+skim+milk+during+convective+droplet+drying+of+lactic+acid+bacteria.">The mechanisms of the protective effects of reconstituted skim milk during convective droplet drying of lactic acid bacteria.</a> Food Research International. 76, 478-488 (2015).</li><li>Kolida, S., Tuohy, K., Gibson, G. R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Prebiotic+effects+of+inulin+and+oligofructose.">Prebiotic effects of inulin and oligofructose.</a> British Journal of Nutrition. 87 (S2), S193-S197 (2002).</li><li>Teferra, T. F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Possible+actions+of+inulin+as+prebiotic+polysaccharide:+A+review.">Possible actions of inulin as prebiotic polysaccharide: A review.</a> Food Frontiers. 2 (4), 407-416 (2021).</li><li>Labuza, T. P., Altunakar, B., Barbosa-Canovas, G. V., Fontana, A. J., Schmidt, S. J., Labuza, T. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Water+activity+prediction+and+moisture+sorption+isotherms.">Water activity prediction and moisture sorption isotherms.</a> Water Activity in Foods: Fundamentals and Applications. , 161-205 (2020).</li><li>Misra, S., Pandey, P., Mishra, H. N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Novel+approaches+for+co-encapsulation+of+probiotic+bacteria+with+bioactive+compounds,+their+health+benefits+and+functional+food+product+development:+A+review.">Novel approaches for co-encapsulation of probiotic bacteria with bioactive compounds, their health benefits and functional food product development: A review.</a> Trends in Food Science &amp; Technology. 109, 340-351 (2021).</li><li>Misra, S., Pandey, P., Dalbhagat, C. G., Mishra, H. N. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Emerging+technologies+and+coating+materials+for+improved+probiotication+in+food+products:+A+review.">Emerging technologies and coating materials for improved probiotication in food products: A review.</a> Food and BioprocessTechnology. 15 (5), 998-1039 (2022).</li><li>Martins, E., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Determination+of+ideal+water+activity+and+powder+temperature+after+spray+drying+to+reduce+Lactococcus+lactis+cell+viability+loss.">Determination of ideal water activity and powder temperature after spray drying to reduce Lactococcus lactis cell viability loss.</a> Journal of Dairy Science. 102 (7), 6013-6022 (2019).</li><li>Vock, S., Kl&#246;den, B., Kirchner, A., Wei&#223;g&#228;rber, T., Kieback, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Powders+for+powder+bed+fusion:+A+review.">Powders for powder bed fusion: A review.</a> Progress in Additive Manufacturing. 4, 383-397 (2019).</li></ol>

The authors have no conflicts of interest to declare.

L. paraplantarum FT-259 is a Gram-positive, rod-shaped bacterium, is a producer of bacteriocins with antilisterial activity, and has high probiotic potential20. Son et al.24 previously demonstrated the immunostimulant and antioxidant capacity of L. paraplantarum strains. Besides, they have great probiotic potential, with properties such as stability under artificial gastric and bile conditions, susceptibility to antibiotics, and binding to intestinal cells...

To be defined as probiotics, microorganisms added to foods (or supplements) have to be consumed alive, be able to survive during passage in the gastrointestinal tract of the host, and reach the site of action in adequate amounts to exert beneficial effects1,2,7.
The growing interest in probiotics is due to the several benefits to human health they confer, such as the stimulation of the immune system, the reduction of serum cholesterol levels, and the enhancement of gut barrier function by acting against harmful microbes, as well as their beneficial effects in the treatment of the irritable bowel syndrome, among others2,3. In addition, several studies have demonstrated that probiotics can positively affect other parts of the human body where unbalanced microbial communities can cause infectious diseases3,4,5.
For probiotics to be therapeutically effective, the product should contain between 106-107 CFU/g of bacteria at the time of consumption6. On the other hand, the Italian Ministry of Health and Health Canada have established that the minimum level of probiotics in food should be 109 CFU/g of viable cells per day or per serving, respectively7. Considering high loads of probiotics are needed to guarantee they will have beneficial effects, it is essential to guarantee their survival during processing, shelf storage, and passage through the gastrointestinal (GI) tract. Several studies have demonstrated that microencapsulation is an effective method to improve the overall viability of probiotics8,9,10,11.
In this context, several methods have been developed for the microencapsulation of probiotics, such as spray-drying, freeze-drying, spray-chilling, emulsion, extrusion, coacervation, and, more recently, fluidized beds11,12,13,14. Microencapsulation by spray-drying (SD) is widely used in the food industry because it is a simple, fast, and reproducible process. It is easy to scale up, and it has a high production yield at low energy requirements11,12,13,14. Nonetheless, the exposure to high temperatures and low moisture content can affect the survival and viability of the probiotic cells15. Both parameters can be improved for a given strain by determining the effects of culture age and conditions to pre-adapt the culture and optimize the spray-drying conditions (inlet and outlet temperatures, atomization process) and the encapsulating composition8,14,16,17,18.
The composition of the encapsulating solution is also an important factor during SD as it can define the level of protection against adverse environmental conditions. Inulin, Arabic gum, maltodextrins, and skim milk are widely used as encapsulating agents for probiotic drying5,17,18,19. Inulin is a fructooligosaccharide that presents a strong prebiotic activity and promotes intestinal health19. Skim milk is very effective in maintaining the viability of dried bacterial cells and generates a powder with good reconstitution properties17.
Lactiplantibacillus paraplantarum FT-259 is a lactic acid bacterium that produces bacteriocin and presents antilisterial activity, besides probiotic traits20,21. It is a facultative heterofermentative rod-shaped Gram-positive bacterium that grows from 15 &#176;C to 37 &#176;C20 and is compatible with the homeostatic body temperature. This study aimed to present all the steps involved in the production and physicochemical characterization of a spray-dried probiotic (L. paraplantarum FT-259) and evaluate the influence of the protectants and drying temperatures.

<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Aqua Lab 4TEV</td>
			<td>Decagon Devices</td>
			<td>-</td>
			<td>Water activity meter</td>
		</tr>
		<tr>
			<td>Centrifuge (mod. 5430 R )</td>
			<td>Eppendorf</td>
			<td>-</td>
			<td>Centrifuge</td>
		</tr>
		<tr>
			<td>Colloidal SiO2 (Aerosil 200)</td>
			<td>Evokik</td>
			<td>7631-86-9</td>
			<td>drying aid</td>
		</tr>
		<tr>
			<td>Fructooligosaccharides from chicory</td>
			<td>Sigma-Aldrich</td>
			<td>9005-80-5</td>
			<td>drying aid</td>
		</tr>
		<tr>
			<td>GraphPad Prism (version 8.0) software</td>
			<td>GraphPad Software</td>
			<td>-</td>
			<td>San Diego, California, USA</td>
		</tr>
		<tr>
			<td>Karl Fischer 870 Titrino Plus</td>
			<td>Metrohm</td>
			<td>-</td>
			<td>Moisture content</td>
		</tr>
		<tr>
			<td>Lactose</td>
			<td>Milkaut</td>
			<td>63-42-3&#160;</td>
			<td>drying aid</td>
		</tr>
		<tr>
			<td>Maltodextrin</td>
			<td>Ingredion</td>
			<td>9050-36-6</td>
			<td>drying aid</td>
		</tr>
		<tr>
			<td>Milli-Q</td>
			<td>Merk</td>
			<td>-</td>
			<td>Ultrapure water system</td>
		</tr>
		<tr>
			<td>MRS Agar</td>
			<td>Oxoid</td>
			<td>-</td>
			<td>Culture medium</td>
		</tr>
		<tr>
			<td>MRS Broth</td>
			<td>Oxoid</td>
			<td>-</td>
			<td>Culture medium</td>
		</tr>
		<tr>
			<td>OriginPro (version 9.0) software</td>
			<td>OriginLab</td>
			<td>-</td>
			<td>Northampton, Massachusetts, USA</td>
		</tr>
		<tr>
			<td>Spray dryer SD-05</td>
			<td>Lab-Plant Ltd</td>
			<td>-</td>
			<td>Spray dryer</td>
		</tr>
		<tr>
			<td>Whey protein</td>
			<td>Arla Foods Ingredients S.A.</td>
			<td>91082-88-1</td>
			<td>drying aid</td>
		</tr>
	</tbody>
</table>

process development for the spray-drying of probiotic bacteria and evaluation of the product quality

Probiotics and prebiotics are of great interest to the food and pharmaceutical industries due to their health benefits. Probiotics are live bacteria that can confer beneficial effects on human and animal wellbeing, while prebiotics are types of nutrients that feed the beneficial gut bacteria. Powder probiotics have gained popularity due to the ease and practicality of their ingestion and incorporation into the diet as a food supplement. However, the drying process interferes with cell viability since high temperatures inactivate probiotic bacteria. In this context, this study aimed to present all the steps involved in the production and physicochemical characterization of a spray-dried probiotic and evaluate the influence of the protectants (simulated skim milk and inulin:maltodextrin association) and drying temperatures in increasing the powder yield and cell viability. The results showed that the simulated skim milk promoted higher probiotic viability at 80 &#176;C. With this protectant, the probiotic viability, moisture content, and water activity (Aw) reduce as long as the inlet temperature increases. The probiotics&#39; viability decreases conversely with the drying temperature.&#160;At temperatures close to 120 &#176;C, the dried probiotic showed viability around 90%, a moisture content of 4.6% w/w, and an Aw of 0.26; values adequate to guarantee product stability. In this context, spray-drying temperatures above 120 &#176;C are required to ensure the microbial cells&#39; viability and shelf-life in the powdered preparation and survival during food processing and storage.

In this study, L. paraplantarum was encapsulated by SD using food-grade encapsulating agents (inulin:maltodextrin and simulated milk powder), showing high product quality and efficacy in preserving the bacterial cell viability17,19.
The results of the SD of probiotics at 80 &#176;C showed that the distinct protectants systems (inulin:maltodextrin and simulated skim milk) promoted efficient protection of the probiotic cells, wi...

Watch this Scientific Journal Video about Process Development for the Spray-Drying of Probiotic Bacteria and Evaluation of the Product Quality at JoVE.com

Author Spotlight: Process Development for the Spray-Drying of Probiotic Bacteria and Evaluation of the Product Quality

This protocol details the steps involved in the production and physicochemical characterization of a spray-dried probiotic product.

Process Development for the Spray-Drying of Probiotic Bacteria and Evaluation of the Product Quality

Probiotics and prebiotics are of great interest to the food and pharmaceutical industries due to their health benefits. Probiotics are live bacteria that ...
